2 zone 42,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 24k+24k
Bravo7-Yr WarrantySKU: BRV-M42-230VO/M24WM+M24WM-NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 24.0
- WiFi
- Included
- Zone
- Dual Zone
- Type
- Wall Mount
- Freon
R32
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M42-230VO/M24WM+M24WM-NO/NO
System Specs
| Cooling Capacity | 42,000 (range 8,350-46,000) BTU/h |
|---|---|
| Heating Capacity | 42,000 (range 8,450-53,000) BTU/h |
| SEER2 | 24.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Climate Range | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Sound Level (indoor) | 46/42/40 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 44.13 × 12.95 × 9.09 in | 33.07 / 39.68 lb | Remote controller |
Milano Series Description
The Bravo Milano 2-Zone Ductless Mini Split System features two wall-mounted zones, each with 24,000 BTU cooling capacity, providing a total of 42,000 BTU. Equipped with R32 refrigerant, a SEER2 rating of 24, and smart app control via Wi-Fi, this system offers efficient cooling and heating down to -13°F ambient temperatures.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

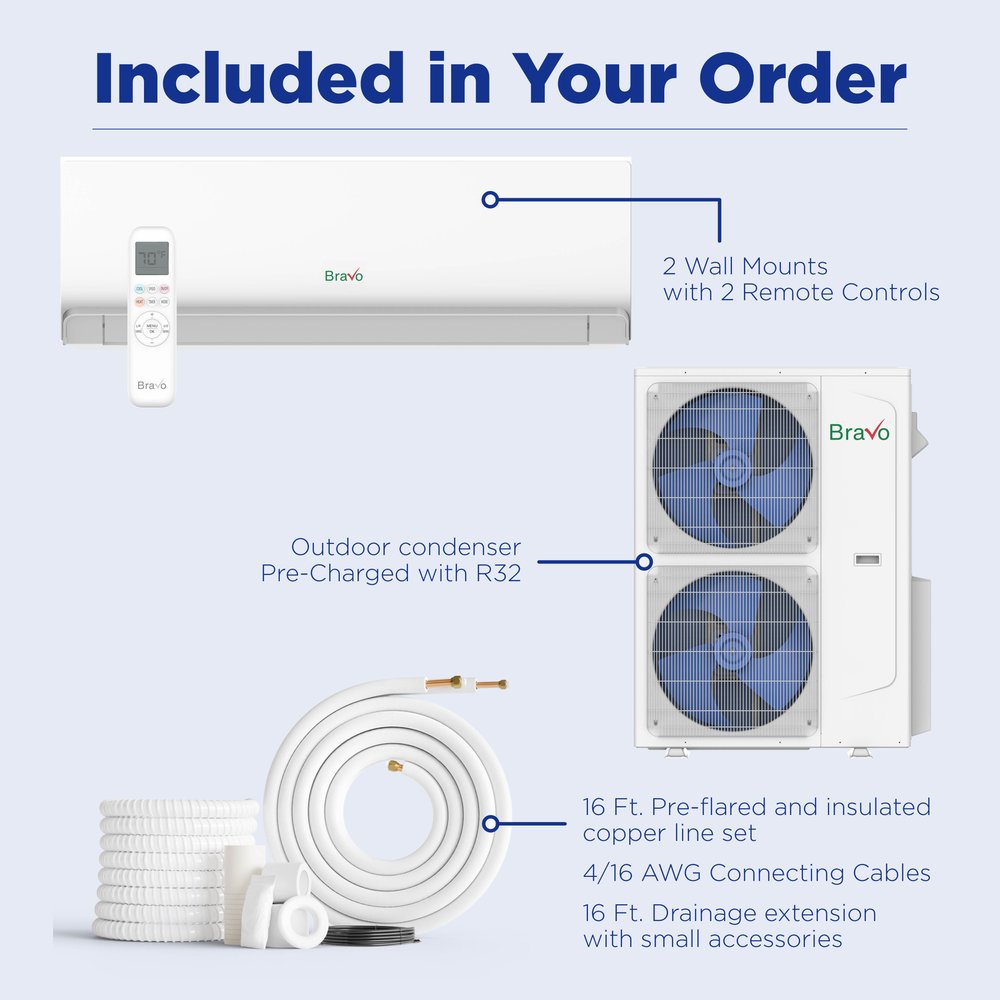

IN THE BOX
Everything included with this system
- Bravo Milano 42,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
- Bravo Milano 24,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump × 2
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M42-230VO
| Model | BRV-M42-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 39.80x15.75x51.97 in |
| Net/Gross Weight | 205.0/224.9 lb |
| Packing Dimensions (WxDxH) | 42.52x16.93x56.69 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 45 A |
| Min. Circuit Ampacity | 32 A |
| Copper Line Size (Liquid/Gas) | 5x1/4"- 5x3/8" |
| Noise Level | 60 dB |
| Airflow | 4,235 CFM |
Indoor Unit Specs— BRV-M24WM-230VI
| Model | BRV-M24WM-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 44.13×12.95×9.09 in |
| Net/Gross Weight | 33.07/39.68 lb |
| Packing Dimensions (WxDxH) | 47.64×15.75×12.87 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/5/8" |
| Noise Level (Hi/Med/Lo) | 46/42/40 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 765 CFM |
| Dehumidification | 5.43 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | Remote controller |
System Specs
| Cooling Capacity (Range) | 42,000 (range 8,350-46,000) Btu/h |
|---|---|
| Heating Capacity (Range) | 42,000 (range 8,450-53,000) Btu/h |
| SEER2 | 24 |
| HSPF2 (Region IV) | 10.5 |
| COP | 3.9 |
| Refrigerant | R32 |
| Outdoor MCA / Max. Fuse | 32 A / 45 A |
| Max. Connectable Indoor Units | up to 5 |
| Outdoor Airflow | 4,235 CFM |
| Outdoor Noise Level | 60 dB(A) |
| Pre-charged Line Length | 24.6 ft |
| Max. Line Length — Total / Per Indoor | 263 ft / 115 ft |
| Operating Range — Cooling / Heating | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Outdoor Dimensions (W×D×H) | 39.80 × 15.75 × 51.97 in |
| Outdoor Net / Gross Weight | 205.0 / 224.9 lbs |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Parameter
| Specification | Indoor Model |
|---|---|
| BRV-M07WM-230VI | BRV-M09WM-230VI |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling Rated CapacityBtu/h | 7,000 |
| Heating Rated CapacityBtu/h | 7,000 |
| Max FuseA | 5 |
| Indoor Air FlowCFM | 353 |
| Indoor Noise LeveldB(A) | 40 |
| Indoor Unit Dimensions (WxDxH)in | 31.02x7.80x11.50 |
| Indoor Unit Packing (WxDxH)in | 34.65x14.57x11.42 |
| Indoor Unit Net/Gross Weightlbs. | 17.60/22.00 |
| Refrigerant Piping Liquid / Gas Sidein | 1/4’’ / 3/8’’ |
| Operation Temperature Range°F | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Which system is right for you?
| Your selectionBravo2 zone 42,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 24k+24k$2,914.70 |  BravoBravo 42,000 BTU 2-Zone 9k+9k Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$2,655.50 |  BravoBravo 42,000 BTU 3-Zone 9k+9k+9k Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$2,868.04 |  BravoBravo 42,000 BTU 4-Zone 9k+9k+9k+9k Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$3,080.59 | |
|---|---|---|---|---|
| Cooling Capacity | 42,000 BTU/h | 42,000 BTU/h | 42,000 BTU/h | 42,000 BTU/h |
| SEER2 Rating | 24.0 | 24.0 | 24.0 | 24.0 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Zones | Dual Zone | Dual Zone | Three Zone | Four Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can the Bravo 42,000 BTU mini split system cool?
The Bravo 42,000 BTU ductless mini split system is designed to efficiently cool multiple rooms, typically up to 2 zones, depending on the layout and size of the spaces. Each 24k unit can effectively cover substantial areas, making it suitable for larger homes or combined living spaces.
Can I mix different BTU sizes in a multi-zone mini split like the Bravo?
Yes, you can mix different BTU sizes in a multi-zone mini split system, including the Bravo 42,000 BTU model. However, it's crucial to ensure that the total BTU capacity matches the cooling load requirements for optimal performance.
Do all zones of the Bravo mini split system run simultaneously?
In the Bravo 42,000 BTU multi-zone system, you can control each zone independently, allowing for simultaneous operation or individual zone cooling based on your needs. This flexibility helps in managing energy efficiency and comfort.
What is the efficiency advantage of using the Bravo 42,000 BTU mini split compared to multiple single-zone units?
The Bravo mini split offers a high SEER rating of 24.0, providing significant energy savings and efficiency compared to multiple single-zone units. This efficiency, combined with the ability to cool two zones, makes it a more cost-effective choice for larger spaces.
What warranty does the Bravo mini split system offer?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo 42,000 BTU mini split system is pre-charged with R32 refrigerant for up to 25 ft of line set, making installation simpler and more efficient. This feature allows for a quicker setup while ensuring optimal cooling performance right from the start.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+9kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 12k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+9kFree Shipping
The Bravo Milano 2-Zone Ductless Mini Split System features two wall-mounted zones, each with 24,000 BTU cooling capacity, providing a total of 42,000 BTU. Equipped with R32 refrigerant, a SEER2 rating of 24, and smart app control via Wi-Fi, this system offers efficient cooling and heating down to -13°F ambient temperatures.
Key Features
- 2-zone system — the BRV-M42-230VO outdoor unit powers 2 independently controlled Bravo Milano indoor units (up to 5 max)
- 42,000 BTU nominal capacity across 2 zones, each room on its own remote
- 24 SEER2 inverter efficiency — cools and heats from one system
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged; smart app control
This System’s Zones
| Zone | Indoor Unit | Cooling | Type |
| 1 | BRV-M24WM-230VI | 24,000 Btu/h | Wall Mount |
| 2 | BRV-M24WM-230VI | 24,000 Btu/h | Wall Mount |
