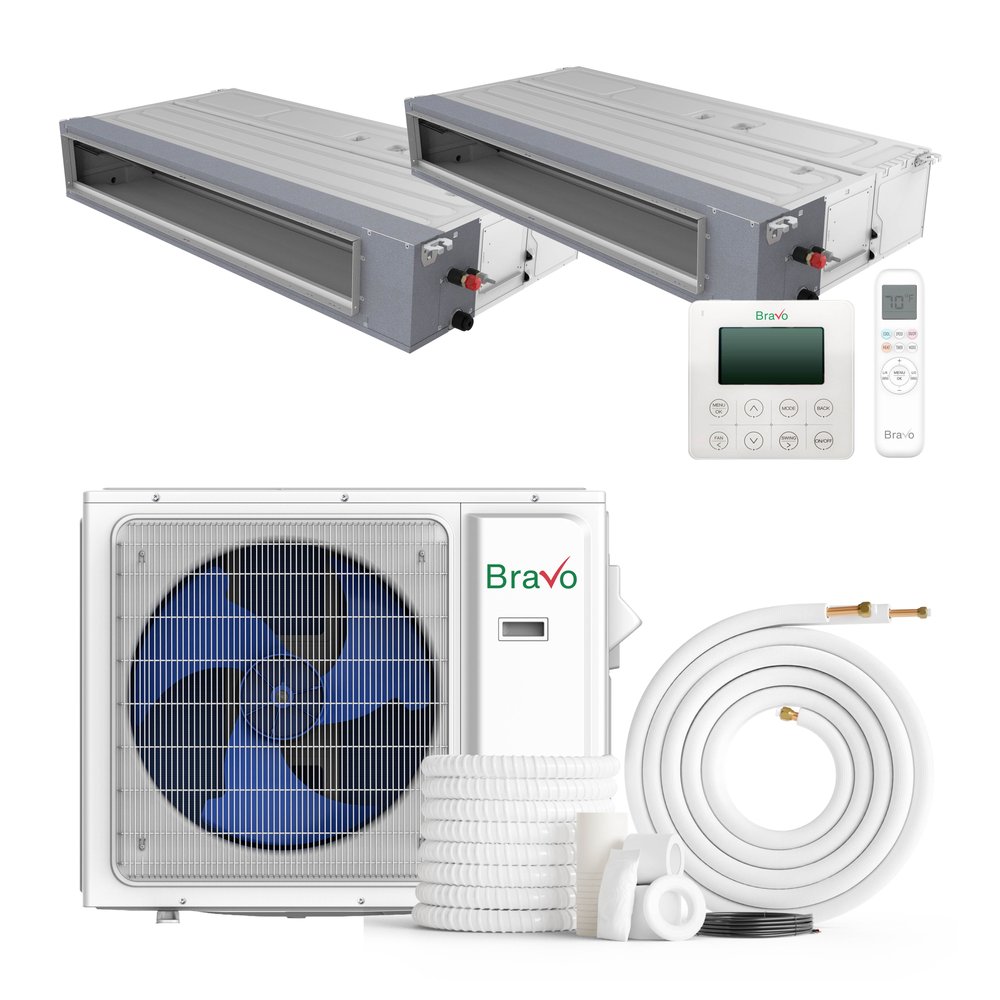

Bravo Milano 18,000 BTU Indoor Slim Duct, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M18DT-230VI
Product specifications
- Voltage
- 230V
- WiFi
- Not Included
- Type
- Slim Duct
- Freon
R32
Choose Your Configuration

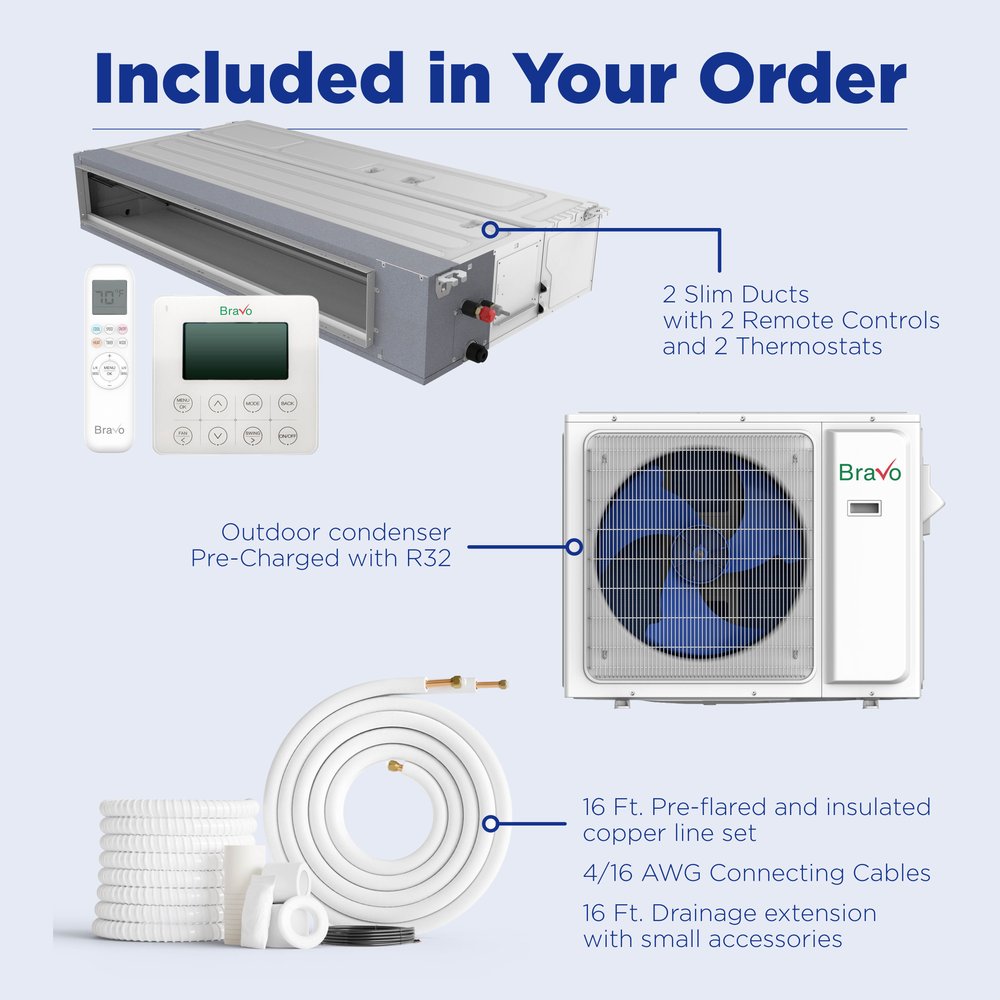

“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M18DT-230VI
System Specs
| Cooling Capacity | 18,000 BTU/h |
|---|---|
| Heating Capacity | 18,000 / 19,000 BTU/h |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 39/36/33 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 27.56 × 27.56 × 9.65 in | 47.4 / 56.2 lb | Wired controller |
Milano Series Description
The Bravo Milano 18,000 BTU indoor slim duct unit (model BRV-M18DT-230VI) provides cooling at 18,000 BTU and heating at 19,000 BTU using R32 refrigerant. Designed as a slim duct indoor unit, it is compatible with multi-zone systems for versatile installation options.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— BRV-M18DT-230VI
| Model | BRV-M18DT-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 27.56×27.56×9.65 in |
| Net/Gross Weight | 47.4/56.2 lb |
| Packing Dimensions (WxDxH) | 36.61×32.68×11.81 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 39/36/33 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 530 CFM |
| Dehumidification | 3.38 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | wired controller |
System Specs
| Cooling / Heating Capacity | 18,000 / 19,000 Btu/h |
|---|---|
| Indoor Airflow | 530 CFM |
| Indoor Noise Level | 39 dB(A) |
| Refrigerant | R32 |
| Line Connections (Liquid / Gas) | 1/4 in / 1/2 in |
| Dimensions (W×D×H) | 27.56 × 27.56 × 9.65 in |
| Net / Gross Weight | 47.4 / 56.2 lbs |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | BRV-M18DT-230VIThis model | BRV-M09DT-230VI | BRV-M12DT-230VI | BRV-M24DT-230VI |
|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling | 12,000 | Rated Capacity | 9,000 | 18,000 |
| Btu/h | 18,000 | 9,000 | 12,000 | 24,000 |
| Heating | 12,000 | Rated Capacity | 10,000 | 19,000 |
| Btu/h | 19,000 | 10,000 | 12,000 | 24,600 |
| Max Fuse | 5 | 5 | 5 | 5 |
| Indoor Air Flow | 530 | 353 | 353 | 795 |
| Indoor Noise Level | 39 | 34 | 34 | 42 |
| Indoor Unit | 27.56×17.72×7.8 | Dimensions (WxDxH) | 27.56×17.72×7.8 | 27.56×27.56×9.65 |
| Packing (WxDxH) | 36.61×32.68×11.81 | 34.25×21.3×10.24 | 34.25×21.3×10.24 | 48.43×32.68×11.81 |
| Net/Gross Weight | 47.4/56.2 | 27.6/33.1 | 27.6/33.1 | 59.5/70.5 |
| Refrigerant Piping | 1/4" / 3/8" | Liquid Side / Gas Side | 1/4" / 3/8" | ◊ 1/4" / 1/2" |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
Outdoor Model
| Specification | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO |
|---|---|---|---|---|---|
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 |
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG |
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 |
Frequently asked questions.
What size mini split do I need for my space?
For a room up to 850 sq ft, the Bravo Milano 18,000 BTU Indoor Slim Duct mini split is an ideal choice. Its capacity is sufficient for medium to large-sized rooms, providing efficient heating and cooling.
How much does a mini split system cost?
The price of the Bravo Milano 18,000 BTU system varies based on the installation kit options you choose, such as 16ft, 25ft, or 50ft. Generally, you should expect to budget for the unit itself plus installation costs.
Can I install a mini split myself?
While some experienced DIYers might consider installing the Bravo Milano 18,000 BTU unit, professional installation is recommended for optimal performance and adherence to local codes. Keep in mind that proper setup is crucial for the unit's 21+ SEER efficiency.
Does the mini split come pre-charged with refrigerant?
Yes, the Bravo Milano 18,000 BTU mini split comes pre-charged with R32 refrigerant for up to 25 ft of line set. This allows for a more straightforward installation process, ensuring optimal cooling and heating performance.
What voltage does the Bravo mini split require?
The Bravo Milano 18,000 BTU mini split operates on a 230V electrical system. Ensuring your electrical setup meets this requirement is essential for the unit to function correctly.
What warranty does the Bravo Milano offer?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R410ASEER2 26.4Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Midnight Black 6,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 9,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R410ASEER2 22.0Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 18,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
The Bravo Milano 18,000 BTU indoor slim duct unit (model BRV-M18DT-230VI) provides cooling at 18,000 BTU and heating at 19,000 BTU using R32 refrigerant. Designed as a slim duct indoor unit, it is compatible with multi-zone systems for versatile installation options.
Key Features
- Slim Duct indoor unit for Bravo Milano multi-zone systems
- 18,000 Btu/h cooling / 19,000 Btu/h heating
- 39 dB(A) indoor sound level
- R32 refrigerant; individually controlled with included remote
- Wall thermostat included
Works With
Connects to any Bravo Milano multi-zone outdoor condenser (BRV-M18 through BRV-M42), sized for the number of indoor units in your system. Choose a copper line-set kit per zone at checkout, or supply your own.
