Bravo Milano 18,000 BTU Indoor Universal Floor/Ceiling, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M18FC-230VI
Product specifications
- Voltage
- 230V
- WiFi
- Not Included
- Type
- Universal Floor/Ceiling
- Freon
R32
Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M18FC-230VI
System Specs
| Cooling Capacity | 18,000 BTU/h |
|---|---|
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 39/35/31 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 39.37 × 9.25 × 27.17 in | 59.5 / 69.5 lb | Remote controller |
Milano Series Description

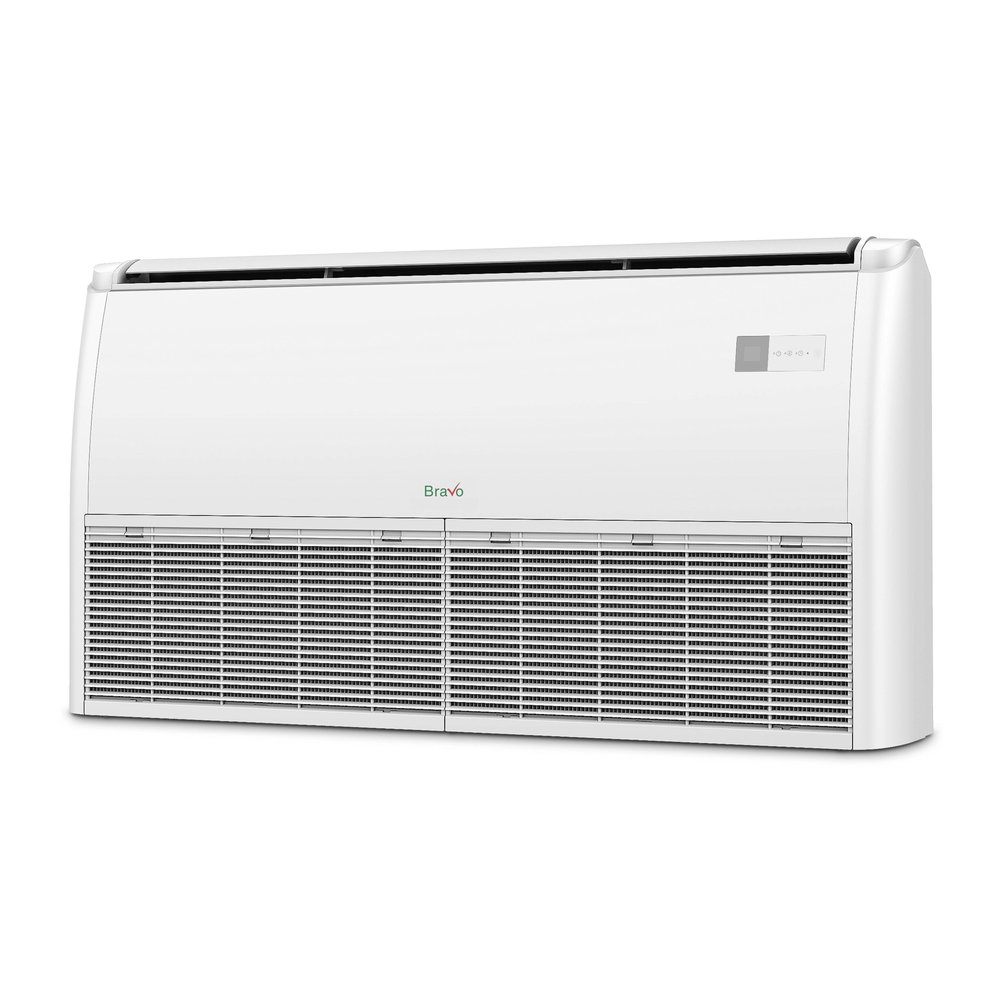

The Bravo Milano 18,000 BTU indoor universal floor/ceiling console (model BRV-M18FC-230VI) uses R32 refrigerant and is designed for multi-zone systems. It functions as a universal floor/ceiling console indoor unit, compatible with various installation configurations.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— BRV-M18FC-230VI
| Model | BRV-M18FC-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 39.37×9.25×27.17 in |
| Net/Gross Weight | 59.5/69.5 lb |
| Packing Dimensions (WxDxH) | 42.52×12.80×30.32 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 39/35/31 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 559 CFM |
| Dehumidification | 3.38 pt/h |
| Filter Dimensions | 17.64*10.3*0.374inch in |
| Drain Pipe Diameter | 1" |
| Controller | Remote controller |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | BRV-M18FC-230VIThis model | BRV-M09FC-230VI | BRV-M12FC-230VI | BRV-M24FC-230VI |
|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling | 12,000 | Rated Capacity | 9,000 | 18,000 |
| Btu/h | 18,000 | 9,000 | 12,000 | 24,000 |
| Heating | 12,000 | Rated Capacity | 11,000 | 18,000 |
| Btu/h | 18,000 | 11,000 | 12,000 | 24,000 |
| Max Fuse | 5 | 5 | 5 | 5 |
| Indoor Air Flow | 530 | 500 | 500 | 824 |
| Indoor Noise Level | 41 | 39 | 39 | 44 |
| Indoor Unit | 39.37×27.17×9.25 | Dimensions (WxDxH) | 39.37×27.17×9.25 | 39.37×27.17×9.25 |
| Packing (WxDxH) | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 53.54×30.32×12.80 |
| Net/Gross Weight | 59.5/69.5 | 57.3/67.2 | 57.3/67.2 | 71.7/83.8 |
| Refrigerant Piping | 1/4" / 3/8" | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 1/2" |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
Outdoor Model
| Specification | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO |
|---|---|---|---|---|---|
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 |
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG |
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 |
Frequently asked questions.
What size mini split do I need for my space?
For coverage up to 850 sq ft, the Bravo Milano 18,000 BTU mini split is ideal for medium to large rooms. Ensure to calculate your space's BTU needs based on insulation and room usage for optimal performance.
How much does a Bravo mini split system cost?
The cost of the Bravo Milano 18,000 BTU mini split system varies based on installation kits, with options ranging from no kit to 50ft kits. It's best to check current pricing on minisplitsforless.com for the most accurate quotes.
Can I install the Bravo Milano mini split myself?
While some homeowners attempt DIY installation, the Bravo Milano 18,000 BTU system requires proper handling of refrigerant and electrical connections. If you're not experienced, hiring a professional is recommended to ensure compliance with safety standards.
Does the Bravo Milano mini split come pre-charged with refrigerant?
Yes, the Bravo Milano 18,000 BTU mini split comes pre-charged with R32 refrigerant for up to 25 ft of line set, making installation simpler. Always verify local regulations regarding refrigerant handling.
What voltage does the Bravo Milano mini split require?
The Bravo Milano operates on a 230V system, which is standard for many ductless mini splits. Ensure your electrical setup matches this voltage for optimal operation.
What warranty does the Bravo Milano offer?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R410ASEER2 26.4Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Midnight Black 6,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 9,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R410ASEER2 22.0Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 18,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
The Bravo Milano 18,000 BTU indoor universal floor/ceiling console (model BRV-M18FC-230VI) uses R32 refrigerant and is designed for multi-zone systems. It functions as a universal floor/ceiling console indoor unit, compatible with various installation configurations.
Key Features
- Universal Floor/Ceiling Console indoor unit for Bravo Milano multi-zone systems — floor- or ceiling-mountable
- 18,000 Btu/h nominal cooling capacity
- R32 refrigerant; individually controlled with included remote
- Heat pump — cools and heats when paired with a Bravo Milano condenser
Detailed specifications for this console head are confirmed at order; capacity shown is nominal.
Works With
Connects to any Bravo Milano multi-zone outdoor condenser (BRV-M18 through BRV-M42), sized for the number of indoor units in your system. Choose a copper line-set kit per zone at checkout, or supply your own.
