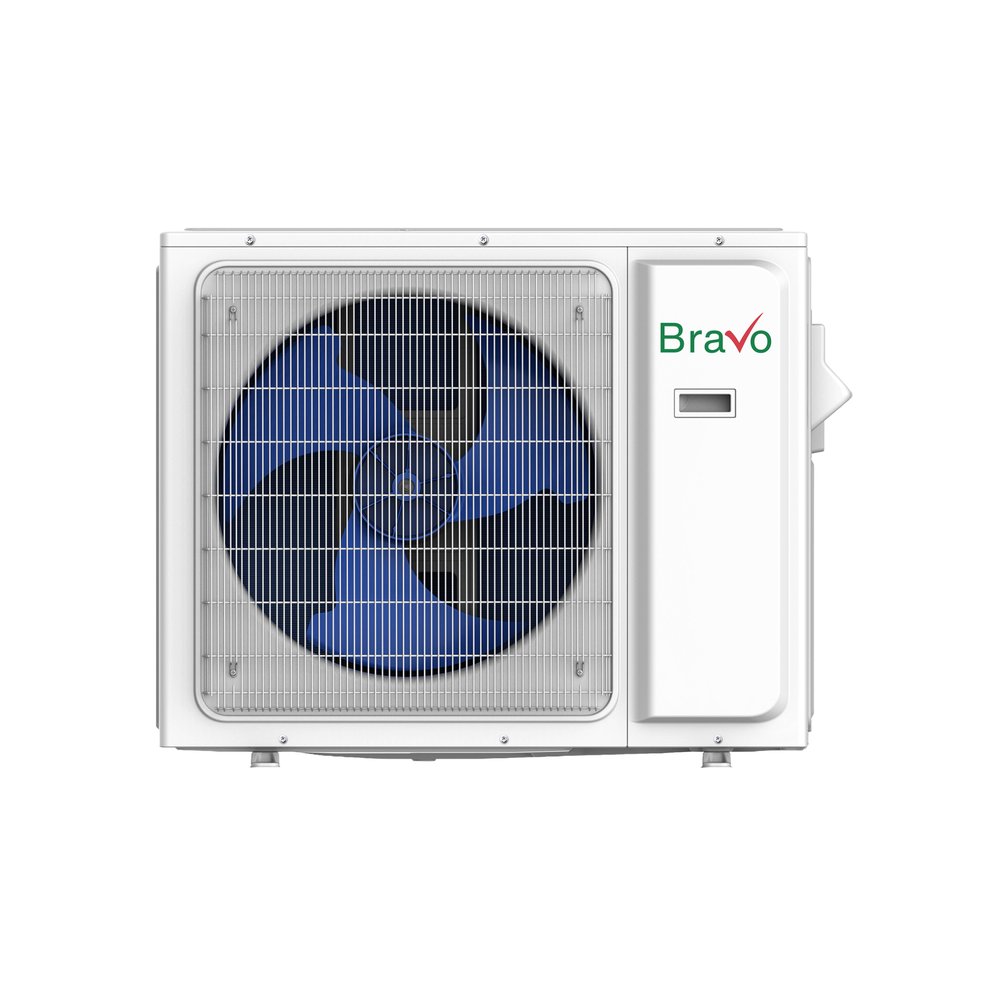

Bravo Milano 18,000 BTU Outdoor Condenser, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M18-230VO
Product specifications
- Voltage
- 230V
- WiFi
- Not Included
- Type
- Outdoor Unit
- Freon
R32
Choose Your Configuration
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M18-230VO
System Specs
| Cooling Capacity | 17,700 (range 3,800-19,800) BTU/h |
|---|---|
| Heating Capacity | 18,000 (range 4,200-22,000) BTU/h |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Climate Range | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Sound Level (indoor) | 54 dB(A) |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Milano Series Description
The Bravo Milano BRV-M18-230VO outdoor condenser (heat pump) provides 17,700 BTU cooling and 18,000 BTU heating with a high-efficiency SEER2 rating of 22, using R32 refrigerant for optimal performance. Designed for up to two zones, this unit operates effectively in temperatures as low as -13°F, making it a versatile solution for multi-zone climate control systems.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M18-230VO
| Model | BRV-M18-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 34.65×13.90×21.93 in |
| Net/Gross Weight | 75.0/80.5 lb |
| Packing Dimensions (WxDxH) | 35.55×15.04×24.21 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 20 A |
| Min. Circuit Ampacity | 15 A |
| Copper Line Size (Liquid/Gas) | 2x1/4"- 2x3/8" |
| Noise Level | 54 dB |
| Airflow | 1,529 CFM |
System Specs
| Cooling Capacity (Range) | 17,700 (range 3,800-19,800) Btu/h |
|---|---|
| Heating Capacity (Range) | 18,000 (range 4,200-22,000) Btu/h |
| SEER2 | 22 |
| HSPF2 (Region IV) | 10 |
| COP | 3.8 |
| Refrigerant / Charge | R32 / 38.8 oz |
| Outdoor MCA / Max. Fuse | 15 A / 20 A |
| Max. Connectable Indoor Units | up to 2 |
| Outdoor Airflow | 1,529 CFM |
| Outdoor Noise Level | 54 dB(A) |
| Pre-charged Line Length | 24.6 ft |
| Max. Line Length — Total / Per Indoor | 131 ft / 82 ft |
| Operating Range — Cooling / Heating | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Outdoor Dimensions (W×D×H) | 34.65 × 13.90 × 21.93 in |
| Outdoor Net / Gross Weight | 75.0 / 80.5 lbs |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Parameter
| Specification | Indoor Model |
|---|---|
| BRV-M07WM-230VI | BRV-M09WM-230VI |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling Rated CapacityBtu/h | 7,000 |
| Heating Rated CapacityBtu/h | 7,000 |
| Max FuseA | 5 |
| Indoor Air FlowCFM | 353 |
| Indoor Noise LeveldB(A) | 40 |
| Indoor Unit Dimensions (WxDxH)in | 31.02x7.80x11.50 |
| Indoor Unit Packing (WxDxH)in | 34.65x14.57x11.42 |
| Indoor Unit Net/Gross Weightlbs. | 17.60/22.00 |
| Refrigerant Piping Liquid / Gas Sidein | 1/4’’ / 3/8’’ |
| Operation Temperature Range°F | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Frequently asked questions.
What size mini split do I need for my space?
For spaces up to 850 sq ft, the Bravo Milano 18,000 BTU Mini Split is an excellent choice. This capacity ensures efficient cooling and heating for medium-sized rooms.
Can I install a mini split myself, or do I need a professional?
While it's possible to install the Bravo Milano Mini Split yourself, it's recommended to hire a professional for optimal performance. The installation requires proper handling of refrigerants and knowledge of electrical connections, especially since it operates on 230V.
Does the mini split come pre-charged with refrigerant?
Yes, the Bravo Milano Mini Split comes pre-charged with R32 refrigerant for installations with up to 25 ft of line set. This feature simplifies the installation process, allowing for immediate operation.
What voltage does the Bravo Milano mini split require?
The Bravo Milano 18,000 BTU Mini Split operates on a 230V power supply. Ensure your electrical system can accommodate this voltage for proper functionality.
What warranty does Bravo offer for their mini split systems?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
What is the SEER rating of the Bravo Milano mini split, and why is it important?
The Bravo Milano Mini Split boasts a SEER rating of 21+, which indicates high energy efficiency. A higher SEER rating means greater savings on energy bills and a reduced environmental impact, making it an excellent choice for eco-conscious consumers.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R410ASEER2 26.4Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Midnight Black 6,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 9,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R410ASEER2 22.0Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 18,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
The Bravo Milano BRV-M18-230VO outdoor condenser (heat pump) provides 17,700 BTU cooling and 18,000 BTU heating with a high-efficiency SEER2 rating of 22, using R32 refrigerant for optimal performance. Designed for up to two zones, this unit operates effectively in temperatures as low as -13°F, making it a versatile solution for multi-zone climate control systems.
Key Features
- Multi-zone outdoor condenser — connects up to 2 Bravo Milano indoor units, each independently controlled
- 17,700 (range 3,800-19,800) Btu/h cooling / 18,000 (range 4,200-22,000) Btu/h heating (rated / inverter range)
- 22 SEER2 inverter efficiency
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged
- Compatible with all Bravo Milano heads — wall mount, ceiling cassette, slim duct, and floor console
