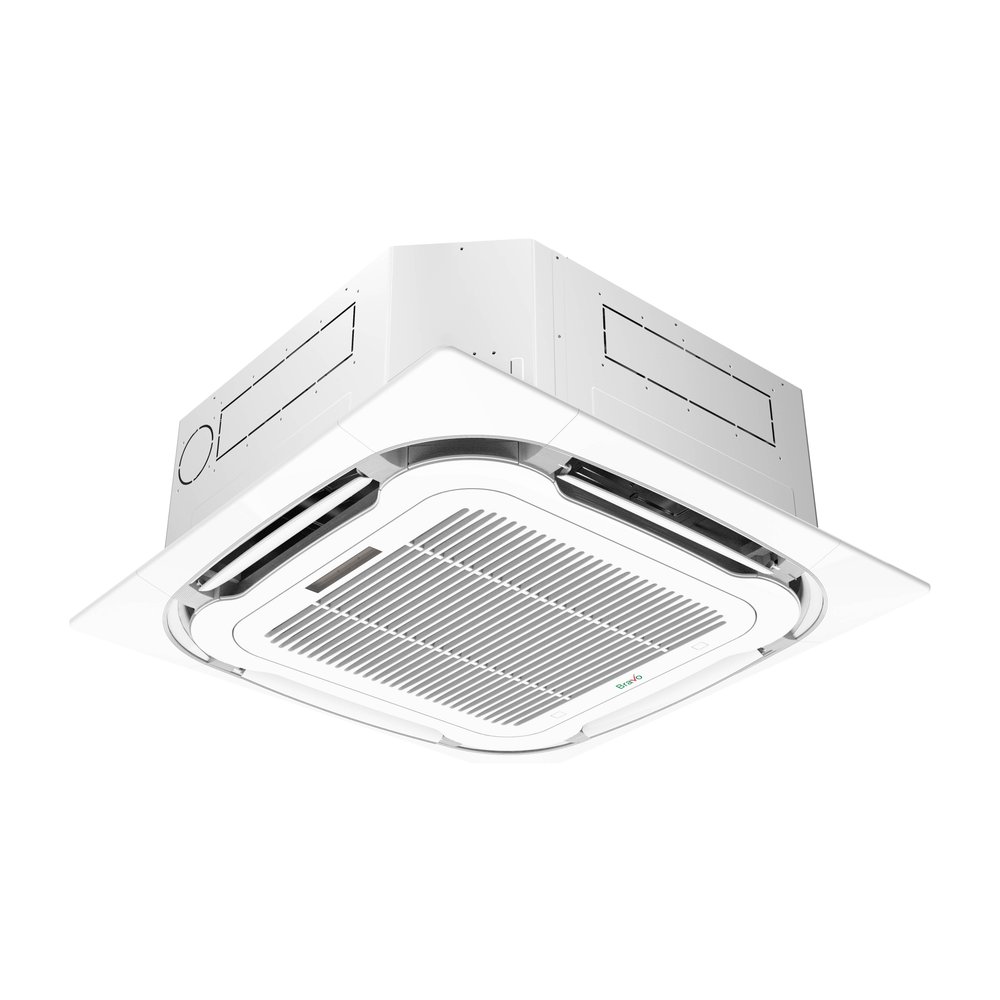

Bravo Milano 24,000 BTU Indoor Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M24CT-230VI
Product specifications
- Voltage
- 230V
- WiFi
- Not Included
- Type
- Ceiling Cassette
- Freon
R32
Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M24CT-230VI
System Specs
| Cooling Capacity | 24,000 BTU/h |
|---|---|
| Heating Capacity | 24,000 / 24,000 BTU/h |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 47/46/43 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 33.07 × 33.07 × 9.69 in | 52.9 / 61.7 lb | Wired controller |
Milano Series Description
The Bravo Milano 24,000 BTU indoor ceiling cassette (model BRV-M24CT-230VI) provides both cooling and heating with 24,000 BTU capacity, using R32 refrigerant for efficient performance. Designed as a ceiling cassette indoor unit, it is compatible with multi-zone systems for flexible climate control solutions.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
IN THE BOX
Everything included with this system
- Indoor Ceiling Cassette — BRV-M24CT-230VI
- Indoor Ceiling Cassette — BRV-PN24CT
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— BRV-M24CT-230VI
| Model | BRV-M24CT-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 33.07×33.07×9.69 in |
| Net/Gross Weight | 52.9/61.7 lb |
| Packing Dimensions (WxDxH) | 35.83×35.83×12.20 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/5/8" |
| Noise Level (Hi/Med/Lo) | 47/46/43 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 824 CFM |
| Dehumidification | 5.43 pt/h |
| Filter Dimensions | 20.94*22.05*0.945inch in |
| Drain Pipe Diameter | 5/8" |
| Controller | wired controller |
System Specs
| Cooling / Heating Capacity | 24,000 / 24,000 Btu/h |
|---|---|
| Indoor Airflow | 824 CFM |
| Indoor Noise Level | 47 dB(A) |
| Refrigerant | R32 |
| Line Connections (Liquid / Gas) | 1/4 in / 5/8 in |
| Dimensions (W×D×H) | 33.07 × 33.07 × 9.69 in |
| Net / Gross Weight | 52.9 / 61.7 lbs |
| Ceiling Panel | BRV-PN24CT (included) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Parameter
| Specification | Indoor Model |
|---|---|
| BRV-M09CT-230VIBRV-PN9-18CT | BRV-M12CT-230VIBRV-PN9-18CT |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 9,000 |
| Heating Rated CapacityBtu/h | 10,000 |
| Max FuseA | 5 |
| Indoor Air FlowCFM | 383 |
| Indoor Noise LeveldB(A) | 40 |
| Indoor Unit Dimensions (WxDxH)in | 22.44x22.44x10.24 |
| Indoor Unit Packing (WxDxH)in | 28.35x25.59x11.42 |
| Indoor Unit Net Weightlbs. | 30.9/37.5 |
| Panel Dimensions (WxDxH)in | 25.59x25.59x2.17 |
| Panel Packing (WxDxH)in | 27.95x27.95x3.15 |
| Panel Net/Gross Weightlbs. | 4.9/8.2 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Operation Temperature Range°F | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Frequently asked questions.
What size mini split do I need for my space?
The Bravo Milano 24,000 BTU Indoor Ceiling Cassette is suitable for spaces up to 1200 sq ft. This makes it an excellent choice for larger rooms or open areas requiring effective cooling and heating.
How much does a mini split system like the Bravo Milano cost?
Pricing for the Bravo Milano 24,000 BTU system can vary based on installation kit options, which include 16ft, 25ft, and 50ft choices. For specific pricing, please check our product listings or contact us directly.
Can I install the Bravo Milano mini split myself?
While some homeowners may attempt DIY installation, it's recommended to hire a licensed HVAC professional for the Bravo Milano 24,000 BTU system to ensure proper setup, especially given its 230V requirement and refrigerant handling.
Does the Bravo Milano mini split come pre-charged with refrigerant?
Yes, the Bravo Milano 24,000 BTU unit comes pre-charged with R32 refrigerant for up to 25 ft of line set. This allows for easier installation, but if you exceed that distance, additional refrigerant will be required.
What is the warranty on the Bravo Milano mini split?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
What SEER rating does the Bravo Milano mini split have?
The Bravo Milano boasts an impressive SEER rating of 21+, making it highly efficient for both cooling and heating. This efficiency can lead to lower energy bills compared to less efficient systems.
