Bravo Milano 24,000 BTU Indoor Universal Floor/Ceiling, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M24FC-230VI
Product specifications
- Voltage
- 230V
- WiFi
- Not Included
- Type
- Universal Floor/Ceiling
- Freon
R32
Choose Your Configuration

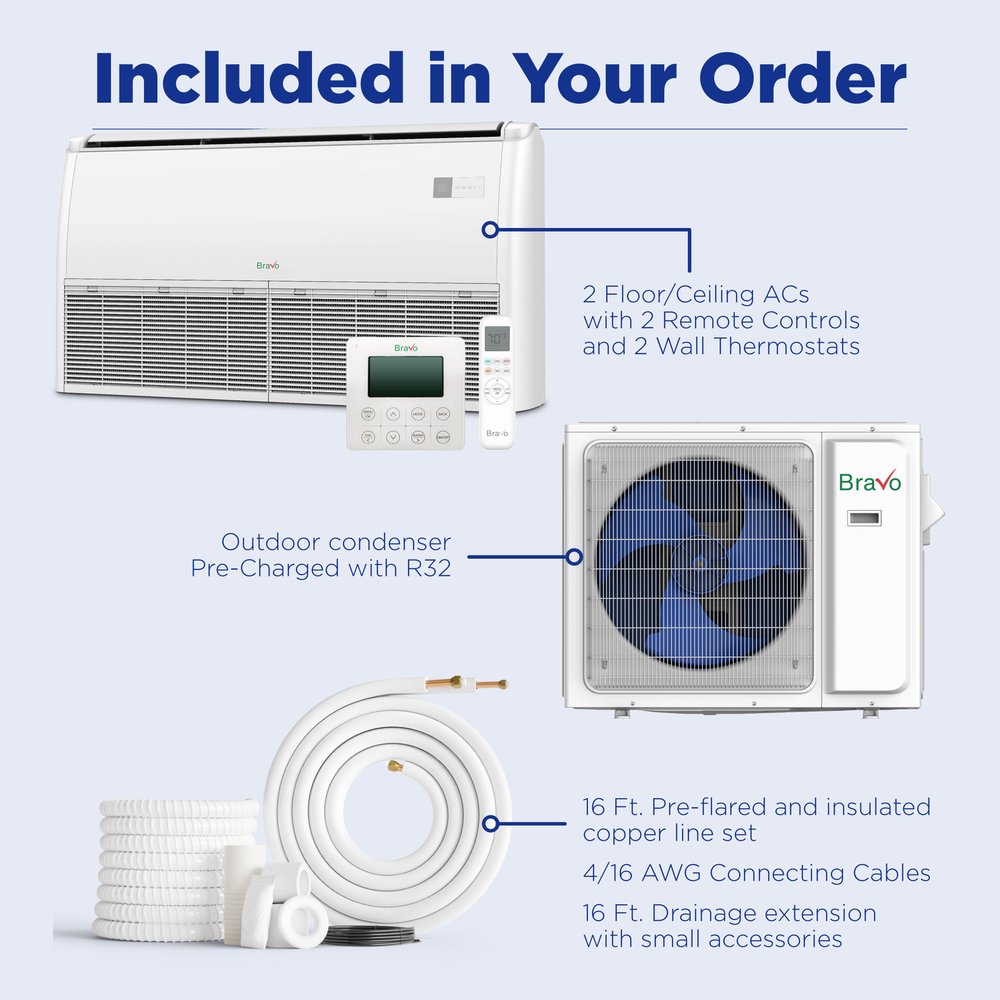

“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M24FC-230VI
System Specs
| Cooling Capacity | 24,000 BTU/h |
|---|---|
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 44/40/37 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 50.39 × 9.25 × 27.17 in | 71.7 / 83.8 lb | Remote controller |
Milano Series Description

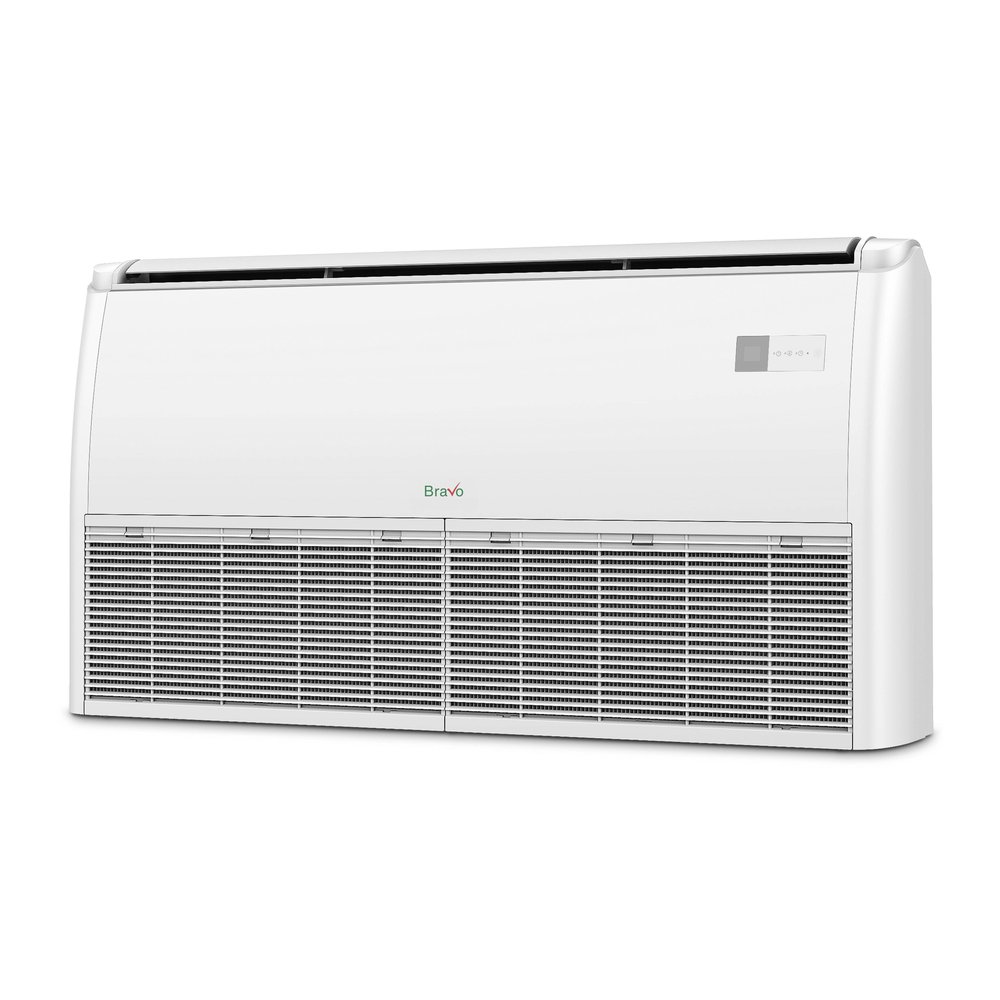

The Bravo Milano 24,000 BTU indoor universal floor/ceiling console (model BRV-M24FC-230VI) is designed for multi-zone systems and utilizes R32 refrigerant for efficient cooling. This universal floor/ceiling console indoor unit is compatible with various installation configurations and supports a cooling capacity of 24,000 BTU.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— BRV-M24FC-230VI
| Model | BRV-M24FC-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 50.39×9.25×27.17 in |
| Net/Gross Weight | 71.7/83.8 lb |
| Packing Dimensions (WxDxH) | 53.54×12.80×30.32 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/5/8" |
| Noise Level (Hi/Med/Lo) | 44/40/37 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 824 CFM |
| Dehumidification | 5.43 pt/h |
| Filter Dimensions | 23.03*10.3*0.374inch in |
| Drain Pipe Diameter | 1" |
| Controller | Remote controller |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | BRV-M24FC-230VIThis model | BRV-M09FC-230VI | BRV-M12FC-230VI | BRV-M18FC-230VI |
|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling | 18,000 | Rated Capacity | 9,000 | 12,000 |
| Btu/h | 24,000 | 9,000 | 12,000 | 18,000 |
| Heating | 18,000 | Rated Capacity | 11,000 | 12,000 |
| Btu/h | 24,000 | 11,000 | 12,000 | 18,000 |
| Max Fuse | 5 | 5 | 5 | 5 |
| Indoor Air Flow | 824 | 500 | 500 | 530 |
| Indoor Noise Level | 44 | 39 | 39 | 41 |
| Indoor Unit | 39.37×27.17×9.25 | Dimensions (WxDxH) | 39.37×27.17×9.25 | 39.37×27.17×9.25 |
| Packing (WxDxH) | 53.54×30.32×12.80 | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 42.52×30.32×12.80 |
| Net/Gross Weight | 71.7/83.8 | 57.3/67.2 | 57.3/67.2 | 59.5/69.5 |
| Refrigerant Piping | 1/4" / 1/2" | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 3/8" |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
Outdoor Model
| Specification | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO |
|---|---|---|---|---|---|
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 |
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG |
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 |
Frequently asked questions.
What size mini split do I need for my room?
For spaces up to 1200 sq ft, the Bravo Milano 24,000 BTU mini split is an excellent choice. This unit's capacity is ideal for medium to large rooms, ensuring efficient cooling and heating.
Can I install a mini split myself?
While it is possible to install the Bravo Milano 24,000 BTU mini split yourself, it requires specific skills and tools for proper installation. If you're not experienced, it's advisable to hire a professional to ensure optimal performance and compliance with local codes.
Does the mini split come pre-charged with refrigerant?
Yes, the Bravo Milano 24,000 BTU mini split is pre-charged with R32 refrigerant for line sets up to 25 ft. This makes installation easier, but if your setup requires longer lines, additional refrigerant will be needed.
What voltage does the mini split require?
The Bravo Milano mini split operates on 230V, which is standard for many residential systems. Ensure your electrical system can accommodate this voltage to avoid compatibility issues.
What warranty does Bravo offer on this mini split?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
What is the SEER rating of the Bravo mini split?
The Bravo Milano mini split boasts a SEER rating of 21+, making it highly efficient for both cooling and heating. This efficiency can lead to lower energy bills over time, especially in climates with significant temperature variations.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R410ASEER2 26.4Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Midnight Black 6,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 9,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R410ASEER2 22.0Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 18,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
The Bravo Milano 24,000 BTU indoor universal floor/ceiling console (model BRV-M24FC-230VI) is designed for multi-zone systems and utilizes R32 refrigerant for efficient cooling. This universal floor/ceiling console indoor unit is compatible with various installation configurations and supports a cooling capacity of 24,000 BTU.
Key Features
- Universal Floor/Ceiling Console indoor unit for Bravo Milano multi-zone systems — floor- or ceiling-mountable
- 24,000 Btu/h nominal cooling capacity
- R32 refrigerant; individually controlled with included remote
- Heat pump — cools and heats when paired with a Bravo Milano condenser
Detailed specifications for this console head are confirmed at order; capacity shown is nominal.
Works With
Connects to any Bravo Milano multi-zone outdoor condenser (BRV-M18 through BRV-M42), sized for the number of indoor units in your system. Choose a copper line-set kit per zone at checkout, or supply your own.
