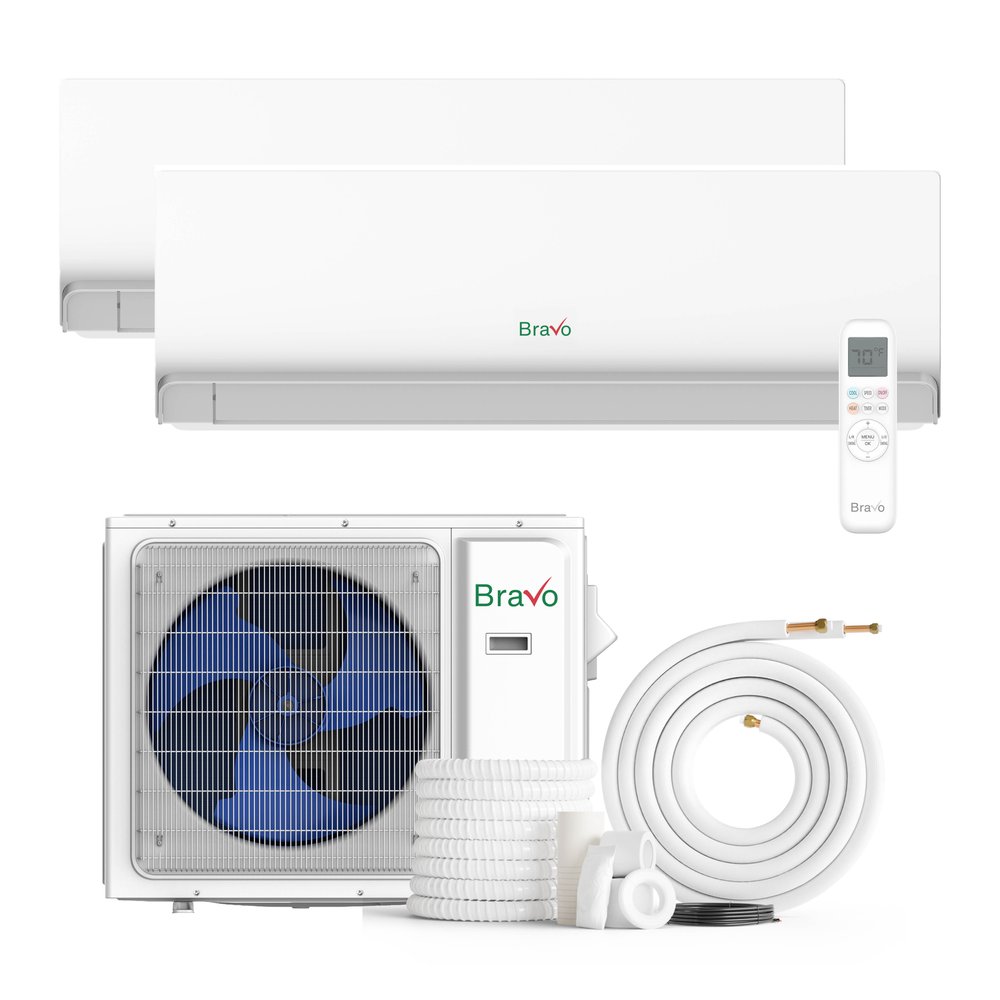

Bravo Milano 24,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M24WM-230VI
Product specifications
- Voltage
- 230V
- SEER
- 24.0
- WiFi
- Not Included
- Type
- Wall Mount
- Freon
R32

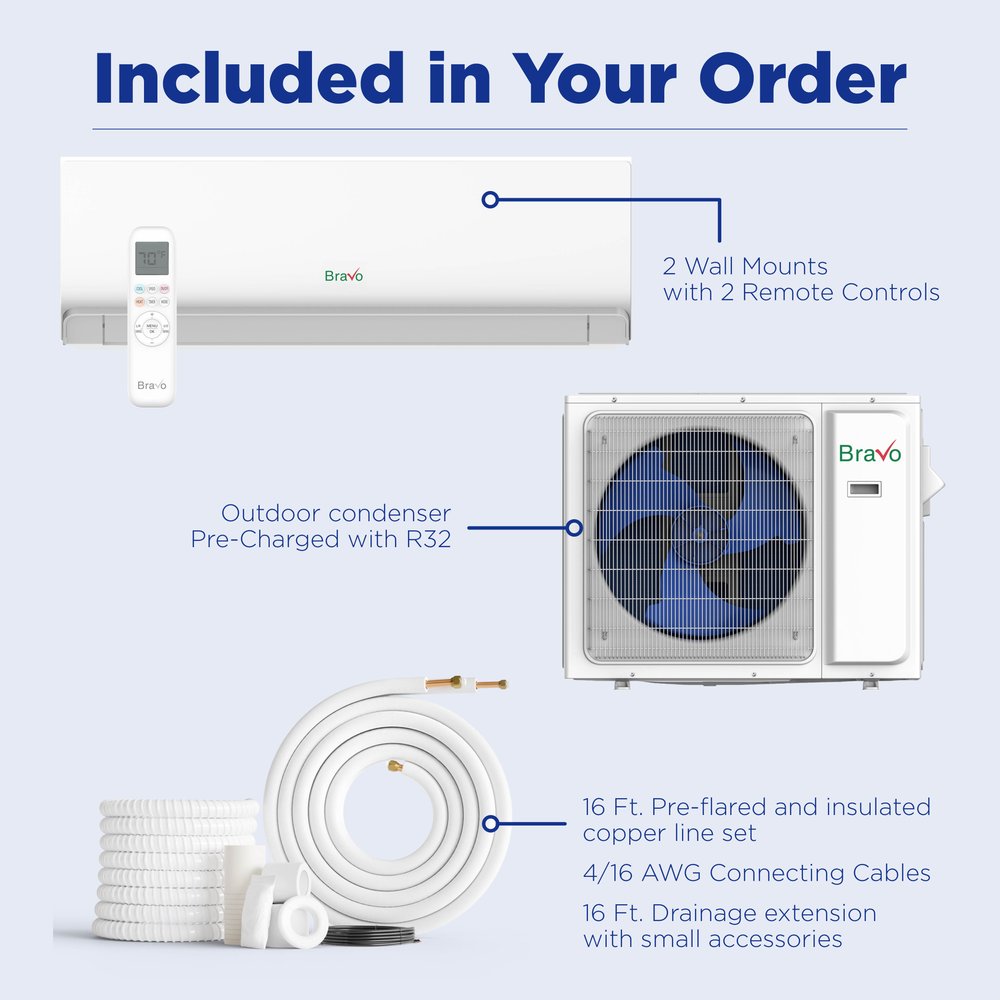

Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M24WM-230VI
System Specs
| Cooling Capacity | 24,000 BTU/h |
|---|---|
| Heating Capacity | 24,000 / 24,000 BTU/h |
| SEER2 | 24.0 |
| Voltage | 230V |
| Refrigerant | R32 |
|---|---|
| Compressor | Inverter |
| Sound Level (indoor) | 46/42/40 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 44.13 × 12.95 × 9.09 in | 33.07 / 39.68 lb | Remote controller |
Milano Series Description

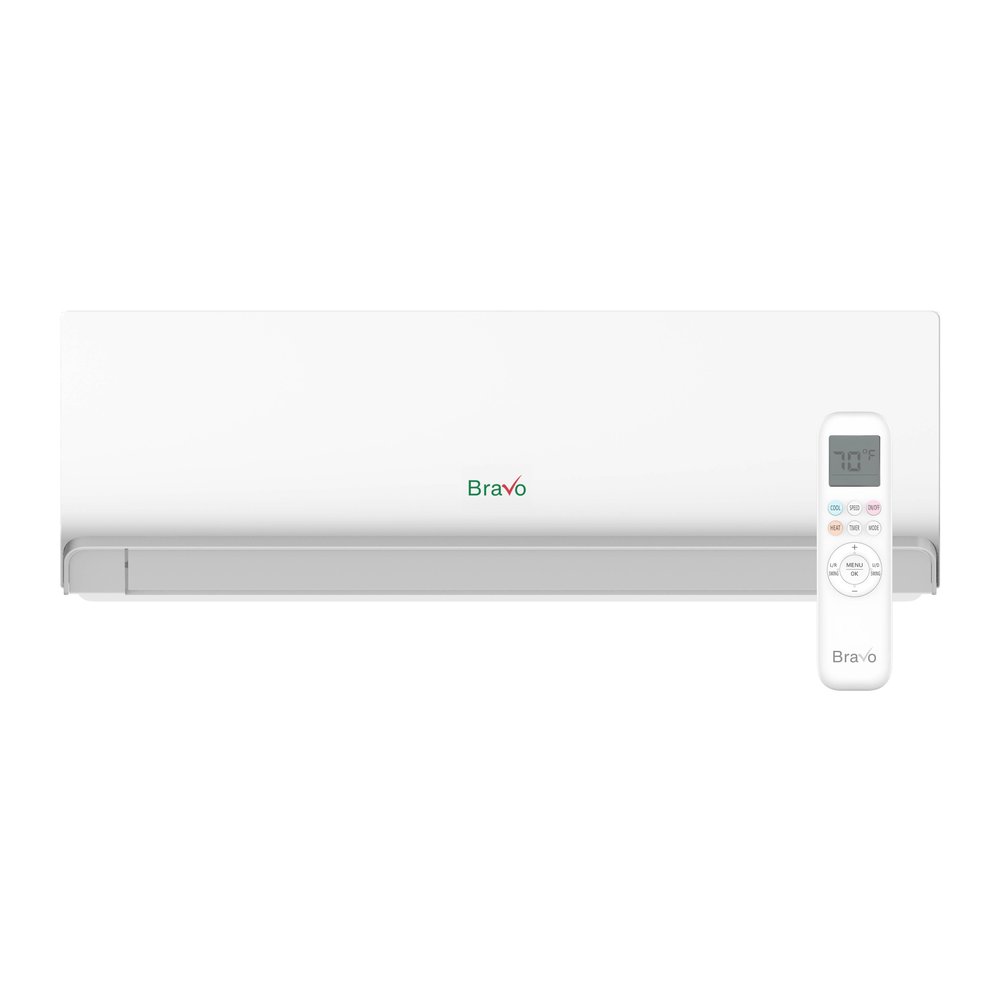

The Bravo Milano 24,000 BTU indoor wall mount (model BRV-M24WM-230VI) provides both cooling and heating with a 24,000 BTU capacity, utilizing R32 refrigerant for efficient performance. Designed as a wall mount indoor unit, it is compatible with multi-zone ductless mini-split systems, offering versatile installation options for various spaces.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— BRV-M24WM-230VI
| Model | BRV-M24WM-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 44.13×12.95×9.09 in |
| Net/Gross Weight | 33.07/39.68 lb |
| Packing Dimensions (WxDxH) | 47.64×15.75×12.87 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/5/8" |
| Noise Level (Hi/Med/Lo) | 46/42/40 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 765 CFM |
| Dehumidification | 5.43 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | Remote controller |
System Specs
| Cooling / Heating Capacity | 24,000 / 24,000 Btu/h |
|---|---|
| Indoor Airflow | 765 CFM |
| Indoor Noise Level | 50 dB(A) |
| Refrigerant | R32 |
| Line Connections (Liquid / Gas) | 1/4 in / 5/8 in |
| Dimensions (W×D×H) | 44.13 × 12.95 × 9.09 in |
| Net / Gross Weight | 33.07 / 39.68 lbs |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Parameter
| Specification | Indoor Model |
|---|---|
| BRV-M07WM-230VI | BRV-M09WM-230VI |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling Rated CapacityBtu/h | 7,000 |
| Heating Rated CapacityBtu/h | 7,000 |
| Max FuseA | 5 |
| Indoor Air FlowCFM | 353 |
| Indoor Noise LeveldB(A) | 40 |
| Indoor Unit Dimensions (WxDxH)in | 31.02x7.80x11.50 |
| Indoor Unit Packing (WxDxH)in | 34.65x14.57x11.42 |
| Indoor Unit Net/Gross Weightlbs. | 17.60/22.00 |
| Refrigerant Piping Liquid / Gas Sidein | 1/4’’ / 3/8’’ |
| Operation Temperature Range°F | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Frequently asked questions.
What size mini split do I need for my space?
For optimal cooling and heating, the Bravo Milano 24,000 BTU unit can effectively cover areas up to 1,200 square feet. This makes it suitable for larger rooms or open-concept spaces.
Can I install a mini split myself?
While DIY installation is possible for the Bravo Milano, it requires technical knowledge and tools to connect the refrigerant lines and electrical components. For best performance and to maintain warranty coverage, professional installation is recommended.
Does the mini split come pre-charged with refrigerant?
Yes, the Bravo Milano comes pre-charged with R32 refrigerant for up to 25 ft of line set, simplifying the installation process. This means you can start enjoying efficient cooling and heating right after setup.
What voltage does the Bravo mini split require?
The Bravo Milano operates on a 230V electrical system, which is standard for many residential installations. Ensure your electrical supply matches this requirement to avoid compatibility issues.
What warranty does Bravo offer on the Milano series?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
What is the SEER rating of the Bravo Milano, and why is it important?
The Bravo Milano has an impressive SEER rating of 24.0, indicating its high energy efficiency. A higher SEER rating means lower energy costs over time, making it a cost-effective choice for heating and cooling.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R410ASEER2 26.4Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Midnight Black 6,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 9,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R410ASEER2 22.0Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 18,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
The Bravo Milano 24,000 BTU indoor wall mount (model BRV-M24WM-230VI) provides both cooling and heating with a 24,000 BTU capacity, utilizing R32 refrigerant for efficient performance. Designed as a wall mount indoor unit, it is compatible with multi-zone ductless mini-split systems, offering versatile installation options for various spaces.
Key Features
- Wall Mount indoor unit for Bravo Milano multi-zone systems
- 24,000 Btu/h cooling / 24,000 Btu/h heating
- 50 dB(A) indoor sound level
- R32 refrigerant; individually controlled with included remote
Works With
Connects to any Bravo Milano multi-zone outdoor condenser (BRV-M18 through BRV-M42), sized for the number of indoor units in your system. Choose a copper line-set kit per zone at checkout, or supply your own.
