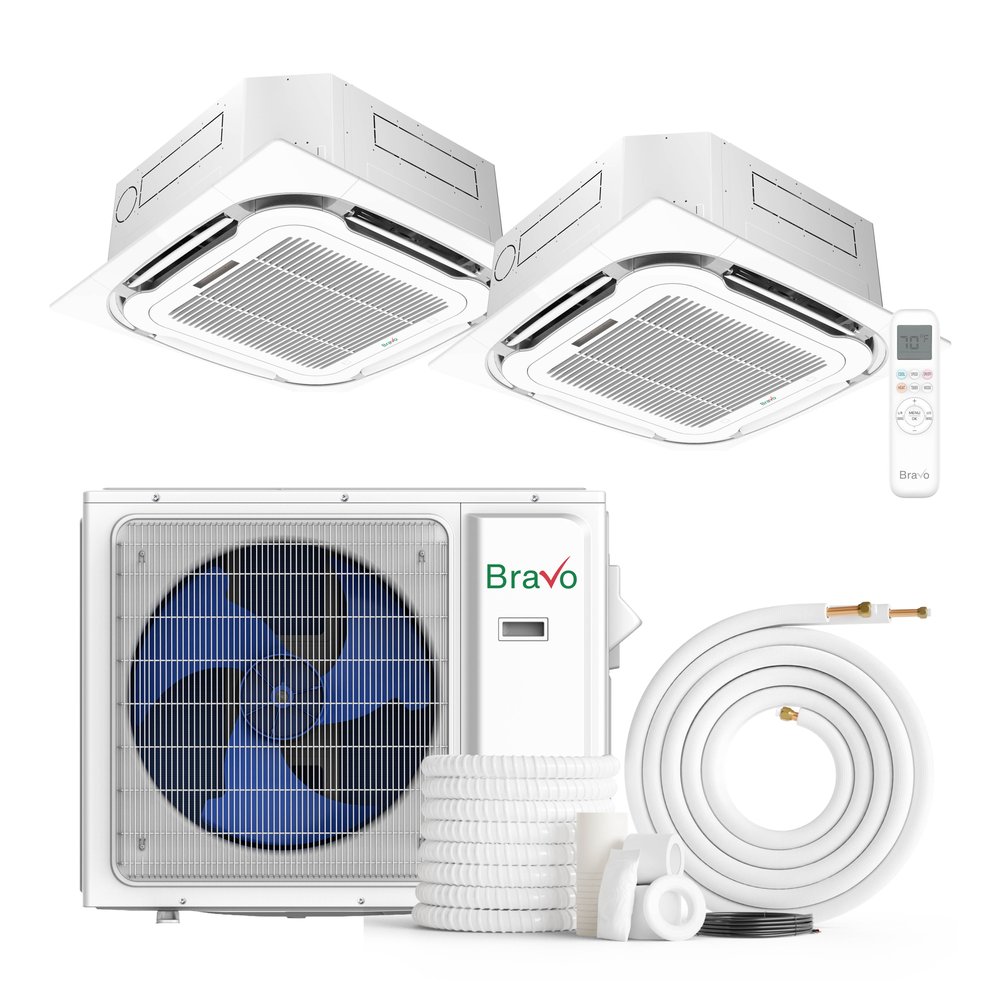

Bravo Milano 9,000 BTU Indoor Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M09CT-230VI
Product specifications
- Voltage
- 230V
- WiFi
- Not Included
- Type
- Ceiling Cassette
- Freon
R32
Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M09CT-230VI
System Specs
| Cooling Capacity | 9,000 BTU/h |
|---|---|
| Heating Capacity | 9,000 / 10,000 BTU/h |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 40/36/33 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 22.44 × 22.44 × 10.24 in | 30.9 / 37.5 lb | Wired controller |
Milano Series Description
The Bravo Milano 9,000 BTU indoor ceiling cassette (model BRV-M09CT-230VI) provides cooling at 9,000 BTU and heating at 10,000 BTU, using R32 refrigerant for efficient performance. It is a ceiling cassette indoor unit designed for multi-zone systems, ensuring seamless integration with ductless mini-split setups.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

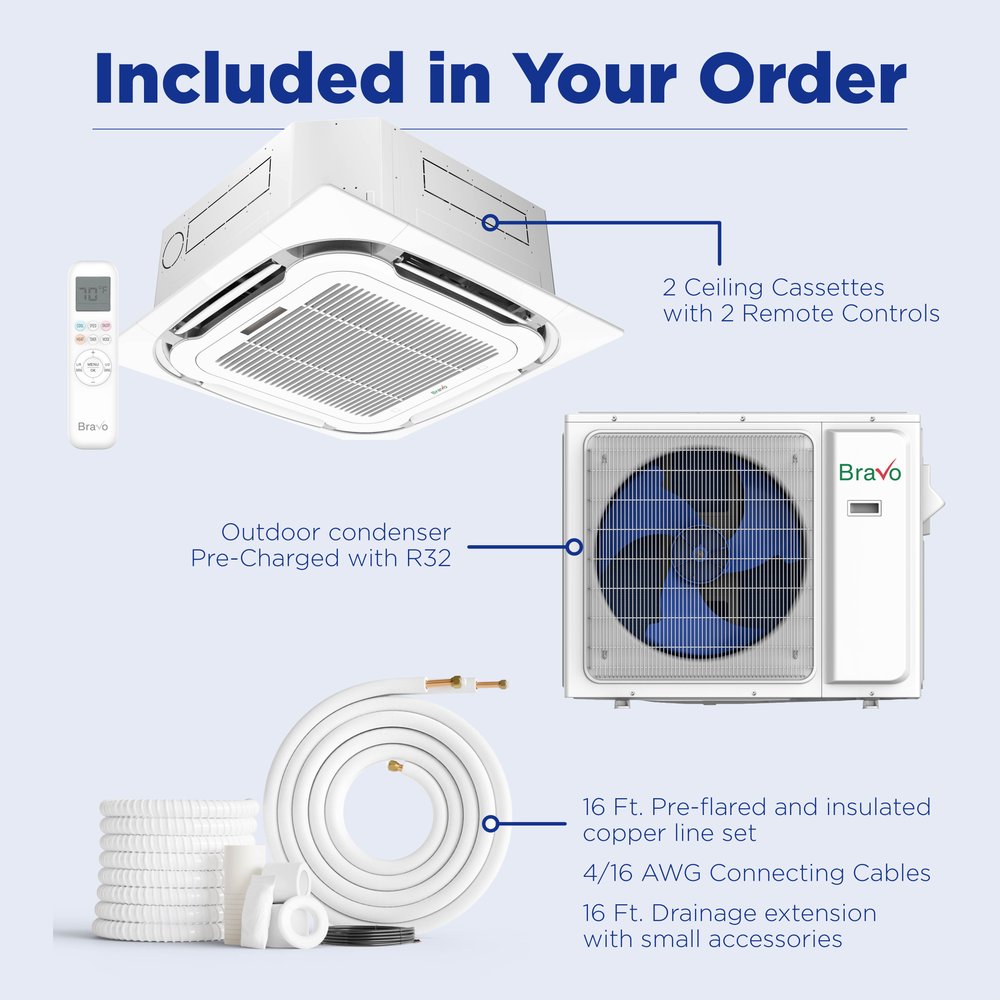

IN THE BOX
Everything included with this system
- Indoor Ceiling Cassette — BRV-M09CT-230VI
- Indoor Ceiling Cassette — BRV-PN9-18CT
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— BRV-M09CT-230VI
| Model | BRV-M09CT-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 22.44×22.44×10.24 in |
| Net/Gross Weight | 30.9/37.5 lb |
| Packing Dimensions (WxDxH) | 28.35×25.59×11.42 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level (Hi/Med/Lo) | 40/36/33 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 383 CFM |
| Dehumidification | 1.48 pt/h |
| Filter Dimensions | 13.11*15.04*0.472inch in |
| Drain Pipe Diameter | 5/8" |
| Controller | wired controller |
System Specs
| Cooling / Heating Capacity | 9,000 / 10,000 Btu/h |
|---|---|
| Indoor Airflow | 383 CFM |
| Indoor Noise Level | 40 dB(A) |
| Refrigerant | R32 |
| Line Connections (Liquid / Gas) | 1/4 in / 3/8 in |
| Dimensions (W×D×H) | 22.44 × 22.44 × 10.24 in |
| Net / Gross Weight | 30.9 / 37.5 lbs |
| Ceiling Panel | BRV-PN9-18CT (included) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Parameter
| Specification | Indoor Model |
|---|---|
| BRV-M09CT-230VIBRV-PN9-18CT | BRV-M12CT-230VIBRV-PN9-18CT |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 9,000 |
| Heating Rated CapacityBtu/h | 10,000 |
| Max FuseA | 5 |
| Indoor Air FlowCFM | 383 |
| Indoor Noise LeveldB(A) | 40 |
| Indoor Unit Dimensions (WxDxH)in | 22.44x22.44x10.24 |
| Indoor Unit Packing (WxDxH)in | 28.35x25.59x11.42 |
| Indoor Unit Net Weightlbs. | 30.9/37.5 |
| Panel Dimensions (WxDxH)in | 25.59x25.59x2.17 |
| Panel Packing (WxDxH)in | 27.95x27.95x3.15 |
| Panel Net/Gross Weightlbs. | 4.9/8.2 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Operation Temperature Range°F | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Frequently asked questions.
What size mini split do I need for my room?
For spaces up to 350 sq ft, the Bravo Milano 9,000 BTU Indoor Ceiling Cassette is an ideal choice. With its efficient 21+ SEER rating, it can effectively cool and heat smaller rooms.
Can I install the Bravo Milano mini split myself?
While it is technically possible to install the Bravo Milano 9,000 BTU system yourself, professional installation is recommended to ensure optimal performance. The unit operates at 230V and requires proper handling of the refrigerant R32.
Does the Bravo Milano mini split come pre-charged with refrigerant?
Yes, the Bravo Milano 9,000 BTU mini split comes pre-charged with R32 refrigerant for installation with up to 25 ft of line set. This feature simplifies the installation process, but always consult the manual for specific guidelines.
What voltage does the Bravo Milano mini split require?
The Bravo Milano 9,000 BTU Indoor Ceiling Cassette operates on a 230V power supply. Ensure your electrical system can accommodate this voltage for safe and effective operation.
What warranty does the Bravo Milano offer?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
What is the SEER rating of the Bravo Milano mini split, and is it efficient enough?
The Bravo Milano boasts an impressive SEER rating of 21+, making it a highly efficient choice for both cooling and heating. This efficiency can lead to significant energy savings over time, especially for a 9,000 BTU unit.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R410ASEER2 26.4Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Midnight Black 6,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 9,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R410ASEER2 22.0Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 18,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
The Bravo Milano 9,000 BTU indoor ceiling cassette (model BRV-M09CT-230VI) provides cooling at 9,000 BTU and heating at 10,000 BTU, using R32 refrigerant for efficient performance. It is a ceiling cassette indoor unit designed for multi-zone systems, ensuring seamless integration with ductless mini-split setups.
Key Features
- Ceiling Cassette indoor unit for Bravo Milano multi-zone systems
- 9,000 Btu/h cooling / 10,000 Btu/h heating
- 40 dB(A) indoor sound level
- R32 refrigerant; individually controlled with included remote
- Includes ceiling panel BRV-PN9-18CT
Works With
Connects to any Bravo Milano multi-zone outdoor condenser (BRV-M18 through BRV-M42), sized for the number of indoor units in your system. Choose a copper line-set kit per zone at checkout, or supply your own.
