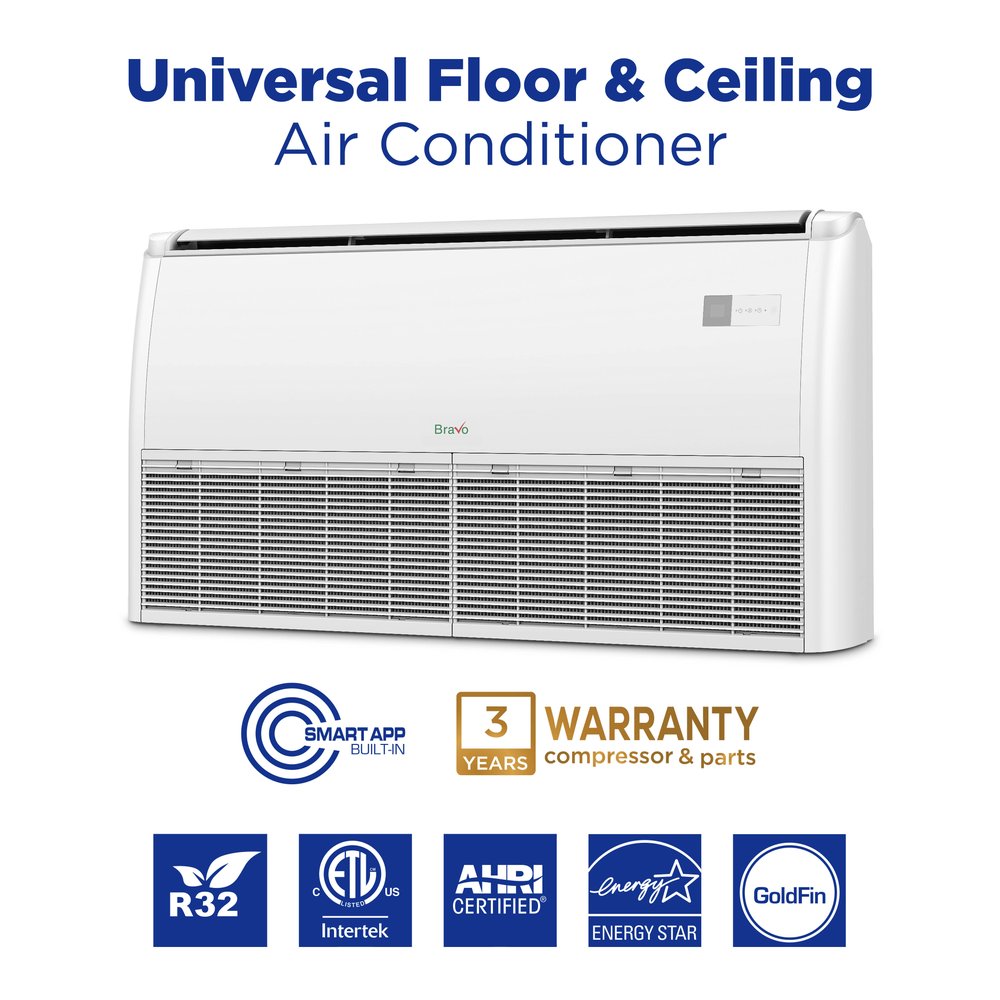

Bravo Milano 9,000 BTU Indoor Universal Floor/Ceiling, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M09FC-230VI
Product specifications
- Voltage
- 230V
- WiFi
- Not Included
- Type
- Universal Floor/Ceiling
- Freon
R32
Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M09FC-230VI
System Specs
| Cooling Capacity | 9,000 BTU/h |
|---|---|
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 36/34/31 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 39.37 × 9.25 × 27.17 in | 57.3 / 67.2 lb | Remote controller |
Milano Series Description
The Bravo Milano 9,000 BTU indoor universal floor/ceiling console (model BRV-M09FC-230VI) is designed for multi-zone systems and features a cooling capacity of 9,000 BTU. It uses R32 refrigerant to ensure efficient operation in both floor and ceiling installations.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— BRV-M09FC-230VI
| Model | BRV-M09FC-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 39.37×9.25×27.17 in |
| Net/Gross Weight | 57.3/67.2 lb |
| Packing Dimensions (WxDxH) | 42.52×12.80×30.32 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level (Hi/Med/Lo) | 36/34/31 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 500 CFM |
| Dehumidification | 1.48 pt/h |
| Filter Dimensions | 17.64*10.3*0.374inch in |
| Drain Pipe Diameter | 1" |
| Controller | Remote controller |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | BRV-M09FC-230VIThis model | BRV-M12FC-230VI | BRV-M18FC-230VI | BRV-M24FC-230VI |
|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling | Rated Capacity | 9,000 | 12,000 | 18,000 |
| Btu/h | 9,000 | 12,000 | 18,000 | 24,000 |
| Heating | Rated Capacity | 11,000 | 12,000 | 18,000 |
| Btu/h | 11,000 | 12,000 | 18,000 | 24,000 |
| Max Fuse | 5 | 5 | 5 | 5 |
| Indoor Air Flow | 500 | 500 | 530 | 824 |
| Indoor Noise Level | 39 | 39 | 41 | 44 |
| Indoor Unit | Dimensions (WxDxH) | 39.37×27.17×9.25 | 39.37×27.17×9.25 | 39.37×27.17×9.25 |
| Packing (WxDxH) | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 53.54×30.32×12.80 |
| Net/Gross Weight | 57.3/67.2 | 57.3/67.2 | 59.5/69.5 | 71.7/83.8 |
| Refrigerant Piping | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
Outdoor Model
| Specification | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO |
|---|---|---|---|---|---|
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 |
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG |
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 |
Frequently asked questions.
What size mini split do I need for my room?
For a space up to 350 sq ft, the Bravo Milano 9,000 BTU mini split is an ideal choice. This unit provides sufficient cooling and heating capacity for bedrooms, small living areas, or home offices.
Can I install a mini split myself?
While DIY installation of the Bravo Milano is possible, it requires technical knowledge in HVAC systems and electrical work, especially since this unit operates on 230V. If you're not experienced, hiring a professional is recommended to ensure proper installation and efficiency.
Does the mini split come pre-charged with refrigerant?
Yes, the Bravo Milano 9,000 BTU mini split comes pre-charged with R32 refrigerant for up to 25 ft of line set. This means you can install it without needing to add refrigerant, simplifying the setup process.
What warranty does Bravo offer on their mini split systems?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
What is the SEER rating of the Bravo Milano mini split?
The Bravo Milano boasts a SEER rating of 21+, making it highly efficient and cost-effective for cooling and heating. This efficiency rating can help lower your energy bills while maintaining comfort.
What refrigerant does the Bravo Milano use?
The Bravo Milano mini split utilizes R32 refrigerant, which is known for its lower global warming potential compared to traditional refrigerants. This makes it an environmentally friendly choice while providing efficient cooling and heating performance.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R410ASEER2 26.4Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Midnight Black 6,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 9,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R410ASEER2 22.0Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 18,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
The Bravo Milano 9,000 BTU indoor universal floor/ceiling console (model BRV-M09FC-230VI) is designed for multi-zone systems and features a cooling capacity of 9,000 BTU. It uses R32 refrigerant to ensure efficient operation in both floor and ceiling installations.
Key Features
- Universal Floor/Ceiling Console indoor unit for Bravo Milano multi-zone systems — floor- or ceiling-mountable
- 9,000 Btu/h nominal cooling capacity
- R32 refrigerant; individually controlled with included remote
- Heat pump — cools and heats when paired with a Bravo Milano condenser
Detailed specifications for this console head are confirmed at order; capacity shown is nominal.
Works With
Connects to any Bravo Milano multi-zone outdoor condenser (BRV-M18 through BRV-M42), sized for the number of indoor units in your system. Choose a copper line-set kit per zone at checkout, or supply your own.
