Cooper & Hunter 12,000 BTU Single Zone Mini Floor Console, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-RES12-230VO12MMC
Product specifications
- Voltage
- 230V
- SEER
- 25.0
- WiFi
- Included
- Zone
- Single Zone
- Type
- Mini Floor Console
- Freon
R454B
Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · STANDARD
Built for year-round comfort
CH-RES12-230VO12MMC
System Specs
| Cooling Capacity | 12,000 BTU/h |
|---|---|
| SEER2 | 24.6 |
| EER2 | 12.7 |
| Voltage | 230V |
| Refrigerant | R454B |
| Compressor | Inverter |
|---|---|
| Climate Range | -13–122°F / -13–75°F outdoor ambient |
| Sound Level (indoor) | 40.5/37/26.5 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 31.26 × 7.87 × 24.45 in | 32.85 / 41.89 lb | Remote controller |
Product Description
The Cooper & Hunter 12,000 BTU (1 Ton) mini floor console is a single-zone low-wall mini split air conditioner and heat pump on next-generation R454B refrigerant. The compact console installs at the base of the wall — ideal under windows, in sunrooms, basements, and rooms where a high wall unit won’t fit — and its dual air outlets deliver warm air at floor level where it’s needed most. With a 24.6 SEER2 inverter system on 208/230V, it cools and heats spaces up to approximately 550 sq ft and keeps heating in outdoor temperatures as low as -13°F. Wi-Fi control is built in.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

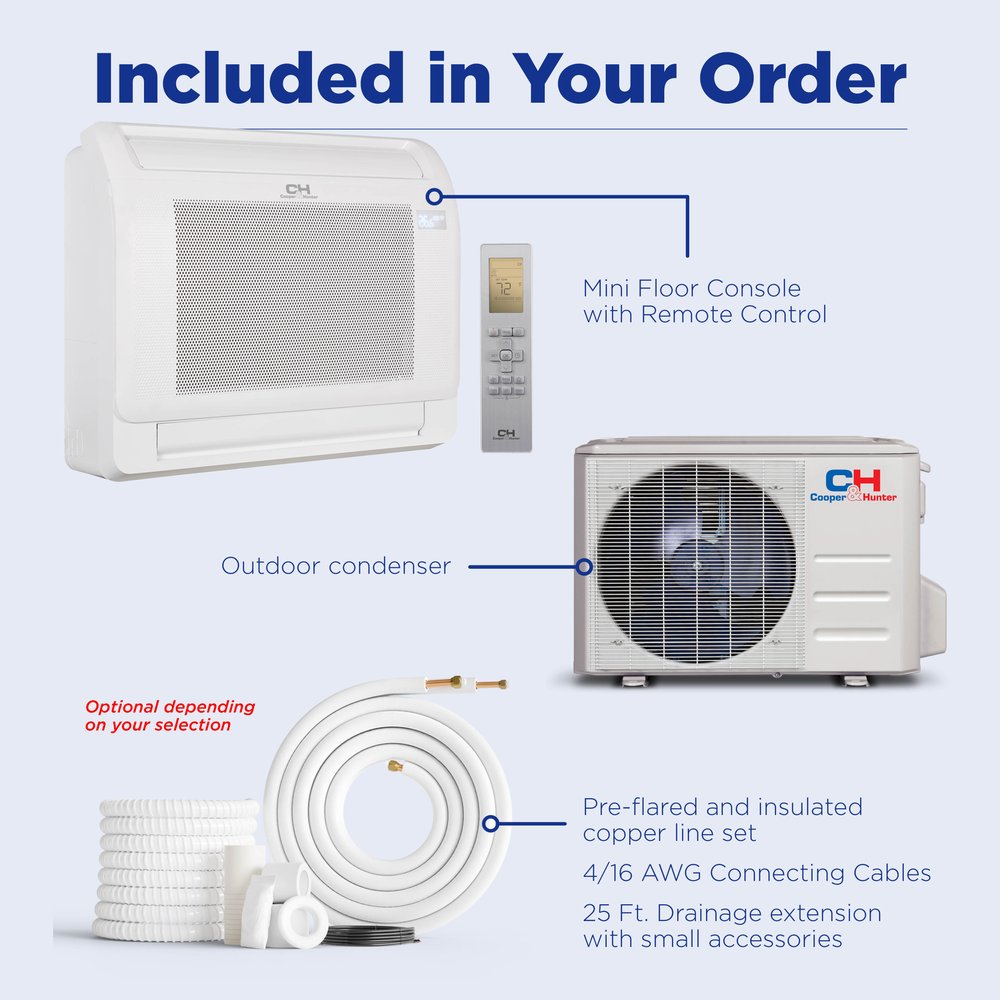

IN THE BOX
Everything included with this system

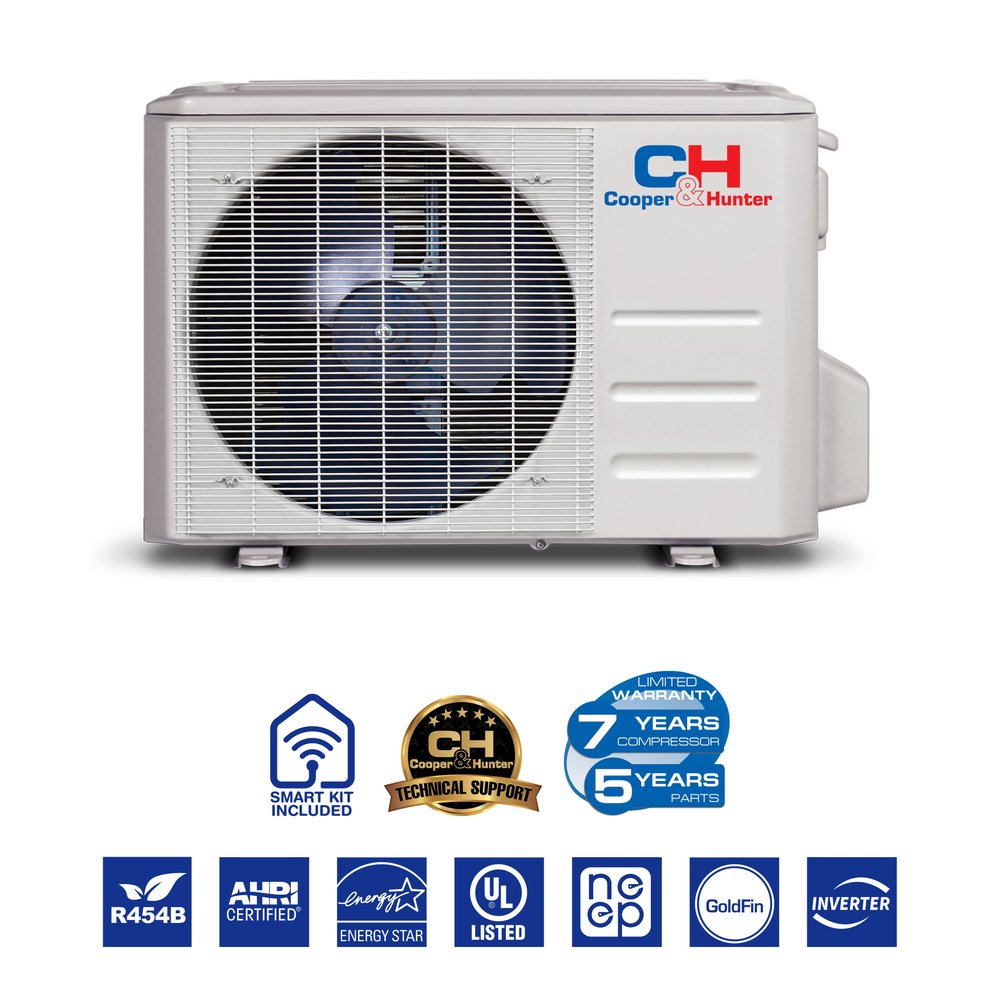

- Cooper & Hunter 12,000 BTU Outdoor Condenser, 230V, R454B - Single Zone Mini Split Air Conditioner Heat Pump

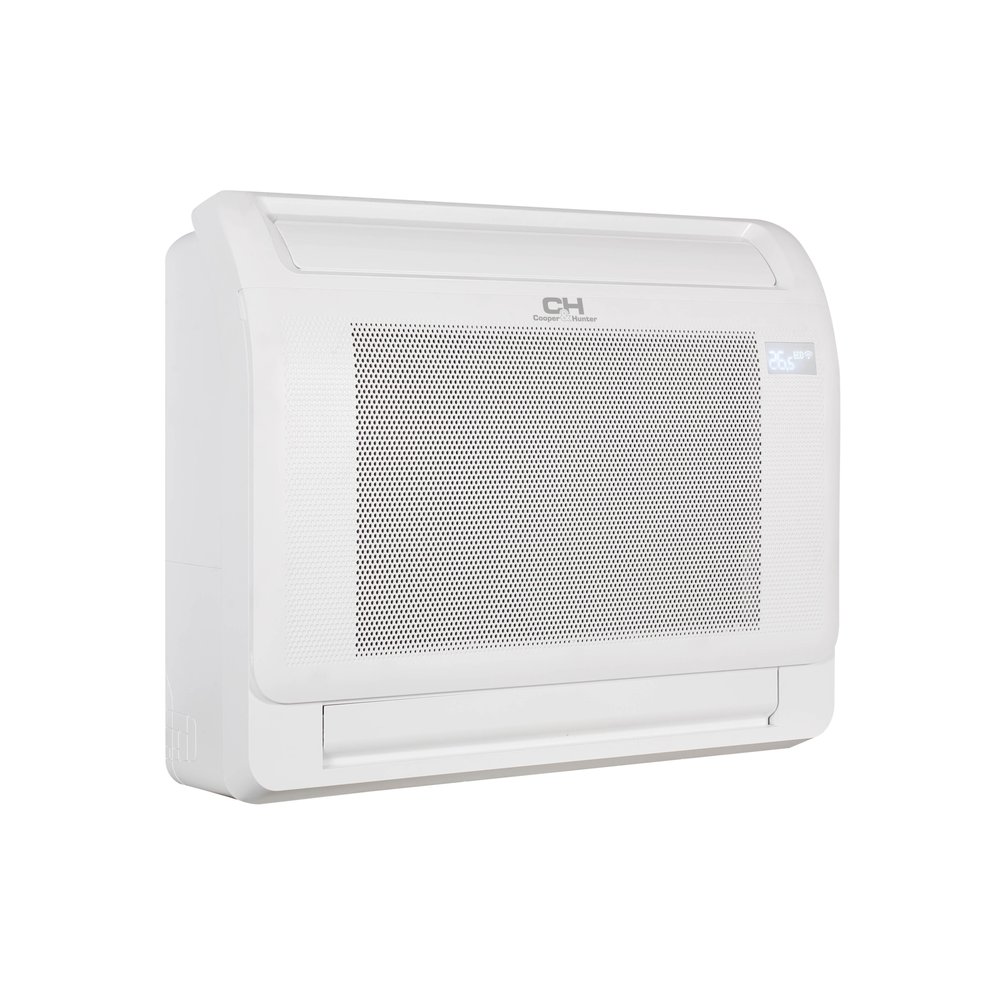

- Indoor Mini Floor Console — CH-RSH12MMC
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— CH-RES12-230VO
| Model | CH-RES12-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 30.12 x 11.93 x 21.85 in |
| Net/Gross Weight | 62.17/67.68 lb |
| Packing Dimensions (WxDxH) | 34.92 x 13.27 x 24.02 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 12 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level | 54 dB |
| Airflow | 1,235.3 CFM |
| Dehumidification | 2.75 pt/h |
Indoor Unit Specs— CH-RSH12MMC
| Model | CH-RSH12MMC |
|---|---|
| Unit Dimensions (WxDxH) | 31.26 x 7.87 x 24.45 in |
| Net/Gross Weight | 32.85/41.89 lb |
| Packing Dimensions (WxDxH) | 34.06 x 11.02 x 28.31 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 3 A |
| Copper Line Size (Liquid/Gas) | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 40.5/37/26.5 dB |
| Dehumidification | 3.13 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | remote controller |
System Specs
| Cooling — Rated Capacity (Range) | 12,000 Btu/h (4,000–13,100) |
|---|---|
| Heating — Rated Capacity (Range) | 12,000 Btu/h (5,100–12,900) |
| SEER2 / EER2 | 24.6 / 12.7 |
| HSPF4 / HSPF5 / COP (47°F) | 11.0 / 8.2 / 3.90 |
| Outdoor Unit MCA / Max. Fuse | 12 A / 15 A |
| Indoor Unit MCA / Max. Fuse | 3 A / 15 A |
| Indoor Air Flow (Turbo/Hi/Mid/Lo/Silent) | 441 / 377 / 324 / 188 / 130 CFM |
| Indoor Noise Level (Turbo/Hi/Mid/Lo/Silent) | 42.0 / 39.0 / 34.5 / 29.5 / 23.5 dB(A) |
| Indoor Console Dimensions (W×D×H) | 31.26 × 7.87 × 24.45 in |
| Indoor Unit Net / Gross Weight | 32.9 / 41.9 lbs |
| Drain Pipe | 5/8 in |
| Outdoor Noise Level | 54.5 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 30.12 × 11.93 × 21.85 in |
| Outdoor Unit Net / Gross Weight | 62.2 / 67.7 lbs |
| Refrigerant Type / Charge | R454B / 32.45 oz |
| Pre-charged Line Length | 25 ft (add 0.16 oz per additional ft) |
| Line Set (Liquid / Gas) | 1/4" / 3/8" |
| Max. Pipe Length | 82 ft |
| Max. Elevation Difference | 49.2 ft |
| Operating Range — Cooling / Heating | -13–122°F / -13–75°F outdoor ambient |
| Recommended Coverage | up to 550 sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor model
| Specification | CH-RSH09MMC | CH-RSH12MMC | CH-RSH16MMC |
|---|---|---|---|
| Power Supply - Rated (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Rated Capacity - Cooling (Btu/h) | 9,000 | 12,000 | 16,000 |
| Rated Capacity - Heating (Btu/h) | 9,000 | 12,000 | 17,000 |
| Minimum Circuit Ampacity (MCA) (A) | 3 | 3 | 3 |
| Max. Fuse (A) | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM) | 441.4/376.7/323.7/188.4/129.5 | 441.4/376.7/323.7/188.4/129.5 | 500.3/441.4/382.6/323.7/206.0 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A)) | 45/41.0/37.5/25.5/22 | 44/40.5/37.0/26.5/24 | 47/43.5/40.5/30.5/25.5 |
| Dimension (W×D×H) (inch) | 31.26×7.87×24.45 | 31.26×7.87×24.45 | 31.26×7.87×24.45 |
| Packing (W×D×H) (inch) | 34.06×11.02×28.31 | 34.06×11.02×28.31 | 34.06×11.02×28.31 |
| Net/Gross Weight (lbs.) | 32.85/41.89 | 32.85/41.89 | 32.85/41.89 |
| Room Temperature - Cooling (°F) | 60~90 | 60~90 | 60~90 |
| Room Temperature - Heating (°F) | 32~86 | 32~86 | 32~86 |
| Refrigerant Piping (Liquid Side/Gas Side) (inch) | 1/4”/3/8” | 1/4”/1/2” | 1/4”/1/2” |
Outdoor model
| Specification | CH-RHP09-230V0 | CH-RHP12-230V0 | CH-RHP18-230V0 |
|---|---|---|---|
| Power Supply - Rated (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Power Supply - Voltage Range (V) | 187-253 | 187-253 | 187-253 |
| Cooling - Rated Capacity Range (Btu/h) | 3,700~13,700 | 3,700~14,000 | 6,500~17,200 |
| Cooling - Rated Current (A) | 4.2 | 4.3 | 8 |
| Cooling - EER2 (Btu/h) | 15.1 | 12.5 | 12.5 |
| Cooling - SEER2 (Btu/h) | 27.2 | 25.0 | 20 |
| Heating at 47°F - Rated Capacity Range (Btu/h) | 4,400~16,100 | 4,400~16,100 | 6,500~20,000 |
| Heating at 47°F - Rated Current (A) | 4.1 | 4 | 8 |
| Heating at 47°F - COP (W/W) | 4.43 | 3.88 | 2.85 |
| Heating at 47°F - HSPF4 | 10.9 | 10.5 | 10.3 |
| Heating at 47°F - HSPF5 | 8.9 | 8.3 | 8.7 |
| Minimum Circuit Ampacity (A) | 15 | 15 | 19 |
| Max.Fuse (Outdoor Unit) (A) | 15 | 15 | 20 |
| Outdoor - Dimension (W×D×H) (inch) | 31.69×12.99×21.81 | 31.69×12.99×21.81 | 35.04×13.46×26.50 |
| Outdoor - Packing (W×D×H) (inch) | 36.02×14.57×24.21 | 36.02×14.57×24.21 | 39.17×15.67×29.13 |
| Outdoor - Net/Gross Weight (lbs.) | 72.75/78.70 | 72.75/78.70 | 99.87/107.80 |
| Refrigerant Type / Charge (oz.) | R454B/35.27 | R454B/35.27 | R454B/55.38 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4”/3/8” | 1/4”/1/2” | 1/4”/1/2” |
| Max. Pipe Length (ft.) | 82 | 82 | 98.40 |
| Max. Difference in Level (ft.) | 49.20 | 49.20 | 65.60 |
| Ambient Temperature - Cooling (°F) | -22~122 | -22~122 | -22~122 |
| Ambient Temperature - Heating (°F) | -22~75 | -22~75 | -22~75 |
| Certifications - ETL | ✔ | ✔ | ✔ |
| Certifications - AHRI | ✔ | ✔ | ✔ |
| Certifications - Energy Star | ✔ | ✔ | ✔ |
| Certifications - NEEP | ✔ | ✔ | ✔ |
Parameter
| Specification | CH-RSH09MMC | CH-RSH12MMC | CH-RSH16MMC |
|---|---|---|---|
| Power Supply (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Cooling Capacity (Btu/h) | 9,000 | 12,000 | 16,000 |
| Heating Capacity (Btu/h) | 9,000 | 12,000 | 17,000 |
| Minimum Circuit Ampacity (A) | 3 | 3 | 3 |
| Max. Fuse (A) | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM) | 441.4/376.7/323.7/188.4/129.5 | 441.4/376.7/323.7/188.4/129.5 | 500.3/441.4/382.6/323.7/206.0 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A)) | 42/39.0/34.5/29.5/19.5 | 42/39/34.5/29.5/23.5 | N/A/41.5/39.0/28.5/24.0 |
| Dimension (W×D×H) (inch) | 31.26×7.87×24.45 | 31.26×7.87×24.45 | 31.26×7.87×24.45 |
| Packing (W×D×H) (inch) | 34.06×11.02×28.31 | 34.06×11.02×28.31 | 34.06×11.02×28.31 |
| Net/Gross Weight (lbs.) | 32.85/41.89 | 32.85/41.89 | 32.85/41.89 |
| Room Temperature - Cooling (°F) | 60~90 | 60~90 | 60~90 |
| Room Temperature - Heating (°F) | 32~86 | 32~86 | 32~86 |
| Refrigerant Pipes (Liquid Side/Gas Side) (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" |
Outdoor Model
| Specification | CH-RE509-230V0 | CH-RE512-230V0 | CH-RE518-230V0 |
|---|---|---|---|
| Power Supply - Rated (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Power Supply - Voltage Range (V) | 187-253 | 187-253 | 187-253 |
| Cooling - Rated Capacity Range (Btu/h) | 5,100~12,700 | 5,100~12,900 | 7,300~22,900 |
| Cooling - EER (Btu/h) | 4.2 | 4.2 | 5.8 |
| Heating - Rated Capacity (Btu/h) | 16.2 | 12.7 | 12.5 |
| Heating - HSPF (Btu/h) | 26 | 24.6 | 23.8 |
| Sound Level (dB) | 5,100~12,700 | 5,100~12,900 | 7,300~22,900 |
| Power Input - Cooling (kW) | 4.6 | 4 | 6.7 |
| Power Input - Heating (kW) | 4.35 | 3.9 | 3.37 |
| Current - Cooling (A) | 13.9 | 11 | 13.5 |
| Current - Heating (A) | 10 | 8.2 | 9.4 |
| Minimum Circuit Ampacity (A) | 12 | 12 | 18 |
| Max.Fuse (Outdoor Unit) (A) | 15 | 15 | 20 |
| Outdoor - Dimension (W×D×H) (inch) | 30.12×11.93×21.85 | 30.12×11.93×21.85 | 35.04×13.46×26.50 |
| Outdoor - Packing (W×D×H) (inch) | 34.92×13.27×24.02 | 34.92×13.27×24.02 | 39.17×15.67×29.13 |
| Outdoor - Net/Gross Weight (lbs.) | 62.17/67.68 | 62.17/67.68 | 92.59/100.31 |
| Refrigerant Type / Charge (oz.) | R454B/32.45 | R454B/32.45 | R454B/47.97 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4”/3/8” | 1/4”/3/8” | 1/4”/1/2” |
| Max. Pipe Length (ft.) | 82 | 82 | 98.40 |
| Max. Difference in Level (ft.) | 49.20 | 49.20 | 65.60 |
| Operating Temperature Range (°F) | 60~90 | 60~90 | 60~90 |
| Storage Temperature Range (°F) | 32~86 | 32~86 | 32~86 |
| Certifications - Standard 1 | ✔ | ✔ | ✔ |
| Certifications - Standard 2 | ✔ | ✔ | ✔ |
| Certifications - Standard 3 | ✔ | ✔ | ✔ |
Frequently asked questions.
What size mini split do I need for my room?
For optimal performance, the Cooper & Hunter 12,000 BTU mini split is suitable for spaces up to 550 sq ft. This makes it ideal for small to medium-sized rooms, ensuring efficient heating and cooling.
Can I install a mini split myself, or do I need a professional?
While some homeowners may attempt a DIY installation, it is recommended to hire a professional for the Cooper & Hunter 12,000 BTU system to ensure proper setup and compliance with local codes. Professional installation can help avoid mistakes that might affect performance and warranty coverage.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 12,000 BTU mini split is pre-charged with R454B refrigerant for up to 25 ft of line set. This feature simplifies installation, but additional refrigerant may be needed for longer distances.
What voltage does a mini split require?
The Cooper & Hunter 12,000 BTU mini split operates on a 230V power supply, making it compatible with standard residential electrical systems in many areas. Ensure your electrical setup meets this requirement for optimal performance.
What warranty does Cooper & Hunter offer on this model?
The Cooper & Hunter 12,000 BTU mini split comes with a warranty of 5 years on parts and 7 years on the compressor, provided you register the unit within 30 days of purchase. This warranty ensures peace of mind regarding the longevity of your system.
What is the SEER rating of the Cooper & Hunter mini split, and why is it important?
The Cooper & Hunter 12,000 BTU mini split boasts an impressive SEER rating of 25.0, indicating high energy efficiency. A higher SEER rating means lower energy bills and a more environmentally friendly operation, making it an excellent choice for year-round comfort.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 21.5HEATS down to 5°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter MIA 6,000 BTU Single Zone Wall Mount, 115V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.2HEATS down to 5°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter MIA 9,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.2HEATS down to 5°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter MIA 9,000 BTU Single Zone Wall Mount, 115V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 24.6HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia 9,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
The Cooper & Hunter 12,000 BTU (1 Ton) mini floor console is a single-zone low-wall mini split air conditioner and heat pump on next-generation R454B refrigerant. The compact console installs at the base of the wall — ideal under windows, in sunrooms, basements, and rooms where a high wall unit won’t fit — and its dual air outlets deliver warm air at floor level where it’s needed most. With a 24.6 SEER2 inverter system on 208/230V, it cools and heats spaces up to approximately 550 sq ft and keeps heating in outdoor temperatures as low as -13°F. Wi-Fi control is built in.
Key Features
- 12,000 Btu/h cooling / 12,000 Btu/h heating — inverter range 4,000–13,100 cooling, 5,100–12,900 heating
- 24.6 SEER2 / 12.7 EER2 / 11.0 HSPF4 — current R454B-generation efficiency
- Heats down to -13°F outdoor ambient; cooling operation -13–122°F
- Dual air outlets with auto-swing horizontal louvers and double blower wheel — even, floor-level warmth
- Refrigerant leak sensor and humidity sensor (active on single-zone systems); 46°F freeze-protection mode
- Quiet: indoor unit from 23.5 dB(A) with Genius Core ultra-low 12Hz compressor speeds; outdoor unit 54.5 dB(A)
- Wi-Fi Smart Kit built in — Cooper & Hunter app control; IR remote with Follow Me mode included; compatible with C&H 12V wall thermostat (sold separately)
- ETL listed, AHRI certified, Energy Star Cold Climate & NEEP listed
Cooper & Hunter Mini Floor Console (R454B) Lineup
| Capacity | Outdoor + Indoor Console | SEER2 | Heats down to | Coverage* |
| 9,000 BTU | CH-RES09-230VO + CH-RSH09MMC | 26.0 | -13°F | up to 400 sq ft |
| 9,000 BTU Hyper Heat | CH-RHP09-230VO + CH-RSH09MMC | 27.2 | -22°F | up to 400 sq ft |
| 12,000 BTU | CH-RES12-230VO + CH-RSH12MMC | 24.6 | -13°F | up to 550 sq ft |
| 12,000 BTU Hyper Heat | CH-RHP12-230VO + CH-RSH12MMC | 25.0 | -22°F | up to 550 sq ft |
| 16,000 BTU | CH-RES18-230VO + CH-RSH16MMC | 23.8 | -13°F | up to 800 sq ft |
| 16,000 BTU Hyper Heat | CH-RHP18-230VO + CH-RSH16MMC | 20.0 | -22°F | up to 800 sq ft |
*Coverage is sizing guidance; actual load depends on insulation, ceiling height, sun exposure, and climate.
