Cooper & Hunter 18,000 BTU Single Zone Multi Position Air Handler, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-RES18-230VO18AHU
Product specifications
- Voltage
- 230V
- SEER
- 21.6
- WiFi
- Included
- Zone
- Single Zone
- Type
- Multi Positional
- Freon
R454B
Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · STANDARD
Built for year-round comfort
CH-RES18-230VO18AHU
System Specs
| Cooling Capacity | 18,000 BTU/h |
|---|---|
| Heating Capacity | 13,000 BTU/h |
| SEER2 | 18.5 |
| EER2 | 12.1 |
| Voltage | 230V |
| Refrigerant | R454B |
|---|---|
| Compressor | Inverter |
| Climate Range | -13–122°F / -13–75°F outdoor ambient |
| Sound Level (indoor) | 42.0 / 39.5 / 33.0 dB(A) |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 17.52 × 21.02 × 45 in | 104.72 / 125.66 lb | Wire controller + remote controller available |
Product Description
The Cooper & Hunter 18,000 BTU (1.5 Ton) multi-position air handler is a single-zone ducted mini split heat pump system on next-generation R454B refrigerant — a true central-style AHU that connects to your ductwork and installs in any of four orientations: upflow, downflow, horizontal left, or horizontal right. With a 18.5 SEER2 inverter system on 208/230V and adjustable static pressure up to 0.8 in.WG, it serves whole homes and large zones up to approximately 1,000 sq ft and keeps heating in outdoor temperatures as low as -13°F — still delivering 13,000 Btu/h of heat at 5°F.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

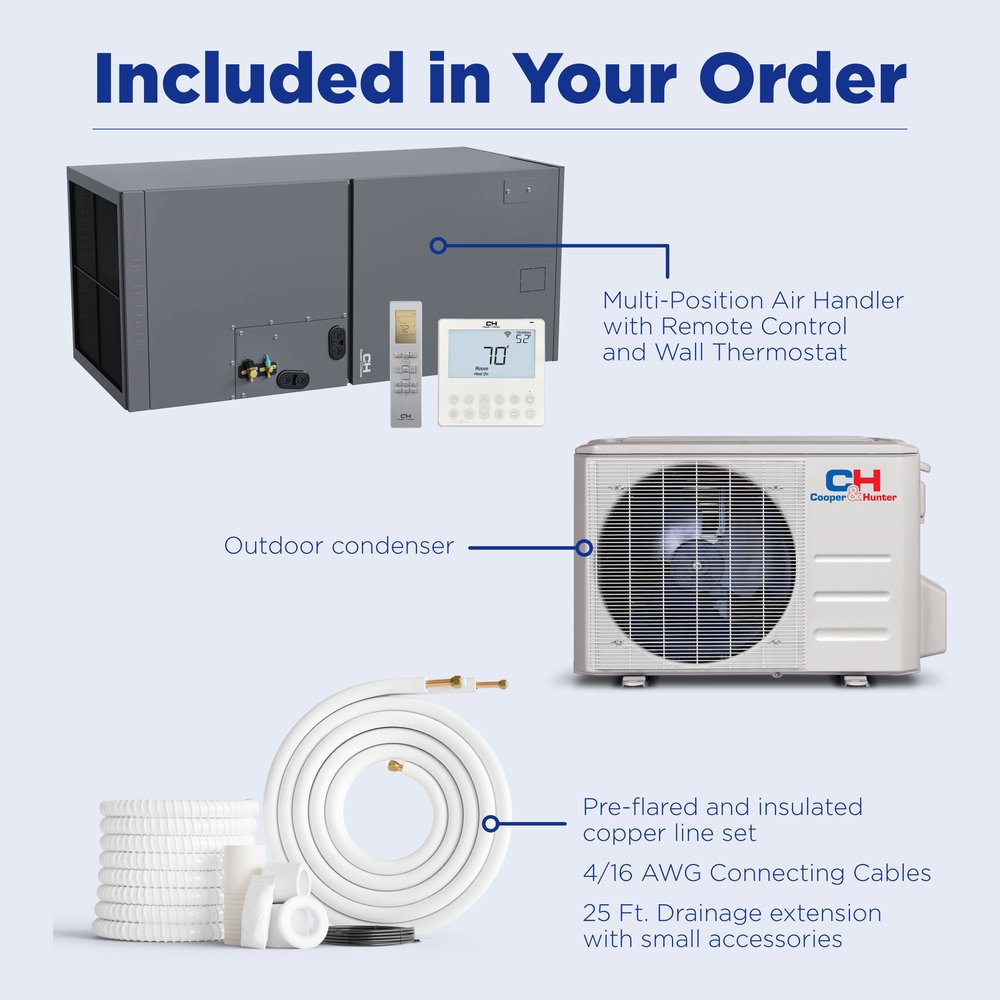

IN THE BOX
Everything included with this system
- Cooper & Hunter 18,000 BTU Outdoor Condenser, 230V, R454B - Single Zone Mini Split Air Conditioner Heat Pump
- Indoor Multi Positional — CH-RS18MAHU
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications

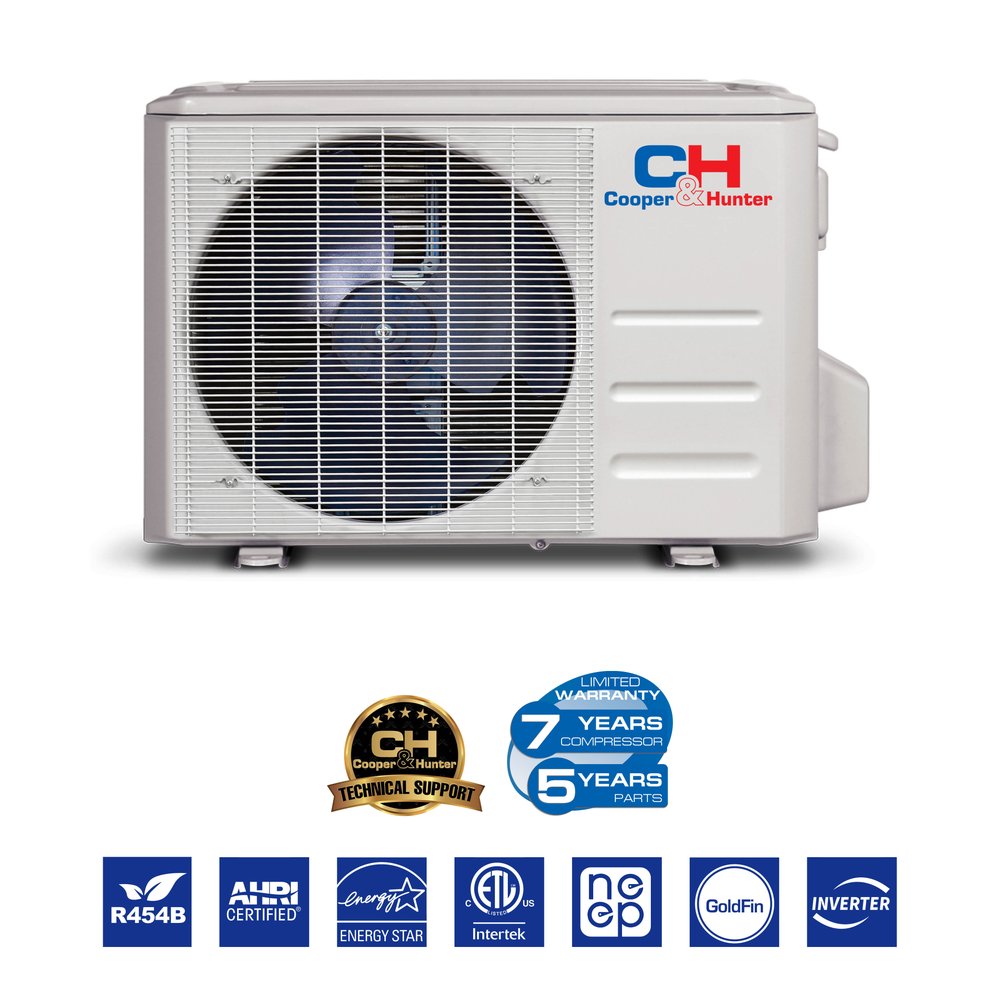

Outdoor Unit Specs— CH-RES18-230VO
| Model | CH-RES18-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 35.04 x 13.46 x 26.5 in |
| Net/Gross Weight | 92.59/100.31 lb |
| Packing Dimensions (WxDxH) | 39.17 x 15.67 x 29.13 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 20 A |
| Min. Circuit Ampacity | 18 A |
| Copper Line Size (Liquid/Gas) | 1/4"/1/2" |
| Noise Level | 59 dB |
| Airflow | 1,764.7 CFM |
| Dehumidification | 2.96 pt/h |

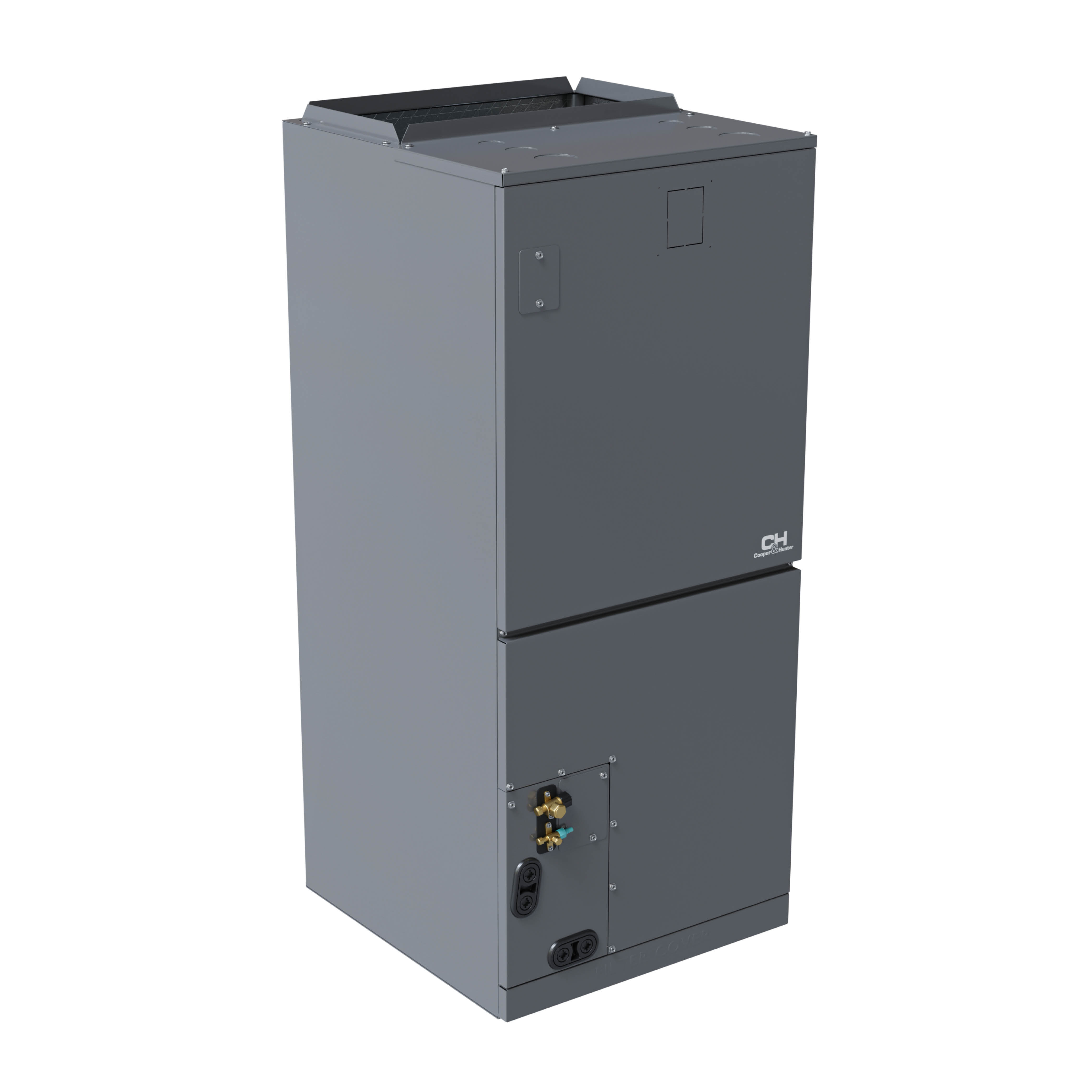

Indoor Unit Specs— CH-RS18MAHU
| Model | CH-RS18MAHU |
|---|---|
| Unit Dimensions (WxDxH) | 17.52 x21.02 x 45 in |
| Net/Gross Weight | 104.72/125.66 lb |
| Packing Dimensions (WxDxH) | 20.87 x 26.57 x 48.62 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 3.5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 42.5/37.5/30 dB |
| Dehumidification | 3.57 pt/h |
| Drain Pipe Diameter | 3/4" |
| Controller | wire controller + remote controller available |
System Specs
| Cooling — Rated Capacity (Range) | 18,000 Btu/h (5,600–20,400) |
|---|---|
| Heating — Rated Capacity (Range) | 18,000 Btu/h (5,500–21,800) |
| Heating Capacity at 5°F | 13,000 Btu/h |
| SEER2 / EER2 | 18.5 / 12.1 |
| HSPF4 / HSPF5 / COP (47°F) | 9.8 / 7.7 / 3.60 |
| Outdoor Unit MCA / Max. Fuse | 18 A / 20 A |
| Air Handler MCA / Max. Fuse | 3.5 A / 15 A |
| External Static Pressure (ESP) | 0–0.8 in.WG, adjustable |
| Install Orientations | Upflow, downflow, horizontal left, horizontal right |
| Air Handler Air Flow (Turbo/Hi/Mid/Lo) | 618 / 577 / 530 / 489 CFM |
| Air Handler Noise Level (Hi/Mid/Lo) | 42.0 / 39.5 / 33.0 dB(A) |
| Air Handler Dimensions (W×D×H) | 17.52 × 21.02 × 45.00 in |
| Air Handler Net Weight | 104.7 lbs |
| Auxiliary Heat Options | CH-NREH series: 5 kW or 10 kW |
| Drain Pipe / Wiring | 3/4 in / AWG 14-4 |
| Outdoor Noise Level | 56.5 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 35.04 × 13.46 × 26.50 in |
| Outdoor Unit Net Weight | 92.6 lbs |
| Refrigerant Type / Charge | R454B / 47.97 oz |
| Pre-charged Line Length | 25 ft (add 0.16 oz per additional ft) |
| Line Set (Liquid / Gas) | 1/4" / 1/2" |
| Max. Pipe Length / Elevation | 98.4 ft / 65.6 ft |
| Operating Range — Cooling / Heating | -13–122°F / -13–75°F outdoor ambient |
| Recommended Coverage | up to 1,000 sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | CH-RS18MAHU | CH-RS24MAHU | CH-RS36LCAHU | CH-RS48LCAHU | CH-RS60LCAHU |
|---|---|---|---|---|---|
| Rated (V, Ph, Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Rated Capacity (Btu/h) | 18,000 | 23,000 | 36,000 | 48,000 | 54,000 |
| Rated Current (A) | 9.1 | 8.7 | 13.4 | 22 | 24 |
| Rated Capacity (Btu/h) | 19,500 | 26,000 | 38,000 | 50,000 | 59,000 |
| Rated Current (A) | 9.5 | 9.7 | 14.3 | 19 | 21.8 |
| Minimum Circuit Ampacity (MCA) (A) | 3.5 | 4 | 5 | 7.5 | 9 |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM) | 618.0/576.8/529.7/488.5/ N/A | 824.0/759.3/694.5/629.8/- | 1189/1083/971.2/865.2/ N/A | 1601/1471.5/1283.1/1094.8// | 1807/1553.9/1353.8/724/ N/A |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A)) | N/A/42.5/37.5/30.0/N/A | N/A/43.5/40/25.5/N/A | N/A/47/42/30.5/N/A | 56.5/54.5/51/48// | N/A/53.0/48.0/33.5/N/A |
| ESP (Range) | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 |
| Dimension (WxDxH) (inch) | 17.52x21.02x45.00 | 17.52x21.02x45.00 | 21.02x21.02x49.02 | 24.49x21.02x52.99 | 24.49x21.02x52.99 |
| Packing (WxDxH) (inch) | 20.87x26.57x48.62 | 20.87x26.57x48.62 | 24.41x26.57x52.56 | 27.95x26.77x56.50 | 27.95x26.77x56.50 |
| Net/Gross Weight (lbs.) | 104.72/125.66 | 104.28/125.88 | 127.87/152.78 | 161.82/191.58 | 161.82/191.58 |
| Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
| Liquid Side/Gas side (inch) | 1/4” / 1/2” | 3/8” / 5/8” | 3/8” / 3/4” | 3/8” / 3/4” | 3/8” / 3/4” |
Outdoor HYPER
| Specification | CH-RHP18-230VO | CH-RHP24-230VO | CH-RHP36LCU-230VO | CH-RHP48LCU-230VO | CH-RHP60LCU-230VO |
|---|---|---|---|---|---|
| Rated (V, Ph, Hz) | 208-230, 1, 60 | 208-230, 1, 60 | 208-230, 1, 60 | 208-230, 1, 60 | 208-230, 1, 60 |
| Voltage range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Current (A) | 8.7 | 13.4 | 13.4 | 22 | 24 |
| Rated Capacity Range (Btu/h) | 6,000–20,400 | 7,500–27,000 | 5,700–36,400 | 7,300–55,000 | 13,700–58,000 |
| EER2 (Btu/w) | 12 | 12 | 11.7 | 10.7 | 10.2 |
| SEER2 (Btu/w) | 18.7 | 18.7 | 17.2 | 15.2 | 15.2 |
| Rated Capacity Range (Btu/h) | 5,000–21,600 | 8,800–29,000 | 9,500–44,000 | 9,500–65,000 | 10,000–66,100 |
| COP (W/W) | 3.64 | 3.55 | 3.39 | 3.06 | 3.36 |
| HSPF4 (Btu/w) | 13.5 | 13.2 | 12.1 | 10.7 | 10.7 |
| HSPF5 (Btu/w) | 10.8 | 10.7 | 9.7 | 8.7 | 8.7 |
| Heating at 5°F (-15°C) Rated Capacity (Btu/h) | 18,000 | 23,600 | 38,000 | 46,000 | 53,000 |
| Minimum Circuit Ampacity (MCA) (A) | 19 | 24.9 | 38 | 44 | 44 |
| Max. Fuse (A) | 25 | 40 | 45 | 45 | 45 |
| Outdoor Air Flow (Max.) (CFM) | 1,765.8 | 2,236.7 | 3,001.9 | 4,237.9 | 4,237.9 |
| Outdoor Noise Level (dB(A)) | 59 | 61.5 | 65.5 | 65 | 62 |
| Dimension (WxDxH) (inch) | 35.04x13.46x26.50 | 37.24x16.14x31.89 | 38.58x16.34x38.39 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Packing (WxDxH) (inch) | 39.17x15.67x29.13 | 42.91x19.68x34.84 | 45.08x19.68x42.52 | 43.11x19.49x57.48 | 43.11x19.49x57.48 |
| Net/Gross Weight (lbs.) | 99.87/107.80 | 130.29/141.31 | 206.57/237.44 | 208.78/239.86 | 230.28/261.69 |
| Refrigerant Type/Quantity (oz.) | R454B/55.38 | R454B/63.49 | R454B/126.99 | R454B/126.99 | R454B/151.68 |
| Refrigerant Precharge (ft.) | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for each ft. (oz./ft.) | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant piping Liquid side/Gas side (inch) | 1/4” / 1/2” | 3/8” / 5/8” | 3/8” / 3/4” | 3/8” / 3/4” | 3/8” / 3/4” |
| Max. Pipe Length (ft.) | 98.4 | 164 | 246 | 246 | 246 |
| Max. Difference in Level (ft.) | 65.6 | 82 | 98.4 | 98.4 | 98.4 |
| Ambient Temperature Cooling (°F) | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 |
| Ambient Temperature Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| AHRI | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| ETL | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Energy Star | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| NEEP | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Indoor REGULAR
| Specification | CH-RS18MAHU | CH-RS24MAHU | CH-RS30MAHU | CH-RS36LCAHU | CH-RS48LCAHU | CH-RS60LCAHU |
|---|---|---|---|---|---|---|
| Power Supply | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Cooling Capacity (Btu/h) | 18,000 | 24,000 | 30,000 | 36,000 | 48,000 | 60,000 |
| Cooling Current (A) | 6.7 | 9.3 | 12.5 | 17.4 | 21.5 | 25.5 |
| Heating Capacity (Btu/h) | 18,000 | 25,000 | 30,000 | 38,000 | 50,000 | 59,000 |
| Heating Current (A) | 6.7 | 9.2 | 11.2 | 14.4 | 22 | 24 |
| MCA (A) | 3.5 | 4 | 6 | 6 | 9.8 | 11 |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) | 618.0/576.8/529.7/488.5/ N/A | 824.0/759.3/694.5/629.8/ N/A | 988.8/894.7/806.4/712.2/ N/A | 1189/1083/971.2/865.2/ N/A | 1601.0/1471.5/1283.1/1094.8/ N/A | 1807.0/1553.9/1353.8/724.0/ N/A |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) | N/A/42/39.5/33/N/A | N/A/43.5/41.5/28.5/N/A | N/A/44/41/26/N/A | N/A/47/42/31/N/A | 56.5/54/51/48/N/A | N/A/51/48/42.5/N/A |
| ESP (Range) | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 |
| Dimension (WxDxH) (inch) | 21.02x17.52x45.00 | 21.02x17.52x45.00 | 21.02x21.02x49.02 | 21.02x21.02x49.02 | 21.02x24.49x52.99 | 21.02x24.49x52.99 |
| Packing (WxDxH) (inch) | 26.57x20.87x48.62 | 26.57x20.87x48.62 | 26.57x24.41x52.56 | 26.57x24.41x52.56 | 27.95x26.77x56.50 | 27.95x26.77x56.50 |
| Net/Gross Weight (lbs.) | 104.72/125.66 | 104.28/125.88 | 127.43/151.68 | 127.87/152.78 | 161.82/191.58 | 164.02/189.82 |
| Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
| Liquid Side/Gas Side (inch) | 1/4“ / 1/2” | 3/8“ / 5/8“ | 3/8“ / 5/8“ | 3/8“ / 3/4“ | 3/8“ / 3/4“ | 3/8“ / 3/4“ |
Outdoor REGULAR
| Specification | CH-RES18-230VOThis model | CH-RES24-230VO | CH-REL30-230VO | CH-R36LCU-230VO | CH-R48LCU-230VO | CH-R60LCU-230VO |
|---|---|---|---|---|---|---|
| Power Supply | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Voltage Range | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Current (A) | 6.7 | 9.3 | 12.5 | 17.4 | 21.5 | 25.5 |
| Cooling Capacity Range (Btu/h) | 5,600–20,400 | 6,700–29,600 | 9,200–34,000 | 8,900–38,200 | 9,500–52,000 | 21,800–57,300 |
| EER2 | 11.7 | 12.1 | 12 | 11.7 | 10.7 | 10.2 |
| SEER2 | 18.5 | 19.7 | 17 | 15.8 | 15.2 | 15.2 |
| Heating Capacity Range (Btu/h) | 5,500–21,800 | 5,800–33,800 | 8,500–33,000 | 6,400–43,000 | 11,700–60,000 | 11,800–60,300 |
| COP | 3.60 | 3.53 | 3.60 | 3.36 | 3.36 | 3.34 |
| HSPF4 | 9.8 | 9.7 | 8.7 | 9.3 | 9.0 | 9.1 |
| HSPF5 | 7.7 | 7.3 | 7.7 | 7.3 | 7.2 | 7.1 |
| Heating at 5°F (-15°C) (Btu/h) | 13,000 | 18,000 | 20,400 | 24,200 | 35,200 | 35,400 |
| MCA (A) | 18 | 24 | 28 | 33 | 39 | 42 |
| Max. Fuse (A) | 20 | 25 | 30 | 35 | 40 | 45 |
| Outdoor Air Flow (CFM) | 1,765.8 | 2,236.7 | 2,236.7 | 2,413.3 | 4,237.9 | 4,237.9 |
| Outdoor Noise Level (dB(A)) | 56.5 | 58.5 | 61 | 62.5 | 65 | 62.5 |
| Dimension (WxDxH) (inch) | 35.04x13.46x26.50 | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Packing (WxDxH) (inch) | 39.17x15.67x29.13 | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 43.11x19.49x57.48 | 43.11x19.49x58.27 |
| Net/Gross Weight (lbs.) | 92.59/100.31 | 122.13/132.28 | 142.86/154.54 | 152.34/162.48 | 208.78/239.86 | 209.44/240.08 |
| Refrigerant Type/Quantity (oz.) | R454B/47.97 | R454B/70.55 | R454B/84.66 | R454B/91.71 | R454B/126.99 | R454B/144.62 |
| Refrigerant Precharge (ft.) | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for each ft. (oz./ft.) | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant piping Liquid side/Gas side (inch) | 1/4” / 1/2” | 3/8” / 5/8” | 3/8” / 5/8” | 3/8” / 3/4” | 3/8” / 3/4” | 3/8” / 3/4” |
| Max. Pipe Length (ft.) | 98.4 | 164 | 164 | 246 | 246 | 213.2 |
| Max. Difference in Level (ft.) | 65.6 | 82 | 82 | 98.4 | 98.4 | 98.4 |
| Ambient Temp Cooling (°F) | -13~122 | -13~122 | -13~122 | -13~122 | -22~122 | -13~122 |
| Ambient Temp Heating (°F) | -13~75 | -13~75 | -13~75 | -13~75 | -22~75 | -13~75 |
| AHRI | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| ETL | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Energy Star | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| NEEP | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Frequently asked questions.
What size mini split do I need for my room?
For a space up to 850 sq ft, the Cooper & Hunter 18,000 BTU single zone mini split is an ideal choice. This capacity ensures effective heating and cooling, making it suitable for medium to large rooms.
Can I install a mini split myself?
While the Cooper & Hunter mini split can be installed by a DIYer, professional installation is recommended for optimal performance and warranty validation. Ensure that you follow local codes and guidelines if you choose to proceed with a self-installation.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter mini split arrives pre-charged with R454B refrigerant for up to 25 ft of line set, making installation easier. This feature allows for a quicker setup while ensuring efficient operation.
What voltage does the Cooper & Hunter mini split require?
The Cooper & Hunter 18,000 BTU mini split operates on 230V, making it suitable for standard residential electrical systems. Ensure your electrical setup can accommodate this voltage for proper functionality.
What warranty does Cooper & Hunter offer on their mini splits?
The Cooper & Hunter mini split comes with a 5-year parts warranty and a 7-year compressor warranty, provided that registration occurs within 30 days of purchase. This warranty gives you peace of mind regarding reliability and performance.
What is the SEER rating of the Cooper & Hunter mini split and why does it matter?
The Cooper & Hunter 18,000 BTU mini split boasts a SEER rating of 21.6, indicating high energy efficiency. A higher SEER rating means lower energy bills and reduced environmental impact, making this unit an excellent investment for long-term savings.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 16.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 60,000 BTU Single Zone Multi Position Air Handler, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 17.7HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 48,000 BTU Single Zone Multi Position Air Handler, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 17.5HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 30,000 BTU Single Zone Multi Position Air Handler, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 18.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 18,000 BTU Single Zone Multi Position Air Handler, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
The Cooper & Hunter 18,000 BTU (1.5 Ton) multi-position air handler is a single-zone ducted mini split heat pump system on next-generation R454B refrigerant — a true central-style AHU that connects to your ductwork and installs in any of four orientations: upflow, downflow, horizontal left, or horizontal right. With a 18.5 SEER2 inverter system on 208/230V and adjustable static pressure up to 0.8 in.WG, it serves whole homes and large zones up to approximately 1,000 sq ft and keeps heating in outdoor temperatures as low as -13°F — still delivering 13,000 Btu/h of heat at 5°F.
Key Features
- 18,000 Btu/h cooling / 18,000 Btu/h heating — inverter range 5,600–20,400 cooling, 5,500–21,800 heating; 13,000 Btu/h heating at 5°F
- 18.5 SEER2 / 12.1 EER2 / 9.8 HSPF4 — current R454B-generation efficiency
- Heats down to -13°F outdoor ambient; cooling operation -13–122°F
- True multi-position install — upflow, downflow, horizontal left or right; adjustable external static pressure 0–0.8 in.WG for real duct runs
- Optional auxiliary electric heat — accepts C&H CH-NREH strip-heat kits (5 kW or 10 kW)
- Quiet air handler: from 33.0 dB(A); outdoor unit 56.5 dB(A)
- Wi-Fi Smart Kit built in — Cooper & Hunter app control; 12V wall thermostat and remote included (thermostat connection enables smart features)
- ETL listed, AHRI certified, Energy Star Cold Climate & NEEP listed
Cooper & Hunter Multi-Position Air Handler (R454B) Lineup
| Capacity | Outdoor + Air Handler | SEER2 | Heats down to | Heating at 5°F |
| 18,000 BTU | CH-RES18-230VO + CH-RS18MAHU | 18.5 | -13°F | 13,000 Btu/h |
| 18,000 BTU Hyper Heat | CH-RHP18-230VO + CH-RS18MAHU | 18.0 | -22°F | 18,000 Btu/h |
| 24,000 BTU | CH-RES24-230VO + CH-RS24MAHU | 19.7 | -13°F | 18,000 Btu/h |
| 24,000 BTU Hyper Heat | CH-RHP24-230VO + CH-RS24MAHU | 18.7 | -22°F | 23,600 Btu/h |
| 30,000 BTU | CH-REL30-230VO + CH-RS30MAHU | 17.0 | -13°F | 20,400 Btu/h |
| 36,000 BTU | CH-R36LCU-230VO + CH-RS36LCAHU | 15.8 | -13°F | 24,200 Btu/h |
| 36,000 BTU Hyper Heat | CH-RHP36LCU-230VO + CH-RS36LCAHU | 17.2 | -22°F | 38,000 Btu/h |
| 48,000 BTU | CH-R48LCU-230VO + CH-RS48LCAHU | 17.7 | -13°F | 35,200 Btu/h |
| 48,000 BTU Hyper Heat | CH-RHP48LCU-230VO + CH-RS48LCAHU | 17.0 | -22°F | 46,000 Btu/h |
| 60,000 BTU | CH-R60LCU-230VO + CH-RS60LCAHU | 16.0 | -13°F | 35,400 Btu/h |
| 60,000 BTU Hyper Heat | CH-RHP60LCU-230VO + CH-RS60LCAHU | 15.2 | -22°F | 53,000 Btu/h |
Coverage is sizing guidance; actual load depends on ductwork, insulation, ceiling height, and climate.
