Cooper & Hunter 18,000 BTU Indoor Mini Floor Console, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-16MMC-230VI
Product specifications
- Voltage
- 230V
- SEER
- 25.0
- WiFi
- Not Included
- Type
- Mini Floor Console
- Freon
R410A
Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · MINI FLOOR CONSOLE
Built for year-round comfort
CH-16MMC-230VI
System Specs
| Cooling Capacity | 16,000 BTU/h |
|---|---|
| SEER2 | 25.0 |
| Voltage | 230V |
| Refrigerant | R410A |

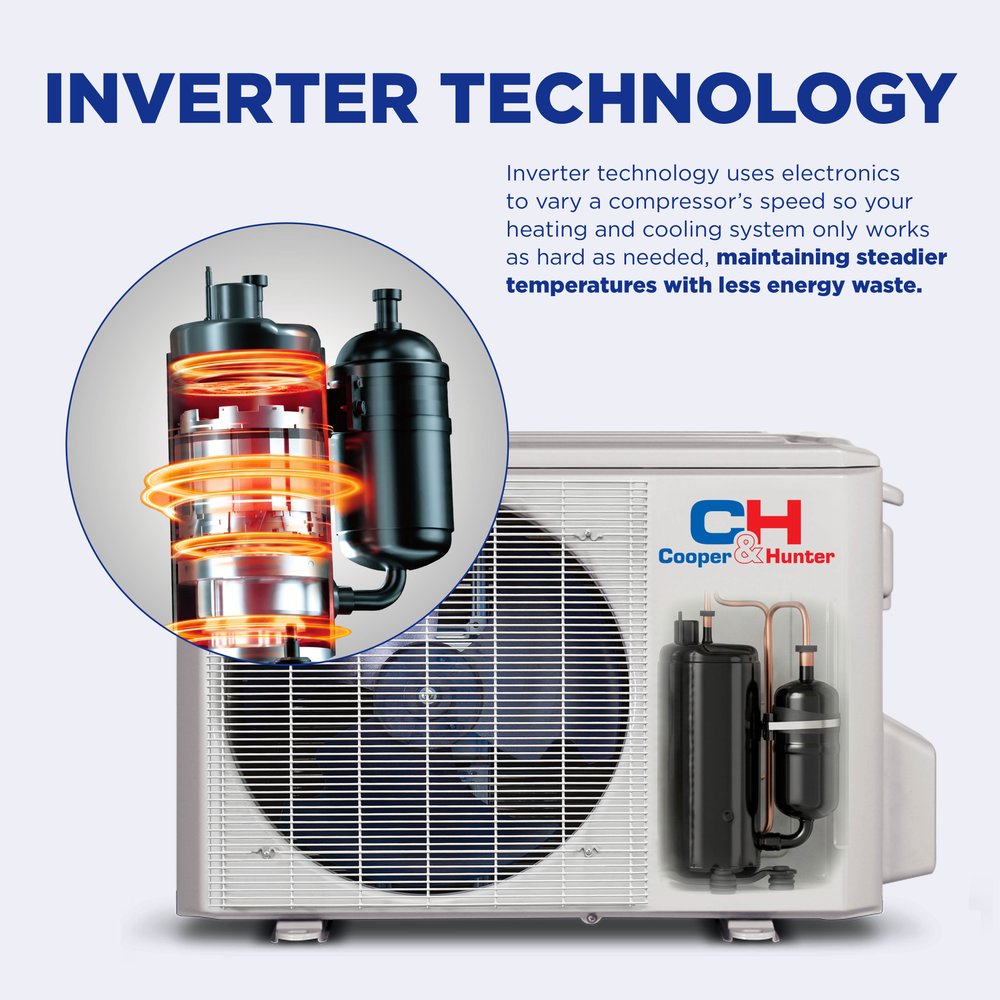

| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 46/40/25 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 42.64 × 9.61 × 13.23 in | 29.54 / 37.48 lb | RG10K-exclusive remote |
Product Description

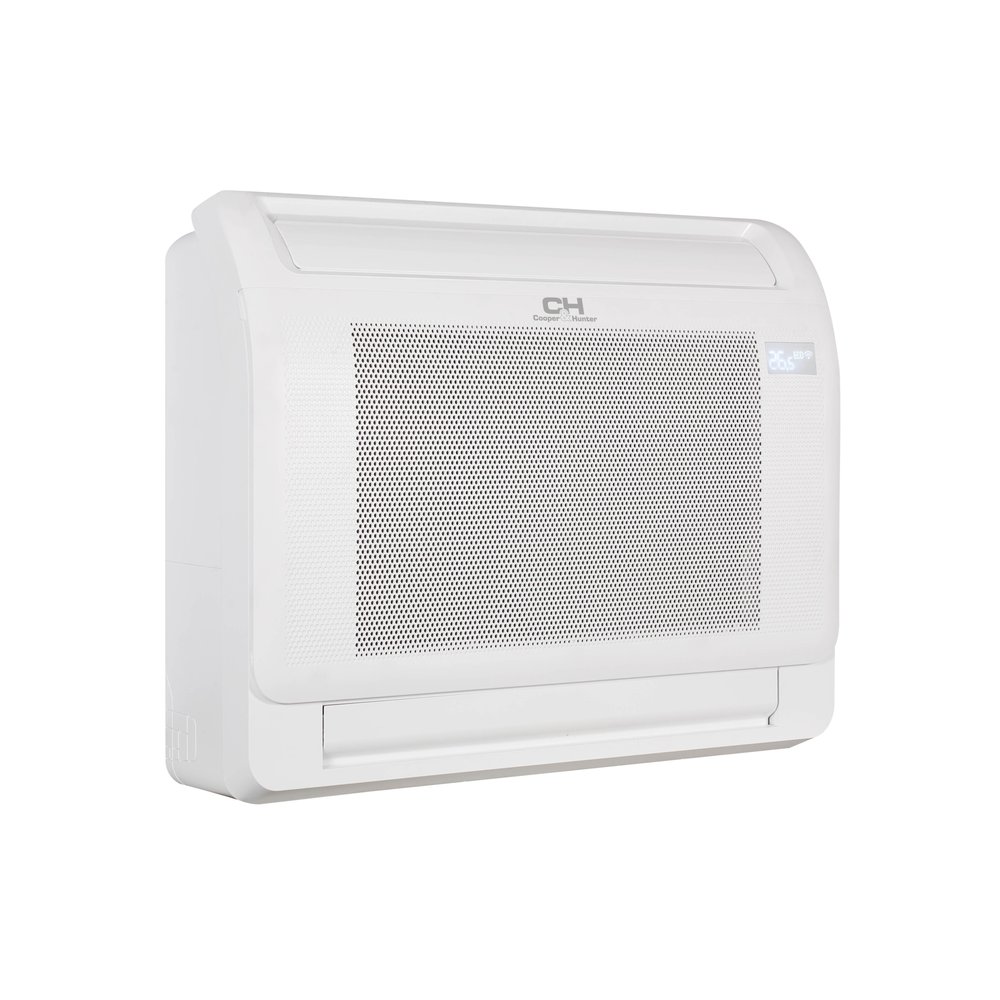

The Cooper & Hunter 16,000 BTU mini floor console is a mini floor console indoor unit for Cooper & Hunter ductless mini split systems, running on R410A refrigerant. It mounts in a single room or zone and is controlled independently with its included remote — pair it with a compatible outdoor condenser to complete your system.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs
| Model | CH-16MMC-230VIThis model | CH-18MOLVWM-230VI |
|---|---|---|
| Unit Dimensions (WxDxH) | 42.64x9.61x13.23 in | |
| Net/Gross Weight | 29.54/37.48 lb | |
| Packing Dimensions (WxDxH) | 45.47x16.34x12.40 in | |
| Power Supply | 208-230V, 1Ph, 60Hz | |
| Maximum Fuse Size | 15 A | |
| Min. Circuit Ampacity | 3 A | |
| Copper Line Size (Liquid/Gas) | 1/4" - 1/2'' | |
| Noise Level (Hi/Med/Lo) | 46/40/25 dB | |
| Airflow (Turbo/Hi/Mi/Lo) | 760.59/530.59/458.82/382.35 CFM | |
| Dehumidification | 2.85 pt/h | |
| Drain Pipe Diameter | 5/8" | |
| Controller | RG10K-exclusive remote&wifi kit | RG10K-exclusive remote |
| Net/Gross weight (lb) | 32.85/41.45 | |
| Refrigerant type | R410A | |
| Power source | 208-230V, 1Ph, 60Hz | |
| EER2 up to | 12.5 | |
| SEER2 up to | 22.4 | |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 500.00/441.18/382.35/323.53 | |
| Indoor noise level (Hi/Med/Lo) (dB) | 45/43.5/30.5 | |
| Operation room temperature Cooling (F) | 60～90 | |
| Operation room temperature Heating (F) | 32～86 | |
| Minimum circuit ampacity (A) | 3 | |
| Max. fuse (A) | 15 | |
| Voltage range (V) | 187-253 | |
| Unit dimensions (WxDxH) | 31.26x7.87x24.45 | |
| Packing dimensions (WxDxH) | 34.06x11.02x28.31 | |
| System type | Single/Multi-zone unit | |
| Refrigerant piping Liquid/Gas side (inch) | 1/4" - 1/2'' | |
| Drainage water pipe diameter (inch) | 5/8" | |
| Dehumidification (Pnt/H) | 1.20 | |
| BTU Rated | 16,000 |
Frequently asked questions.
What size mini split do I need for my space?
For a space of up to 850 square feet, the Cooper & Hunter 18,000 BTU Mini Floor Console is an excellent choice. Its capacity is well-suited for medium-sized rooms, providing efficient heating and cooling.
Can I install a mini split myself?
While some homeowners choose to install the Cooper & Hunter system themselves, it's important to note that proper installation requires technical knowledge, especially with the refrigerant and electrical connections. If you opt for DIY, ensure you follow local codes and consider professional help for optimal performance.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 18,000 BTU system comes pre-charged with R410A refrigerant for up to 25 feet of line set, making installation more convenient. This feature helps you save time during the setup process.
What voltage does the Cooper & Hunter mini split require?
The Cooper & Hunter Mini Floor Console operates on a 230V electrical system, which is standard for many residential mini split installations. Ensure your electrical system is compatible before installation.
What warranty does the Cooper & Hunter system offer?
The Cooper & Hunter 18,000 BTU mini split comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register the product within 30 days of purchase. This warranty offers peace of mind regarding the unit's durability and reliability.
What SEER rating do I need for energy efficiency?
The Cooper & Hunter Mini Floor Console boasts an impressive SEER rating of 25.0, which exceeds the minimum efficiency requirements for most regions. This high rating ensures lower energy bills while maintaining comfortable indoor temperatures.
Manufacturer Technical Support
Reach your brand's tech support team directly
