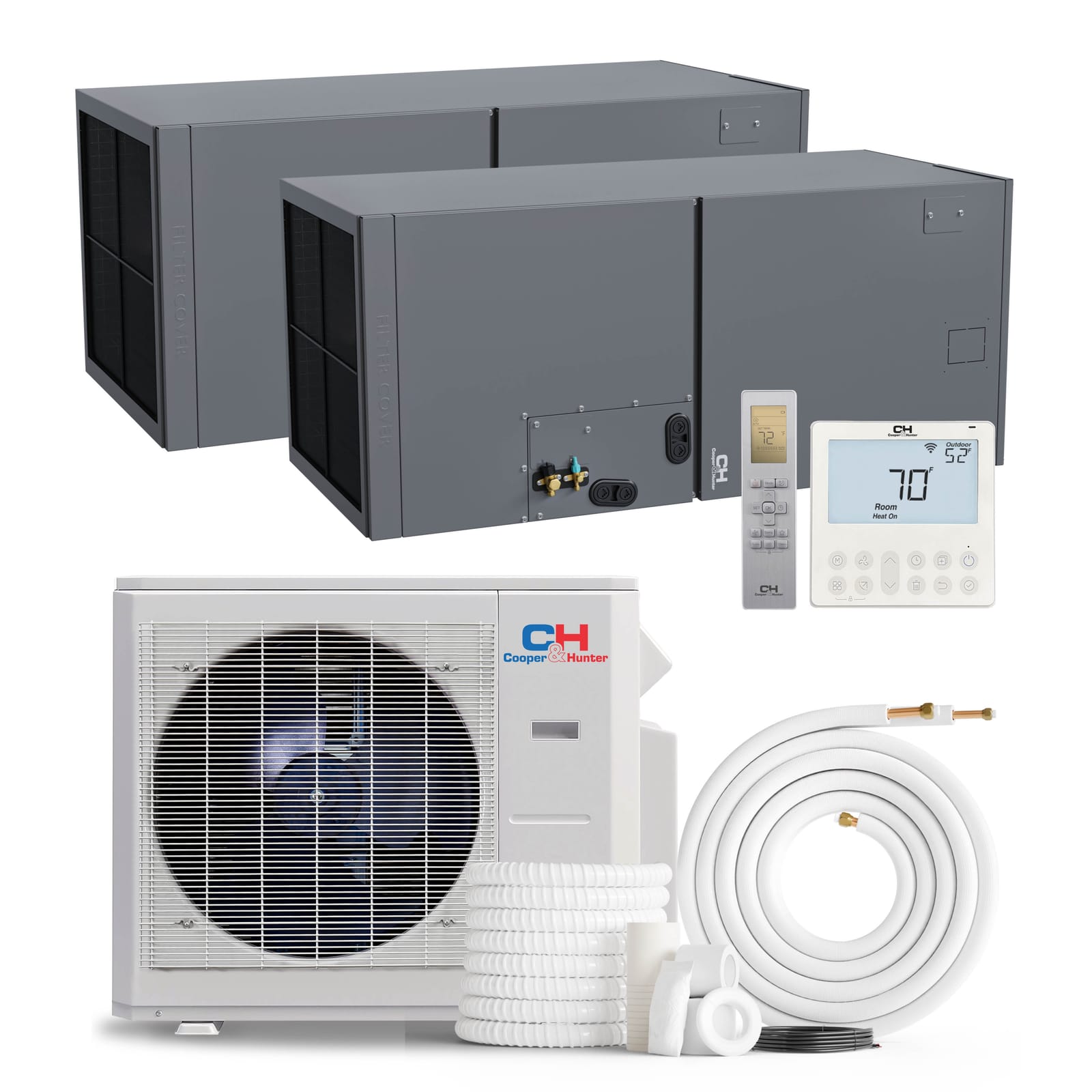

Cooper & Hunter 30,000 BTU Indoor Air Handler, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-RS30MAHU-NO
Product specifications
- Voltage
- 230V
- SEER
- 19.7
- WiFi
- Not Included
- Type
- Air Handler
- Freon
R454B
Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · AIR HANDLER
Built for year-round comfort
CH-RS30MAHU-NO
System Specs
| Cooling Capacity | 30,000 BTU/h |
|---|---|
| SEER2 | 19.7 |
| Voltage | 230V |
| Refrigerant | R454B |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 44/41/26 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 21.02 × 21.02 × 49.02 in | 127.43 / 151.68 lb | Wire controller + remote controller available |
Product Description

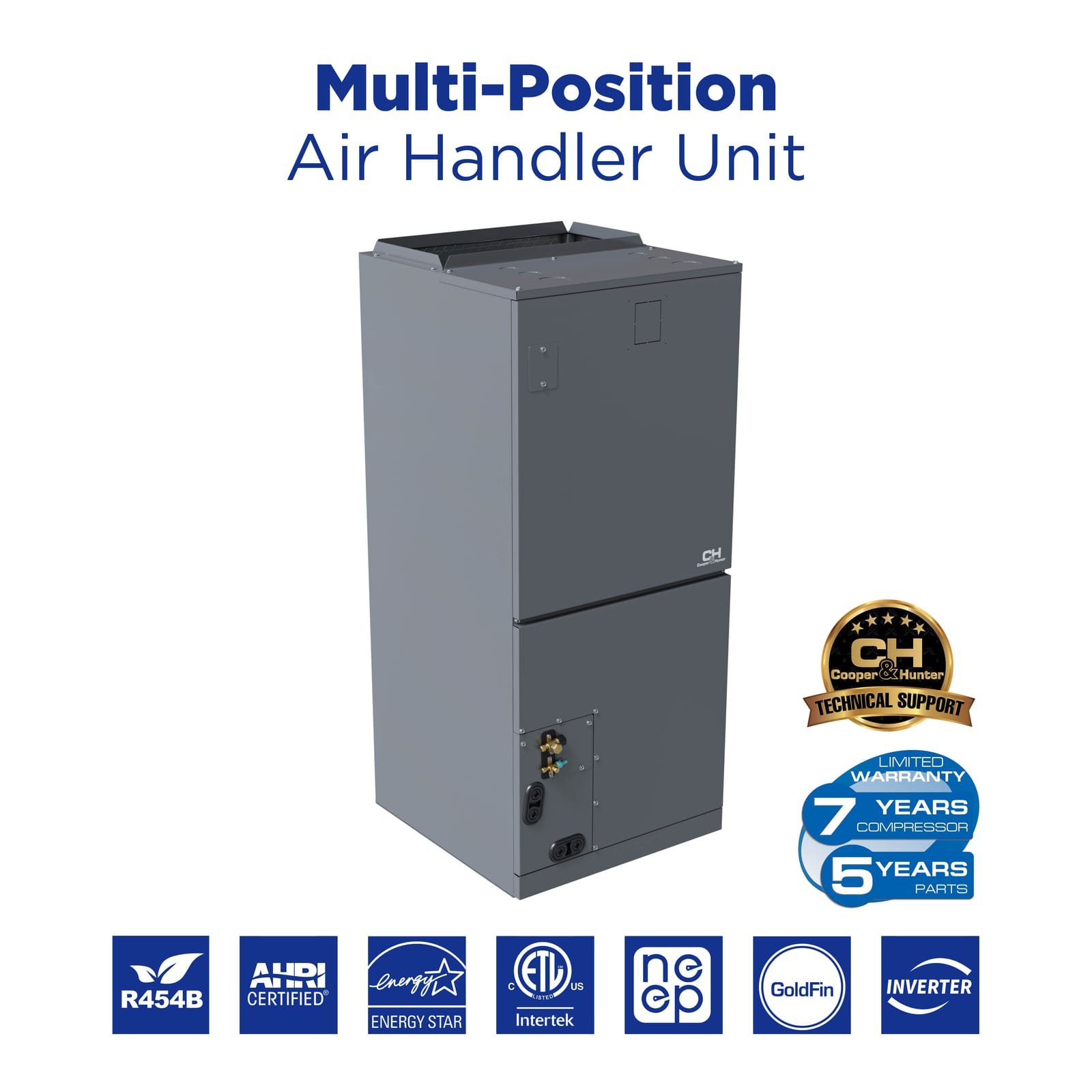

The Cooper & Hunter 30,000 BTU multi-position air handler is a multi-position air handler indoor unit for Cooper & Hunter ductless mini split systems, running on R454B refrigerant. It mounts in a single room or zone and is controlled independently with its included remote — pair it with a compatible outdoor condenser to complete your system.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— CH-RS30MAHU
| Model | CH-RS30MAHU |
|---|---|
| Unit Dimensions (WxDxH) | 21.02 x 21.02 x 49.02 in |
| Net/Gross Weight | 127.43/151.68 lb |
| Packing Dimensions (WxDxH) | 24.41 x 26.57 x 52.56 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 6 A |
| Copper Line Size (Liquid/Gas) | 3/8"/5/8" |
| Noise Level (Hi/Med/Lo) | 44/41/26 dB |
| Dehumidification | 7.4 pt/h |
| Drain Pipe Diameter | 3/4" |
| Controller | wire controller + remote controller available |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | CH-RS18MAHU | CH-RS24MAHU | CH-RS36LCAHU | CH-RS48LCAHU | CH-RS60LCAHU |
|---|---|---|---|---|---|
| Rated (V, Ph, Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Rated Capacity (Btu/h) | 18,000 | 23,000 | 36,000 | 48,000 | 54,000 |
| Rated Current (A) | 9.1 | 8.7 | 13.4 | 22 | 24 |
| Rated Capacity (Btu/h) | 19,500 | 26,000 | 38,000 | 50,000 | 59,000 |
| Rated Current (A) | 9.5 | 9.7 | 14.3 | 19 | 21.8 |
| Minimum Circuit Ampacity (MCA) (A) | 3.5 | 4 | 5 | 7.5 | 9 |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM) | 618.0/576.8/529.7/488.5/ N/A | 824.0/759.3/694.5/629.8/- | 1189/1083/971.2/865.2/ N/A | 1601/1471.5/1283.1/1094.8// | 1807/1553.9/1353.8/724/ N/A |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A)) | N/A/42.5/37.5/30.0/N/A | N/A/43.5/40/25.5/N/A | N/A/47/42/30.5/N/A | 56.5/54.5/51/48// | N/A/53.0/48.0/33.5/N/A |
| ESP (Range) | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 |
| Dimension (WxDxH) (inch) | 17.52x21.02x45.00 | 17.52x21.02x45.00 | 21.02x21.02x49.02 | 24.49x21.02x52.99 | 24.49x21.02x52.99 |
| Packing (WxDxH) (inch) | 20.87x26.57x48.62 | 20.87x26.57x48.62 | 24.41x26.57x52.56 | 27.95x26.77x56.50 | 27.95x26.77x56.50 |
| Net/Gross Weight (lbs.) | 104.72/125.66 | 104.28/125.88 | 127.87/152.78 | 161.82/191.58 | 161.82/191.58 |
| Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
| Liquid Side/Gas side (inch) | 1/4” / 1/2” | 3/8” / 5/8” | 3/8” / 3/4” | 3/8” / 3/4” | 3/8” / 3/4” |
Outdoor HYPER
| Specification | CH-RHP18-230VO | CH-RHP24-230VO | CH-RHP36LCU-230VO | CH-RHP48LCU-230VO | CH-RHP60LCU-230VO |
|---|---|---|---|---|---|
| Rated (V, Ph, Hz) | 208-230, 1, 60 | 208-230, 1, 60 | 208-230, 1, 60 | 208-230, 1, 60 | 208-230, 1, 60 |
| Voltage range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Current (A) | 8.7 | 13.4 | 13.4 | 22 | 24 |
| Rated Capacity Range (Btu/h) | 6,000–20,400 | 7,500–27,000 | 5,700–36,400 | 7,300–55,000 | 13,700–58,000 |
| EER2 (Btu/w) | 12 | 12 | 11.7 | 10.7 | 10.2 |
| SEER2 (Btu/w) | 18.7 | 18.7 | 17.2 | 15.2 | 15.2 |
| Rated Capacity Range (Btu/h) | 5,000–21,600 | 8,800–29,000 | 9,500–44,000 | 9,500–65,000 | 10,000–66,100 |
| COP (W/W) | 3.64 | 3.55 | 3.39 | 3.06 | 3.36 |
| HSPF4 (Btu/w) | 13.5 | 13.2 | 12.1 | 10.7 | 10.7 |
| HSPF5 (Btu/w) | 10.8 | 10.7 | 9.7 | 8.7 | 8.7 |
| Heating at 5°F (-15°C) Rated Capacity (Btu/h) | 18,000 | 23,600 | 38,000 | 46,000 | 53,000 |
| Minimum Circuit Ampacity (MCA) (A) | 19 | 24.9 | 38 | 44 | 44 |
| Max. Fuse (A) | 25 | 40 | 45 | 45 | 45 |
| Outdoor Air Flow (Max.) (CFM) | 1,765.8 | 2,236.7 | 3,001.9 | 4,237.9 | 4,237.9 |
| Outdoor Noise Level (dB(A)) | 59 | 61.5 | 65.5 | 65 | 62 |
| Dimension (WxDxH) (inch) | 35.04x13.46x26.50 | 37.24x16.14x31.89 | 38.58x16.34x38.39 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Packing (WxDxH) (inch) | 39.17x15.67x29.13 | 42.91x19.68x34.84 | 45.08x19.68x42.52 | 43.11x19.49x57.48 | 43.11x19.49x57.48 |
| Net/Gross Weight (lbs.) | 99.87/107.80 | 130.29/141.31 | 206.57/237.44 | 208.78/239.86 | 230.28/261.69 |
| Refrigerant Type/Quantity (oz.) | R454B/55.38 | R454B/63.49 | R454B/126.99 | R454B/126.99 | R454B/151.68 |
| Refrigerant Precharge (ft.) | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for each ft. (oz./ft.) | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant piping Liquid side/Gas side (inch) | 1/4” / 1/2” | 3/8” / 5/8” | 3/8” / 3/4” | 3/8” / 3/4” | 3/8” / 3/4” |
| Max. Pipe Length (ft.) | 98.4 | 164 | 246 | 246 | 246 |
| Max. Difference in Level (ft.) | 65.6 | 82 | 98.4 | 98.4 | 98.4 |
| Ambient Temperature Cooling (°F) | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 |
| Ambient Temperature Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| AHRI | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| ETL | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Energy Star | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| NEEP | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Indoor REGULAR
| Specification | CH-RS30MAHUThis model | CH-RS18MAHU | CH-RS24MAHU | CH-RS36LCAHU | CH-RS48LCAHU | CH-RS60LCAHU |
|---|---|---|---|---|---|---|
| Power Supply | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Cooling Capacity (Btu/h) | 30,000 | 18,000 | 24,000 | 36,000 | 48,000 | 60,000 |
| Cooling Current (A) | 12.5 | 6.7 | 9.3 | 17.4 | 21.5 | 25.5 |
| Heating Capacity (Btu/h) | 30,000 | 18,000 | 25,000 | 38,000 | 50,000 | 59,000 |
| Heating Current (A) | 11.2 | 6.7 | 9.2 | 14.4 | 22 | 24 |
| MCA (A) | 6 | 3.5 | 4 | 6 | 9.8 | 11 |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) | 988.8/894.7/806.4/712.2/ N/A | 618.0/576.8/529.7/488.5/ N/A | 824.0/759.3/694.5/629.8/ N/A | 1189/1083/971.2/865.2/ N/A | 1601.0/1471.5/1283.1/1094.8/ N/A | 1807.0/1553.9/1353.8/724.0/ N/A |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) | N/A/44/41/26/N/A | N/A/42/39.5/33/N/A | N/A/43.5/41.5/28.5/N/A | N/A/47/42/31/N/A | 56.5/54/51/48/N/A | N/A/51/48/42.5/N/A |
| ESP (Range) | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 |
| Dimension (WxDxH) (inch) | 21.02x21.02x49.02 | 21.02x17.52x45.00 | 21.02x17.52x45.00 | 21.02x21.02x49.02 | 21.02x24.49x52.99 | 21.02x24.49x52.99 |
| Packing (WxDxH) (inch) | 26.57x24.41x52.56 | 26.57x20.87x48.62 | 26.57x20.87x48.62 | 26.57x24.41x52.56 | 27.95x26.77x56.50 | 27.95x26.77x56.50 |
| Net/Gross Weight (lbs.) | 127.43/151.68 | 104.72/125.66 | 104.28/125.88 | 127.87/152.78 | 161.82/191.58 | 164.02/189.82 |
| Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
| Liquid Side/Gas Side (inch) | 3/8“ / 5/8“ | 1/4“ / 1/2” | 3/8“ / 5/8“ | 3/8“ / 3/4“ | 3/8“ / 3/4“ | 3/8“ / 3/4“ |
Outdoor REGULAR
| Specification | CH-RES18-230VO | CH-RES24-230VO | CH-REL30-230VO | CH-R36LCU-230VO | CH-R48LCU-230VO | CH-R60LCU-230VO |
|---|---|---|---|---|---|---|
| Power Supply | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Voltage Range | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Current (A) | 6.7 | 9.3 | 12.5 | 17.4 | 21.5 | 25.5 |
| Cooling Capacity Range (Btu/h) | 5,600–20,400 | 6,700–29,600 | 9,200–34,000 | 8,900–38,200 | 9,500–52,000 | 21,800–57,300 |
| EER2 | 11.7 | 12.1 | 12 | 11.7 | 10.7 | 10.2 |
| SEER2 | 18.5 | 19.7 | 17 | 15.8 | 15.2 | 15.2 |
| Heating Capacity Range (Btu/h) | 5,500–21,800 | 5,800–33,800 | 8,500–33,000 | 6,400–43,000 | 11,700–60,000 | 11,800–60,300 |
| COP | 3.60 | 3.53 | 3.60 | 3.36 | 3.36 | 3.34 |
| HSPF4 | 9.8 | 9.7 | 8.7 | 9.3 | 9.0 | 9.1 |
| HSPF5 | 7.7 | 7.3 | 7.7 | 7.3 | 7.2 | 7.1 |
| Heating at 5°F (-15°C) (Btu/h) | 13,000 | 18,000 | 20,400 | 24,200 | 35,200 | 35,400 |
| MCA (A) | 18 | 24 | 28 | 33 | 39 | 42 |
| Max. Fuse (A) | 20 | 25 | 30 | 35 | 40 | 45 |
| Outdoor Air Flow (CFM) | 1,765.8 | 2,236.7 | 2,236.7 | 2,413.3 | 4,237.9 | 4,237.9 |
| Outdoor Noise Level (dB(A)) | 56.5 | 58.5 | 61 | 62.5 | 65 | 62.5 |
| Dimension (WxDxH) (inch) | 35.04x13.46x26.50 | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Packing (WxDxH) (inch) | 39.17x15.67x29.13 | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 43.11x19.49x57.48 | 43.11x19.49x58.27 |
| Net/Gross Weight (lbs.) | 92.59/100.31 | 122.13/132.28 | 142.86/154.54 | 152.34/162.48 | 208.78/239.86 | 209.44/240.08 |
| Refrigerant Type/Quantity (oz.) | R454B/47.97 | R454B/70.55 | R454B/84.66 | R454B/91.71 | R454B/126.99 | R454B/144.62 |
| Refrigerant Precharge (ft.) | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for each ft. (oz./ft.) | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant piping Liquid side/Gas side (inch) | 1/4” / 1/2” | 3/8” / 5/8” | 3/8” / 5/8” | 3/8” / 3/4” | 3/8” / 3/4” | 3/8” / 3/4” |
| Max. Pipe Length (ft.) | 98.4 | 164 | 164 | 246 | 246 | 213.2 |
| Max. Difference in Level (ft.) | 65.6 | 82 | 82 | 98.4 | 98.4 | 98.4 |
| Ambient Temp Cooling (°F) | -13~122 | -13~122 | -13~122 | -13~122 | -22~122 | -13~122 |
| Ambient Temp Heating (°F) | -13~75 | -13~75 | -13~75 | -13~75 | -22~75 | -13~75 |
| AHRI | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| ETL | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Energy Star | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| NEEP | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Frequently asked questions.
What size mini split do I need for my home?
For a space up to 1400 sq ft, the Cooper & Hunter 30,000 BTU mini split air handler is an excellent choice. Its high capacity makes it suitable for larger rooms or open floor plans.
Can I install a mini split myself?
While some homeowners may attempt a DIY installation, it's crucial to note that the Cooper & Hunter system requires proper mounting and refrigerant handling. It's recommended to hire a professional for optimal performance and compliance with local codes.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 30,000 BTU unit comes pre-charged with R454B refrigerant for up to 25 ft of line set. This feature simplifies installation, but ensure to follow guidelines for longer line sets.
What voltage does a mini split require?
The Cooper & Hunter mini split air handler operates on a 230V electrical system. Ensure your home’s electrical setup can accommodate this voltage for optimal performance.
What warranty does Cooper & Hunter offer?
Cooper & Hunter provides a solid warranty for their systems, including a 5-year parts warranty and a 7-year compressor warranty, provided you register the unit within 30 days of purchase.
What is the SEER rating of the Cooper & Hunter system?
The Cooper & Hunter 30,000 BTU mini split air handler boasts an impressive SEER rating of 19.7, making it a highly efficient choice for both cooling and heating in various climates.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R410ASEER2 26.4Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Midnight Black 6,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 9,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R410ASEER2 22.0Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 18,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
The Cooper & Hunter 30,000 BTU multi-position air handler is a multi-position air handler indoor unit for Cooper & Hunter ductless mini split systems, running on R454B refrigerant. It mounts in a single room or zone and is controlled independently with its included remote — pair it with a compatible outdoor condenser to complete your system.
Key Features
- Multi-Position Air Handler indoor unit for Cooper & Hunter multi-zone / single-zone systems
- 30,000 BTU nominal capacity
- Individually controlled with included remote — set its own temperature per room
- R454B refrigerant
- Inverter heat pump — cools and heats when paired with a compatible condenser
Works With
Connects to a compatible Cooper & Hunter outdoor condenser (multi-zone or single-zone), sold separately. Choose a copper line-set kit length at checkout, or supply your own.
