Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K

Name: Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K
Brand: HVAC Mart
SKU: CH-R60MES-230VOR06MOLVWMR09MOLVWMR09MOLVWMR12MOLVWMR24MOLVWM-NO
Price: 6732 USD
Availability: InStock

Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K — photo 2

Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K — photo 3

Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K — photo 4

Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K — photo 5

Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K — photo 6

Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K — photo 7

Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K — photo 8

Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K — photo 9

Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K — photo 10

Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K — photo 11

1 / 11

SEER2 22.0HEATS down to −13°FCOOLS up to 122°FR454B

Cooper & Hunter7-Yr WarrantySKU: CH-R60MES-230VOR06MOLVWMR09MOLVWMR09MOLVWMR12MOLVWMR24MOLVWM-NO

$6,732.00

As low as $561/mo withaffirm

Product specifications

Voltage: 230V
SEER: 22.0
WiFi: Included
Zone: Five Zone
Type: Wall Mount
Freon: R454B

See full Tech Specs

Choose Your Configuration

Installation Type: No Installation

Save 10% on these accessories

ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00

FREE Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included

30-Day Returns

COOPER & HUNTER · OLIVIA

Built for year-round comfort

CH-R60MES-230VOR06MOLVWMR09MOLVWMR09MOLVWMR12MOLVWMR24MOLVWM-NO

System Specs

Cooling Capacity	60,000 BTU/h
Heating Capacity	60,000 BTU/h
SEER2	22
EER2	10
Voltage	230V

Refrigerant	R454B

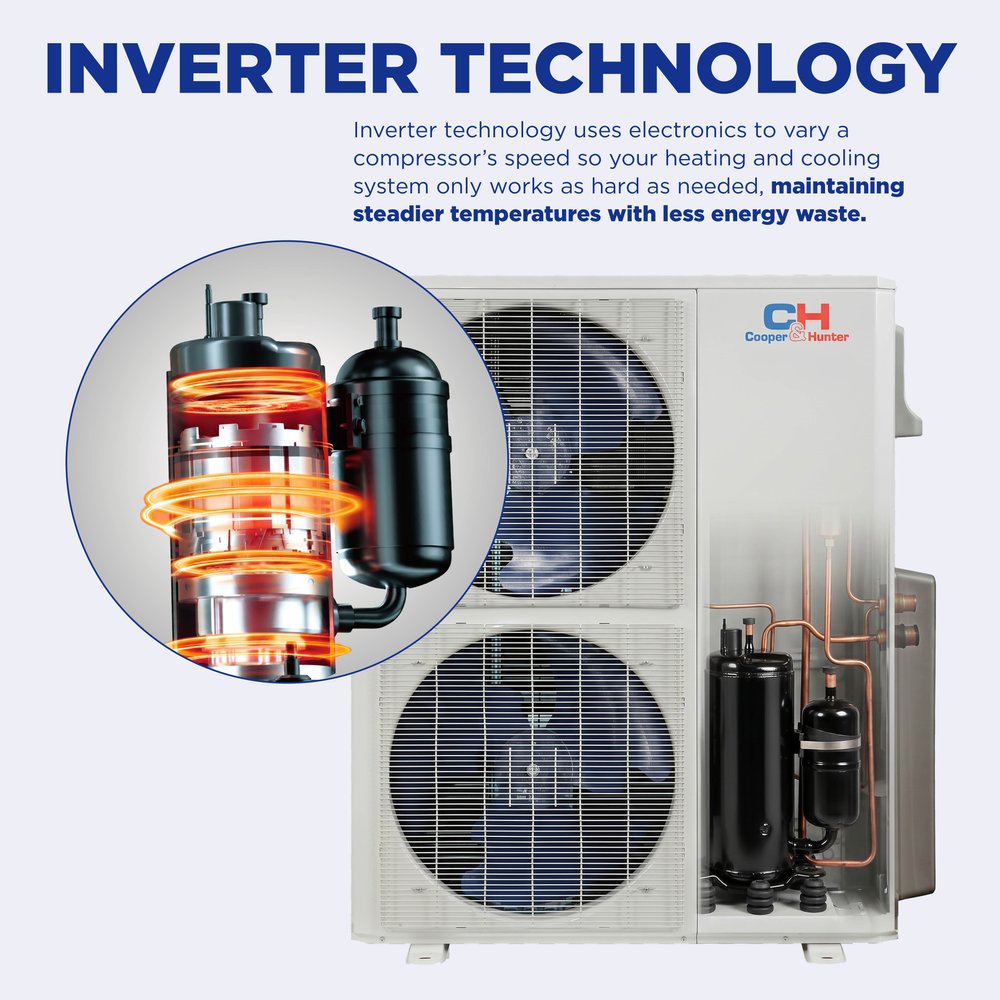

Compressor	Inverter
Climate Range	-13–122°F / -13–75°F outdoor ambient
Sound Level (indoor)	37/32/24 dB
Warranty	7-Yr Compressor

Indoor Unit Specs

Unit Dimensions (WxDxH)	Net / Gross Weight	Remote Control
28.70 × 7.87 × 11.50 in	17.64 / 23.15 lb	Remote controller

Olivia Series Description

The Cooper & Hunter 5-Zone Mini Split System offers 60,000 nominal total BTU with a high efficiency SEER2 rating of 22 and built-in Wi-Fi control for seamless temperature management. It features R454B refrigerant and operates effectively in heating conditions as low as -13°F, ensuring reliable performance in cold climates.

Tech Specifications

6 Modes for Maximum Comfort

Engineered to adapt to every season, every room, every need.

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

WHEREVER YOU ARE

Control your comfort, your way

Easy scheduling & timer
Multiple ways to control your comfort
Smart geo location
In-app support & assistance
Voice control

IN THE BOX

Everything included with this system

Cooper & Hunter MES 60,000 BTU Outdoor Condenser, 230V, R454B - Mini Split Air Conditioner Heat Pump
Indoor Wall Mount — CH-R06MOLVWM-230VI
Indoor Wall Mount — CH-R09MOLVWM-230VI × 2
Indoor Wall Mount — CH-R12MOLVWM-230VI
Indoor Wall Mount — CH-R24MOLVWM-230VI

7YEAR COMPRESSOR
WARRANTY

BACKED BY COOPER & HUNTER

Industry-leading protection on every unit

Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.

Technical Specifications

Outdoor Unit Specs— CH-R60MES-230VO

Outdoor Unit — CH-R60MES-230VO
Model	CH-R60MES-230VO
Unit Dimensions (WxDxH)	37.48 x 16.34 x 52.48 in
Net/Gross Weight	237.88/270.28 lb
Packing Dimensions (WxDxH)	43.11 x 19.49 x 58.27 in
Power Supply	208-230V, 1Ph, 60Hz
Maximum Fuse Size	40 A
Min. Circuit Ampacity	36 A
Copper Line Size (Liquid/Gas)	6x1/4" - 4x3/8"+2x1/2"
Noise Level	65 dB
Airflow	4,502.8 CFM
Dehumidification	10.57 pt/h

Indoor Unit Specs

Indoor Unit — CH-R06MOLVWM-230VI, CH-R09MOLVWM-230VI, CH-R12MOLVWM-230VI, CH-R24MOLVWM-230VI
Model	CH-R06MOLVWM-230VI	CH-R09MOLVWM-230VI	CH-R12MOLVWM-230VI	CH-R24MOLVWM-230VI
Unit Dimensions (WxDxH)	28.70 x 7.87 x 11.50 in	31.57 x 7.87 x 11.61 in	31.57 x 7.87 x 11.61 in	42.60 x 9.21 x 13.27 in
Net/Gross Weight	17.64/23.15 lb	18.96/24.25 lb	18.96/24.25 lb	30.86/40.56 lb
Packing Dimensions (WxDxH)	31.10 x 10.63 x 14.76 in	34.45 x 11.22 x 14.96 in	34.45 x 11.22 x 14.96 in	45.47 x 16.34 x 12.40 in
Power Supply	208-230V, 1Ph, 60Hz	208-230V, 1Ph, 60Hz	208-230V, 1Ph, 60Hz	208-230V, 1Ph, 60Hz
Maximum Fuse Size	15 A	15 A	15 A	15 A
Min. Circuit Ampacity	3 A	3 A	3 A	3 A
Copper Line Size (Liquid/Gas)	1/4"/3/8"	1/4"/3/8"	1/4"/3/8"	3/8"/5/8"
Noise Level (Hi/Med/Lo)	37/32/24 dB	39.5/33/24 dB	42/35.5/22.5 dB	49.5/43.5/34.5 dB
Dehumidification	0.63 pt/h	1.27 pt/h	2.96 pt/h	5.50 pt/h
Drain Pipe Diameter	5/8"	5/8"	5/8"	5/8"
Controller	remote controller	remote controller	remote controller	remote controller

System Specs

System
Cooling — Rated Capacity (Range)	60,000 Btu/h (19,000–62,000)
Heating at 47°F — Rated Capacity (Range)	60,000 Btu/h (20,000–60,000)
Rated Heating at 5°F	39,000 Btu/h
SEER2 / EER2	22 / 10
HSPF4 / HSPF5 / COP (47°F)	9.5 / 7.4 / 3.7
Outdoor Unit MCA / Max. Fuse	36 A / 40 A
Max. Connectable Indoor Units	6
Outdoor Noise Level	65 dB(A)
Outdoor Unit Dimensions (W×D×H)	37.48 × 16.34 × 52.48 in
Outdoor Unit Net / Gross Weight	237.88 / 270.28 lbs
Refrigerant Type / Charge	R454B / 151.68 oz
Pre-charged Line Length	150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe)
Max. Total Pipe Length / Max. to One Indoor	262.4 ft / 114.8 ft
Max. Height Difference (Indoor–Outdoor / Between Indoors)	49.2 ft / 33 ft
Operating Range — Cooling / Heating	-13–122°F / -13–75°F outdoor ambient

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor and Outdoor Hyper

Specification	CH-R06MOLVWM-115VI	CH-R09MOLVWM-230VI	CH-R12MOLVWM-230VI	CH-R18MOLVWM-230VI	CH-R24MOLVWM-230VI	CH-R33HEMLVWM-230VI
Power Supply Rated	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Rated Capacity Btu/h	6,000	9,000	12,000	18,000	23,000	33,000
Minimum Circuit Ampacity (MCA) A	3	3	3	3	3	3
Max. Fuse A	3	3	3	3	3	3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM	294.3/225.4/176.8/141.3/NA	382.6/293.1/194.2/153.0/NA	382.6/293.1/194.2/153.0/NA	759.3/530.4/419.1/382.6/NA	759.3/586.5/419.1/382.6/NA	829.6/716.6/592.7/447.3/NA
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)	42.0/37.0/32.0/24.0/NA	42.0/37.0/32.0/24.0/NA	43.0/37.0/32.0/24.0/NA	52.5/44.0/40.5/35.2/25.0	54.5/49.0/45.3/41.3/27.0	56.0/49.5/45.3/41.3/27.0
Dimension (WxDxH) inch	28.7x7.87x11.81	31.5x7.87x11.61	31.5x7.87x11.61	45.47x12.01x16.14	45.47x12.01x16.14	52.76x15.16x17.72
Packing (WxDxH) inch	31.10x10.63x14.76	34.45x11.22x14.96	34.45x11.22x14.96	45.47x12.01x16.14	45.47x12.01x16.14	52.76x15.16x17.72
Net/Gross Weight lbs.	17.64/21.35	18.64/22.05	18.64/22.05	45.47/21.06	45.47/21.06	67.16/17.72
Room temperature Cooling °F	60~90	60~90	60~90	60~90	60~90	60~90
Room temperature Heating °F	32~86	32~86	32~86	32~86	32~86	32~86
Liquid Side/Gas Side inch	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 3/4"

Specification

Specification	CH-RVHP19M-230VO	CH-RVHP28M-230VO	CH-RVHP36M-230VO	CH-RVHP48M-230VO	CH-RVHP55M-230VO
Power Supply (V/Ph/Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Operating Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Capacity (BTU/h)	5,400~28,000	7,200~37,000	9,000~43,000	12,000~57,000	19,000~59,000
Rated Current	5.6	9.5	12	17.3	18.5
EER2	15	12.5	13	12	12
SEER2	25	23	23	23	22.2
Heating Capacity (BTU/h)	5,700~27,000	8,400~36,000	10,000~44,000	13,000~57,000	20,000~59,000
HSPF2	6.5	9.1	11.5	17.3	20.1
COP	4	3.8	4	3.7	3.5
SCOP	10.4	10.5	10.7	11	10.5
Power Input (W)	8.5	8.5	8.5	9	8.5
Air Flow (CFM)	19,000	27,000	36,000	47,000	47,000
Sound Level Indoor (dBA)	17.5	30	37	37	39.5
Sound Level Outdoor (dBA)	20	35	40	40	40
Weight Indoor (lbs)	2,130.7	2,148.4	3,037.2	4,502.8	4,502.8
Weight Outdoor (lbs)	61.5	61	65	65	65
Dimensions Indoor (in)	37.24x16.14x31.89	37.24x16.14x31.89	38.58x16.34x38.39	37.48x16.34x52.48	37.48x16.34x52.48
Dimensions Outdoor (in)	42.91x19.68x34.84	42.91x19.68x34.84	45.08x19.68x42.52	43.11x19.49x58.27	43.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs)	137.35/148.15	168.43/179.67	211.86/244.71	246.47/276.68	246.47/276.68
Refrigerant Type/Amount (lbs)	R454B/78.31	R454B/120.63	R454B/134.04	R454B/151.68	R454B/151.68
Fuse Size (A)	75	100	125	150	150
Wire Size (AWG)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Control Voltage (V)	550/340	550/340	550/340	550/340	550/340
Liquid Line	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"	6 x 1/4"
Suction Line	3 x 3/8"	3 x 3/8" + 1 x 1/2"	3 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"
Max Line Length (ft)	196.8	262.4	262.4	262.4	262.4
Max Elevation Diff (ft)	98.4	114.8	114.8	114.8	114.8
Max Head Pressure (ft)	49.2	49.2	49.2	49.2	49.2
Max Suction Pressure (ft)	33	33	33	33	33
Operating Range Cooling (°F)	-22~122	-22~122	-22~122	-22~122	-22~122
Operating Range Heating (°F)	-22~75	-22~75	-22~75	-22~75	-22~75
Feature 1	✓	✓	✓	✓	✓
Feature 2	✓	✓	✓	✓	✓
Feature 3	✓	✓	✓	✓	✓
Feature 4	✓	✓	✓	✓	✓

Indoor and Outdoor Regular

Specification	CH-R060LVWM-115VI	CH-R09OLVWM-115VI	CH-R120LVWM-115VI	CH-RO9MOLVWM-230VI	CH-R12MOLVWM-230VI	CH-R18MOLVWM-230VI	CH-R24MOLVWM-230VI	CH-R30MELVWM-230VI	CH-R36MELVWM-230VI
Power Supply Rated	115V, 1, 60	115V, 1, 60	115V, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Rated Capacity Btu/h	7,000	9,000	12,000	9,000	12,000	18,000	24,000	30,000	36,000
Minimum Circuit Ampacity (MCA) A	3	3	3	3	3	3	3	3	3
Max. Fuse A	3	3	3	3	3	3	3	3	3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM	370/340/265/174/-	378/340/265/174/-	378/340/265/174/-	382/294/194/153/-	382/294/194/153/-	759/530/419/382/-	759/586/419/382/-	871/716/547/447/-	871/716/547/447/-
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)	44/40/35/26/-	44/40/35/26/-	44/40/35/26/-	45/41/32/24/-	45/41/32/24/-	54/49/45/41/27	54/49/45/41/27	56/52/45/38/22	56/52/45/38/22
Dimension (WxDxH) inch	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	45.47x12.01x16.34	45.47x12.01x16.34	49.57x11.14x14.25	49.57x11.14x14.25
Packing (WxDxH) inch	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	42.91x19.09x34.84	42.91x19.09x34.84	42.91x19.09x34.84	42.91x19.09x34.84
Net/Gross Weight lbs.	18.64/22.05	18.64/22.05	18.64/22.05	18.64/22.05	18.64/22.05	45.47/21.06	45.47/21.06	67.16/17.72	67.16/17.72
Room temperature Cooling °F	60~90	60~90	60~90	60~90	60~90	60~90	60~90	60~90	60~90
Room temperature Heating °F	32~86	32~86	32~86	32~86	32~86	32~86	32~86	32~86	32~86
Liquid Side/Gas Side inch	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 5/8"

Specification

Specification	CH-R60MES-230VOThis model	CH-R18MES-230VO	CH-R28MES-230VO	CH-R36MES-230VO	CH-R48MES-230VO
Power Supply (V, Ph, Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Voltage Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Rated Capacity (range) (Btu/h)	19,000~62,000	5,400~21,600	7,200~32,000	9,000~42,000	12,000~55,000
Cooling Rated Current (A)	26.2	6	9.2	13.5	16.6
EER2	10	14	13	12	12.5
SEER2	22	25.1	25	24	24
Heating Rated Capacity (range) (Btu/h)	20,000~60,000	5,700~21,600	8,400~29,000	10,000~42,500	13,000~53,000
Heating Rated Current (A)	21	6.8	9.2	14	16.3
Heating at 47°F COP (W/W)	3.7	3.8	3.8	3.5	3.8
HSPF4	9.5	9.8	9.5	9.5	10.3
HSPF5	7.4	7.8	7	7	8
Heating at 5°F Rated Capacity (Btu/h)	39,000	13,500	19,000	26,000	36,000
Minimum Circuit Ampacity (Outdoor unit) (A)	40	16	23	30.5	40
Max. Fuse (Outdoor unit) (A)	45	20	25	35	45
Outdoor Air Flow (Max) (CFM)	4,502.8	1,765.8	2,130.7	2,148.4	4,502.8
Outdoor Noise Level (Sound Pressure) (dB(A))	65	59.5	61	64.5	63
Dimension (W×D×H) (inch)	37.48x16.34x52.48	35.04x13.46x26.50	37.24x16.14x31.89	37.24x16.14x31.89	37.48x16.34x52.48
Packing (W×D×H) (inch)	43.11x19.49x58.27	40.55x17.24x29.53	42.91x19.68x34.84	42.91x19.68x34.84	43.11x19.49x58.27
Net/Gross Weight (lbs)	237.88/270.28	100.53/109.35	138.89/149.69	168.87/180.12	222.00/254.19
Refrigerant Type/Charged (oz)	R454B/151.68	R454B/61.73	R454B/84.66	R454B/120.63	R454B/148.15
Refrigerant Precharge (ft)	150	75	100	125	150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Design Pressure (PSIG)	550/340	550/340	550/340	550/340	550/340
Refrigerant Piping Liquid Side (inch)	6 x 1/4"	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"
Refrigerant Piping Gas Side (inch)	4 x 3/8" + 2 x 1/2"	3 x 3/8"	3 x 3/8" + 1 x 1/2"	4 x 3/8" + 1 x 1/2"	4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft)	262.4	196.8	262.4	262.4	262.4
Max. Length for One Indoor Unit (ft)	114.8	98.4	114.8	114.8	114.8
Max. Height Difference in Level (ft)	49.2	49.2	49.2	49.2	49.2
Max. Height Difference Between Indoor Units (ft)	33	33	33	33	33
Ambient Temperature Cooling (°F)	-13~122	-13~122	-13~122	-13~122	-13~122
Ambient Temperature Heating (°F)	-13~75	-13~75	-13~75	-13~75	-13~75
Certification: AHRI	✔	✔	✔	✔	✔
Certification: Energy Star	✔	✔	✔	✔	✔
Certification: NEEP	✔	✔	✔	✔	✔
Certification: ETL	✔	✔	✔	✔	✔

Which system is right for you?

	Your selectionCooper & HunterCooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K$6,732.00	Cooper & HunterCooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+6K+6K+6K+6K$6,454.08	Cooper & HunterCooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+6K+6K+6K+9K$6,474.24	Cooper & HunterCooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+6K+6K+6K+12K$6,490.08
Cooling Capacity	60,000 BTU/h	60,000 BTU/h	60,000 BTU/h	60,000 BTU/h
SEER2 Rating	22.0	22.0	22.0	22.0
Refrigerant	R454B	R454B	R454B	R454B
Zones	Five Zone	Five Zone	Five Zone	Five Zone
Voltage	230V	230V	230V	230V
		Shop Now →	Shop Now →	Shop Now →

Frequently asked questions.

How many rooms can the Cooper & Hunter 5 Zone 60,000 BTU mini split cool?

The Cooper & Hunter 5 Zone mini split system can effectively cool up to five separate rooms, thanks to its 60,000 BTU capacity. With coverage of up to 2500 sq ft, it's an excellent choice for homes with multiple zones.

Can I mix BTU sizes with the Cooper & Hunter multi-zone system?

Yes, you can mix BTU sizes with the Cooper & Hunter system, allowing you to customize the cooling capacity for each zone. For instance, this system comes with indoor units of 6K, 9K, 9K, 12K, and 24K BTU capacities, providing flexibility based on your specific needs.

Do all zones run simultaneously in the Cooper & Hunter mini split system?

In the Cooper & Hunter multi-zone setup, all zones can operate simultaneously, allowing for efficient temperature control throughout your home. However, energy efficiency can be optimized by running only the needed zones.

Is the Cooper & Hunter 5 Zone mini split efficient compared to multiple single-zone units?

With a SEER rating of 22.0, the Cooper & Hunter 5 Zone mini split is highly efficient, often outperforming multiple single-zone units in energy consumption. This efficiency can translate to lower utility bills and less environmental impact.

What warranty does the Cooper & Hunter mini split system offer?

The Cooper & Hunter mini split system comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register the product within 30 days of purchase. This warranty ensures peace of mind regarding your investment.

Does the Cooper & Hunter mini split come pre-charged with refrigerant?

Yes, the Cooper & Hunter mini split system is pre-charged with R454B refrigerant for installations using up to 25 ft of line set. This feature simplifies the installation process and ensures optimal performance right from the start.

Manufacturer Technical Support

Reach your brand's tech support team directly

Cooper & Hunter

(888) 201-2119

Olmo Comfort

(800) 977-0724

AC Bravo

(786) 953-6706

Key Features

5-zone system — the CH-R60MES-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
60,000 BTU nominal system capacity across 5 zones, each on its own remote
22 SEER2 inverter efficiency — current R454B generation
Heat pump — heats down to -13°F outdoor ambient
R454B refrigerant, factory pre-charged; built-in Wi-Fi control
Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console

Cooper & Hunter 5 Zone 60,000 BTU Wall Mount Mini Split AC R454B 6K+9K+9K+12K+24K

Built for year-round comfort

System Specs

Indoor Unit Specs

Olivia Series Description

6 Modes for Maximum Comfort

Control your comfort, your way

Everything included with this system

Industry-leading protection on every unit

Technical Specifications

Outdoor Unit Specs— CH-R60MES-230VO

Indoor Unit Specs

System Specs

Series Comparison Table

Which system is right for you?

Frequently asked questions.

Talk to a Sales Specialist

Manufacturer Technical Support

You may also like

Key Features
