Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B Olivia 6K+6K+6K+6K+6K+9K

Name: Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B Olivia 6K+6K+6K+6K+6K+9K
Brand: HVAC Mart
SKU: CH-R48MES-230VO666669OLV-NO
Price: 6602.4 USD
Availability: InStock

Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B Olivia 6K+6K+6K+6K+6K+9K — photo 2

Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B Olivia 6K+6K+6K+6K+6K+9K — photo 3

Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B Olivia 6K+6K+6K+6K+6K+9K — photo 4

1 / 4

SEER2 22.0HEATS down to −13°FCOOLS up to 122°FR454B

Cooper & Hunter7-Yr WarrantySKU: CH-R48MES-230VO666669OLV-NO

$6,602.40

As low as $551/mo withaffirm

Product specifications

Voltage: 230V
SEER: 22.0
WiFi: Included
Zone: Six Zone
Type: Wall Mount
Freon: R454B

See full Tech Specs

Choose Your Configuration

Default: Default Title

Save 10% on these accessories

ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00

FREE Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included

30-Day Returns

COOPER & HUNTER · OLIVIA

Built for year-round comfort

CH-R48MES-230VO666669OLV-NO

System Specs

Cooling Capacity	47,000 BTU/h
Heating Capacity	48,000 BTU/h
SEER2	24
EER2	12.5
Voltage	230V

Refrigerant	R454B
Compressor	Inverter
Climate Range	-13–122°F / -13–75°F outdoor ambient
Sound Level (indoor)	37/32/24 dB
Warranty	7-Yr Compressor

Indoor Unit Specs

Unit Dimensions (WxDxH)	Net / Gross Weight	Remote Control
28.70 × 7.87 × 11.50 in	17.64 / 23.15 lb	Remote controller

Olivia Series Description

The Cooper & Hunter Olivia 6-Zone Mini Split System features six wall-mount zones with five 6,000 BTU units and one 9,000 BTU unit, offering efficient heating and cooling with a SEER2 rating of 24. It includes a built-in Wi-Fi control system, uses R454B refrigerant, and operates down to -13°F ambient temperature with its 48,000 BTU outdoor unit.

Tech Specifications

6 Modes for Maximum Comfort

Engineered to adapt to every season, every room, every need.

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

WHEREVER YOU ARE

Control your comfort, your way

Easy scheduling & timer
Multiple ways to control your comfort
Smart geo location
In-app support & assistance
Voice control

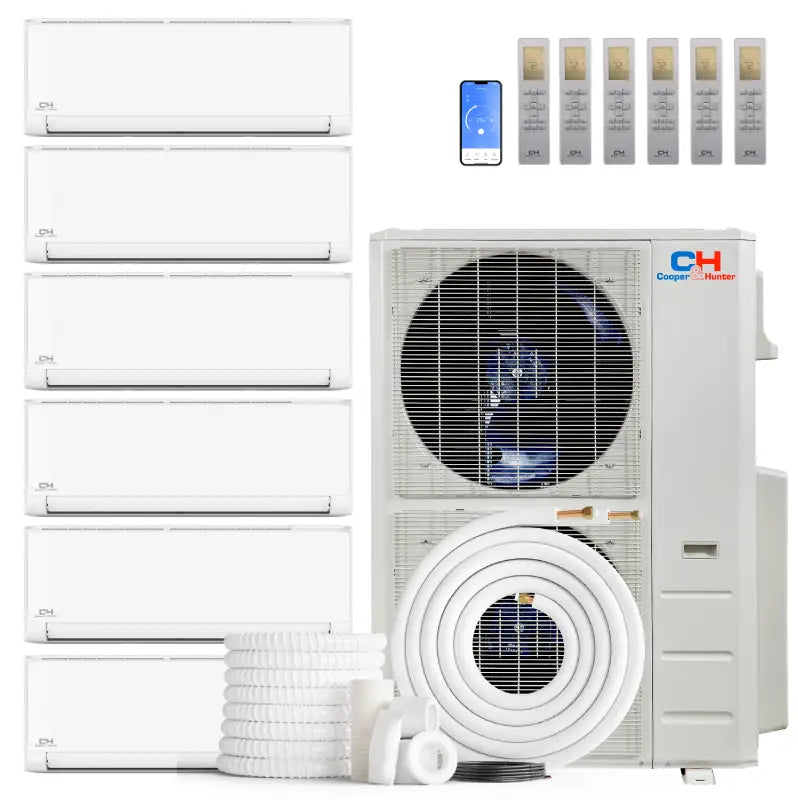

IN THE BOX

Everything included with this system

Cooper & Hunter MES 48,000 BTU Outdoor Condenser, 230V, R454B - Mini Split Air Conditioner Heat Pump
Indoor Wall Mount — CH-R06MOLVWM-230VI × 5
Indoor Wall Mount — CH-R09MOLVWM-230VI

7YEAR COMPRESSOR
WARRANTY

BACKED BY COOPER & HUNTER

Industry-leading protection on every unit

Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.

Technical Specifications

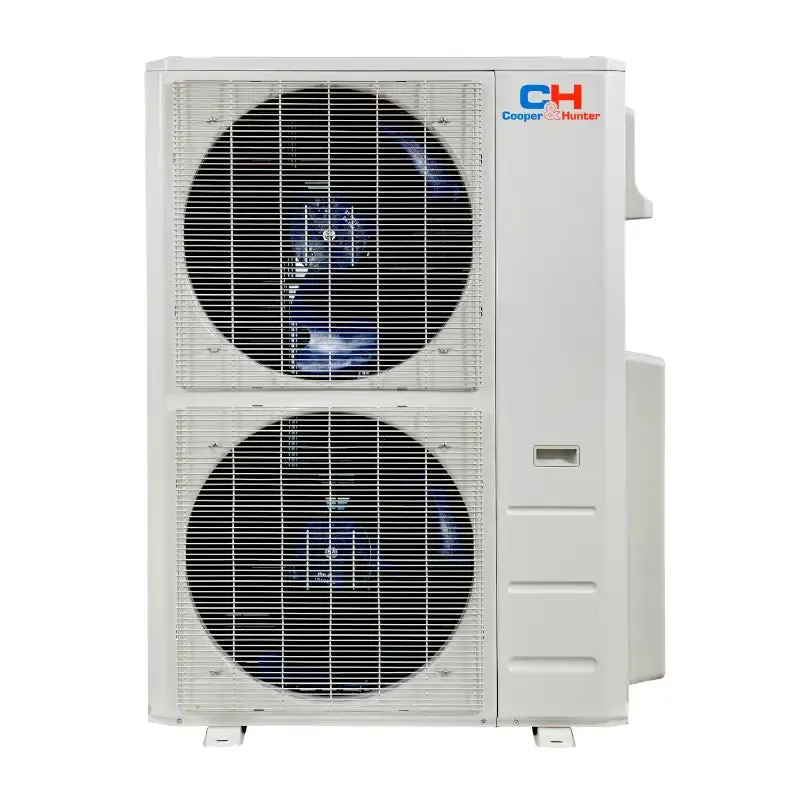

Outdoor Unit Specs— CH-R48MES-230VO

Outdoor Unit — CH-R48MES-230VO
Model	CH-R48MES-230VO
Unit Dimensions (WxDxH)	37.48 x 16.34 x 52.48 in
Net/Gross Weight	222.00/254.19 lb
Packing Dimensions (WxDxH)	43.11 x 19.49 x 58.27 in
Power Supply	208-230V, 1Ph, 60Hz
Maximum Fuse Size	40 A
Min. Circuit Ampacity	34 A
Copper Line Size (Liquid/Gas)	6x1/4" - 4x3/8"+2x1/2"
Noise Level	63 dB
Airflow	4,502.8 CFM
Dehumidification	6.98 pt/h

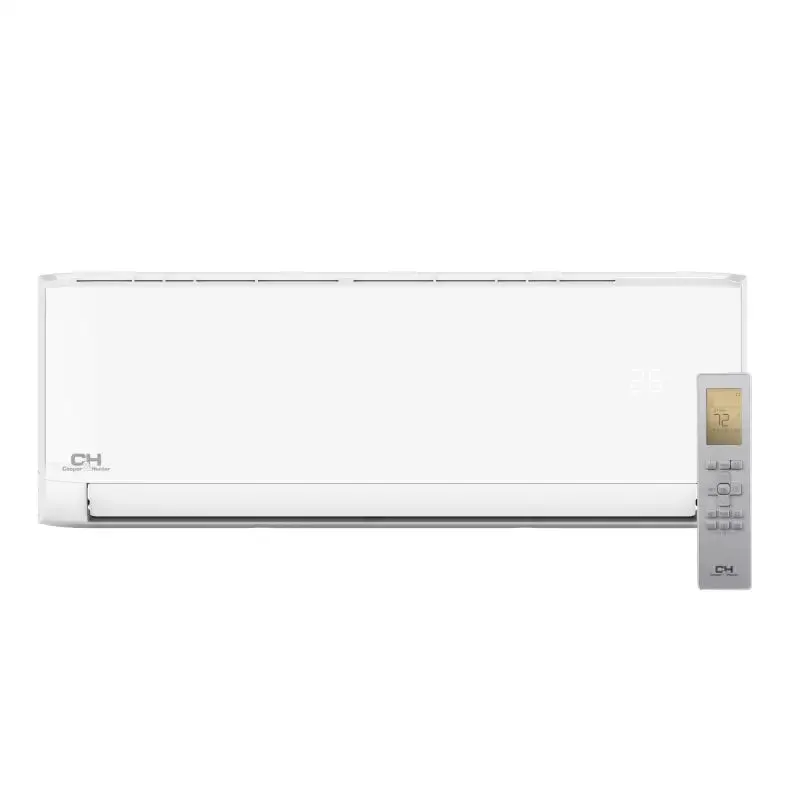

Indoor Unit Specs

Indoor Unit — CH-R06MOLVWM-230VI, CH-R09MOLVWM-230VI
Model	CH-R06MOLVWM-230VI	CH-R09MOLVWM-230VI
Unit Dimensions (WxDxH)	28.70 x 7.87 x 11.50 in	31.57 x 7.87 x 11.61 in
Net/Gross Weight	17.64/23.15 lb	18.96/24.25 lb
Packing Dimensions (WxDxH)	31.10 x 10.63 x 14.76 in	34.45 x 11.22 x 14.96 in
Power Supply	208-230V, 1Ph, 60Hz	208-230V, 1Ph, 60Hz
Maximum Fuse Size	15 A	15 A
Min. Circuit Ampacity	3 A	3 A
Copper Line Size (Liquid/Gas)	1/4"/3/8"	1/4"/3/8"
Noise Level (Hi/Med/Lo)	37/32/24 dB	39.5/33/24 dB
Dehumidification	0.63 pt/h	1.27 pt/h
Drain Pipe Diameter	5/8"	5/8"
Controller	remote controller	remote controller

System Specs

System
Cooling — Rated Capacity (Range)	47,000 Btu/h (12,000–55,000)
Heating at 47°F — Rated Capacity (Range)	48,000 Btu/h (13,000–53,000)
Rated Heating at 5°F	36,000 Btu/h
SEER2 / EER2	24 / 12.5
HSPF4 / HSPF5 / COP (47°F)	10.3 / 8 / 3.8
Outdoor Unit MCA / Max. Fuse	34 A / 40 A
Max. Connectable Indoor Units	6
Outdoor Noise Level	63 dB(A)
Outdoor Unit Dimensions (W×D×H)	37.48 × 16.34 × 52.48 in
Outdoor Unit Net / Gross Weight	222.00 / 254.19 lbs
Refrigerant Type / Charge	R454B / 148.15 oz
Pre-charged Line Length	150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe)
Max. Total Pipe Length / Max. to One Indoor	262.4 ft / 114.8 ft
Max. Height Difference (Indoor–Outdoor / Between Indoors)	49.2 ft / 33 ft
Operating Range — Cooling / Heating	-13–122°F / -13–75°F outdoor ambient

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor and Outdoor Hyper

Specification	CH-R06MOLVWM-115VI	CH-R09MOLVWM-230VI	CH-R12MOLVWM-230VI	CH-R18MOLVWM-230VI	CH-R24MOLVWM-230VI	CH-R33HEMLVWM-230VI
Power Supply Rated	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Rated Capacity Btu/h	6,000	9,000	12,000	18,000	23,000	33,000
Minimum Circuit Ampacity (MCA) A	3	3	3	3	3	3
Max. Fuse A	3	3	3	3	3	3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM	294.3/225.4/176.8/141.3/NA	382.6/293.1/194.2/153.0/NA	382.6/293.1/194.2/153.0/NA	759.3/530.4/419.1/382.6/NA	759.3/586.5/419.1/382.6/NA	829.6/716.6/592.7/447.3/NA
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)	42.0/37.0/32.0/24.0/NA	42.0/37.0/32.0/24.0/NA	43.0/37.0/32.0/24.0/NA	52.5/44.0/40.5/35.2/25.0	54.5/49.0/45.3/41.3/27.0	56.0/49.5/45.3/41.3/27.0
Dimension (WxDxH) inch	28.7x7.87x11.81	31.5x7.87x11.61	31.5x7.87x11.61	45.47x12.01x16.14	45.47x12.01x16.14	52.76x15.16x17.72
Packing (WxDxH) inch	31.10x10.63x14.76	34.45x11.22x14.96	34.45x11.22x14.96	45.47x12.01x16.14	45.47x12.01x16.14	52.76x15.16x17.72
Net/Gross Weight lbs.	17.64/21.35	18.64/22.05	18.64/22.05	45.47/21.06	45.47/21.06	67.16/17.72
Room temperature Cooling °F	60~90	60~90	60~90	60~90	60~90	60~90
Room temperature Heating °F	32~86	32~86	32~86	32~86	32~86	32~86
Liquid Side/Gas Side inch	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 3/4"

Specification

Specification	CH-RVHP19M-230VO	CH-RVHP28M-230VO	CH-RVHP36M-230VO	CH-RVHP48M-230VO	CH-RVHP55M-230VO
Power Supply (V/Ph/Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Operating Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Capacity (BTU/h)	5,400~28,000	7,200~37,000	9,000~43,000	12,000~57,000	19,000~59,000
Rated Current	5.6	9.5	12	17.3	18.5
EER2	15	12.5	13	12	12
SEER2	25	23	23	23	22.2
Heating Capacity (BTU/h)	5,700~27,000	8,400~36,000	10,000~44,000	13,000~57,000	20,000~59,000
HSPF2	6.5	9.1	11.5	17.3	20.1
COP	4	3.8	4	3.7	3.5
SCOP	10.4	10.5	10.7	11	10.5
Power Input (W)	8.5	8.5	8.5	9	8.5
Air Flow (CFM)	19,000	27,000	36,000	47,000	47,000
Sound Level Indoor (dBA)	17.5	30	37	37	39.5
Sound Level Outdoor (dBA)	20	35	40	40	40
Weight Indoor (lbs)	2,130.7	2,148.4	3,037.2	4,502.8	4,502.8
Weight Outdoor (lbs)	61.5	61	65	65	65
Dimensions Indoor (in)	37.24x16.14x31.89	37.24x16.14x31.89	38.58x16.34x38.39	37.48x16.34x52.48	37.48x16.34x52.48
Dimensions Outdoor (in)	42.91x19.68x34.84	42.91x19.68x34.84	45.08x19.68x42.52	43.11x19.49x58.27	43.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs)	137.35/148.15	168.43/179.67	211.86/244.71	246.47/276.68	246.47/276.68
Refrigerant Type/Amount (lbs)	R454B/78.31	R454B/120.63	R454B/134.04	R454B/151.68	R454B/151.68
Fuse Size (A)	75	100	125	150	150
Wire Size (AWG)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Control Voltage (V)	550/340	550/340	550/340	550/340	550/340
Liquid Line	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"	6 x 1/4"
Suction Line	3 x 3/8"	3 x 3/8" + 1 x 1/2"	3 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"
Max Line Length (ft)	196.8	262.4	262.4	262.4	262.4
Max Elevation Diff (ft)	98.4	114.8	114.8	114.8	114.8
Max Head Pressure (ft)	49.2	49.2	49.2	49.2	49.2
Max Suction Pressure (ft)	33	33	33	33	33
Operating Range Cooling (°F)	-22~122	-22~122	-22~122	-22~122	-22~122
Operating Range Heating (°F)	-22~75	-22~75	-22~75	-22~75	-22~75
Feature 1	✓	✓	✓	✓	✓
Feature 2	✓	✓	✓	✓	✓
Feature 3	✓	✓	✓	✓	✓
Feature 4	✓	✓	✓	✓	✓

Indoor and Outdoor Regular

Specification	CH-R060LVWM-115VI	CH-R09OLVWM-115VI	CH-R120LVWM-115VI	CH-RO9MOLVWM-230VI	CH-R12MOLVWM-230VI	CH-R18MOLVWM-230VI	CH-R24MOLVWM-230VI	CH-R30MELVWM-230VI	CH-R36MELVWM-230VI
Power Supply Rated	115V, 1, 60	115V, 1, 60	115V, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Rated Capacity Btu/h	7,000	9,000	12,000	9,000	12,000	18,000	24,000	30,000	36,000
Minimum Circuit Ampacity (MCA) A	3	3	3	3	3	3	3	3	3
Max. Fuse A	3	3	3	3	3	3	3	3	3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM	370/340/265/174/-	378/340/265/174/-	378/340/265/174/-	382/294/194/153/-	382/294/194/153/-	759/530/419/382/-	759/586/419/382/-	871/716/547/447/-	871/716/547/447/-
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)	44/40/35/26/-	44/40/35/26/-	44/40/35/26/-	45/41/32/24/-	45/41/32/24/-	54/49/45/41/27	54/49/45/41/27	56/52/45/38/22	56/52/45/38/22
Dimension (WxDxH) inch	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	45.47x12.01x16.34	45.47x12.01x16.34	49.57x11.14x14.25	49.57x11.14x14.25
Packing (WxDxH) inch	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	42.91x19.09x34.84	42.91x19.09x34.84	42.91x19.09x34.84	42.91x19.09x34.84
Net/Gross Weight lbs.	18.64/22.05	18.64/22.05	18.64/22.05	18.64/22.05	18.64/22.05	45.47/21.06	45.47/21.06	67.16/17.72	67.16/17.72
Room temperature Cooling °F	60~90	60~90	60~90	60~90	60~90	60~90	60~90	60~90	60~90
Room temperature Heating °F	32~86	32~86	32~86	32~86	32~86	32~86	32~86	32~86	32~86
Liquid Side/Gas Side inch	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 5/8"

Specification

Specification	CH-R48MES-230VOThis model	CH-R18MES-230VO	CH-R28MES-230VO	CH-R36MES-230VO	CH-R60MES-230VO
Power Supply (V, Ph, Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Voltage Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Rated Capacity (range) (Btu/h)	12,000~55,000	5,400~21,600	7,200~32,000	9,000~42,000	19,000~62,000
Cooling Rated Current (A)	16.6	6	9.2	13.5	26.2
EER2	12.5	14	13	12	10
SEER2	24	25.1	25	24	22
Heating Rated Capacity (range) (Btu/h)	13,000~53,000	5,700~21,600	8,400~29,000	10,000~42,500	20,000~60,000
Heating Rated Current (A)	16.3	6.8	9.2	14	21
Heating at 47°F COP (W/W)	3.8	3.8	3.8	3.5	3.7
HSPF4	10.3	9.8	9.5	9.5	9.5
HSPF5	8	7.8	7	7	7.4
Heating at 5°F Rated Capacity (Btu/h)	36,000	13,500	19,000	26,000	39,000
Minimum Circuit Ampacity (Outdoor unit) (A)	40	16	23	30.5	40
Max. Fuse (Outdoor unit) (A)	45	20	25	35	45
Outdoor Air Flow (Max) (CFM)	4,502.8	1,765.8	2,130.7	2,148.4	4,502.8
Outdoor Noise Level (Sound Pressure) (dB(A))	63	59.5	61	64.5	65
Dimension (W×D×H) (inch)	37.48x16.34x52.48	35.04x13.46x26.50	37.24x16.14x31.89	37.24x16.14x31.89	37.48x16.34x52.48
Packing (W×D×H) (inch)	43.11x19.49x58.27	40.55x17.24x29.53	42.91x19.68x34.84	42.91x19.68x34.84	43.11x19.49x58.27
Net/Gross Weight (lbs)	222.00/254.19	100.53/109.35	138.89/149.69	168.87/180.12	237.88/270.28
Refrigerant Type/Charged (oz)	R454B/148.15	R454B/61.73	R454B/84.66	R454B/120.63	R454B/151.68
Refrigerant Precharge (ft)	150	75	100	125	150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Design Pressure (PSIG)	550/340	550/340	550/340	550/340	550/340
Refrigerant Piping Liquid Side (inch)	6 x 1/4"	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"
Refrigerant Piping Gas Side (inch)	4 x 3/8" + 2 x 1/2"	3 x 3/8"	3 x 3/8" + 1 x 1/2"	4 x 3/8" + 1 x 1/2"	4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft)	262.4	196.8	262.4	262.4	262.4
Max. Length for One Indoor Unit (ft)	114.8	98.4	114.8	114.8	114.8
Max. Height Difference in Level (ft)	49.2	49.2	49.2	49.2	49.2
Max. Height Difference Between Indoor Units (ft)	33	33	33	33	33
Ambient Temperature Cooling (°F)	-13~122	-13~122	-13~122	-13~122	-13~122
Ambient Temperature Heating (°F)	-13~75	-13~75	-13~75	-13~75	-13~75
Certification: AHRI	✔	✔	✔	✔	✔
Certification: Energy Star	✔	✔	✔	✔	✔
Certification: NEEP	✔	✔	✔	✔	✔
Certification: ETL	✔	✔	✔	✔	✔

Which system is right for you?

	Your selectionCooper & HunterCooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B Olivia 6K+6K+6K+6K+6K+9K$6,602.40	Cooper & HunterCooper & Hunter Olivia 48,000 BTU 2-Zone 12k+12k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$5,220.00	Cooper & HunterCooper & Hunter Olivia 48,000 BTU 3-Zone 6k+9k+12k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$5,562.72	Cooper & HunterCooper & Hunter Olivia 48,000 BTU 4-Zone 6k+6k+6k+6k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$5,865.12
Cooling Capacity	48,000 BTU/h	48,000 BTU/h	48,000 BTU/h	48,000 BTU/h
SEER2 Rating	22.0	23.4	23.4	25.0
Refrigerant	R454B	R454B	R454B	R454B
Zones	Six Zone	Dual Zone	Three Zone	Four Zone
Voltage	230V	230V	230V	230V
		Shop Now →	Shop Now →	Shop Now →

Frequently asked questions.

How many rooms can the Cooper & Hunter 6 Zone 48,000 BTU mini split cool?

The Cooper & Hunter 6 Zone mini split system can effectively cool up to six separate rooms, thanks to its 48,000 BTU capacity. This makes it an excellent choice for larger homes or spaces up to 2000 sq ft.

Can I mix BTU sizes with the Cooper & Hunter mini split system?

Yes, when using the Cooper & Hunter 6 Zone 48,000 BTU system, you can mix BTU sizes across the zones. However, it's essential to ensure that the total BTU does not exceed 48,000 to maintain optimal performance.

Do all zones run simultaneously in the Cooper & Hunter multi-zone system?

In the Cooper & Hunter 6 Zone system, all zones can run simultaneously, allowing for customized temperature control in each room. This flexibility makes it efficient for heating or cooling specific areas as needed.

What is the efficiency of the Cooper & Hunter 48,000 BTU mini split compared to multiple single-zone units?

The Cooper & Hunter 6 Zone mini split boasts a SEER of 22.0, which provides superior efficiency over multiple single-zone units. This high efficiency can lead to significant energy savings and better performance across your home.

What are the warranty terms for the Cooper & Hunter 6 Zone system?

The Cooper & Hunter 6 Zone mini split comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register the product within 30 days of purchase. This offers peace of mind for your investment.

Does the Cooper & Hunter mini split come pre-charged with refrigerant?

Yes, the Cooper & Hunter 6 Zone system comes pre-charged with R454B refrigerant for up to 25 ft of line set, facilitating easier installation. This feature ensures that you have everything needed to get started efficiently.

Manufacturer Technical Support

Reach your brand's tech support team directly

Cooper & Hunter

(888) 201-2119

Olmo Comfort

(800) 977-0724

AC Bravo

(786) 953-6706

Key Features

6-zone system — the CH-R48MES-230VO outdoor unit supports up to 6 indoor units, each individually controlled; port adapters included, no branch boxes required
47,000 Btu/h rated cooling / 48,000 Btu/h rated heating — inverter range 12,000–55,000 cooling, 13,000–53,000 heating (Btu/h)
24 SEER2 / 12.5 EER2 / 10.3 HSPF4 — current R454B-generation efficiency
Heats down to -13°F outdoor ambient — 36,000 Btu/h rated heating at 5°F; cooling operation -13–122°F
Wi-Fi Smart Kit built in — Cooper & Hunter app control; remote control included with each indoor unit; compatible with C&H 12V wall thermostat (sold separately)
ETL listed, AHRI certified, Energy Star Cold Climate & NEEP listed

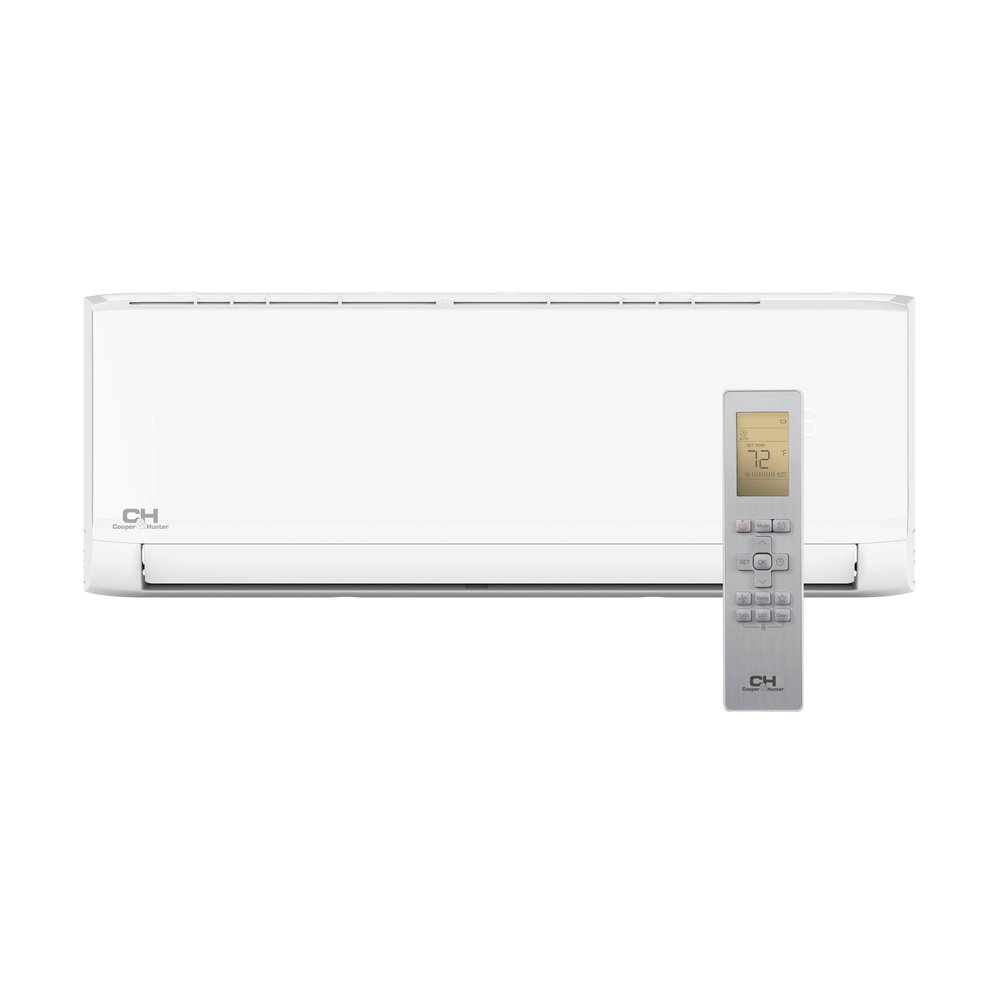

Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B Olivia 6K+6K+6K+6K+6K+9K

Built for year-round comfort

System Specs

Indoor Unit Specs

Olivia Series Description

6 Modes for Maximum Comfort

Control your comfort, your way

Everything included with this system

Industry-leading protection on every unit

Technical Specifications

Outdoor Unit Specs— CH-R48MES-230VO

Indoor Unit Specs

System Specs

Series Comparison Table

Which system is right for you?

Frequently asked questions.

Talk to a Sales Specialist

Manufacturer Technical Support

You may also like

Key Features
