Cooper & Hunter 60,000 BTU 2-Zone 18k+18k Multi-Position Air Handler, 230V, R454B - Ducted Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-R60MES-230VO/M18AHU+M18AHU-NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 22.0
- WiFi
- Included
- Zone
- Dual Zone
- Type
- Multi Position Air Handler
- Freon
R454B
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · MULTI POSITION AIR HANDLER
Built for year-round comfort
CH-R60MES-230VO/M18AHU+M18AHU-NO/NO
System Specs
| Cooling Capacity | 60,000 BTU/h |
|---|---|
| Heating Capacity | 60,000 BTU/h |
| SEER2 | 22 |
| EER2 | 10 |
| Voltage | 230V |
| Refrigerant | R454B |
|---|---|

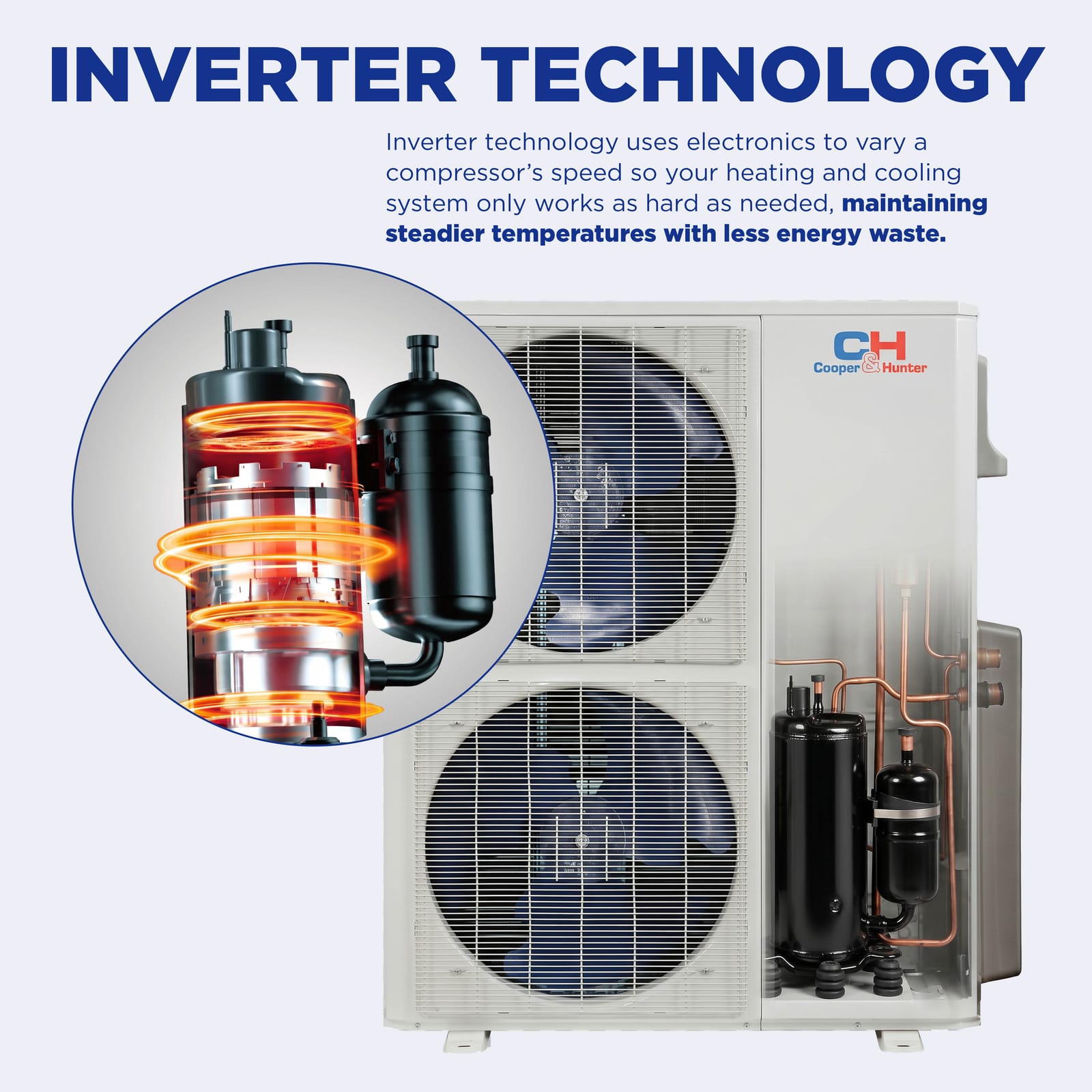

| Compressor | Inverter |
| Sound Level (indoor) | 42.5/37.5/30 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 17.52 × 21.02 × 45 in | 104.72 / 125.66 lb | Wire controller + remote controller available |
Product Description
The Cooper & Hunter 2-Zone Mini Split System features 2 Multi-Position Air Handler zones rated at 18,000 Btu/h and 18,000 Btu/h, paired with an outdoor unit rated for 60,000 BTU nominal cooling. Each air handler installs horizontally or vertically for closet, attic, or crawlspace duct runs, includes a built-in Smart Kit for app control (a wall thermostat is required to activate the smart features), uses R454B refrigerant, and the system achieves a SEER2 efficiency rating of 22.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

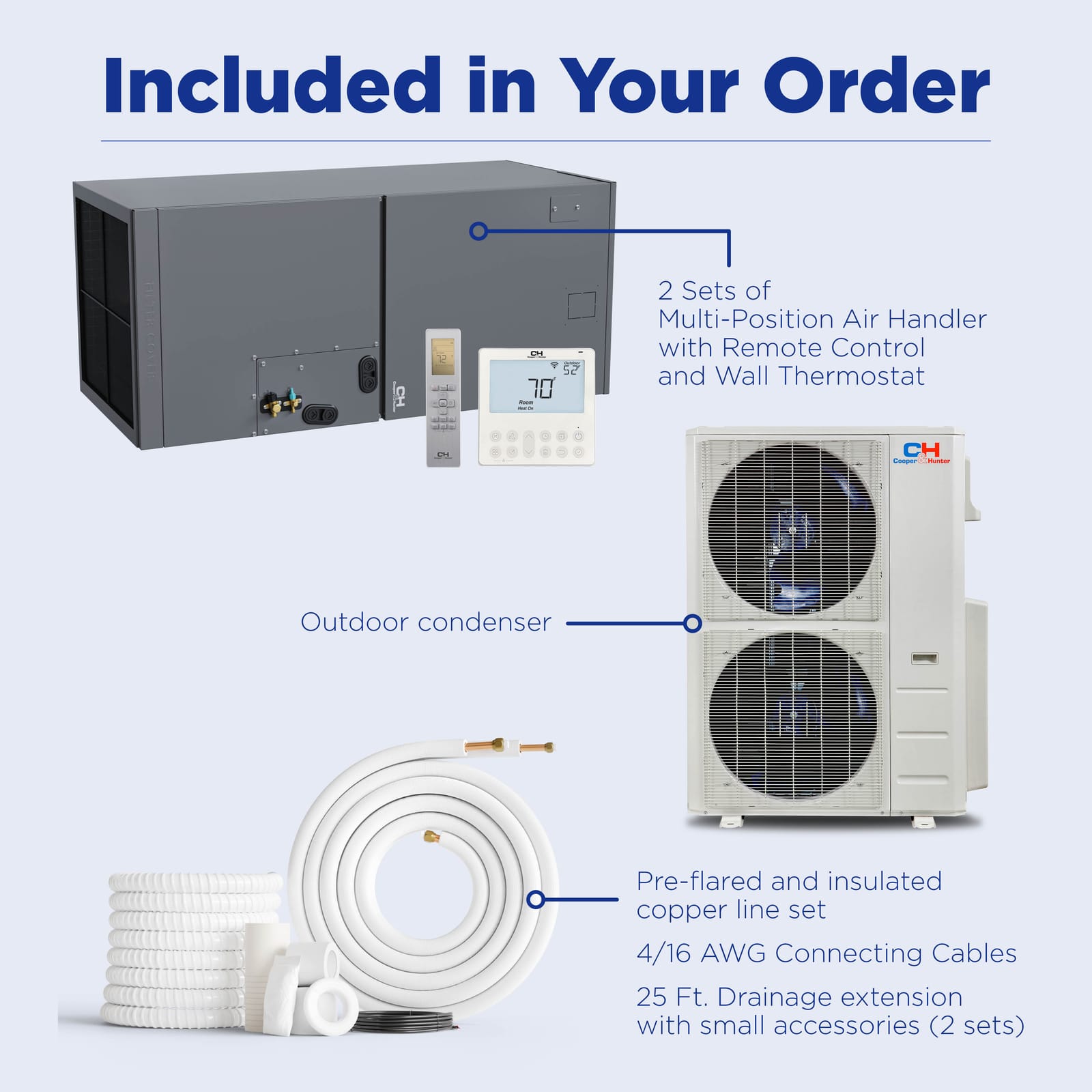

IN THE BOX
Everything included with this system
- Cooper & Hunter MES 60,000 BTU Outdoor Condenser, 230V, R454B - Mini Split Air Conditioner Heat Pump
- Indoor Multi Position Air Handler — CH-RS18MAHU × 2
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— CH-R60MES-230VO
| Model | CH-R60MES-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 37.48 x 16.34 x 52.48 in |
| Net/Gross Weight | 237.88/270.28 lb |
| Packing Dimensions (WxDxH) | 43.11 x 19.49 x 58.27 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 40 A |
| Min. Circuit Ampacity | 36 A |
| Copper Line Size (Liquid/Gas) | 6x1/4" - 4x3/8"+2x1/2" |
| Noise Level | 65 dB |
| Airflow | 4,502.8 CFM |
| Dehumidification | 10.57 pt/h |
Indoor Unit Specs— CH-RS18MAHU
| Model | CH-RS18MAHU |
|---|---|
| Unit Dimensions (WxDxH) | 17.52 x21.02 x 45 in |
| Net/Gross Weight | 104.72/125.66 lb |
| Packing Dimensions (WxDxH) | 20.87 x 26.57 x 48.62 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 3.5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 42.5/37.5/30 dB |
| Dehumidification | 3.57 pt/h |
| Drain Pipe Diameter | 3/4" |
| Controller | wire controller + remote controller available |
System Specs
| Cooling — Rated Capacity (Range) | 60,000 Btu/h (19,000–62,000) |
|---|---|
| Heating at 47°F — Rated Capacity (Range) | 60,000 Btu/h (20,000–60,000) |
| Rated Heating at 5°F | 39,000 Btu/h |
| SEER2 / EER2 | 22 / 10 |
| HSPF4 / COP (47°F) | 9.5 / 3.7 |
| Outdoor Unit MCA / Max. Fuse | 36 A / 40 A |
| Max. Connectable Indoor Units | 6 |
| Outdoor Noise Level | 65 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight | 237.88 / 270.28 lbs |
| Refrigerant Type / Charge | R454B / 151.68 oz |
| Pre-charged Line Length | 150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor | 262.4 ft / 114.8 ft |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | CH-RS18MAHU | CH-RS24MAHU | CH-RS36LCAHU | CH-RS48LCAHU | CH-RS60LCAHU |
|---|---|---|---|---|---|
| Rated (V, Ph, Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Rated Capacity (Btu/h) | 18,000 | 23,000 | 36,000 | 48,000 | 54,000 |
| Rated Current (A) | 9.1 | 8.7 | 13.4 | 22 | 24 |
| Rated Capacity (Btu/h) | 19,500 | 26,000 | 38,000 | 50,000 | 59,000 |
| Rated Current (A) | 9.5 | 9.7 | 14.3 | 19 | 21.8 |
| Minimum Circuit Ampacity (MCA) (A) | 3.5 | 4 | 5 | 7.5 | 9 |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM) | 618.0/576.8/529.7/488.5/ N/A | 824.0/759.3/694.5/629.8/- | 1189/1083/971.2/865.2/ N/A | 1601/1471.5/1283.1/1094.8// | 1807/1553.9/1353.8/724/ N/A |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A)) | N/A/42.5/37.5/30.0/N/A | N/A/43.5/40/25.5/N/A | N/A/47/42/30.5/N/A | 56.5/54.5/51/48// | N/A/53.0/48.0/33.5/N/A |
| ESP (Range) | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 |
| Dimension (WxDxH) (inch) | 17.52x21.02x45.00 | 17.52x21.02x45.00 | 21.02x21.02x49.02 | 24.49x21.02x52.99 | 24.49x21.02x52.99 |
| Packing (WxDxH) (inch) | 20.87x26.57x48.62 | 20.87x26.57x48.62 | 24.41x26.57x52.56 | 27.95x26.77x56.50 | 27.95x26.77x56.50 |
| Net/Gross Weight (lbs.) | 104.72/125.66 | 104.28/125.88 | 127.87/152.78 | 161.82/191.58 | 161.82/191.58 |
| Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
| Liquid Side/Gas side (inch) | 1/4” / 1/2” | 3/8” / 5/8” | 3/8” / 3/4” | 3/8” / 3/4” | 3/8” / 3/4” |
Outdoor HYPER
| Specification | CH-RHP18-230VO | CH-RHP24-230VO | CH-RHP36LCU-230VO | CH-RHP48LCU-230VO | CH-RHP60LCU-230VO |
|---|---|---|---|---|---|
| Rated (V, Ph, Hz) | 208-230, 1, 60 | 208-230, 1, 60 | 208-230, 1, 60 | 208-230, 1, 60 | 208-230, 1, 60 |
| Voltage range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Current (A) | 8.7 | 13.4 | 13.4 | 22 | 24 |
| Rated Capacity Range (Btu/h) | 6,000–20,400 | 7,500–27,000 | 5,700–36,400 | 7,300–55,000 | 13,700–58,000 |
| EER2 (Btu/w) | 12 | 12 | 11.7 | 10.7 | 10.2 |
| SEER2 (Btu/w) | 18.7 | 18.7 | 17.2 | 15.2 | 15.2 |
| Rated Capacity Range (Btu/h) | 5,000–21,600 | 8,800–29,000 | 9,500–44,000 | 9,500–65,000 | 10,000–66,100 |
| COP (W/W) | 3.64 | 3.55 | 3.39 | 3.06 | 3.36 |
| HSPF4 (Btu/w) | 13.5 | 13.2 | 12.1 | 10.7 | 10.7 |
| HSPF5 (Btu/w) | 10.8 | 10.7 | 9.7 | 8.7 | 8.7 |
| Heating at 5°F (-15°C) Rated Capacity (Btu/h) | 18,000 | 23,600 | 38,000 | 46,000 | 53,000 |
| Minimum Circuit Ampacity (MCA) (A) | 19 | 24.9 | 38 | 44 | 44 |
| Max. Fuse (A) | 25 | 40 | 45 | 45 | 45 |
| Outdoor Air Flow (Max.) (CFM) | 1,765.8 | 2,236.7 | 3,001.9 | 4,237.9 | 4,237.9 |
| Outdoor Noise Level (dB(A)) | 59 | 61.5 | 65.5 | 65 | 62 |
| Dimension (WxDxH) (inch) | 35.04x13.46x26.50 | 37.24x16.14x31.89 | 38.58x16.34x38.39 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Packing (WxDxH) (inch) | 39.17x15.67x29.13 | 42.91x19.68x34.84 | 45.08x19.68x42.52 | 43.11x19.49x57.48 | 43.11x19.49x57.48 |
| Net/Gross Weight (lbs.) | 99.87/107.80 | 130.29/141.31 | 206.57/237.44 | 208.78/239.86 | 230.28/261.69 |
| Refrigerant Type/Quantity (oz.) | R454B/55.38 | R454B/63.49 | R454B/126.99 | R454B/126.99 | R454B/151.68 |
| Refrigerant Precharge (ft.) | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for each ft. (oz./ft.) | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant piping Liquid side/Gas side (inch) | 1/4” / 1/2” | 3/8” / 5/8” | 3/8” / 3/4” | 3/8” / 3/4” | 3/8” / 3/4” |
| Max. Pipe Length (ft.) | 98.4 | 164 | 246 | 246 | 246 |
| Max. Difference in Level (ft.) | 65.6 | 82 | 98.4 | 98.4 | 98.4 |
| Ambient Temperature Cooling (°F) | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 |
| Ambient Temperature Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| AHRI | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| ETL | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Energy Star | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| NEEP | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Indoor REGULAR
| Specification | CH-RS18MAHU | CH-RS24MAHU | CH-RS30MAHU | CH-RS36LCAHU | CH-RS48LCAHU | CH-RS60LCAHU |
|---|---|---|---|---|---|---|
| Power Supply | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Cooling Capacity (Btu/h) | 18,000 | 24,000 | 30,000 | 36,000 | 48,000 | 60,000 |
| Cooling Current (A) | 6.7 | 9.3 | 12.5 | 17.4 | 21.5 | 25.5 |
| Heating Capacity (Btu/h) | 18,000 | 25,000 | 30,000 | 38,000 | 50,000 | 59,000 |
| Heating Current (A) | 6.7 | 9.2 | 11.2 | 14.4 | 22 | 24 |
| MCA (A) | 3.5 | 4 | 6 | 6 | 9.8 | 11 |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) | 618.0/576.8/529.7/488.5/ N/A | 824.0/759.3/694.5/629.8/ N/A | 988.8/894.7/806.4/712.2/ N/A | 1189/1083/971.2/865.2/ N/A | 1601.0/1471.5/1283.1/1094.8/ N/A | 1807.0/1553.9/1353.8/724.0/ N/A |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) | N/A/42/39.5/33/N/A | N/A/43.5/41.5/28.5/N/A | N/A/44/41/26/N/A | N/A/47/42/31/N/A | 56.5/54/51/48/N/A | N/A/51/48/42.5/N/A |
| ESP (Range) | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 | 0-0.8 |
| Dimension (WxDxH) (inch) | 21.02x17.52x45.00 | 21.02x17.52x45.00 | 21.02x21.02x49.02 | 21.02x21.02x49.02 | 21.02x24.49x52.99 | 21.02x24.49x52.99 |
| Packing (WxDxH) (inch) | 26.57x20.87x48.62 | 26.57x20.87x48.62 | 26.57x24.41x52.56 | 26.57x24.41x52.56 | 27.95x26.77x56.50 | 27.95x26.77x56.50 |
| Net/Gross Weight (lbs.) | 104.72/125.66 | 104.28/125.88 | 127.43/151.68 | 127.87/152.78 | 161.82/191.58 | 164.02/189.82 |
| Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
| Liquid Side/Gas Side (inch) | 1/4“ / 1/2” | 3/8“ / 5/8“ | 3/8“ / 5/8“ | 3/8“ / 3/4“ | 3/8“ / 3/4“ | 3/8“ / 3/4“ |
Outdoor REGULAR
| Specification | CH-RES18-230VO | CH-RES24-230VO | CH-REL30-230VO | CH-R36LCU-230VO | CH-R48LCU-230VO | CH-R60LCU-230VO |
|---|---|---|---|---|---|---|
| Power Supply | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Voltage Range | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Current (A) | 6.7 | 9.3 | 12.5 | 17.4 | 21.5 | 25.5 |
| Cooling Capacity Range (Btu/h) | 5,600–20,400 | 6,700–29,600 | 9,200–34,000 | 8,900–38,200 | 9,500–52,000 | 21,800–57,300 |
| EER2 | 11.7 | 12.1 | 12 | 11.7 | 10.7 | 10.2 |
| SEER2 | 18.5 | 19.7 | 17 | 15.8 | 15.2 | 15.2 |
| Heating Capacity Range (Btu/h) | 5,500–21,800 | 5,800–33,800 | 8,500–33,000 | 6,400–43,000 | 11,700–60,000 | 11,800–60,300 |
| COP | 3.60 | 3.53 | 3.60 | 3.36 | 3.36 | 3.34 |
| HSPF4 | 9.8 | 9.7 | 8.7 | 9.3 | 9.0 | 9.1 |
| HSPF5 | 7.7 | 7.3 | 7.7 | 7.3 | 7.2 | 7.1 |
| Heating at 5°F (-15°C) (Btu/h) | 13,000 | 18,000 | 20,400 | 24,200 | 35,200 | 35,400 |
| MCA (A) | 18 | 24 | 28 | 33 | 39 | 42 |
| Max. Fuse (A) | 20 | 25 | 30 | 35 | 40 | 45 |
| Outdoor Air Flow (CFM) | 1,765.8 | 2,236.7 | 2,236.7 | 2,413.3 | 4,237.9 | 4,237.9 |
| Outdoor Noise Level (dB(A)) | 56.5 | 58.5 | 61 | 62.5 | 65 | 62.5 |
| Dimension (WxDxH) (inch) | 35.04x13.46x26.50 | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Packing (WxDxH) (inch) | 39.17x15.67x29.13 | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 43.11x19.49x57.48 | 43.11x19.49x58.27 |
| Net/Gross Weight (lbs.) | 92.59/100.31 | 122.13/132.28 | 142.86/154.54 | 152.34/162.48 | 208.78/239.86 | 209.44/240.08 |
| Refrigerant Type/Quantity (oz.) | R454B/47.97 | R454B/70.55 | R454B/84.66 | R454B/91.71 | R454B/126.99 | R454B/144.62 |
| Refrigerant Precharge (ft.) | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for each ft. (oz./ft.) | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant piping Liquid side/Gas side (inch) | 1/4” / 1/2” | 3/8” / 5/8” | 3/8” / 5/8” | 3/8” / 3/4” | 3/8” / 3/4” | 3/8” / 3/4” |
| Max. Pipe Length (ft.) | 98.4 | 164 | 164 | 246 | 246 | 213.2 |
| Max. Difference in Level (ft.) | 65.6 | 82 | 82 | 98.4 | 98.4 | 98.4 |
| Ambient Temp Cooling (°F) | -13~122 | -13~122 | -13~122 | -13~122 | -22~122 | -13~122 |
| Ambient Temp Heating (°F) | -13~75 | -13~75 | -13~75 | -13~75 | -22~75 | -13~75 |
| AHRI | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| ETL | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Energy Star | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| NEEP | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Which system is right for you?
| Your selectionCooper & HunterCooper & Hunter 60,000 BTU 2-Zone 18k+18k Multi-Position Air Handler, 230V, R454B - Ducted Mini Split Air Conditioner Heat Pump$7,538.40 |  Cooper & HunterCooper & Hunter 60,000 BTU 3-Zone 18k+18k+18k Multi-Position Air Handler, 230V, R454B - Ducted Mini Split Air Conditioner Heat Pump$8,976.96 |  Cooper & HunterCooper & Hunter 28,000 BTU 2-Zone 18k+18k Multi-Position Air Handler, 230V, R454B - Ducted Mini Split Air Conditioner Heat Pump$5,130.72 |  Cooper & HunterCooper & Hunter 36,000 BTU 2-Zone 18k+18k Multi-Position Air Handler, 230V, R454B - Ducted Mini Split Air Conditioner Heat Pump$6,238.08 | |
|---|---|---|---|---|
| Cooling Capacity | 60,000 BTU/h | 60,000 BTU/h | 28,000 BTU/h | 36,000 BTU/h |
| SEER2 Rating | 22.0 | 22.0 | 25.0 | 24.0 |
| Refrigerant | R454B | R454B | R454B | R454B |
| Zones | Dual Zone | Three Zone | Dual Zone | Dual Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can this system heat and cool?
This is a 2-zone system: one CH-R60MES-230VO outdoor unit powers two 18,000 Btu/h Multi-Position Air Handler zones, each with its own remote so every room sets its own temperature. The outdoor unit connects up to 6 indoor units total.
What's included in the box?
The CH-R60MES-230VO outdoor condenser (60,000 BTU), two× 18,000 Btu/h indoor unit (CH-RS18MAHU), and the built-in Smart Kit. At checkout you add a line-set installation kit (copper line set, communication cable, drain line) for each zone.
Do I need a wall thermostat for WiFi control?
The Smart Kit for app control is built into each air handler, but a Cooper & Hunter wall thermostat must be connected to activate the smart/WiFi features — it's sold separately and wired to the indoor unit.
Can the air handler be installed horizontally or vertically?
Yes — it's a true multi-position air handler, so it can be installed in either horizontal or vertical orientation to fit closets, attics, or crawlspace duct runs.
What electrical service does it need?
208/230V single-phase power on a dedicated circuit for the outdoor unit — minimum circuit ampacity 36 A, maximum breaker/fuse 40 A. Have a licensed electrician confirm your panel.
How far can the indoor units be from the outdoor unit?
Up to 262.4 ft of line total across all zones, and up to 114.8 ft to any single indoor unit. It ships pre-charged for 150 ft.
What's the warranty?
A 7-year compressor / 5-year parts limited warranty from Cooper & Hunter. Register within 60 days of installation by a licensed HVAC professional to keep it valid.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 19.5HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 60,000 BTU 230V Ductless Mini Split AC R454B Light Commercial Universal Floor/Ceiling Console Heat PumpFree Shipping
- R454BSEER2 16.0HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 60,000 BTU Single Zone Multi Position Air Handler, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 22.0HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia Midnight 60,000 BTU 2-Zone 12k+12k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 22.0HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia 60,000 BTU 2-Zone 12k+12k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
The Cooper & Hunter 2-Zone Mini Split System features 2 Multi-Position Air Handler zones rated at 18,000 Btu/h and 18,000 Btu/h, paired with an outdoor unit rated for 60,000 BTU nominal cooling. Each air handler installs horizontally or vertically for closet, attic, or crawlspace duct runs, includes a built-in Smart Kit for app control (a wall thermostat is required to activate the smart features), uses R454B refrigerant, and the system achieves a SEER2 efficiency rating of 22.
Key Features
- 2-zone system — the CH-R60MES-230VO outdoor unit supports up to 6 indoor units, each individually controlled; port adapters included, no branch boxes required
- 60,000 Btu/h rated cooling / 60,000 Btu/h rated heating — inverter range 19,000–62,000 cooling, 20,000–60,000 heating (Btu/h)
- 22 SEER2 / 10 EER2 / 9.5 HSPF4 — current R454B-generation efficiency
- True multi-position installation — horizontal or vertical air handler orientation for flexible ducted setups
- Smart Kit built in — Cooper & Hunter app control; remote control included with each indoor unit; wall thermostat required to enable smart features (sold separately)
- ETL listed, AHRI certified, Energy Star & NEEP listed
