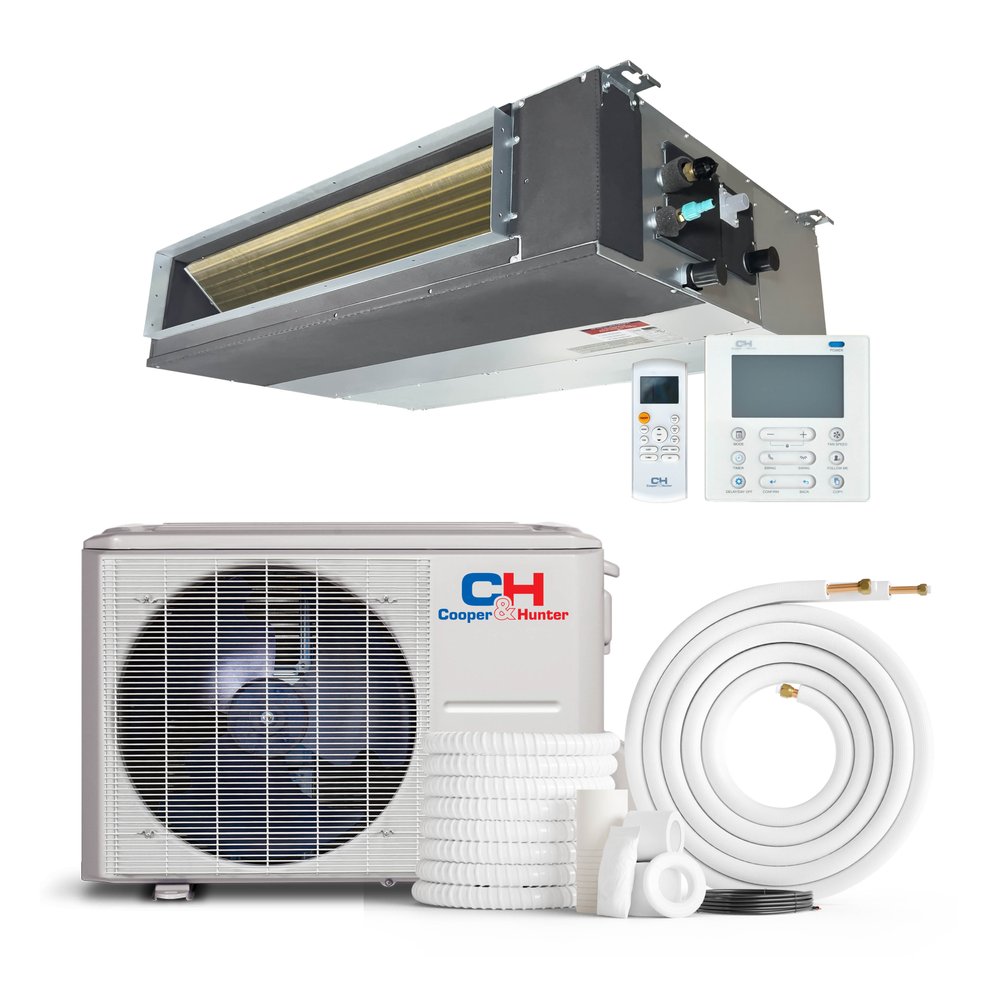

Cooper & Hunter 9,000 BTU Indoor Slim Duct, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-M09DTUI
Product specifications
- Voltage
- 230V
- SEER
- 20.5
- WiFi
- Not Included
- Type
- Slim Duct
- Freon
R410A
Choose Your Configuration
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · SLIM DUCT
Built for year-round comfort
CH-M09DTUI
System Specs
| Cooling Capacity | 9,000 BTU/h |
|---|---|
| SEER2 | 20.5 |
| Voltage | 230V |
| Refrigerant | R410A |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 40/34/23.5 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 31.57 × 7.87 × 11.61 in | 18.96 / 24.25 lb | RG10K-exclusive remote |
Product Description

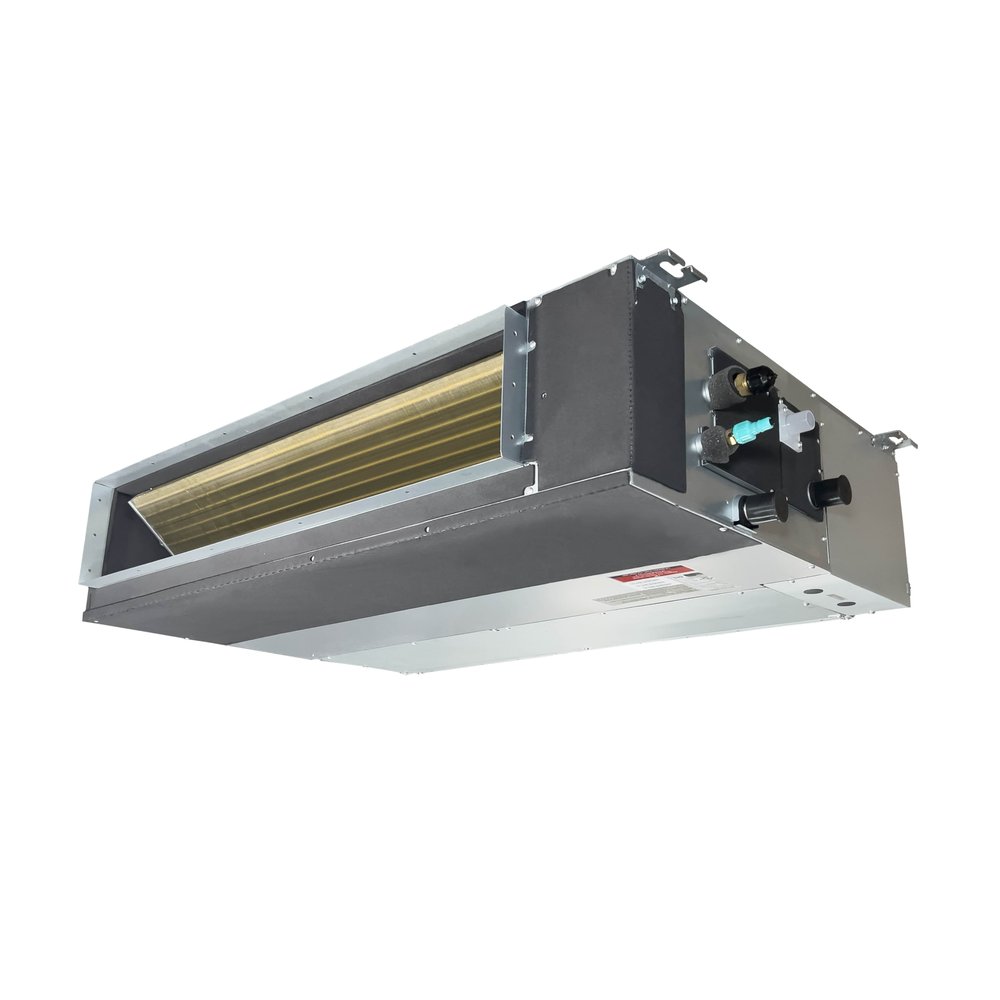

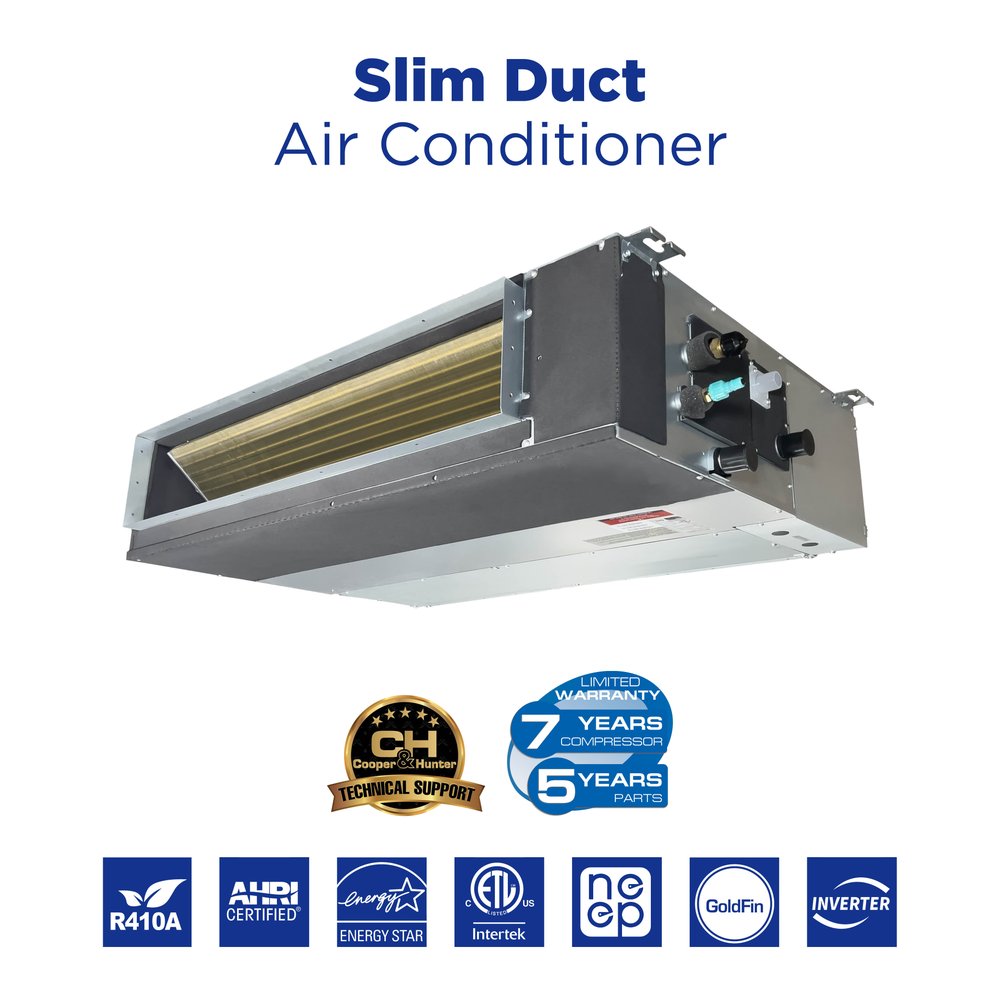

The Cooper & Hunter 9,000 BTU slim duct (concealed) is a slim duct (concealed) indoor unit for Cooper & Hunter ductless mini split systems, running on R410A refrigerant. It mounts in a single room or zone and is controlled independently with its included remote — pair it with a compatible outdoor condenser to complete your system.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs
| Model | CH-M09DTUIThis model | CH-09MOLVWM-230VI |
|---|---|---|
| Unit Dimensions (WxDxH) | 31.57x7.87x11.61 in | |
| Net/Gross Weight | 18.96/24.25 lb | |
| Packing Dimensions (WxDxH) | 34.45x11.22x14.96 in | |
| Power Supply | 208-230V, 1Ph, 60Hz | |
| Maximum Fuse Size | 15 A | |
| Min. Circuit Ampacity | 3 A | |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" | |
| Noise Level (Hi/Med/Lo) | 40/34/23.5 dB | |
| Airflow (Turbo/Hi/Mi/Lo) | 341.18/291.18/194.12/152.94 CFM | |
| Dehumidification | 2.64 pt/h | |
| Drain Pipe Diameter | 5/8" | |
| Controller | RG10K-exclusive remote&120X or 120N wire controller | RG10K-exclusive remote |
| BTU Rated | 9,000 | |
| Refrigerant type | R410A | |
| Power source | 208-230V, 1Ph, 60Hz | |
| EER2 up to | 13.2 | |
| SEER2 up to | 20.2 | |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 352.94/282.35/176.47 | |
| Indoor noise level (Hi/Med/Lo) (dB) | 33.5/28.5/27 | |
| Operation room temperature Cooling (F) | 62～90 | |
| Operation room temperature Heating (F) | 32～86 | |
| Minimum circuit ampacity (A) | 1.3 | |
| Max. fuse (A) | 15 | |
| ESP | 0-0.32 | |
| Voltage range (V) | 187-253 | |
| Unit dimensions (WxDxH) | 27.56x19.92x7.87 | |
| Packing dimensions (WxDxH) | 33.86x21.26x11.22 | |
| Net/Gross weight (lb) | 39.02/48.28 | |
| System type | Single/Multi-zone unit | |
| Refrigerant piping Liquid/Gas side (inch) | 1/4" - 3/8'' | |
| Drainage water pipe diameter (inch) | 1" | |
| Dehumidification (Pnt/H) | 2.11 |
Frequently asked questions.
What size mini split do I need for my room?
For a room size of up to 350 sq ft, the Cooper & Hunter 9,000 BTU mini split is an ideal choice. This unit is designed to efficiently cool or heat spaces of this size, making it suitable for bedrooms, small living rooms, or home offices.
Can I install a mini split myself?
While DIY installation of the Cooper & Hunter mini split is possible, it’s recommended to hire a professional for optimal performance and efficiency. This unit operates at 230V and requires proper setup to ensure it functions correctly and safely.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter mini split is pre-charged with R410A refrigerant and can accommodate up to 25 ft of line set. This feature simplifies installation, but you will need to ensure that the line set does not exceed this length for optimal performance.
What kind of warranty does Cooper & Hunter offer?
The Cooper & Hunter mini split comes with a 5-year parts warranty and a 7-year compressor warranty, but registration is required within 30 days of installation to activate these warranties. This provides peace of mind for your investment in home comfort.
What is the SEER rating of the Cooper & Hunter mini split, and why is it important?
The Cooper & Hunter mini split boasts an impressive SEER rating of 20.5, indicating high energy efficiency. A higher SEER rating means lower energy bills and a smaller environmental footprint, making this unit a smart choice for both heating and cooling.
What voltage does the Cooper & Hunter mini split require?
The Cooper & Hunter 9,000 BTU mini split requires a voltage of 230V to operate effectively. Ensuring that your electrical system can support this voltage is essential for the performance and longevity of the unit.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R410ASEER2 26.4Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Midnight Black 6,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 9,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R410ASEER2 22.0Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 18,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
The Cooper & Hunter 9,000 BTU slim duct (concealed) is a slim duct (concealed) indoor unit for Cooper & Hunter ductless mini split systems, running on R410A refrigerant. It mounts in a single room or zone and is controlled independently with its included remote — pair it with a compatible outdoor condenser to complete your system.
Key Features
- Slim Duct (concealed) indoor unit for Cooper & Hunter multi-zone / single-zone systems
- 9,000 BTU nominal capacity
- Individually controlled with included remote — set its own temperature per room
- R410A refrigerant

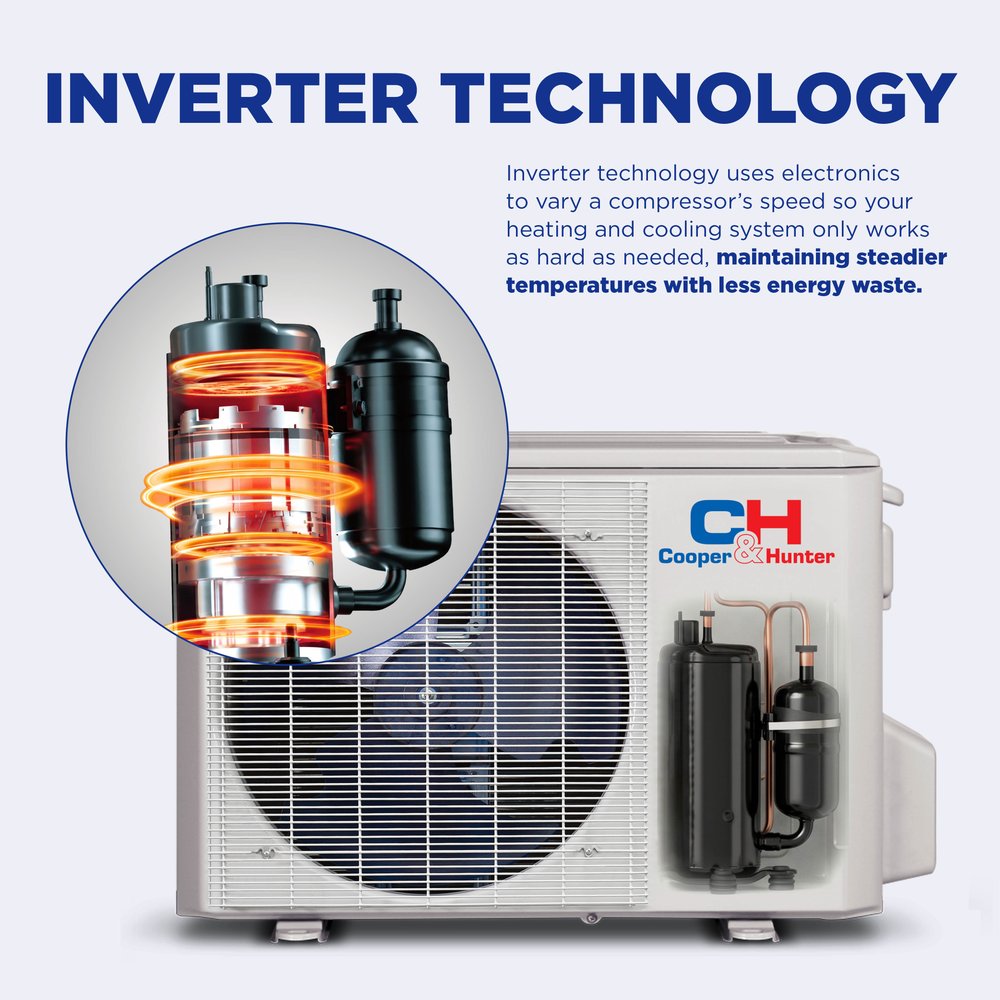

- Inverter heat pump — cools and heats when paired with a compatible condenser
Works With

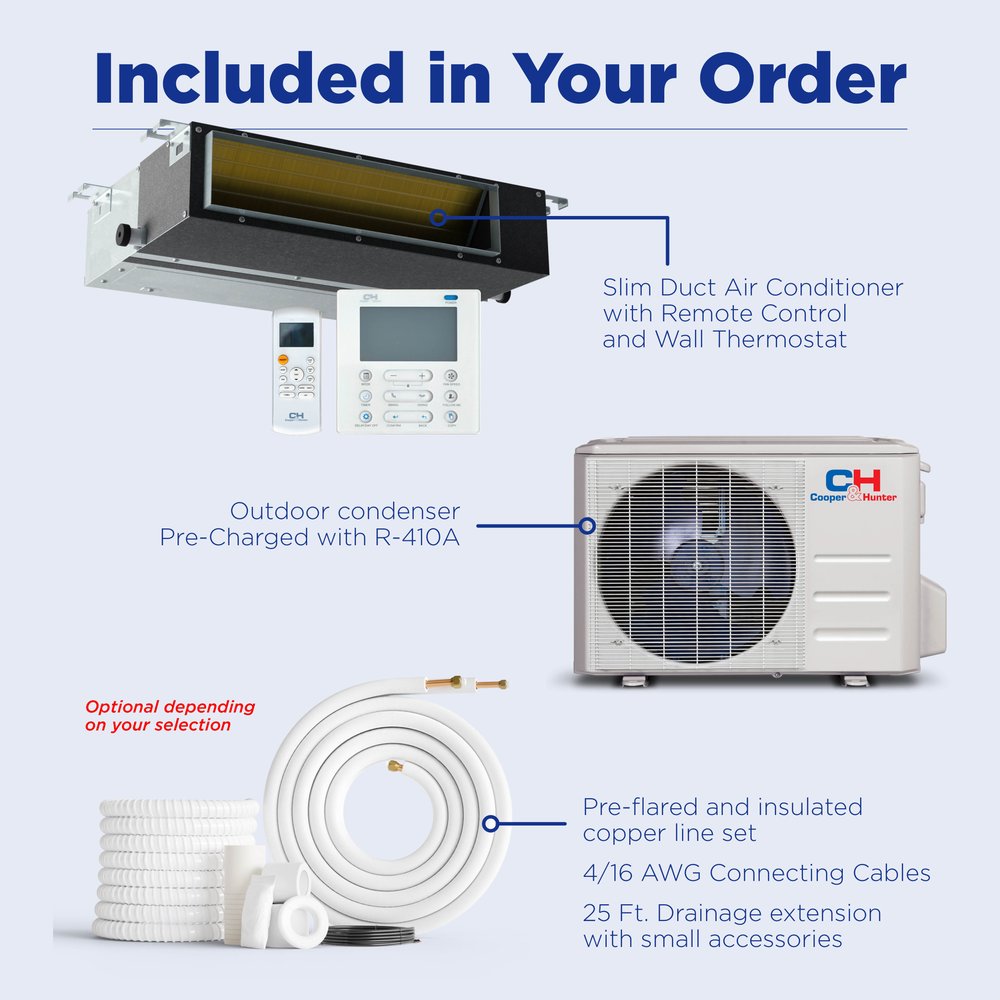

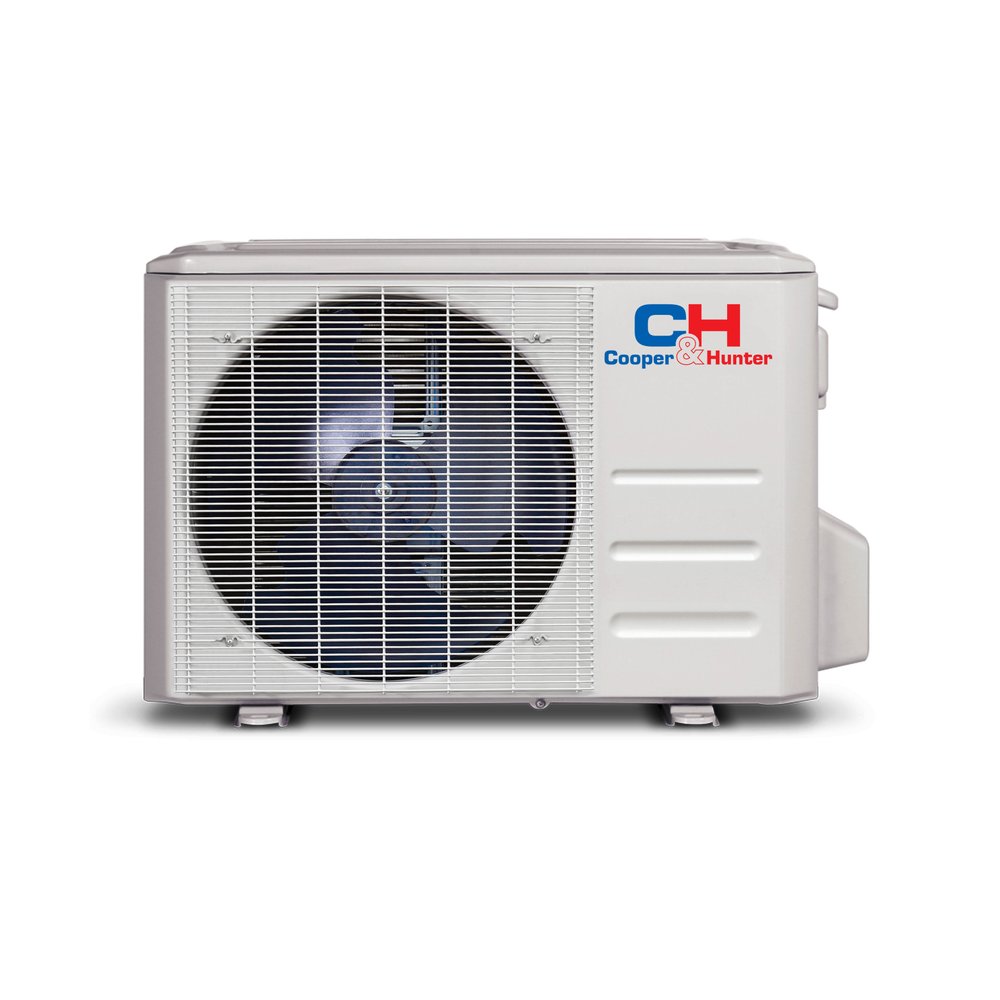

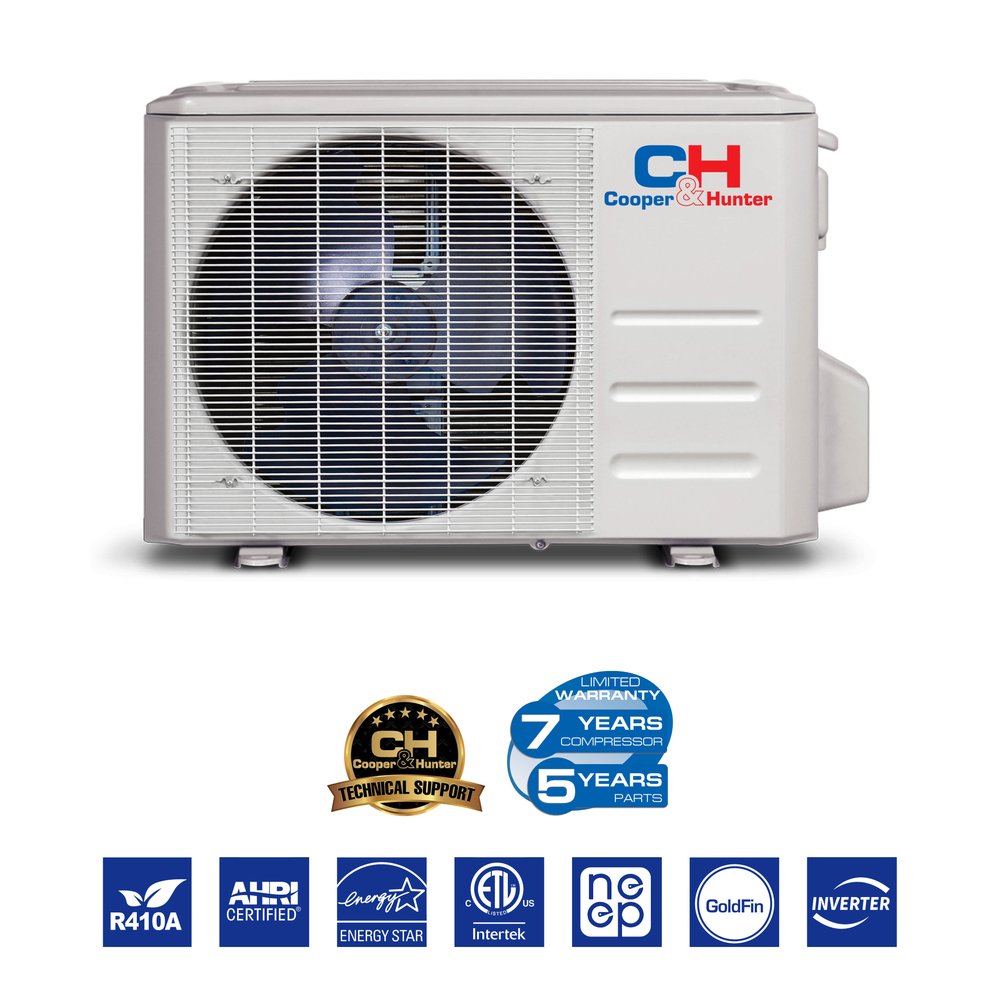

Connects to a compatible Cooper & Hunter outdoor condenser (multi-zone or single-zone), sold separately. Choose a copper line-set kit length at checkout, or supply your own.
