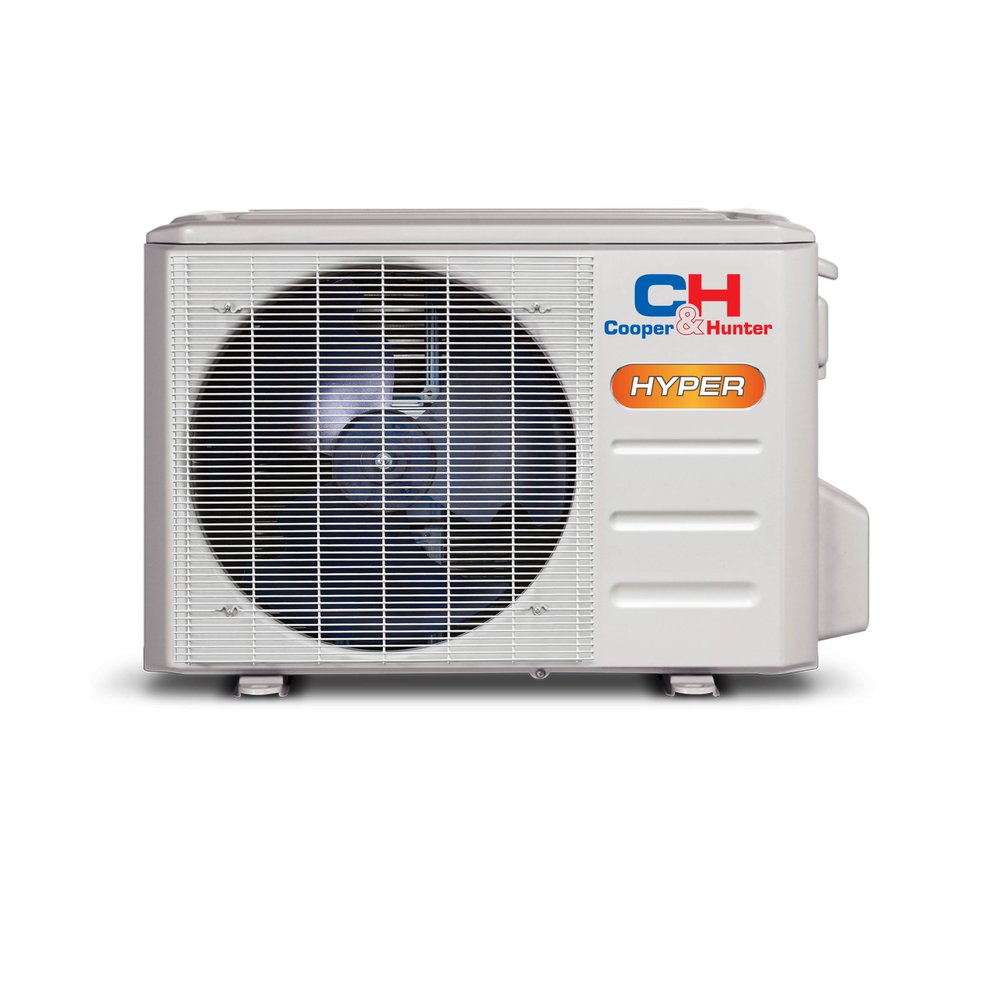

Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump

Name: Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Brand: HVAC Mart
SKU: CH-RHP19M-230VO
Price: 2023.56 USD
Availability: InStock

Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 2

Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 3

Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 4

Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 5

Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 6

Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 7

Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 8

Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 9

Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 10

Cooper & Hunter Hyper Heat 19,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 11

1 / 11

SEER2 25.0HEATS down to −22°FCOOLS up to 122°FR454B

Cooper & Hunter7-Yr WarrantySKU: CH-RHP19M-230VO

$2,023.56

As low as $169/mo withaffirm

Product specifications

Voltage: 230V
SEER: 25.0
WiFi: Not Included
Type: Outdoor Unit
Freon: R454B

See full Tech Specs

Choose Your Configuration

Title: Default Title

Save 10% on these accessories

ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00

FREE Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included

30-Day Returns

COOPER & HUNTER · HYPER HEAT

Built for year-round comfort

CH-RHP19M-230VO

System Specs

Cooling Capacity	19,000 BTU/h
Heating Capacity	20,000 BTU/h
SEER2	25
EER2	15
Voltage	230V

Refrigerant	R454B

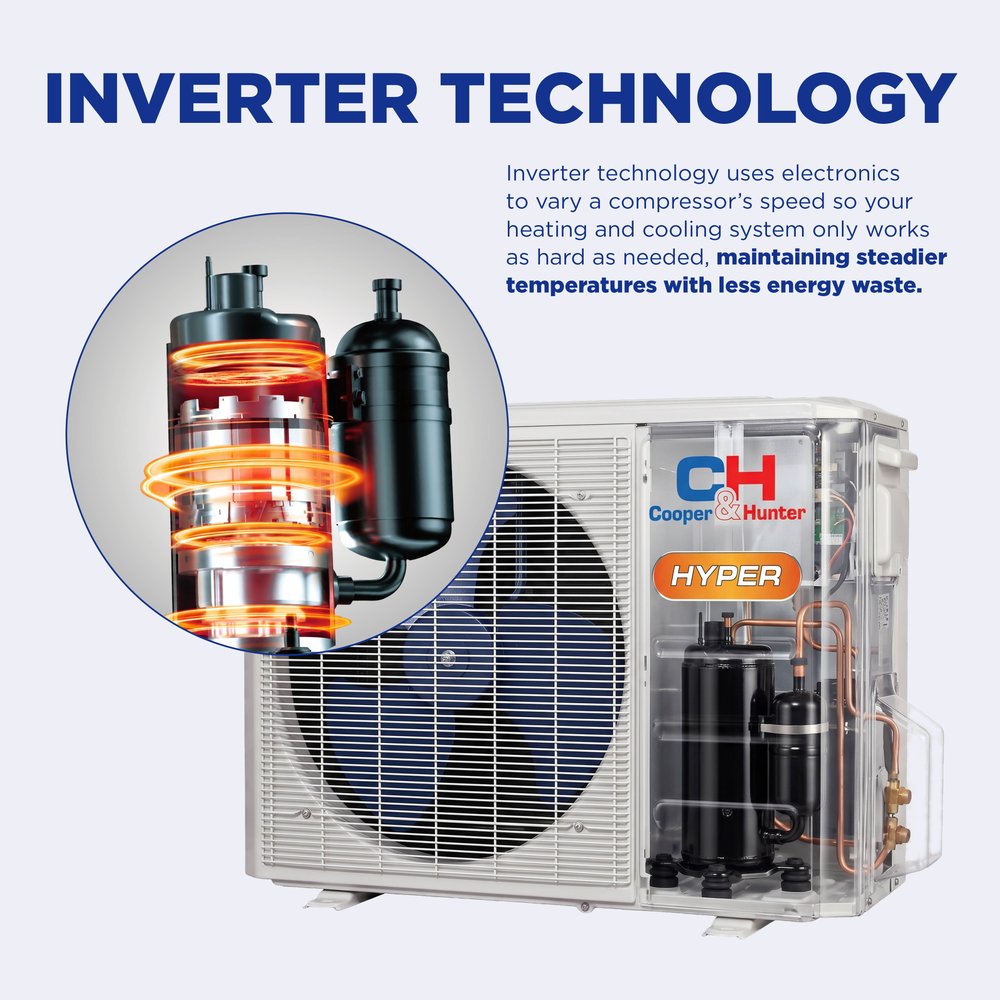

Compressor	Inverter

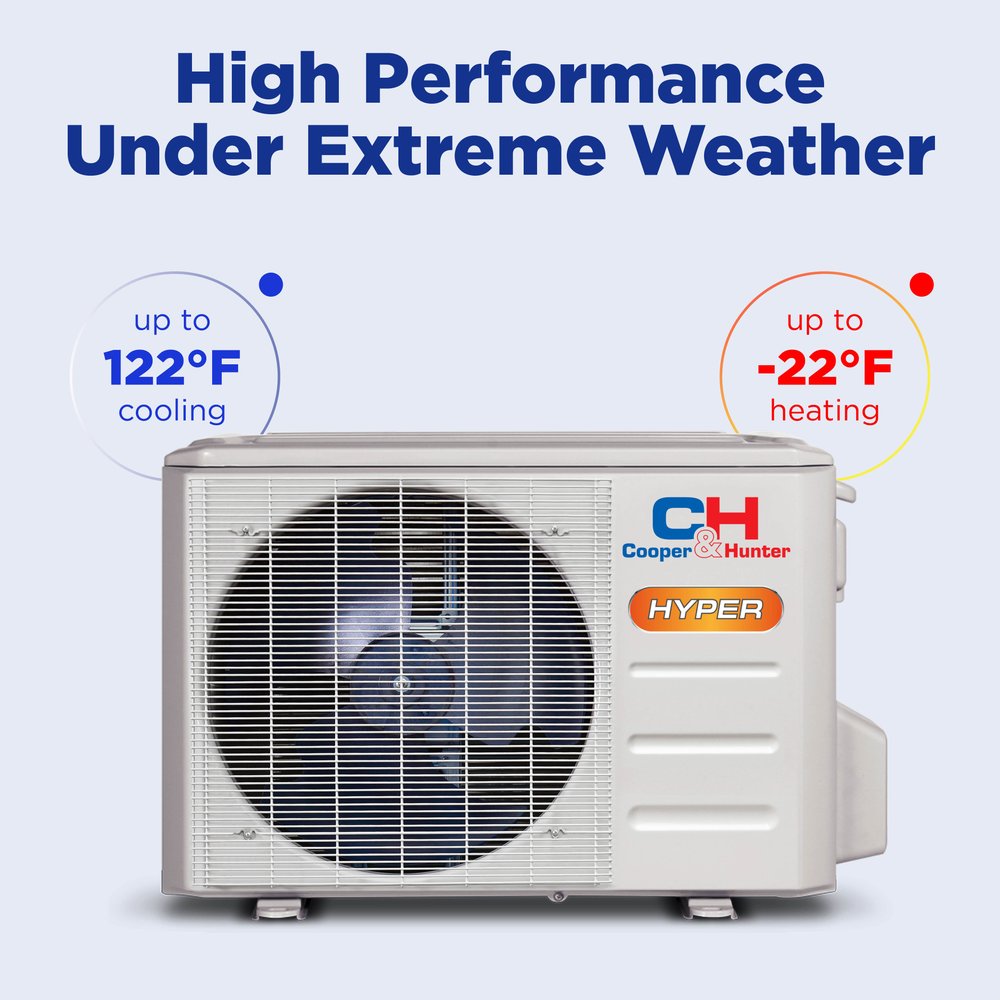

Climate Range	-22–122°F / -22–75°F outdoor ambient
Sound Level (indoor)	61.5 dB(A)
Warranty	7-Yr Compressor

Hyper Heat Series Description

The Cooper & Hunter 19,000 BTU Hyper Heat outdoor condenser (CH-RHP19M-230VO) is the outdoor half of a R454B ductless mini split heat-pump system, heating down to -22°F. Pair it with compatible indoor units to build your system.

Tech Specifications

6 Modes for Maximum Comfort

Engineered to adapt to every season, every room, every need.

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

7YEAR COMPRESSOR
WARRANTY

BACKED BY COOPER & HUNTER

Industry-leading protection on every unit

Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.

Technical Specifications

Outdoor Unit Specs— CH-RHP19M-230VO

Outdoor Unit — CH-RHP19M-230VO
Model	CH-RHP19M-230VO
Unit Dimensions (WxDxH)	37.24 x 16.14 x 31.89 in
Net/Gross Weight	137.35/148.15 lb
Packing Dimensions (WxDxH)	42.91 x 19.68 x 34.84 in
Power Supply	208-230V, 1Ph, 60Hz
Maximum Fuse Size	20 A
Min. Circuit Ampacity	17.5 A
Copper Line Size (Liquid/Gas)	3x1/4"- 3x3/8"
Noise Level	61.5 dB
Airflow	2,130.7 CFM
Dehumidification	0.42 pt/h

System Specs

System
Cooling — Rated Capacity (Range)	19,000 Btu/h (5,400–28,000)
Heating at 47°F — Rated Capacity (Range)	20,000 Btu/h (5,700–27,000)
Rated Heating at 5°F	19,000 Btu/h
SEER2 / EER2	25 / 15
HSPF4 / HSPF5 / COP (47°F)	10.4 / 8.5 / 4
Outdoor Unit MCA / Max. Fuse	17.5 A / 20 A
Max. Connectable Indoor Units	3
Outdoor Noise Level	61.5 dB(A)
Outdoor Unit Dimensions (W×D×H)	37.24 × 16.14 × 31.89 in
Outdoor Unit Net / Gross Weight	137.35 / 148.15 lbs
Refrigerant Type / Charge	R454B / 78.31 oz
Pre-charged Line Length	75 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe)
Max. Total Pipe Length / Max. to One Indoor	196.8 ft / 98.4 ft
Max. Height Difference (Indoor–Outdoor / Between Indoors)	49.2 ft / 33 ft
Operating Range — Cooling / Heating	-22–122°F / -22–75°F outdoor ambient

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor and Outdoor Hyper

Specification	CH-R06MOLVWM-115VI	CH-R09MOLVWM-230VI	CH-R12MOLVWM-230VI	CH-R18MOLVWM-230VI	CH-R24MOLVWM-230VI	CH-R33HEMLVWM-230VI
Power Supply Rated	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Rated Capacity Btu/h	6,000	9,000	12,000	18,000	23,000	33,000
Minimum Circuit Ampacity (MCA) A	3	3	3	3	3	3
Max. Fuse A	3	3	3	3	3	3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM	294.3/225.4/176.8/141.3/NA	382.6/293.1/194.2/153.0/NA	382.6/293.1/194.2/153.0/NA	759.3/530.4/419.1/382.6/NA	759.3/586.5/419.1/382.6/NA	829.6/716.6/592.7/447.3/NA
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)	42.0/37.0/32.0/24.0/NA	42.0/37.0/32.0/24.0/NA	43.0/37.0/32.0/24.0/NA	52.5/44.0/40.5/35.2/25.0	54.5/49.0/45.3/41.3/27.0	56.0/49.5/45.3/41.3/27.0
Dimension (WxDxH) inch	28.7x7.87x11.81	31.5x7.87x11.61	31.5x7.87x11.61	45.47x12.01x16.14	45.47x12.01x16.14	52.76x15.16x17.72
Packing (WxDxH) inch	31.10x10.63x14.76	34.45x11.22x14.96	34.45x11.22x14.96	45.47x12.01x16.14	45.47x12.01x16.14	52.76x15.16x17.72
Net/Gross Weight lbs.	17.64/21.35	18.64/22.05	18.64/22.05	45.47/21.06	45.47/21.06	67.16/17.72
Room temperature Cooling °F	60~90	60~90	60~90	60~90	60~90	60~90
Room temperature Heating °F	32~86	32~86	32~86	32~86	32~86	32~86
Liquid Side/Gas Side inch	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 3/4"

Specification

Specification	CH-RVHP19M-230VO	CH-RVHP28M-230VO	CH-RVHP36M-230VO	CH-RVHP48M-230VO	CH-RVHP55M-230VO
Power Supply (V/Ph/Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Operating Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Capacity (BTU/h)	5,400~28,000	7,200~37,000	9,000~43,000	12,000~57,000	19,000~59,000
SEER2	5.6	9.5	12	17.3	18.5
EER	15	12.5	13	12	12
IEER	25	23	23	23	22.2
Heating Capacity (BTU/h)	5,700~27,000	8,400~36,000	10,000~44,000	13,000~57,000	20,000~59,000
HSPF2	6.5	9.1	11.5	17.3	20.1
COP	4	3.8	4	3.7	3.5
SCOP	10.4	10.5	10.7	11	10.5
Power Input (W)	8.5	8.5	8.5	9	8.5
Air Flow (CFM)	19,000	27,000	36,000	47,000	47,000
Sound Level Indoor (dBA)	17.5	30	37	37	39.5
Sound Level Outdoor (dBA)	20	35	40	40	40
Weight Indoor (lbs)	2,130.7	2,148.4	3,037.2	4,502.8	4,502.8
Weight Outdoor (lbs)	61.5	61	65	65	65
Dimensions Indoor (in)	37.24x16.14x31.89	37.24x16.14x31.89	38.58x16.34x38.39	37.48x16.34x52.48	37.48x16.34x52.48
Dimensions Outdoor (in)	42.91x19.68x34.84	42.91x19.68x34.84	45.08x19.68x42.52	43.11x19.49x58.27	43.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs)	137.35/148.15	168.43/179.67	211.86/244.71	246.47/276.68	246.47/276.68
Refrigerant Type/Amount (lbs)	R454B/78.31	R454B/120.63	R454B/134.04	R454B/151.68	R454B/151.68
Fuse Size (A)	75	100	125	150	150
Wire Size (AWG)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Control Voltage (V)	550/340	550/340	550/340	550/340	550/340
Liquid Line	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"	6 x 1/4"
Suction Line	3 x 3/8"	3 x 3/8" + 1 x 1/2"	3 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"
Max Line Length (ft)	196.8	262.4	262.4	262.4	262.4
Max Elevation Diff (ft)	98.4	114.8	114.8	114.8	114.8
Max Head Pressure (ft)	49.2	49.2	49.2	49.2	49.2
Max Suction Pressure (ft)	33	33	33	33	33
Operating Range Cooling (°F)	-22~122	-22~122	-22~122	-22~122	-22~122
Operating Range Heating (°F)	-22~75	-22~75	-22~75	-22~75	-22~75
Feature 1	✓	✓	✓	✓	✓
Feature 2	✓	✓	✓	✓	✓
Feature 3	✓	✓	✓	✓	✓
Feature 4	✓	✓	✓	✓	✓

Indoor and Outdoor Regular

Specification	CH-R060LVWM-115VI	CH-R09OLVWM-115VI	CH-R120LVWM-115VI	CH-RO9MOLVWM-230VI	CH-R12MOLVWM-230VI	CH-R18MOLVWM-230VI	CH-R24MOLVWM-230VI	CH-R30MELVWM-230VI	CH-R36MELVWM-230VI
Power Supply Rated	115V, 1, 60	115V, 1, 60	115V, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Rated Capacity Btu/h	7,000	9,000	12,000	9,000	12,000	18,000	24,000	30,000	36,000
Minimum Circuit Ampacity (MCA) A	3	3	3	3	3	3	3	3	3
Max. Fuse A	3	3	3	3	3	3	3	3	3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM	370/340/265/174/-	378/340/265/174/-	378/340/265/174/-	382/294/194/153/-	382/294/194/153/-	759/530/419/382/-	759/586/419/382/-	871/716/547/447/-	871/716/547/447/-
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)	44/40/35/26/-	44/40/35/26/-	44/40/35/26/-	45/41/32/24/-	45/41/32/24/-	54/49/45/41/27	54/49/45/41/27	56/52/45/38/22	56/52/45/38/22
Dimension (WxDxH) inch	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	45.47x12.01x16.34	45.47x12.01x16.34	49.57x11.14x14.25	49.57x11.14x14.25
Packing (WxDxH) inch	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	42.91x19.09x34.84	42.91x19.09x34.84	42.91x19.09x34.84	42.91x19.09x34.84
Net/Gross Weight lbs.	18.64/22.05	18.64/22.05	18.64/22.05	18.64/22.05	18.64/22.05	45.47/21.06	45.47/21.06	67.16/17.72	67.16/17.72
Room temperature Cooling °F	60~90	60~90	60~90	60~90	60~90	60~90	60~90	60~90	60~90
Room temperature Heating °F	32~86	32~86	32~86	32~86	32~86	32~86	32~86	32~86	32~86
Liquid Side/Gas Side inch	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 5/8"

Specification

Specification	CH-R18MES-230VO	CH-R28MES-230VO	CH-R36MES-230VO	CH-R48MES-230VO	CH-R60MES-230VO
Power Supply (V, Ph, Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Voltage Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Rated Capacity (range) (Btu/h)	5,400~21,600	7,200~32,000	9,000~42,000	12,000~55,000	19,000~62,000
Cooling Rated Current (A)	6	9.2	13.5	16.6	26.2
EER2	14	13	12	12.5	10
SEER2	25.1	25	24	24	22
Heating Rated Capacity (range) (Btu/h)	5,700~21,600	8,400~29,000	10,000~42,500	13,000~53,000	20,000~60,000
Heating Rated Current (A)	6.8	9.2	14	16.3	21
Heating at 47°F COP (W/W)	3.8	3.8	3.5	3.8	3.7
HSPF4	9.8	9.5	9.5	10.3	9.5
HSPF5	7.8	7	7	8	7.4
Heating at 5°F Rated Capacity (Btu/h)	13,500	19,000	26,000	36,000	39,000
Minimum Circuit Ampacity (Outdoor unit) (A)	16	23	30.5	40	40
Max. Fuse (Outdoor unit) (A)	20	25	35	45	45
Outdoor Air Flow (Max) (CFM)	1,765.8	2,130.7	2,148.4	4,502.8	4,502.8
Outdoor Noise Level (Sound Pressure) (dB(A))	59.5	61	64.5	63	65
Dimension (W×D×H) (inch)	35.04x13.46x26.50	37.24x16.14x31.89	37.24x16.14x31.89	37.48x16.34x52.48	37.48x16.34x52.48
Packing (W×D×H) (inch)	40.55x17.24x29.53	42.91x19.68x34.84	42.91x19.68x34.84	43.11x19.49x58.27	43.11x19.49x58.27
Net/Gross Weight (lbs)	100.53/109.35	138.89/149.69	168.87/180.12	222.00/254.19	237.88/270.28
Refrigerant Type/Charged (oz)	R454B/61.73	R454B/84.66	R454B/120.63	R454B/148.15	R454B/151.68
Refrigerant Precharge (ft)	75	100	125	150	150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Design Pressure (PSIG)	550/340	550/340	550/340	550/340	550/340
Refrigerant Piping Liquid Side (inch)	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"	6 x 1/4"
Refrigerant Piping Gas Side (inch)	3 x 3/8"	3 x 3/8" + 1 x 1/2"	4 x 3/8" + 1 x 1/2"	4 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft)	196.8	262.4	262.4	262.4	262.4
Max. Length for One Indoor Unit (ft)	98.4	114.8	114.8	114.8	114.8
Max. Height Difference in Level (ft)	49.2	49.2	49.2	49.2	49.2
Max. Height Difference Between Indoor Units (ft)	33	33	33	33	33
Ambient Temperature Cooling (°F)	-13~122	-13~122	-13~122	-13~122	-13~122
Ambient Temperature Heating (°F)	-13~75	-13~75	-13~75	-13~75	-13~75

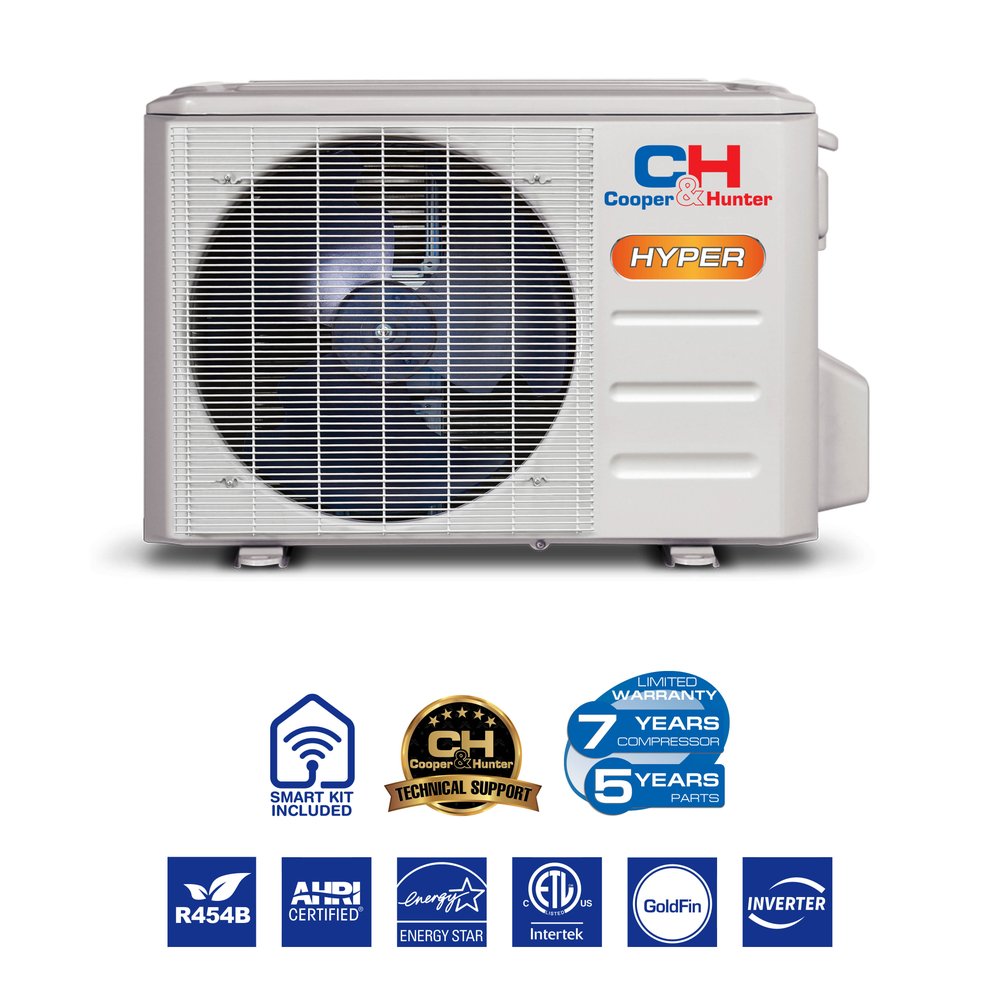

Certification: AHRI	✔	✔	✔	✔	✔
Certification: Energy Star	✔	✔	✔	✔	✔
Certification: NEEP	✔	✔	✔	✔	✔
Certification: ETL	✔	✔	✔	✔	✔

Frequently asked questions.

What size mini split do I need for my room?

For a space of approximately 800 to 1,000 sq ft, the Cooper & Hunter Hyper Heat 19,000 BTU unit is ideal. Its 19,000 BTU capacity will efficiently heat or cool a single zone, ensuring optimal comfort.

How much does a mini split system like the Cooper & Hunter cost?

The price of the Cooper & Hunter Hyper Heat 19,000 BTU system varies based on the installation kit chosen, which ranges from 16ft to 50ft. Typically, you should budget for the unit itself plus installation costs, depending on your specific needs.

Can I install a mini split myself?

While the installation of the Cooper & Hunter 19,000 BTU unit can be attempted by a DIY enthusiast, it is recommended to hire a professional due to the complexities involved, especially with the refrigerant R454B. Improper installation can lead to inefficiencies and potential damage.

Does the mini split come pre-charged with refrigerant?

Yes, the Cooper & Hunter Hyper Heat 19,000 BTU unit comes pre-charged with R454B refrigerant for up to 25 ft of line set, facilitating easier installation. However, if your line set exceeds this length, additional refrigerant may be required.

What voltage does a mini split require?

The Cooper & Hunter Hyper Heat operates on a 230V electrical supply, making it compatible with standard residential electrical systems. Make sure your home can accommodate this voltage to ensure safe and efficient operation.

What warranty does Cooper & Hunter offer on their units?

Cooper & Hunter provides a robust warranty for their Hyper Heat series, featuring a 5-year parts and a 7-year compressor warranty, provided that registration occurs within 30 days of purchase. This warranty gives you peace of mind regarding the unit's longevity and performance.
