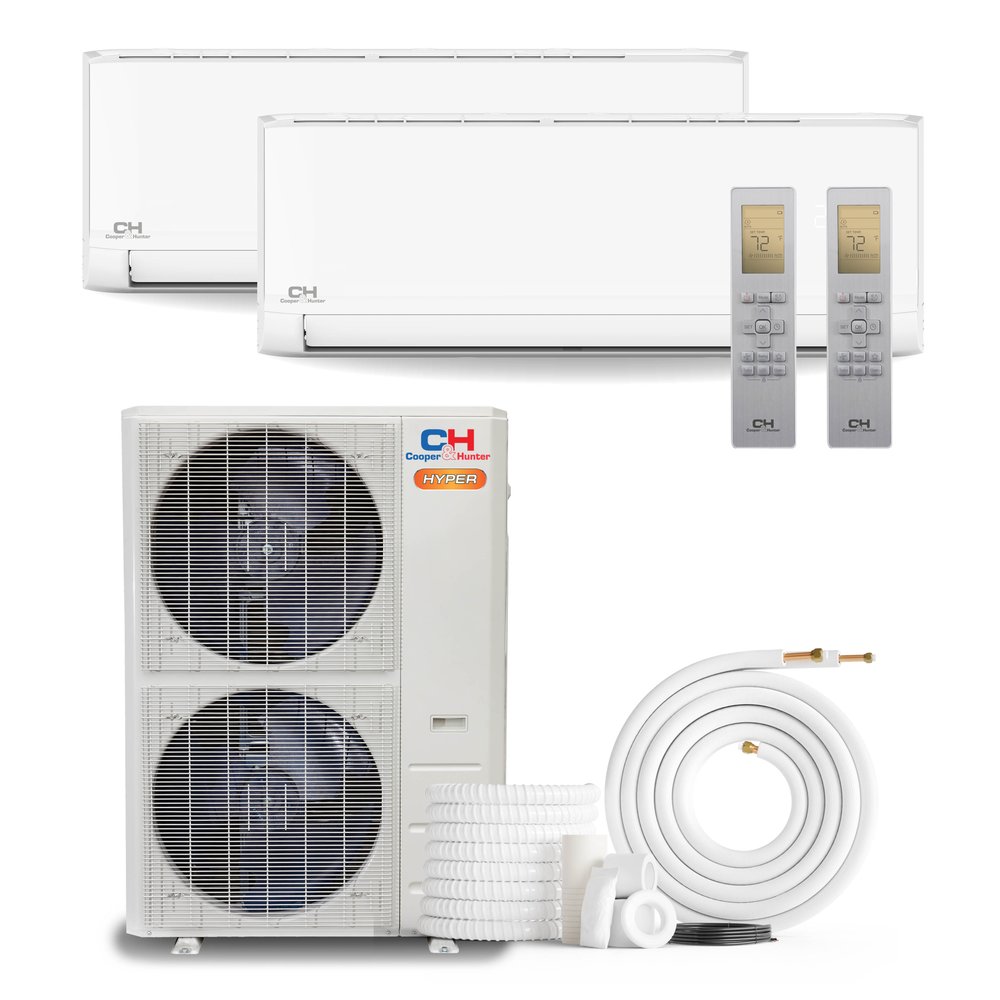

Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump

Name: Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Brand: HVAC Mart
SKU: CH-RHP55M-230VO
Price: 5505.5 USD
Availability: InStock

Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 2

Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 3

Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 4

Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 5

Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 6

Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 7

Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 8

Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 9

Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 10

Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 11

1 / 11

SEER2 22.2HEATS down to −22°FCOOLS up to 122°FR454B

Cooper & Hunter7-Yr WarrantySKU: CH-RHP55M-230VO

$5,505.50

As low as $459/mo withaffirm

Product specifications

Voltage: 230V
SEER: 22.2
WiFi: Not Included
Type: Outdoor Unit
Freon: R454B

See full Tech Specs

Choose Your Configuration

Title: Default Title

Save 10% on these accessories

ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00

FREE Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included

30-Day Returns

COOPER & HUNTER · HYPER HEAT

Built for year-round comfort

CH-RHP55M-230VO

System Specs

Cooling Capacity	51,000 BTU/h
Heating Capacity	55,000 BTU/h
SEER2	22.2
EER2	12
Voltage	230V

Refrigerant	R454B

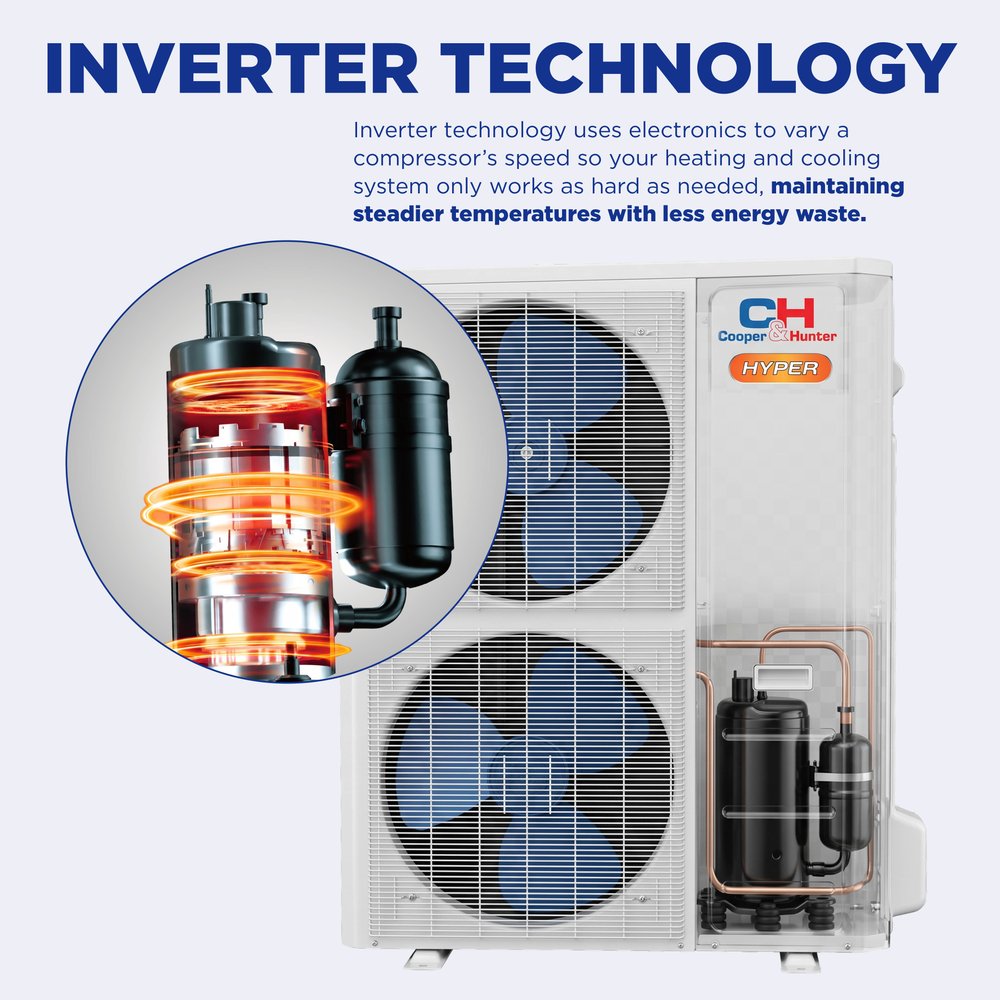

Compressor	Inverter
Climate Range	-22–122°F / -22–75°F outdoor ambient
Sound Level (indoor)	65 dB(A)
Warranty	7-Yr Compressor

Hyper Heat Series Description

The Cooper & Hunter 55,000 BTU Hyper Heat outdoor condenser (CH-RHP55M-230VO) is the outdoor half of a R454B ductless mini split heat-pump system, heating down to -22°F. Pair it with compatible indoor units to build your system.

Tech Specifications

6 Modes for Maximum Comfort

Engineered to adapt to every season, every room, every need.

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

7YEAR COMPRESSOR
WARRANTY

BACKED BY COOPER & HUNTER

Industry-leading protection on every unit

Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.

Technical Specifications

Outdoor Unit Specs— CH-RHP55M-230VO

Outdoor Unit — CH-RHP55M-230VO
Model	CH-RHP55M-230VO
Unit Dimensions (WxDxH)	37.48 x 16.34 x 52.48 in
Net/Gross Weight	246.47/276.68 lb
Packing Dimensions (WxDxH)	43.11 x 19.49 x 58.27 in
Power Supply	208-230V, 1Ph, 60Hz
Maximum Fuse Size	45 A
Min. Circuit Ampacity	43 A
Copper Line Size (Liquid/Gas)	6x1/4" - 4x3/8"+2x1/2"
Noise Level	65 dB
Airflow	4,502.8 CFM
Dehumidification	5.29 pt/h

System Specs

System
Cooling — Rated Capacity (Range)	51,000 Btu/h (19,000–59,000)
Heating at 47°F — Rated Capacity (Range)	55,000 Btu/h (20,000–59,000)
Rated Heating at 5°F	47,000 Btu/h
SEER2 / EER2	22.2 / 12
HSPF4 / HSPF5 / COP (47°F)	10.5 / 8.5 / 3.5
Outdoor Unit MCA / Max. Fuse	39.5 A / 40 / 45 A
Max. Connectable Indoor Units	6
Outdoor Noise Level	65 dB(A)
Outdoor Unit Dimensions (W×D×H)	37.48 × 16.34 × 52.48 in
Outdoor Unit Net / Gross Weight	246.47 / 276.68 lbs
Refrigerant Type / Charge	R454B / 151.68 oz
Pre-charged Line Length	150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe)
Max. Total Pipe Length / Max. to One Indoor	262.4 ft / 114.8 ft
Max. Height Difference (Indoor–Outdoor / Between Indoors)	49.2 ft / 33 ft
Operating Range — Cooling / Heating	-22–122°F / -22–75°F outdoor ambient

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor and Outdoor Hyper

Specification	CH-R06MOLVWM-115VI	CH-R09MOLVWM-230VI	CH-R12MOLVWM-230VI	CH-R18MOLVWM-230VI	CH-R24MOLVWM-230VI	CH-R33HEMLVWM-230VI
Power Supply Rated	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Rated Capacity Btu/h	6,000	9,000	12,000	18,000	23,000	33,000
Minimum Circuit Ampacity (MCA) A	3	3	3	3	3	3
Max. Fuse A	3	3	3	3	3	3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM	294.3/225.4/176.8/141.3/NA	382.6/293.1/194.2/153.0/NA	382.6/293.1/194.2/153.0/NA	759.3/530.4/419.1/382.6/NA	759.3/586.5/419.1/382.6/NA	829.6/716.6/592.7/447.3/NA
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)	42.0/37.0/32.0/24.0/NA	42.0/37.0/32.0/24.0/NA	43.0/37.0/32.0/24.0/NA	52.5/44.0/40.5/35.2/25.0	54.5/49.0/45.3/41.3/27.0	56.0/49.5/45.3/41.3/27.0
Dimension (WxDxH) inch	28.7x7.87x11.81	31.5x7.87x11.61	31.5x7.87x11.61	45.47x12.01x16.14	45.47x12.01x16.14	52.76x15.16x17.72
Packing (WxDxH) inch	31.10x10.63x14.76	34.45x11.22x14.96	34.45x11.22x14.96	45.47x12.01x16.14	45.47x12.01x16.14	52.76x15.16x17.72
Net/Gross Weight lbs.	17.64/21.35	18.64/22.05	18.64/22.05	45.47/21.06	45.47/21.06	67.16/17.72
Room temperature Cooling °F	60~90	60~90	60~90	60~90	60~90	60~90
Room temperature Heating °F	32~86	32~86	32~86	32~86	32~86	32~86
Liquid Side/Gas Side inch	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 3/4"

Specification

Specification	CH-RVHP19M-230VO	CH-RVHP28M-230VO	CH-RVHP36M-230VO	CH-RVHP48M-230VO	CH-RVHP55M-230VO
Power Supply (V/Ph/Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Operating Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Capacity (BTU/h)	5,400~28,000	7,200~37,000	9,000~43,000	12,000~57,000	19,000~59,000
SEER2	5.6	9.5	12	17.3	18.5
EER	15	12.5	13	12	12
IEER	25	23	23	23	22.2
Heating Capacity (BTU/h)	5,700~27,000	8,400~36,000	10,000~44,000	13,000~57,000	20,000~59,000
HSPF2	6.5	9.1	11.5	17.3	20.1
COP	4	3.8	4	3.7	3.5
SCOP	10.4	10.5	10.7	11	10.5
Power Input (W)	8.5	8.5	8.5	9	8.5
Air Flow (CFM)	19,000	27,000	36,000	47,000	47,000
Sound Level Indoor (dBA)	17.5	30	37	37	39.5
Sound Level Outdoor (dBA)	20	35	40	40	40
Weight Indoor (lbs)	2,130.7	2,148.4	3,037.2	4,502.8	4,502.8
Weight Outdoor (lbs)	61.5	61	65	65	65
Dimensions Indoor (in)	37.24x16.14x31.89	37.24x16.14x31.89	38.58x16.34x38.39	37.48x16.34x52.48	37.48x16.34x52.48
Dimensions Outdoor (in)	42.91x19.68x34.84	42.91x19.68x34.84	45.08x19.68x42.52	43.11x19.49x58.27	43.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs)	137.35/148.15	168.43/179.67	211.86/244.71	246.47/276.68	246.47/276.68
Refrigerant Type/Amount (lbs)	R454B/78.31	R454B/120.63	R454B/134.04	R454B/151.68	R454B/151.68
Fuse Size (A)	75	100	125	150	150
Wire Size (AWG)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Control Voltage (V)	550/340	550/340	550/340	550/340	550/340
Liquid Line	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"	6 x 1/4"
Suction Line	3 x 3/8"	3 x 3/8" + 1 x 1/2"	3 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"
Max Line Length (ft)	196.8	262.4	262.4	262.4	262.4
Max Elevation Diff (ft)	98.4	114.8	114.8	114.8	114.8
Max Head Pressure (ft)	49.2	49.2	49.2	49.2	49.2
Max Suction Pressure (ft)	33	33	33	33	33
Operating Range Cooling (°F)	-22~122	-22~122	-22~122	-22~122	-22~122
Operating Range Heating (°F)	-22~75	-22~75	-22~75	-22~75	-22~75
Feature 1	✓	✓	✓	✓	✓
Feature 2	✓	✓	✓	✓	✓
Feature 3	✓	✓	✓	✓	✓
Feature 4	✓	✓	✓	✓	✓

Indoor and Outdoor Regular

Specification	CH-R060LVWM-115VI	CH-R09OLVWM-115VI	CH-R120LVWM-115VI	CH-RO9MOLVWM-230VI	CH-R12MOLVWM-230VI	CH-R18MOLVWM-230VI	CH-R24MOLVWM-230VI	CH-R30MELVWM-230VI	CH-R36MELVWM-230VI
Power Supply Rated	115V, 1, 60	115V, 1, 60	115V, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Rated Capacity Btu/h	7,000	9,000	12,000	9,000	12,000	18,000	24,000	30,000	36,000
Minimum Circuit Ampacity (MCA) A	3	3	3	3	3	3	3	3	3
Max. Fuse A	3	3	3	3	3	3	3	3	3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM	370/340/265/174/-	378/340/265/174/-	378/340/265/174/-	382/294/194/153/-	382/294/194/153/-	759/530/419/382/-	759/586/419/382/-	871/716/547/447/-	871/716/547/447/-
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)	44/40/35/26/-	44/40/35/26/-	44/40/35/26/-	45/41/32/24/-	45/41/32/24/-	54/49/45/41/27	54/49/45/41/27	56/52/45/38/22	56/52/45/38/22
Dimension (WxDxH) inch	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	45.47x12.01x16.34	45.47x12.01x16.34	49.57x11.14x14.25	49.57x11.14x14.25
Packing (WxDxH) inch	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	42.91x19.09x34.84	42.91x19.09x34.84	42.91x19.09x34.84	42.91x19.09x34.84
Net/Gross Weight lbs.	18.64/22.05	18.64/22.05	18.64/22.05	18.64/22.05	18.64/22.05	45.47/21.06	45.47/21.06	67.16/17.72	67.16/17.72
Room temperature Cooling °F	60~90	60~90	60~90	60~90	60~90	60~90	60~90	60~90	60~90
Room temperature Heating °F	32~86	32~86	32~86	32~86	32~86	32~86	32~86	32~86	32~86
Liquid Side/Gas Side inch	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 5/8"

Specification

Specification	CH-R18MES-230VO	CH-R28MES-230VO	CH-R36MES-230VO	CH-R48MES-230VO	CH-R60MES-230VO
Power Supply (V, Ph, Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Voltage Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Rated Capacity (range) (Btu/h)	5,400~21,600	7,200~32,000	9,000~42,000	12,000~55,000	19,000~62,000
Cooling Rated Current (A)	6	9.2	13.5	16.6	26.2
EER2	14	13	12	12.5	10
SEER2	25.1	25	24	24	22
Heating Rated Capacity (range) (Btu/h)	5,700~21,600	8,400~29,000	10,000~42,500	13,000~53,000	20,000~60,000
Heating Rated Current (A)	6.8	9.2	14	16.3	21
Heating at 47°F COP (W/W)	3.8	3.8	3.5	3.8	3.7
HSPF4	9.8	9.5	9.5	10.3	9.5
HSPF5	7.8	7	7	8	7.4
Heating at 5°F Rated Capacity (Btu/h)	13,500	19,000	26,000	36,000	39,000
Minimum Circuit Ampacity (Outdoor unit) (A)	16	23	30.5	40	40
Max. Fuse (Outdoor unit) (A)	20	25	35	45	45
Outdoor Air Flow (Max) (CFM)	1,765.8	2,130.7	2,148.4	4,502.8	4,502.8
Outdoor Noise Level (Sound Pressure) (dB(A))	59.5	61	64.5	63	65
Dimension (W×D×H) (inch)	35.04x13.46x26.50	37.24x16.14x31.89	37.24x16.14x31.89	37.48x16.34x52.48	37.48x16.34x52.48
Packing (W×D×H) (inch)	40.55x17.24x29.53	42.91x19.68x34.84	42.91x19.68x34.84	43.11x19.49x58.27	43.11x19.49x58.27
Net/Gross Weight (lbs)	100.53/109.35	138.89/149.69	168.87/180.12	222.00/254.19	237.88/270.28
Refrigerant Type/Charged (oz)	R454B/61.73	R454B/84.66	R454B/120.63	R454B/148.15	R454B/151.68
Refrigerant Precharge (ft)	75	100	125	150	150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Design Pressure (PSIG)	550/340	550/340	550/340	550/340	550/340
Refrigerant Piping Liquid Side (inch)	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"	6 x 1/4"
Refrigerant Piping Gas Side (inch)	3 x 3/8"	3 x 3/8" + 1 x 1/2"	4 x 3/8" + 1 x 1/2"	4 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft)	196.8	262.4	262.4	262.4	262.4
Max. Length for One Indoor Unit (ft)	98.4	114.8	114.8	114.8	114.8
Max. Height Difference in Level (ft)	49.2	49.2	49.2	49.2	49.2
Max. Height Difference Between Indoor Units (ft)	33	33	33	33	33
Ambient Temperature Cooling (°F)	-13~122	-13~122	-13~122	-13~122	-13~122
Ambient Temperature Heating (°F)	-13~75	-13~75	-13~75	-13~75	-13~75
Certification: AHRI	✔	✔	✔	✔	✔
Certification: Energy Star	✔	✔	✔	✔	✔
Certification: NEEP	✔	✔	✔	✔	✔
Certification: ETL	✔	✔	✔	✔	✔

Frequently asked questions.

What size mini split do I need for my space?

The Cooper & Hunter Hyper Heat 55,000 BTU outdoor condenser is capable of covering a significant area, making it suitable for larger spaces or multiple rooms. To determine the exact coverage, consider factors like insulation and room dimensions, but this unit is often suitable for spaces requiring up to 2,000 sq ft.

How much does a mini split system like Cooper & Hunter cost?

The Cooper & Hunter Hyper Heat 55,000 BTU system typically ranges in price based on the installation kit options you select, such as 16ft, 25ft, or 50ft. Prices may vary, so it's best to check directly for the most accurate pricing based on your specific installation needs.

Can I install the Cooper & Hunter mini split myself?

While some homeowners may attempt DIY installation, the Cooper & Hunter Hyper Heat system requires proper knowledge of HVAC systems due to its 230V electrical requirements and refrigerant handling. It's recommended to hire a professional for installation to ensure efficiency and adherence to local codes.

Does the Cooper & Hunter mini split come pre-charged with refrigerant?

Yes, the Cooper & Hunter Hyper Heat mini split is pre-charged with R454B refrigerant for up to 25 ft of line set, making it easier for installation. However, if your installation exceeds this length, additional refrigerant may be needed.

What warranty does the Cooper & Hunter Hyper Heat offer?

The Cooper & Hunter Hyper Heat system includes a 5-year parts warranty and a 7-year compressor warranty, provided that registration is completed within 30 days of purchase. This warranty ensures peace of mind regarding the longevity of your investment.

What SEER rating do I need for efficient cooling?

The Cooper & Hunter Hyper Heat boasts an impressive SEER rating of 22.2, which is well above the minimum efficiency standards. For optimal energy savings, choosing a system with a SEER rating above 16 is recommended, making this unit a strong choice for efficiency.
