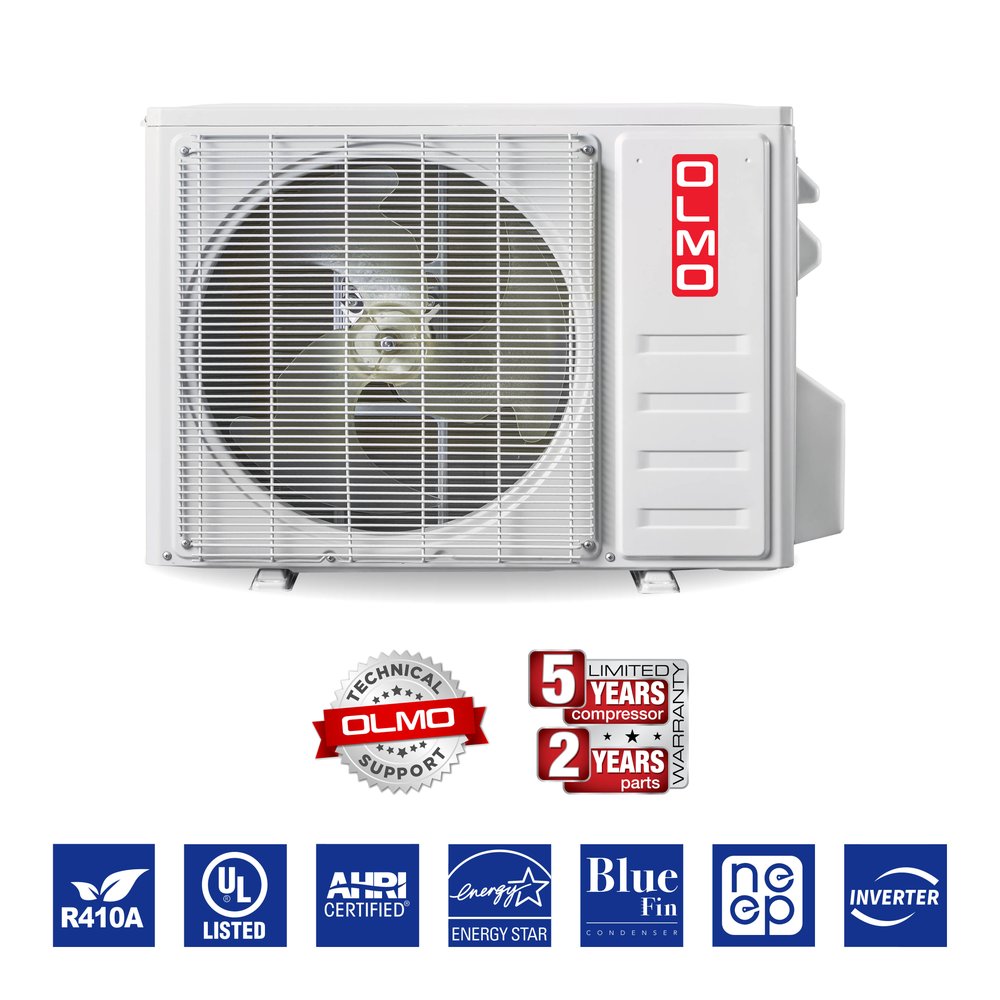

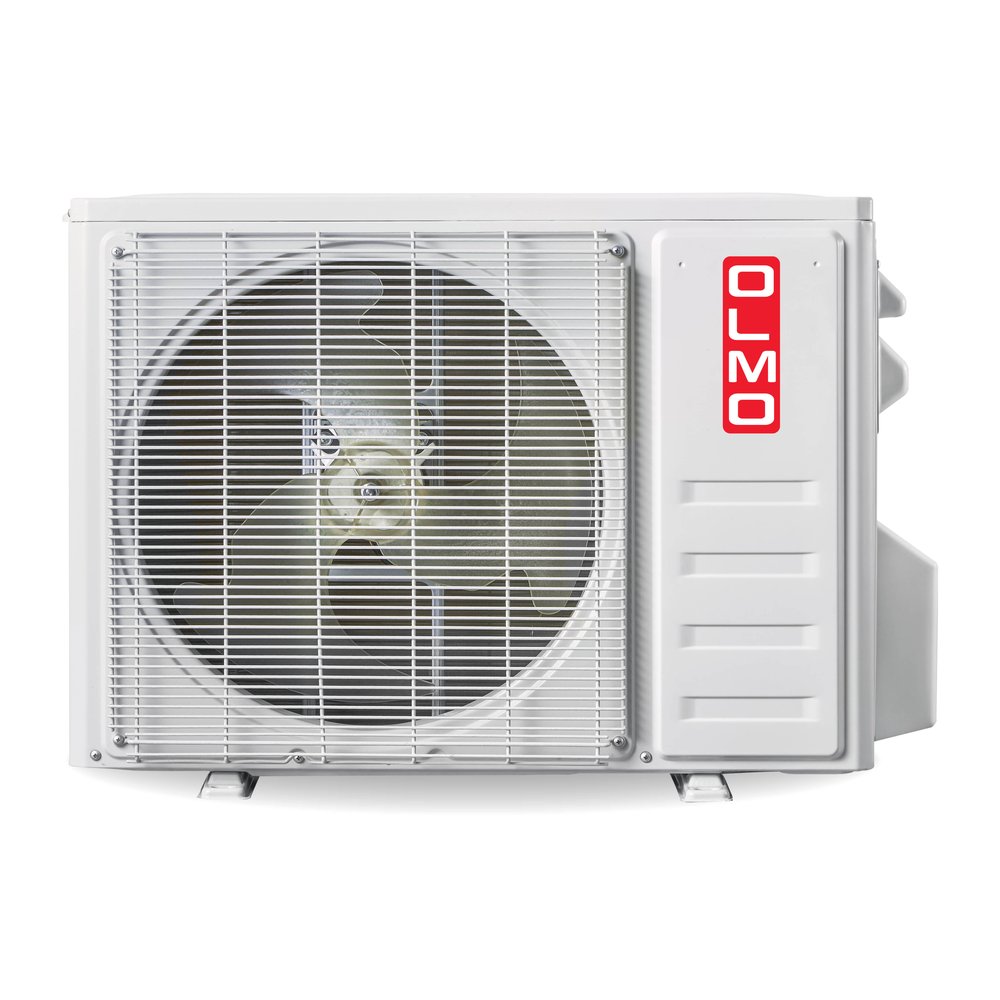

OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump

Name: OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
Brand: HVAC Mart
SKU: OS-MSR36-230VO
Price: 1604.54 USD
Availability: InStock

OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump — photo 2

OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump — photo 3

OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump — photo 4

OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump — photo 5

OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump — photo 6

OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump — photo 7

OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump — photo 8

OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump — photo 9

OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump — photo 10

OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump — photo 11

1 / 11

SEER2 22.0Heats & CoolsR410A

OLMO5-Yr WarrantySKU: OS-MSR36-230VO

$1,604.54

As low as $134/mo withaffirm

Product specifications

Voltage: 230V
SEER: 22.0
WiFi: Not Included
Type: Outdoor Unit
Freon: R410A

See full Tech Specs

Choose Your Configuration

Default: Default Title

Save 10% on these accessories

ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00

FREE Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included

30-Day Returns

OLMO · SIERRA

Built for year-round comfort

OS-MSR36-230VO

System Specs

Cooling Capacity	36,000 BTU/h
SEER2	22.0
Voltage	230V

Refrigerant	R410A
Compressor	Inverter
Warranty	5-Yr Compressor

Sierra Series Description

The OLMO 36,000 BTU outdoor condenser (OS-MSR36-230VO) is the outdoor half of a R410A ductless mini split heat-pump system. Pair it with compatible indoor units to build your system.

Tech Specifications

6 Modes for Maximum Comfort

Engineered to adapt to every season, every room, every need.

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

5YEAR COMPRESSOR
WARRANTY

BACKED BY OLMO COMFORT

Industry-leading protection on every unit

Compressor: 5-year coverage
With product registration after professional installation.
Parts & components: 3-year coverage
All major components and refrigerant circuit parts.

Technical Specifications

Outdoor Unit Specs— OS-MSR36-230VO

Outdoor Unit — OS-MSR36-230VO
Model	OS-MSR36-230VO
Net/Gross Weight	188.5/220.5 lb
Power Supply	208-230V, 1Ph, 60Hz
Maximum Fuse Size	50 A
Min. Circuit Ampacity	32.2 A
Copper Line Size (Liquid/Gas)	1/4"/3/8"
Noise Level	59 dB
Airflow	3.411 CFM

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor Models

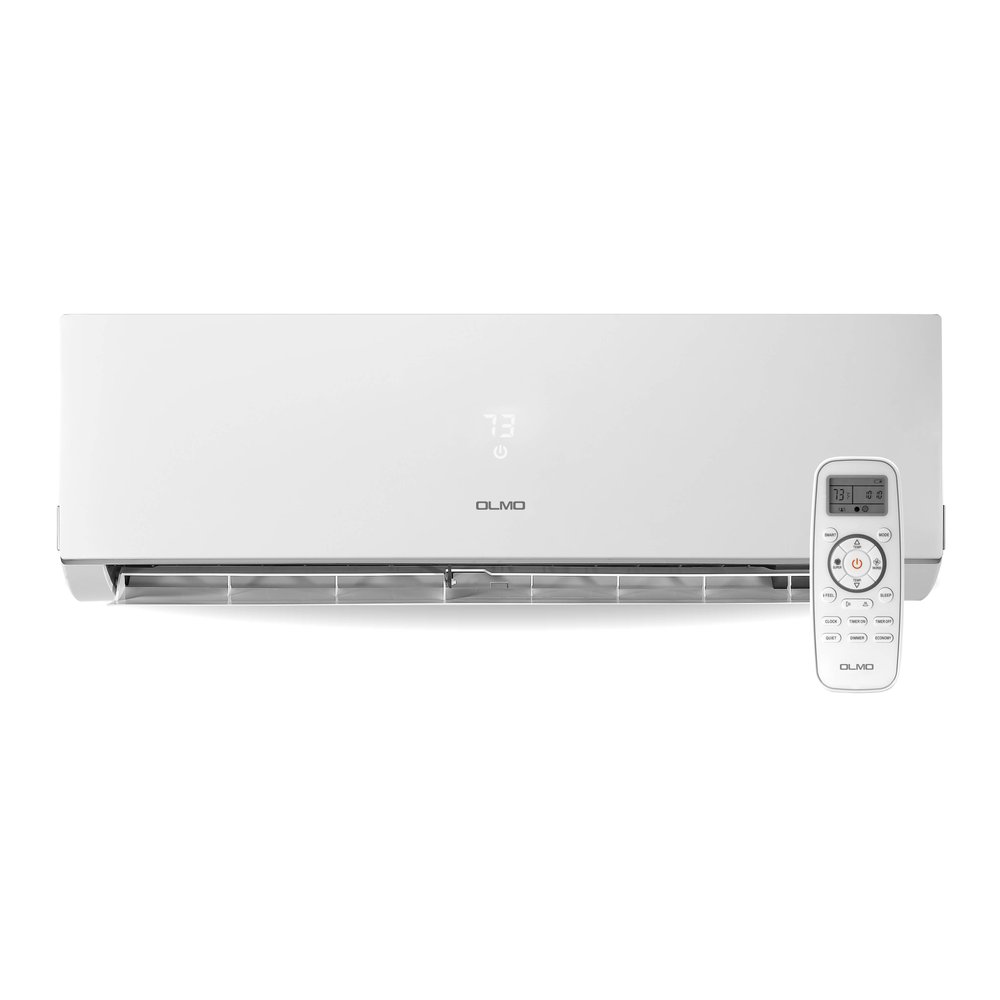

Specification	OS-M09SRW-230VI	OS-M12SRW-230VI	OS-M18SRW-230VI	OS-M24SRW-230VI
Power Supply V-Ph-Hz	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60
Capacity Btu/h	9000	12000	18000	23400
Rated Capacity Btu/h	9500	13000	19000	26000
Output Power W	25	25	35	35
Rated Current A	0.11	0.11	0.17	0.17
Indoor Air Flow CFM	341	365	647	706
Indoor Noise Level (Hi/Mi/Lo) dB(A)	39/35/30	39/35/30	45/41/37	47/45/42
Net Dimensions (WxHxD) in	32.02x10.75x8.13	37.38x10.75x8.13	48x12.63x9.25	48x12.63x9.25
Packing (WxHxD) in	39.38x13.19x6.38	39.38x13.19x6.38	51.75x15.44x12.50	51.75x15.44x12.50
Net/Gross Weight lbs	19.84 / 24.25	19.84 / 24.25	31.97 / 37.48	31.97 / 37.48
Liquid Side / Gas Side in	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"

Outdoor Models

Specification	OS-MSR36-230VOThis model	OS-MSR18-230VO	OS-MSR24-230VO	OS-MSR42-230VO
Power Supply V-Ph-Hz	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60
Capacity Btu/h	32000	18000	24000	42000
EER2 Btu/h	12.5	12.5	12.5	10.5
SEER2 Btu/h	21.0	21.0	22.0	20.0
Rated Capacity Btu/h	36000	18000	24000	42000
HSPF2 Btu/h	9.00	9.50	9.05	8.95
COP2 W/W	3.37	3.45	3.66	3.17
Minimum Circuit Ampacity A	32.2	23	25	35
Max Fuse A	50	30	30	50
Outdoor Air Flow (Hi) CFM	3411	1850	2350	3411
Outdoor Side Noise Level dB(A)	59	55	55	63
Dimensions (WxHxD) in	37.38×41.38×13.38	33.88×26.38×12.25	37.38×33×13.38	37.38×41.38×13.38
Outdoor Unit Packing (WxHxD) in	43.75×18.13×47.25	39×17.75×28.75	43.75×18.13×36.25	43.75×18.13×47.25
Net/Gross Weight lbs	188.5/220.5	116.8/125.6	158.7/169.5	198.4/224.5
Refrigerant Type/Quantity oz	R410A/105.82	R410A/63.49	R410A/81.13	R410A/120
Refrigerant Precharge ft	98	50	75	98
Liquid Side / Gas Side in	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"
Max Refrigerant Pipe Length Each/Total ft	66/246	82/164	66/197	66/262

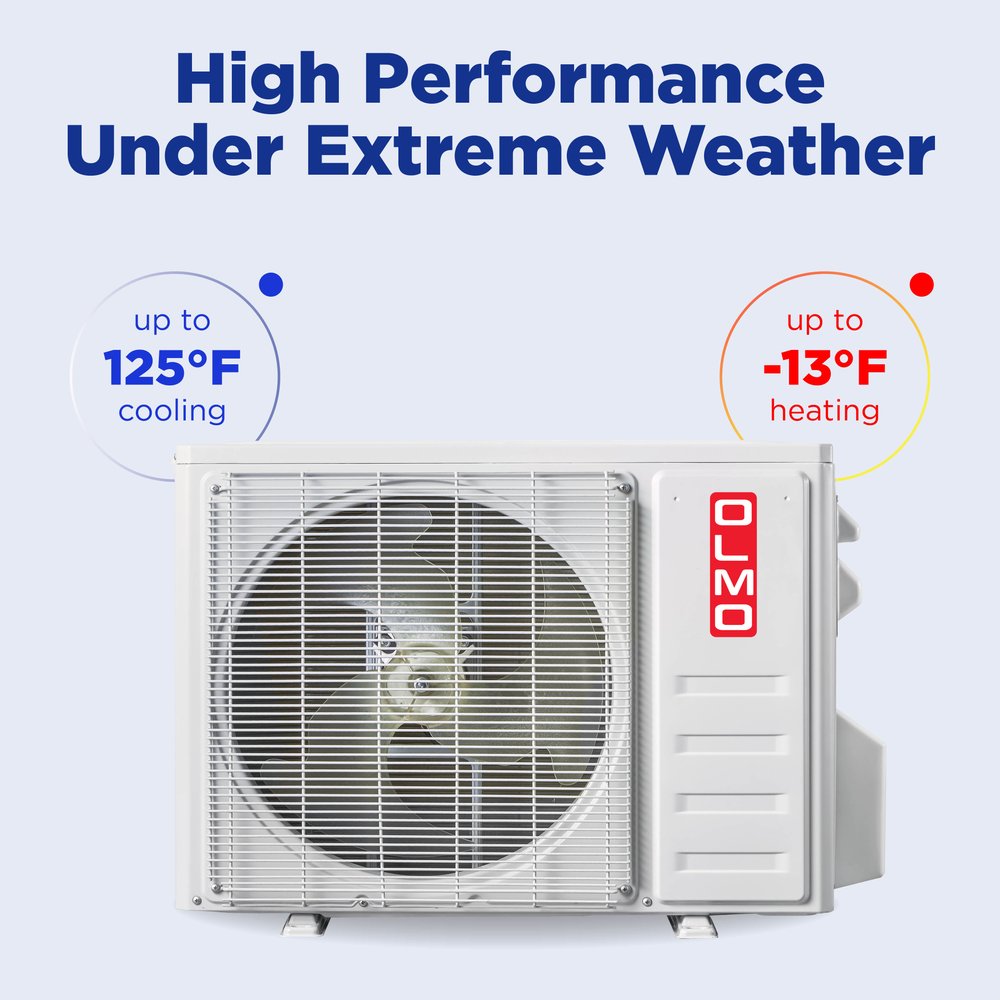

Outdoor (Cooling) °F	14~114.8	14~114.8	14~114.8	14~114.8
Outdoor (Heating) °F	-13~75.2	-13~75.2	-13~75.2	-4~75.2

Frequently asked questions.

What size mini split do I need for my space?

For areas up to 1500 sq ft, the Olmo Sierra 36,000 BTU mini split is an excellent choice. Its high capacity ensures effective cooling and heating in larger rooms or open spaces.

How much does a mini split system like the Olmo Sierra cost?

The price of the Olmo Sierra 36,000 BTU mini split system varies based on installation kits, which range from no kit to options of 16ft, 25ft, or 50ft. Contact our sales team for specific pricing based on your chosen setup.

Can I install the Olmo mini split myself?

While some homeowners may attempt to install the Olmo Sierra mini split, it is advisable to hire a professional. Self-installation can lead to inefficiencies, especially since the system requires proper handling of refrigerant and electrical connections at 230V.

Does the Olmo Sierra mini split come pre-charged with refrigerant?

Yes, the Olmo Sierra mini split is pre-charged with R410A refrigerant for up to 25 ft of line set. This feature simplifies the installation process, allowing for immediate use after connecting to your indoor unit.

What kind of warranty does the Olmo Sierra offer?

The Olmo Sierra mini split comes with a 5-year parts and compressor warranty, providing peace of mind regarding the durability and reliability of your cooling system.

What is the SEER rating of the Olmo Sierra and is it energy efficient?

The Olmo Sierra boasts a SEER rating of 22.0, which indicates high energy efficiency. This makes it an excellent choice for those looking to reduce energy costs while enjoying superior climate control.
