Cooper & Hunter Sophia Series Remote for MinisplitsforLess
Cooper & HunterSKU: 17317000A23461OR17317000A38043
Choose Your Configuration
Fast Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · ACCESSORIES
Built for year-round comfort
17317000A23461OR17317000A38043
Product Description

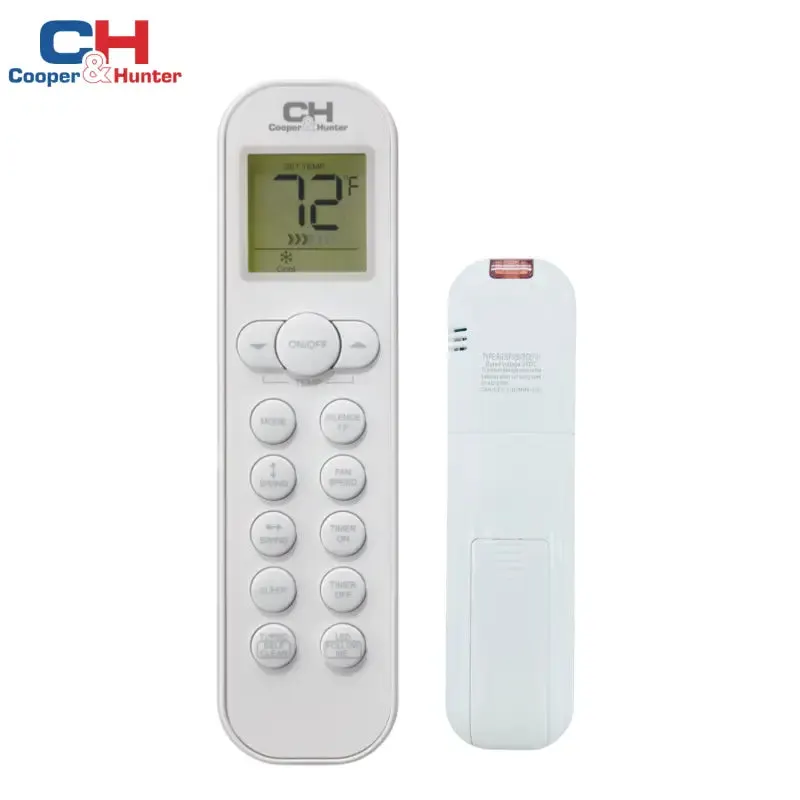

This is a RG36F1(B)/BGEFU1 Remote Control for Cooper&Hunter Ductless Mini Split Heat Pump Systems. Has all functionality for your Wall-mount Ductless Indoor Unit. This remote control is compatible with the Cooper&Hunter Mia NG / NY Series ductless mini-split heat pumps Air Conditioner Systems.
Technical Specifications
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor unit model
| Specification | CH-NY06MIA-115VI | CH-NY09MIA-115VI | CH-NY12MIA-115VI | CH-NY09MIA-230VI | CH-NY12MIA-230VI | CH-NY18MIA-230VI | CH-NY24MIA-230VI |
|---|---|---|---|---|---|---|---|
| Power supply, V, Ph, Hz | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz |
| Cooling Capacity, Btu/h | 6,000 | 9,000 | 12,000 | 9,000 | 12,000 | 18,000 | 24,000 |
| MAX. FUSE (Indoor unit), A | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 |
| Indoor air flow (Hi/Mi/Lo), CFM | 282/247/182/129 | 282/247/182/129 | 341/308/205/176 | 309/258/192/135 | 358/317/192/135 | 450/388/258/217 | 705/588/450/352 |
| Indoor noise level (Hi/Mi/Lo), dB(A) | 36/31/22 | 36/31/22 | 41/30/26 | 40/30/24 | 37/30/22 | 43/34/30 | 45/39/35 |
| Unit Dimensions (W*D*H), inch | 28.4x7.3x11.4 | 28.4x7.3x11.4 | 31.5x7.4x11.6 | 28.4x7.3x11.4 | 31.5x7.4x11.6 | 37.9x8.4x12.5 | 42.5x8.9x13.1 |
| Packing Dimensions (W*D*H), inch | 31x10x14 | 31x10x14 | 34x11x14 | 31x10x14 | 34x11x14 | 41x12x16 | 45x16x12 |
| Net/Gross weight, lbs. | 16.98/22.2 | 16.98/22.2 | 19.84/24.2 | 16.98/22.2 | 18.96/22.2 | 23.81/31.5 | 29.98/38.5 |
| Design Pressure, PSIG | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Room Temperature, °F | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 |
Outdoor unit model
| Specification | CH-NY06MIA-115VO | CH-NY09MIA-115VO | CH-NY12MIA-115VO | CH-NY09MIA-230VO | CH-NY12MIA-230VO | CH-NY18MIA-230VO | CH-NY24MIA-230VO |
|---|---|---|---|---|---|---|---|
| Cooling Capacity, Btu/h | 6,000 (2,650-10,300) | 10,000 (2,700-10,500) | 12,000 (4,000-12,500) | 10,000 (2,400-10,900) | 12,000 (2,730-12,500) | 18,800 (6,300-19,400) | 24,000 (6,900-28,100) |
| SEER | 21.5 | 21.5 | 20.8 | 21.7 | 21.4 | 19 | 18 |
| EER | 12.5 | 12.5 | 10.3 | 12.6 | 12.6 | 10.5 | 9 |
| Heating Capacity, Btu/h | 7,000 (2,700-10,500) | 10,000 (2,700-10,500) | 12,000 (4,000-12,500) | 10,000 (2,400-10,900) | 12,000 (2,730-12,500) | 18,800 (6,300-19,400) | 24,000 (6,900-28,100) |
| COP | 2.93 | 2.93 | 3.13 | 3.29 | 3.23 | 2.93 | 3.03 |
| HSPF4 | 9 | 9 | 8.2 | 9.1 | 9.1 | 8.7 | 8.6 |
| HSPF5 | 6.9 | 6.9 | 6.6 | 6.9 | 6.9 | 6.8 | 6.6 |
| MINIMUM CIRCUIT AMPACTY (MCA), A | 20 | 20 | 18.5 | 12 | 15 | 15 | 19 |
| MAX. FUSE, A | 30 | 30 | 25 | 15 | 15 | 20 | 30 |
| Air Flow (Max), CFM | 1,294 | 1,294 | 1,235 | 1,294 | 1,235 | 1,235 | 1,764 |
| Outdoor Noise, [dB(A)] | 54 | 55 | 53 | 54 | 53 | 57 | 60 |
| Dimension (WxDxH), (inch) | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 31.7x12.9x21.8 | 35x13.5x26.5 |
| Packing (WxDxH), (inch) | 34.9x13x24 | 34.9x13x24 | 34.9x13x24 | 34.9x13.27x24 | 34.9x13.27x24 | 36.02x14.57x24.21 | 39.17x15.67x29.13 |
| Net/ Gross weight, (lbs.) | 57/63 | 57/63 | 62/67 | 55/60 | 59/64 | 73/79 | 97/104 |
| Refrigerant precharge, (ft) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional charge for each ft, (oz/ft) | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 |
| Design pressure, (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid side/ Gas side, (inch) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" |
| Max. refrigerent pipe length,(ft) | 82 | 82 | 82 | 82 | 82 | 98 | 164 |
| Max. diffrence in level,(ft) | 32.8 | 32.8 | 32.8 | 32.8 | 32.8 | 66 | 82 |
| Ambient temperature Cooling, (°F) | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 |
| Heating, (°F) | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 |
Frequently asked questions.
Will this fit my system?
This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.
Is this part included with a mini split system, or sold separately?
This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.
Do you offer support choosing the right part?
Yes — contact us with your system model number and what you need, and we will help you pick the correct part.
What warranty does it come with?
Cooper & Hunter backs it with a 7-year compressor and 5-year parts limited warranty (with professional installation and registration).
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
This is a RG36F1(B)/BGEFU1 Remote Control for Cooper&Hunter Ductless Mini Split Heat Pump Systems. Has all functionality for your Wall-mount Ductless Indoor Unit. This remote control is compatible with the Cooper&Hunter Mia NG / NY Series ductless mini-split heat pumps Air Conditioner Systems.
Thank you for your recent purchase! Cooper&Hunter Limited Warranty terms are available if the product is registered within 60 days of installation. Registration can be completed online or by phone. Registering your product is a relatively short, easy process and you need to have the following information ready:
- The serial number and model number for each piece of equipment you purchased
- The date of installation
- Your general information, including name, address and phone number
- The name and zip code of the dealer/technician who installed your equipment
- The name, address and email of the dealer or contractor who installed your equipment
- Date and place of purchase, if differ from installer’s address
- An email address. We will use this to send you confirmation of your registration
