Remote Control Replacement for OLMO Ductless Air Conditioners
OLMOSKU: 17317000A34063
Choose Your Configuration
Fast Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
OLMO · ACCESSORIES
Built for year-round comfort
17317000A34063
Product Description

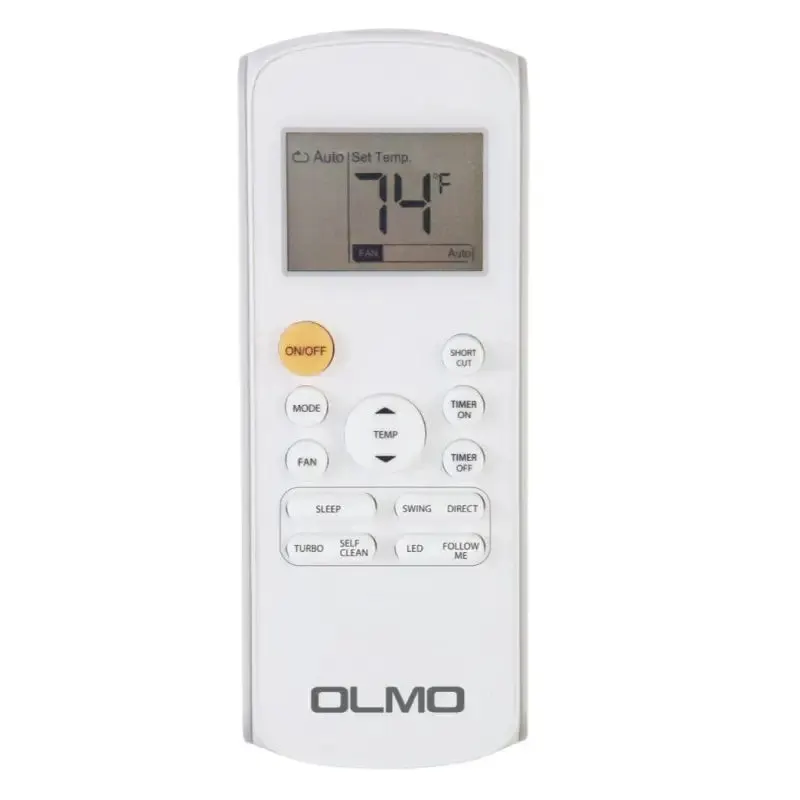

There is RG57F3(B)/BGEFU1 Remote Control for OLMO Ductless Mini Split Heat Pump Systems, designed with all necessary functionality for your Wall-mount Ductless Indoor Unit. This remote control is compatible with the OLMO ALPIC Series, Scandic Series, and ALPIC ECO Series ductless mini-split heat pumps and split heat pump system air conditioner models.This remote is part of our wide inventory of mini split parts, offering reliable performance and easy replacement for OLMO systems.
Technical Specifications
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor unit model
| Specification | CH-NY06MIA-115VI | CH-NY09MIA-115VI | CH-NY12MIA-115VI | CH-NY09MIA-230VI | CH-NY12MIA-230VI | CH-NY18MIA-230VI | CH-NY24MIA-230VI |
|---|---|---|---|---|---|---|---|
| Power supply, V, Ph, Hz | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz |
| Cooling Capacity, Btu/h | 6,000 | 9,000 | 12,000 | 9,000 | 12,000 | 18,000 | 24,000 |
| MAX. FUSE (Indoor unit), A | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 |
| Indoor air flow (Hi/Mi/Lo), CFM | 282/247/182/129 | 282/247/182/129 | 341/308/205/176 | 309/258/192/135 | 358/317/192/135 | 450/388/258/217 | 705/588/450/352 |
| Indoor noise level (Hi/Mi/Lo), dB(A) | 36/31/22 | 36/31/22 | 41/30/26 | 40/30/24 | 37/30/22 | 43/34/30 | 45/39/35 |
| Unit Dimensions (W*D*H), inch | 28.4x7.3x11.4 | 28.4x7.3x11.4 | 31.5x7.4x11.6 | 28.4x7.3x11.4 | 31.5x7.4x11.6 | 37.9x8.4x12.5 | 42.5x8.9x13.1 |
| Packing Dimensions (W*D*H), inch | 31x10x14 | 31x10x14 | 34x11x14 | 31x10x14 | 34x11x14 | 41x12x16 | 45x16x12 |
| Net/Gross weight, lbs. | 16.98/22.2 | 16.98/22.2 | 19.84/24.2 | 16.98/22.2 | 18.96/22.2 | 23.81/31.5 | 29.98/38.5 |
| Design Pressure, PSIG | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Room Temperature, °F | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 |
Outdoor unit model
| Specification | CH-NY06MIA-115VO | CH-NY09MIA-115VO | CH-NY12MIA-115VO | CH-NY09MIA-230VO | CH-NY12MIA-230VO | CH-NY18MIA-230VO | CH-NY24MIA-230VO |
|---|---|---|---|---|---|---|---|
| Cooling Capacity, Btu/h | 6,000 (2,650-10,300) | 10,000 (2,700-10,500) | 12,000 (4,000-12,500) | 10,000 (2,400-10,900) | 12,000 (2,730-12,500) | 18,800 (6,300-19,400) | 24,000 (6,900-28,100) |
| SEER | 21.5 | 21.5 | 20.8 | 21.7 | 21.4 | 19 | 18 |
| EER | 12.5 | 12.5 | 10.3 | 12.6 | 12.6 | 10.5 | 9 |
| Heating Capacity, Btu/h | 7,000 (2,700-10,500) | 10,000 (2,700-10,500) | 12,000 (4,000-12,500) | 10,000 (2,400-10,900) | 12,000 (2,730-12,500) | 18,800 (6,300-19,400) | 24,000 (6,900-28,100) |
| COP | 2.93 | 2.93 | 3.13 | 3.29 | 3.23 | 2.93 | 3.03 |
| HSPF4 | 9 | 9 | 8.2 | 9.1 | 9.1 | 8.7 | 8.6 |
| HSPF5 | 6.9 | 6.9 | 6.6 | 6.9 | 6.9 | 6.8 | 6.6 |
| MINIMUM CIRCUIT AMPACTY (MCA), A | 20 | 20 | 18.5 | 12 | 15 | 15 | 19 |
| MAX. FUSE, A | 30 | 30 | 25 | 15 | 15 | 20 | 30 |
| Air Flow (Max), CFM | 1,294 | 1,294 | 1,235 | 1,294 | 1,235 | 1,235 | 1,764 |
| Outdoor Noise, [dB(A)] | 54 | 55 | 53 | 54 | 53 | 57 | 60 |
| Dimension (WxDxH), (inch) | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 31.7x12.9x21.8 | 35x13.5x26.5 |
| Packing (WxDxH), (inch) | 34.9x13x24 | 34.9x13x24 | 34.9x13x24 | 34.9x13.27x24 | 34.9x13.27x24 | 36.02x14.57x24.21 | 39.17x15.67x29.13 |
| Net/ Gross weight, (lbs.) | 57/63 | 57/63 | 62/67 | 55/60 | 59/64 | 73/79 | 97/104 |
| Refrigerant precharge, (ft) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional charge for each ft, (oz/ft) | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 |
| Design pressure, (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid side/ Gas side, (inch) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" |
| Max. refrigerent pipe length,(ft) | 82 | 82 | 82 | 82 | 82 | 98 | 164 |
| Max. diffrence in level,(ft) | 32.8 | 32.8 | 32.8 | 32.8 | 32.8 | 66 | 82 |
| Ambient temperature Cooling, (°F) | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 |
| Heating, (°F) | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 |
Frequently asked questions.
Will this fit my system?
This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.
Is this part included with a mini split system, or sold separately?
This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.
Do you offer support choosing the right part?
Yes — contact us with your system model number and what you need, and we will help you pick the correct part.
What warranty does it come with?
It is backed by OLMO’s limited manufacturer warranty — 5-year compressor, 2-year parts, and 1-year remote ; professional installation and registration at olmo-comfort.com within 60 days are required to keep coverage valid.
Manufacturer Technical Support
Reach your brand's tech support team directly
