12000 BTU 230V Mini Split AC Wall Mounted Bravo Series Heat Pump
Bravo7-Yr WarrantySKU: BRV-R12LS-230VO12WM-13ft
Product specifications
- Voltage
- 230V
- SEER
- 16.0
- WiFi
- Included
- Zone
- Single Zone
- Type
- Wall Mount
- Freon
R32
Choose Your Configuration
The factory kit is already in the box. “Additional” kits are longer line sets sold with the system.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · STANDARD
Built for year-round comfort
BRV-R12LS-230VO12WM-13ft
System Specs
| Cooling Capacity | 12,000 BTU/h |
|---|---|
| Heating Capacity | 12,000 / 12,000 BTU/h |
| SEER2 | 16.0 |
| EER2 | 9.0 |
| Voltage | 230V |
| Refrigerant | R32 |
|---|---|
| Compressor | Inverter |
| Climate Range | 5–122°F / −4–86°F outdoor ambient |
| Sound Level (indoor) | 42/39/35 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 30.59 × 9.84 × 7.91 in | 16.5 / 20.9 lb | 28E REMOTE |
Product Description
The BRAVO Roma 12,000 BTU (1 Ton) single-zone wall-mount mini split is an air conditioner and heat pump running on R32 refrigerant — a budget-friendly system with a 16.0 SEER2 inverter compressor on 208/230V power. A 13 ft line set and communication cable ship in the box, GoldFin anti-corrosion coating protects the outdoor coil, and Wi-Fi app control is included.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

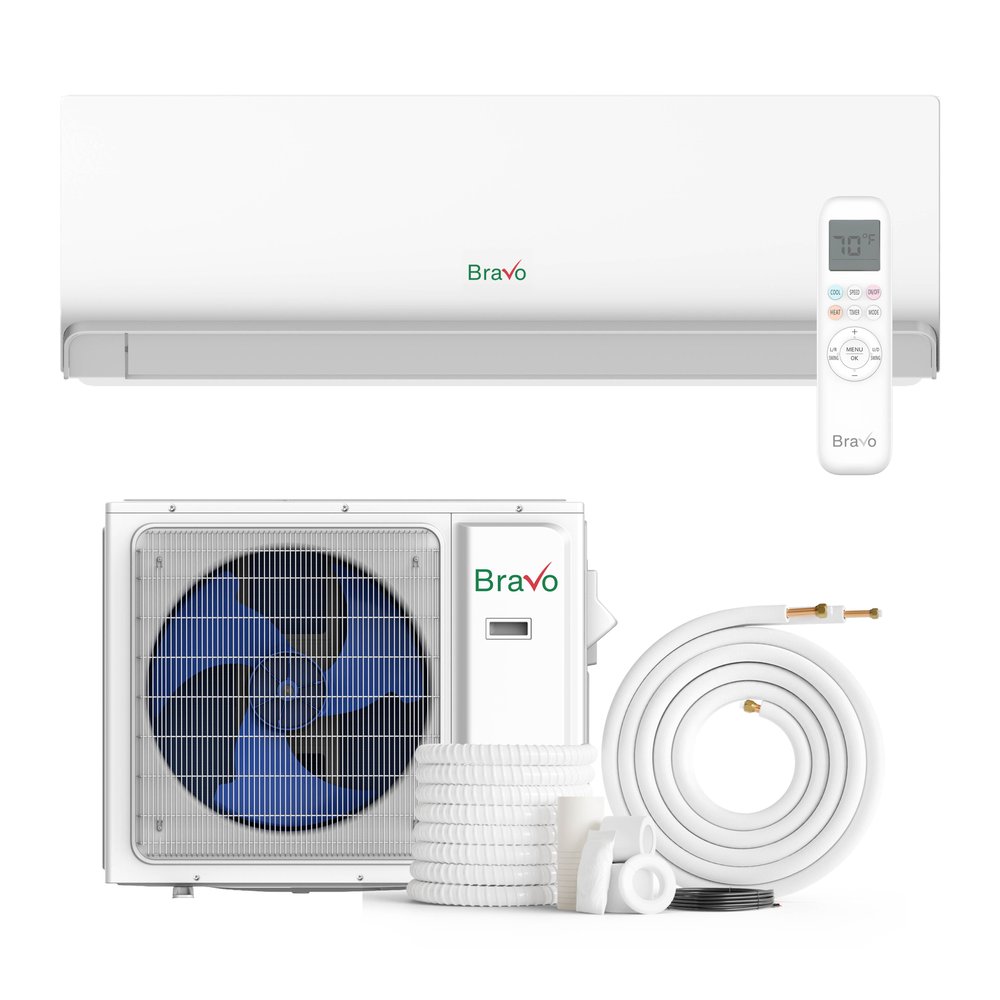

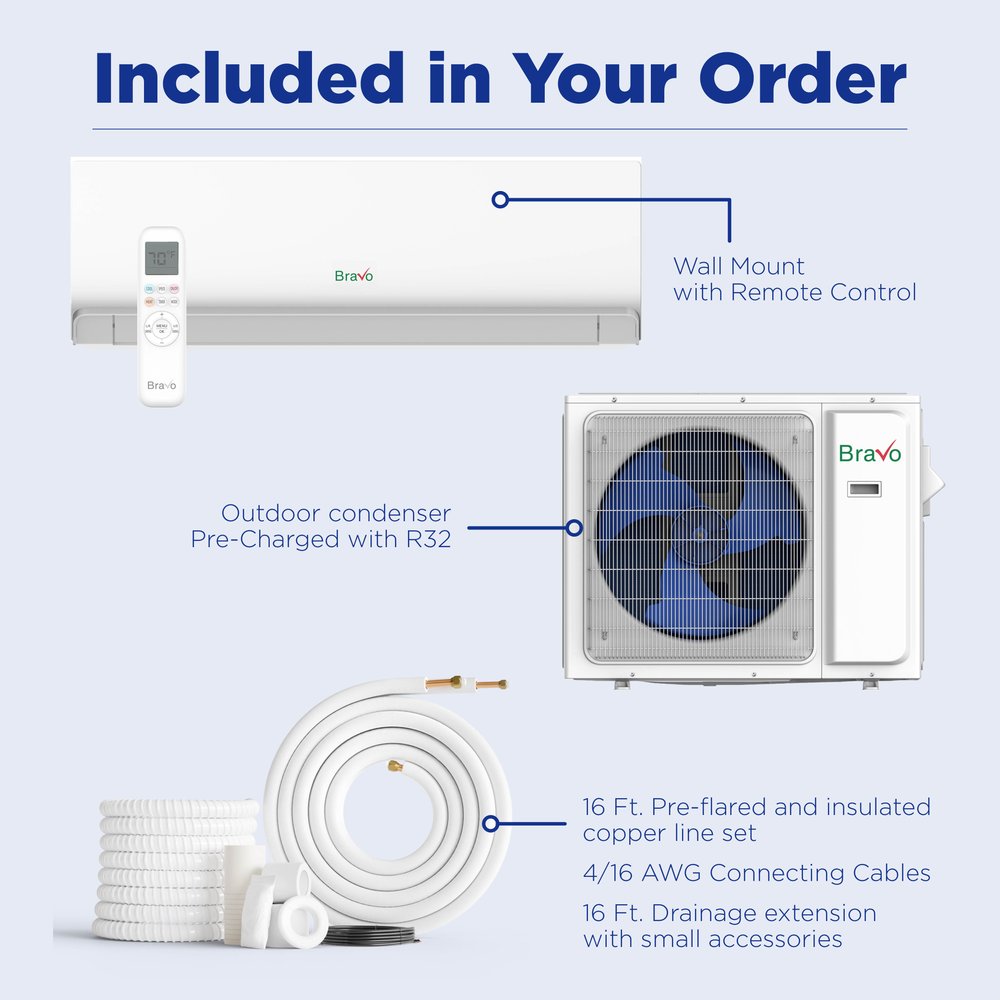

IN THE BOX
Everything included with this system
- Bravo Roma 12,000 BTU Outdoor Condenser, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
- Bravo Roma 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications

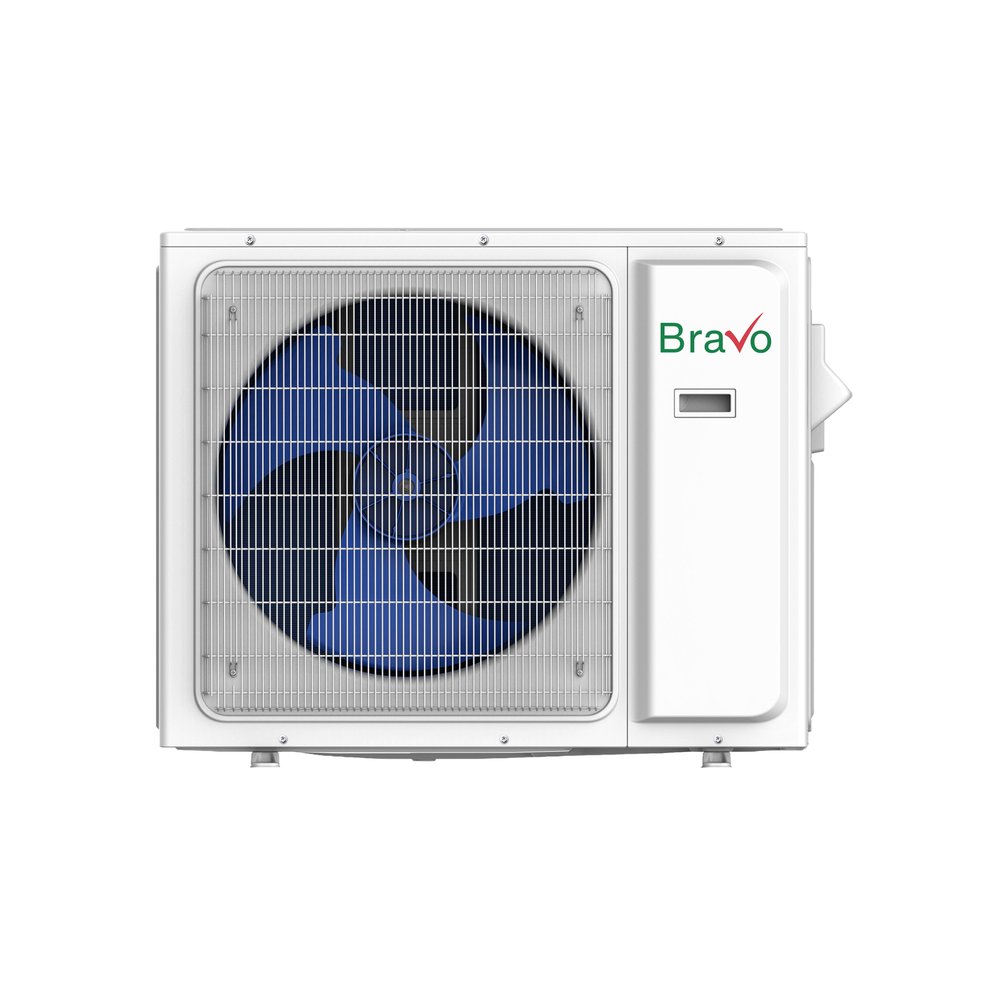

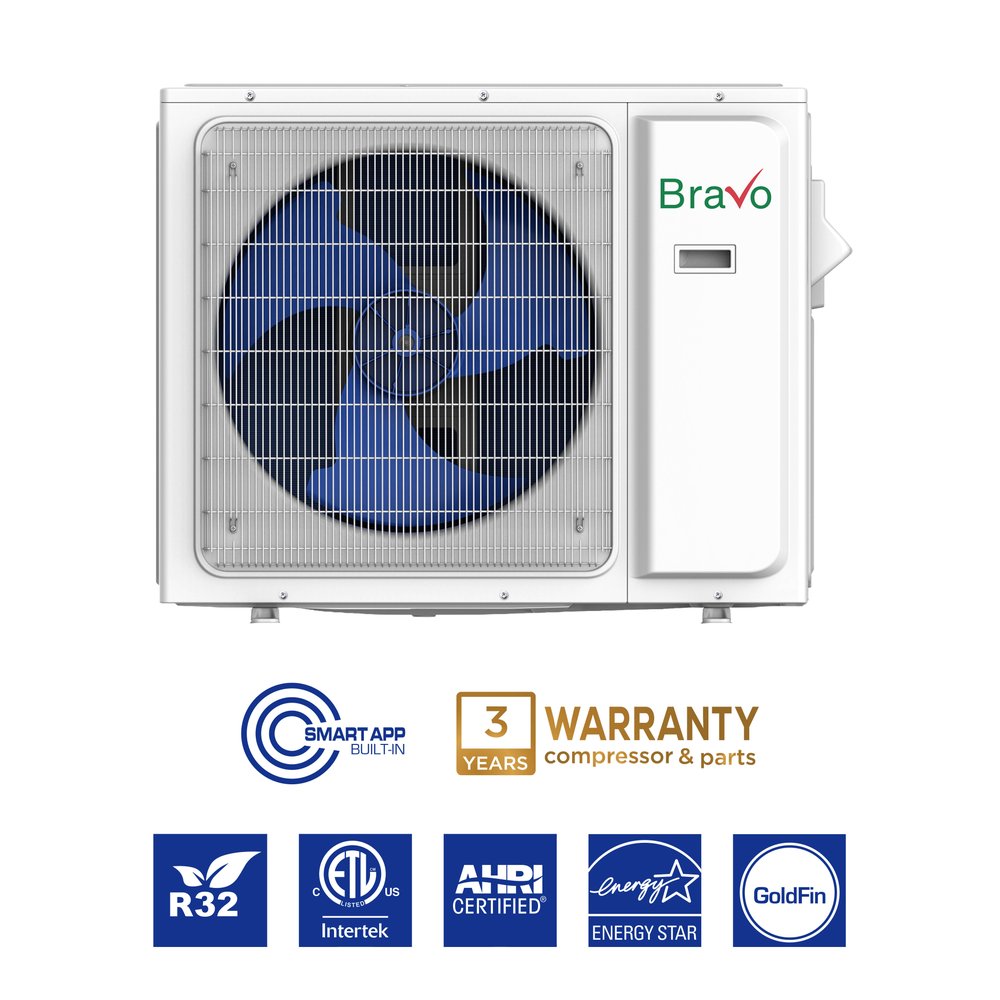

Outdoor Unit Specs— BRV-R12LS-230VO
| Model | BRV-R12LS-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 30.98x11.41x19.60 in |
| Net/Gross Weight | 50.7/60.6 lb |
| Packing Dimensions (WxDxH) | 32.99x13.3x21.25 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 11 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level | 55 dB |
| Airflow | 1,955 CFM |
| Dehumidification | 1.3 pt/h |

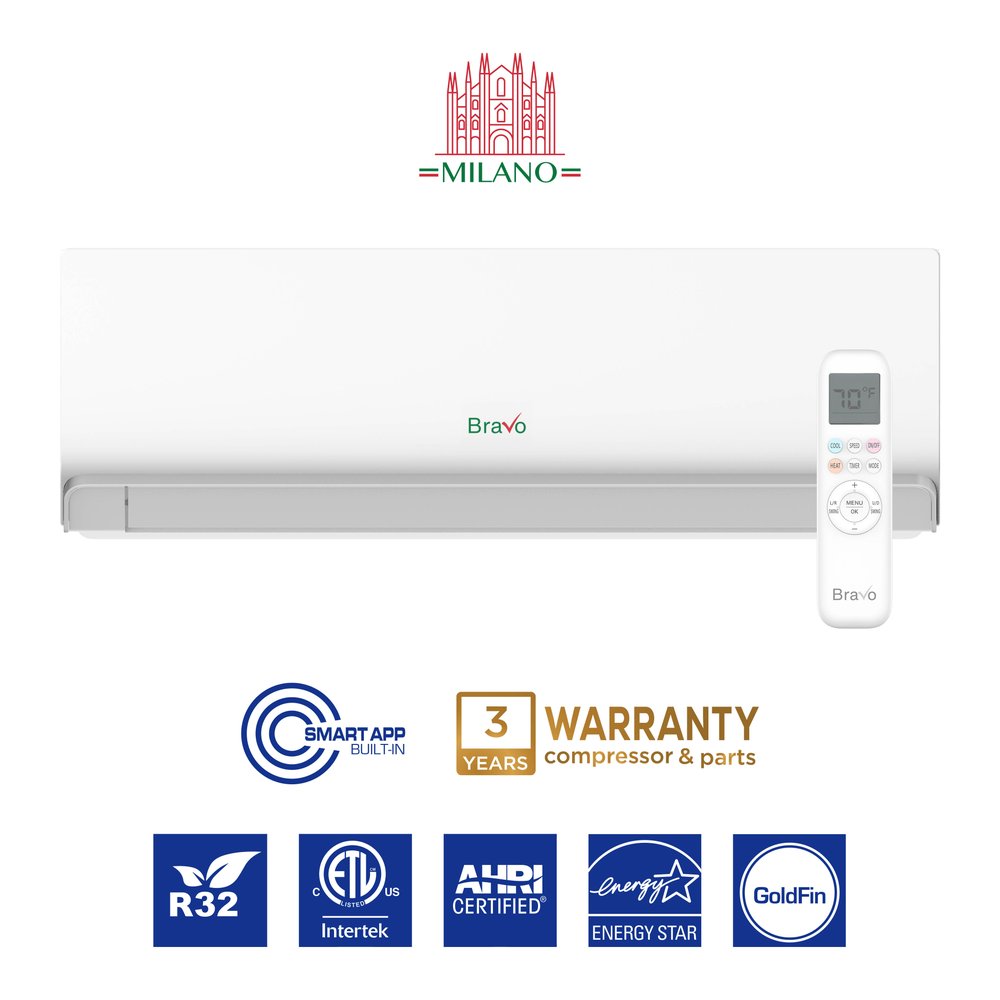

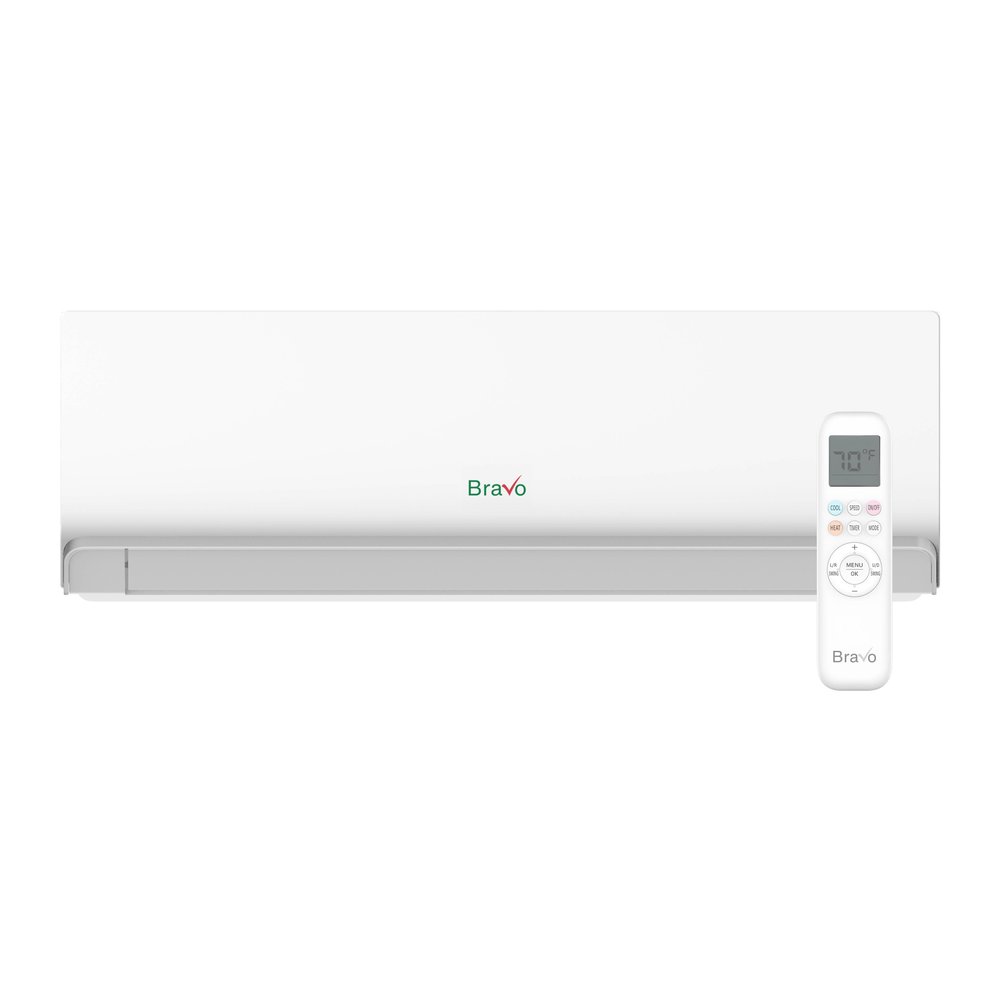

Indoor Unit Specs— BRV-R12W-230VI
| Model | BRV-R12W-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 30.59x9.84x7.91 in |
| Net/Gross Weight | 16.5/20.9 lb |
| Packing Dimensions (WxDxH) | 33.07x12.40x10.23 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 0.6 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level (Hi/Med/Lo) | 42/39/35 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 294/264/235/206/159 CFM |
| Dehumidification | 1.3 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | 28E REMOTE |
System Specs
| Cooling / Heating Capacity | 12,000 / 12,000 Btu/h |
|---|---|
| SEER2 / EER2 | 16.0 / 9.0 |
| HSPF2 / COP | 9.0 / 3.2 |
| Minimum Circuit Ampacity (MCA) | 11 A |
| Max. Fuse / Breaker | 15 A |
| Indoor Air Flow | 294 / 264 / 235 / 206 / 159 CFM |
| Indoor Noise Level | 45 / 42 / 39 / 35 / 33 dB(A) |
| Indoor Unit Dimensions (W×D×H) | 30.59 × 9.84 × 7.91 in |
| Indoor Unit Net Weight | 22.1 lbs |
| Outdoor Air Flow (Max.) | 1,213 CFM |
| Outdoor Noise Level | 55 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 30.59 × 11.42 × 19.61 in |
| Outdoor Unit Net Weight | 58.4 lbs |
| Refrigerant / Design Pressure | R32 / 652.5 PSIG |
| Pre-charged Line Length | up to 25 ft |
| Line Set (Liquid / Gas) | 1/4" / 3/8" |
| Max. Pipe Length | 50 ft |
| Inter-unit Wiring | 4 × 16 AWG |
| Operating Range — Cooling / Heating | 5–122°F / −4–86°F outdoor ambient |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | BRV-R12W-115VI | BRV-R12W-230VI | BRV-R18W-230VI | BRV-R24W-230VI | BRV-R36W-230VI |
|---|---|---|---|---|---|
| Outdoor Model | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO |
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 |
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG |
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 |
Frequently asked questions.
What size mini split do I need for my room?
The 12000 BTU Bravo Mini Split AC is ideal for spaces up to 550 sq ft, making it suitable for single rooms or small areas. Ensure to calculate your specific room size and consider insulation to determine if this unit will meet your cooling needs.
How much does a mini split system like the Bravo cost?
The price of a 12000 BTU Bravo Mini Split AC can vary based on installation kits, but expect to pay for both the unit and any necessary accessories. Visit our product page for the latest pricing and available installation kit options.
Can I install the Bravo mini split myself?
While some DIY enthusiasts may attempt it, installing the Bravo Mini Split AC requires knowledge of HVAC systems and local building codes. It's advisable to hire a professional for installation to ensure proper setup and performance.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo Mini Split AC is pre-charged with R32 refrigerant for up to 25 ft of line set, allowing for a straightforward installation. This feature simplifies the installation process, saving you time and potential complications.
What voltage does the Bravo mini split require?
The 12000 BTU Bravo Mini Split operates on 230V, which is standard for many residential mini split systems. Ensure your electrical setup is compatible before purchasing this unit.
What warranty does the Bravo offer?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 24.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia Midnight Hyper Heat 12,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.7HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia Midnight Hyper Heat 18,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R410ASEER2 20.0Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Astoria 30,000 BTU Single Zone Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 24.0HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia 12,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
The BRAVO Roma 12,000 BTU (1 Ton) single-zone wall-mount mini split is an air conditioner and heat pump running on R32 refrigerant — a budget-friendly system with a 16.0 SEER2 inverter compressor on 208/230V power. A 13 ft line set and communication cable ship in the box, GoldFin anti-corrosion coating protects the outdoor coil, and Wi-Fi app control is included.
Key Features
- 12,000 BTU cooling / 12,000 BTU heating — inverter compressor, 208/230V
- 16.0 SEER2 / 9.0 HSPF2 — current R32-generation ratings
- 13 ft copper line set + communication cable INCLUDED (optional 25 ft or 50 ft kit instead)
- Wi-Fi Smart App control included + IR remote
- GoldFin coated outdoor coil — corrosion protection for longer life
- Operating range: cooling 5–122°F, heating down to −4°F outdoor ambient
- ETL listed (Intertek 3119233), AHRI certified
- Distributed in the USA by Comfortside LLC — wide parts availability
BRAVO Roma Single-Zone (R32) Lineup
| Capacity | Model (Indoor + Outdoor) | Voltage | SEER2 |
| 12,000 BTU | BRV-R12W-115VI + BRV-R12LS-115VO | 115V | 17.0 |
| 12,000 BTU | BRV-R12W-230VI + BRV-R12LS-230VO | 208/230V | 16.0 |
| 18,000 BTU | BRV-R18W-230VI + BRV-R18LS-230VO | 208/230V | 18.0 |
| 24,000 BTU | BRV-R24W-230VI + BRV-R24LS-230VO | 208/230V | 18.0 |
| 36,000 BTU | BRV-R36W-230VI + BRV-R36LS-230VO | 208/230V | 17.0 |
