14,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Heating and Cooling

14,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Heating and Cooling — photo 1
14,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Heating and Cooling — photo 2
14,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Heating and Cooling — photo 3
14,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Heating and Cooling — photo 4
14,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Heating and Cooling — photo 5
14,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Heating and Cooling — photo 6
14,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Heating and Cooling — photo 7
14,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Heating and Cooling — photo 8
1 / 8
14,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Heating and Cooling — photo 1
HEATS down to 23°FCOOLS up to 109°FR32

OLMO1-Yr WarrantySKU: OW-P14HS230WF

$561.56$546.21Save 3%Save $15.35 (3% off)
As low as $46/mo withaffirm
Product specifications
Voltage
230V
WiFi
Included
Zone
Single Zone
Type
Through-the-Wall
Freon
R32
See full Tech Specs

Choose Your Configuration

(OPTIONAL) SLEEVE: NO

Size — match your room area

12,000 BTUup to 500 ft²from $50914,000 BTUCurrent size
1

FREE Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included
30-Day Returns

OLMO · STANDARD

Built for year-round comfort

Indoor unit

OW-P14HS230WF

System Specs

Cooling Capacity14000 (14000/13600 at 208/230V) BTU/h
Voltage230V
RefrigerantR32
CompressorRotary
Climate Range64-109 / 23-75 outdoor F
Sound Level (indoor)62.3 / 61.2 / 59.8 dB(A)
Warranty1-Yr Compressor

Indoor Unit Specs

Unit Dimensions (WxDxH)Net / Gross Weight
24.21 × 20.28 × 14.53 in77.38 / 87.74 lb

Product Description

The OLMO 14,000 BTU Through-the-Wall Air Conditioner (230V) is a self-contained room unit that mounts through an exterior wall — no outdoor condenser and no line sets. It delivers cooling plus supplemental electric heat-strip heating for a single room such as an apartment, addition, sunroom, or office. Running on R32 refrigerant with a rotary compressor, it includes a remote and built-in Wi-Fi (Smart Connect). A wall sleeve is required and sold separately.

Tech Specifications

6 Modes for Maximum Comfort

Engineered to adapt to every season, every room, every need.

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

WHEREVER YOU ARE

Control your comfort, your way

  • Easy scheduling & timer
  • Multiple ways to control your comfort
  • Smart geo location
  • In-app support & assistance
  • Voice control
Easy scheduling & timer
1YEAR COMPRESSOR
WARRANTY

BACKED BY COOPER & HUNTER

Industry-leading protection on every unit

  • Compressor: 1-year coverage

    With product registration after professional installation.

  • Parts & components: 1-year coverage

    All major components and refrigerant circuit parts.

Technical Specifications

Indoor Unit Specs— OW-P14HS230WF

Indoor Unit — OW-P14HS230WF
ModelOW-P14HS230WF
Unit Dimensions (WxDxH)24.21x20.28x14.53 in
Net/Gross Weight77.38/87.74 lb
Packing Dimensions (WxDxH)27.95x26.57x16.93 in
Power Supply208-230V, 1Ph, 60Hz
Noise Level69.8/67.2/64.8 dB
Airflow272/252/233 CFM

System Specs

System
Cooling Capacity14000 (14000/13600 at 208/230V) Btu/h
HeatingElectric heat strip — 10600 / 8600 (208/230V) Btu/h
CEER / EER9.5 / 2.86 / 2.84

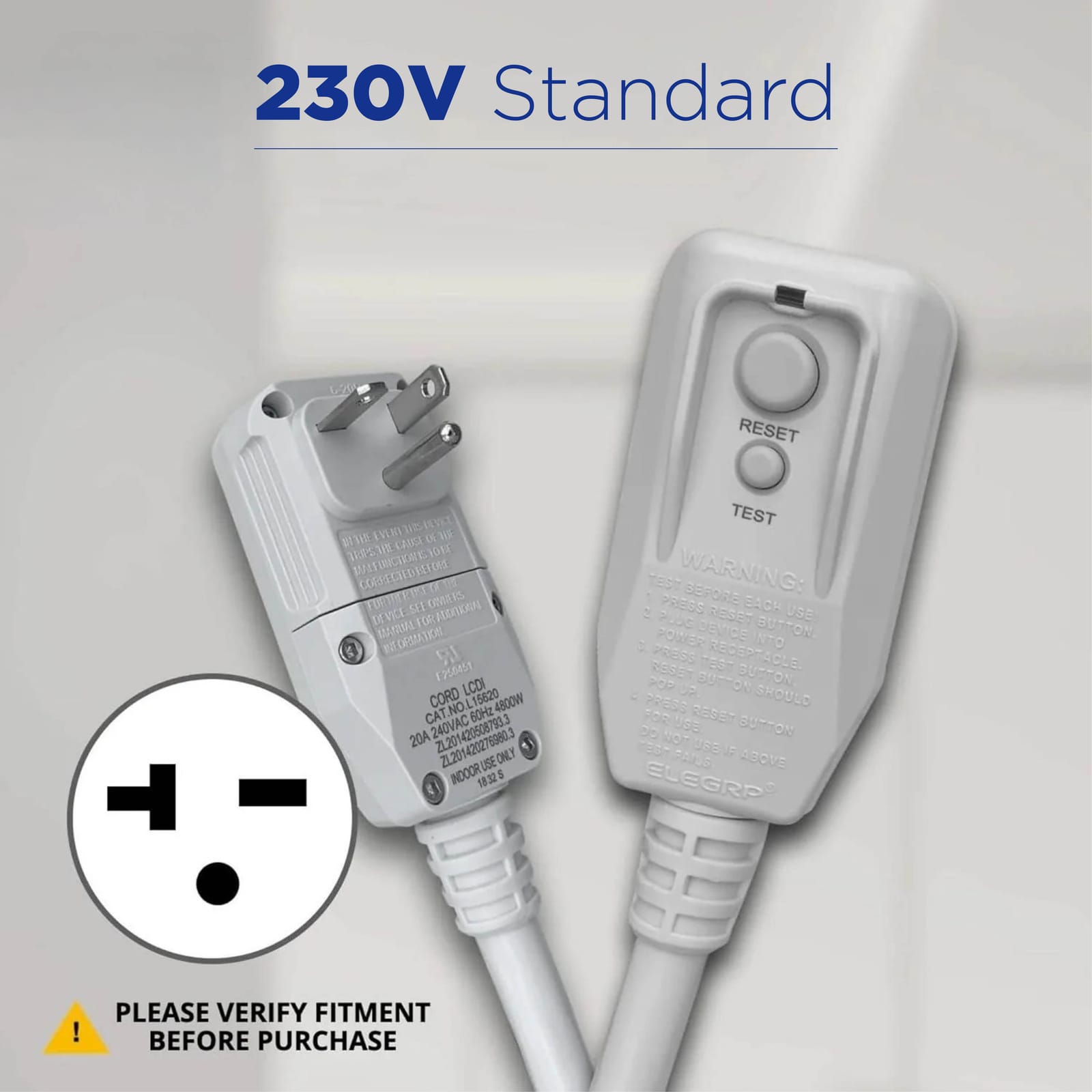

Plug TypeLCDI 6-20P (same family as OW-P12HS230WF)
Running Current (cool)7.9 / 8.5 A
Refrigerant / ChargeR32 / 19.40 oz
Indoor Noise (Hi/Mid/Lo)62.3 / 61.2 / 59.8 dB(A)
Unit Dimensions (W×D×H)24.21 x 20.28 x 14.53 in
Net / Gross Weight77.38 / 87.74 lbs
Operating Range (cooling / heating)64-109 / 23-75 outdoor F
FilterCompound filter

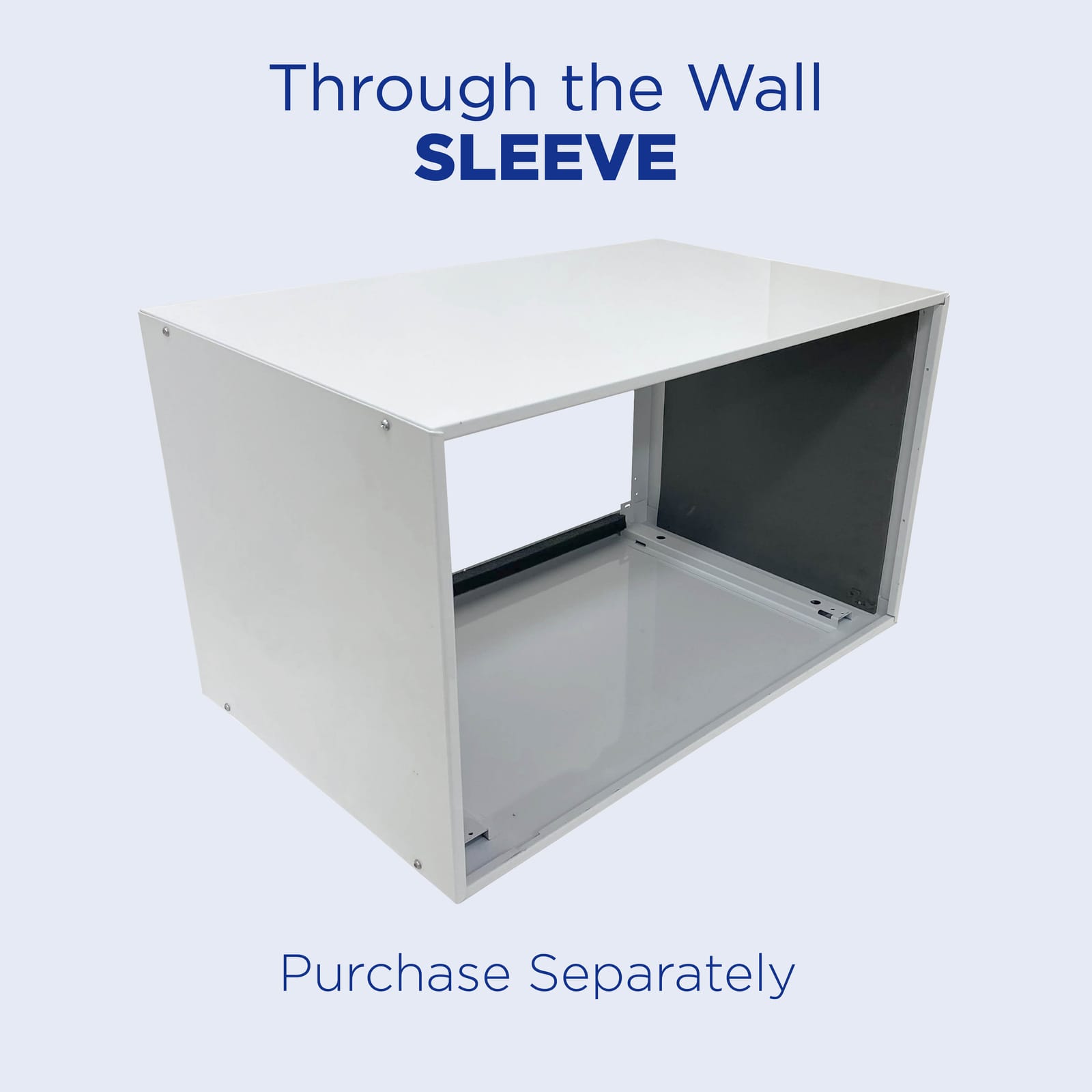

Wall SleeveOW-TTWSLV — sold separately (required for install)
Recommended Coverageup to ~650 sq ft (guidance)

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Model

SpecificationOW-P14HS230WFThis modelOW-P08AC115WFOW-P08HS115WFOW-P12AC115WFOW-P12AC230WFOW-P14AC230WFOW-P12HS230WF
Power Supply208/230V-1Ph-60115V-1Ph-60115V-1Ph-60115V-1Ph-60208/230V-1Ph-60208/230V-1Ph-60208/230V-1Ph-60
Cooling12000/11700 Btu/hCapacity8300 Btu/h8000 Btu/h12000 Btu/h12000/11700 Btu/h14000/13600 Btu/h
EER2.86/2.84 W/W3.11 W/W3.13 W/W3.08 W/W3.08 W/W2.78 W/W2.98/2.95 W/W
CEER9.5 Btu/h/W10.6 Btu/h/W9.6 Btu/h/W10.5 Btu/h/W10.5 Btu/h/W9.5 Btu/h/W9.5 Btu/h/W
Input1430/1400 W760 W750 W1140 W1140/1110 W1400/1360 W1180/1160 W
Current7.9/8.5 A7.8 A9.4 A11.3 A5.6/6.3 A7.0/7.7 A6.5/7.0 A
Standby Power-1.25 W1.34 W1.25 W1.435 W1.435 W1.34 W
Heating10600/8600 Btu/hRated Capacity-4200 Btu/h---
Rated Input (Heater)3450/2821 W-1220 W---3450/2821 W
Rated Current15.0/14.0 A-11 A---15/13.5 A
CompressorROTARYTypeROTARYROTARYROTARYROTARYROTARY
Rated Current (RLA)6.00/5.55±3% A5.10 A5.10 A7.30 A4.18/3.85±3% A6.00/5.55±3% A4.18/3.85±3% A
Locked Rotor Amp (LRA)34.5±10% A36 A36 A49 A28.5±10% A34.5±10% A28.5±10% A
Refrigerant TypeR32R32R32R32R32R32R32
Refrigerant Charge (oz)19.4010.9311.9917.2816.5817.9917.28
Indoor Air Flow (Hi/Mi/Lo)272.4/251.8/232.9 ft3/min270.0/232.9/202.9 ft3/min258.8/227.1/192.4 ft3/min276.5/250.6/220.0 ft3/min274.7/259.4/237.1 ft3/min280.0/264.7/245.3 ft3/min273.5/251.8/230.6 ft3/min
Indoor Noise Level (Hi/Mi/Lo)62.3/61.2/59.8 dB(A)55.6/52.4/49.5 dB(A)58.7/55.4/52 dB(A)59/56.8/55.3 dB(A)60.2/59/57.5 dB(A)60.5/59.5/58 dB(A)61.8/60/58 dB(A)
Outdoor Air Flow (Hi/Med/Lo)480.0/439.4/400.0 ft3/min467.7/394.1/333.5 ft3/min424.7/360.6/296.5 ft3/min544.1/485.3/424.1 ft3/min532.9/497.1/452.9 ft3/min554.1/526.5/487.1 ft3/min451.2/408.8/366.5 ft3/min
Outdoor Side Noise Level (Hi/Med/Lo)69.8/67.2/64.8 dB(A)63.6/59.4/55.9 dB(A)63.5/59.7/55.9 dB(A)68.7/65.3/62 dB(A)68.3/66.7/63.9 dB(A)69.9/68/65.9 dB(A)65.4/63.2/61.1 dB(A)
Power Cord Length5.58 ft7.02 ft5.58 ft7.02 ft6.50 ft6.50 ft5.58 ft
Control TypeRemote Control/ Smart ConnectRemote Control/ Smart ConnectRemote Control/ Smart ConnectRemote Control/ Smart ConnectRemote Control/ Smart ConnectRemote Control/ Smart ConnectRemote Control/ Smart Connect
Operation Temp63-90/ - °F63-90/ - °F63-90/ - °F63-90/ - °F63-90/ - °F63-90/ - °F63-90/ - °F
Outdoor (cooling/heating)64-109/23-75 °F64-109 °F64-109/23-75 °F64-109 °F64-109 °F64-109 °F64-109/23-75 °F
Dimension (WxDxH)24.21x20.28x14.53 in24.21x20.28x14.53 in24.21x20.28x14.53 in24.21x20.28x14.53 in24.21x20.28x14.53 in24.21x20.28x14.53 in24.21x20.28x14.53 in
Packing (WxDxH)27.95x26.57x16.93 in27.95x26.57x16.93 in27.95x26.57x16.93 in27.95x26.57x16.93 in27.95x26.57x16.93 in27.95x26.57x16.93 in27.95x26.57x16.93 in
Net/Gross Weight77.38/87.74 lbs65.48/77.16 lbs66.80/77.16 lbs74.96/87.52 lbs74.52/86.86 lbs75.40/87.74 lbs74.96/85.76 lbs

Frequently asked questions.

What size mini split do I need for my room?

For rooms up to approximately 600 sq ft, the Olmo 14,000 BTU mini split is ideal. Its 21+ SEER efficiency ensures effective heating and cooling while keeping energy costs low.

Can I install the Olmo mini split myself?

Yes, the Olmo mini split can be a DIY project if you have some basic HVAC knowledge. However, ensure you have the necessary tools and consider the installation options, such as the 16ft, 25ft, or 50ft kits.

Does the Olmo mini split come pre-charged with refrigerant?

Yes, the Olmo 14,000 BTU mini split comes pre-charged with R32 refrigerant for up to 25 ft of line set, simplifying the installation process and ensuring optimal performance right out of the box.

What voltage does the Olmo mini split require?

The Olmo mini split operates on a 230V system, which is standard for many residential applications. Ensure your electrical system can accommodate this voltage before installation.

What warranty does the Olmo mini split offer?

The Olmo mini split comes with a 5-year parts and compressor warranty, providing peace of mind for your investment. This warranty covers major components, ensuring reliable performance over the years.

What SEER rating do I need for energy efficiency?

The Olmo mini split boasts a SEER rating of 21+, which exceeds the minimum requirement for energy efficiency. This high efficiency helps you save on energy costs while maintaining comfortable indoor temperatures.

Talk to a Sales Specialist

Not sure which system is right for your space? Our experts help with sizing and installation questions.

Mon – Fri, 8 AM – 5 PM (PST)

Get Support

Manufacturer Technical Support

Reach your brand's tech support team directly

Cooper & Hunter

(888) 201-2119

Olmo Comfort

(800) 977-0724

AC Bravo

(786) 953-6706

You may also like

The OLMO 14,000 BTU Through-the-Wall Air Conditioner (230V) is a self-contained room unit that mounts through an exterior wall — no outdoor condenser and no line sets. It delivers cooling plus supplemental electric heat-strip heating for a single room such as an apartment, addition, sunroom, or office. Running on R32 refrigerant with a rotary compressor, it includes a remote and built-in Wi-Fi (Smart Connect). A wall sleeve is required and sold separately.

Key Features

  • 14,000 Btu/h cooling; electric heat-strip heating up to 10,600 Btu/h
  • Through-the-wall design — self-contained, no outdoor unit, no refrigerant lines to run
  • 9.5 CEER efficiency; R32 refrigerant
  • R32 refrigerant, rotary compressor, self-evaporative condensate system
  • Remote control + built-in Wi-Fi (Smart Connect); Auto Restart, Sleep Mode, multiple fan speeds, timer, self-evaporative system, LED display, fresh air input
  • Power: 208-230V-1Ph-60Hz, plug LCDI 6-20P (same family as OW-P12HS230WF)
