Cooper & Hunter 9,000 BTU PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and Remote
Cooper & Hunter1-Yr WarrantySKU: CH-PTW-09HPGF
Product specifications
- Voltage
- 230V
- WiFi
- Included
- Zone
- Single Zone
- Type
- PTAC
- Freon
R32
Choose Your Configuration
Size — match your room area
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · STANDARD
Built for year-round comfort
CH-PTW-09HPGF
System Specs
| Cooling Capacity | 9300 / 9200 (208/230V) BTU/h |
|---|---|
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Rotary |
| Climate Range | 64-109 / 23-76 F |
|---|---|
| Sound Level (indoor) | 50/49.5 dB |
| Warranty | 1-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight |
|---|---|
| 42.01 × 20.94 × 15.98 in | 99.21 / 108.03 lb |
Product Description

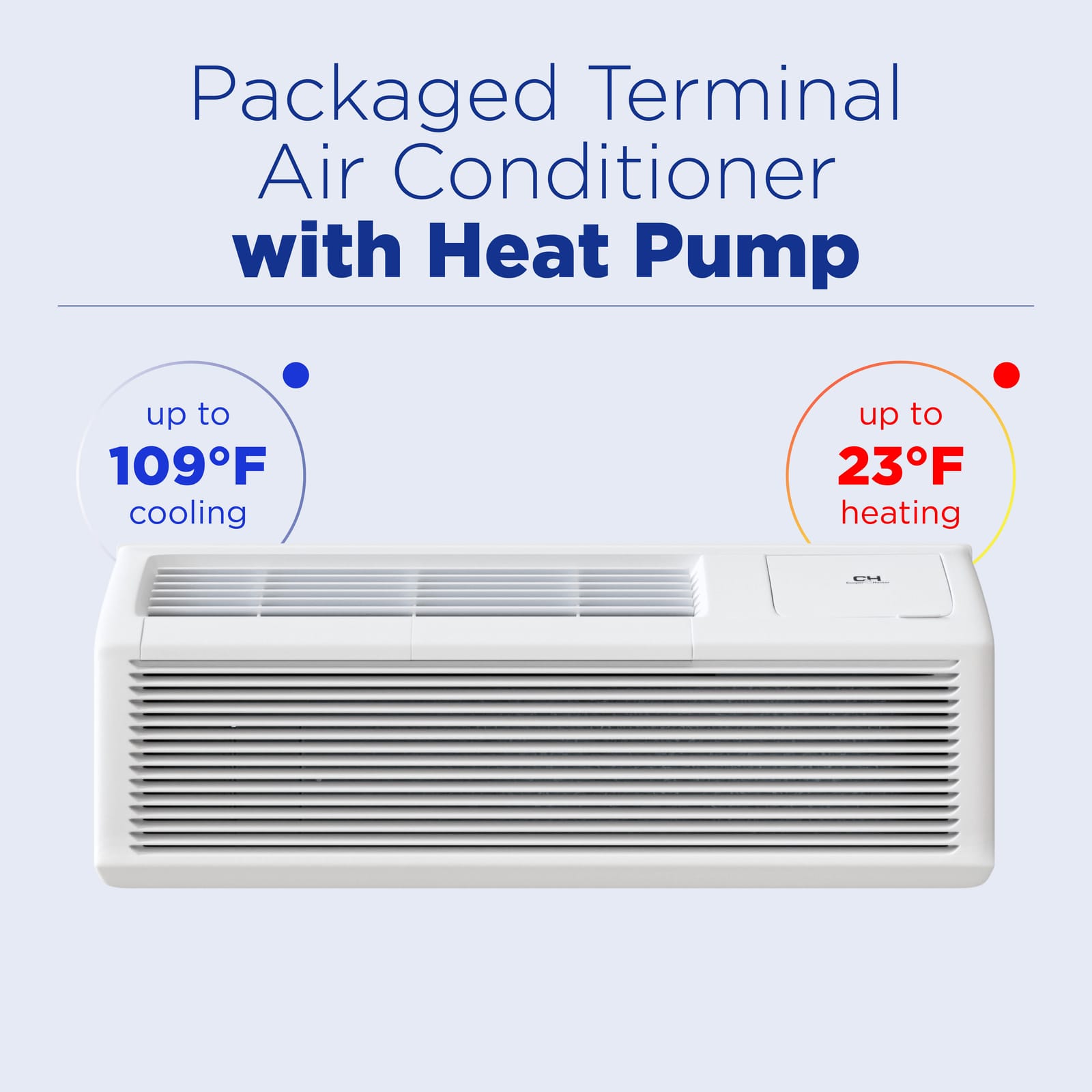

The Cooper & Hunter 9,300 BTU PTAC is a packaged terminal heat pump — a self-contained, hotel-style unit for a standard 42-inch PTAC sleeve. Unlike electric-only PTACs, it heats with an efficient heat pump and adds supplemental PTC electric heat for cold weather, so it cools and heats a single room with no outdoor condenser or line sets. Runs on 208/230V-1Ph-60Hz R32, Wi-Fi built in.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 1-year coverage
With product registration after professional installation.
Parts & components: 1-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— CH-PTW-09HPGF
| Model | CH-PTW-09HPGF |
|---|---|
| Unit Dimensions (WxDxH) | 42.01x20.94x15.98 in |
| Net/Gross Weight | 99.21/108.03 lb |
| Packing Dimensions (WxDxH) | 44.49x24.61x19.29 in |
| Power Supply | 208/230V,1Ph,60Hz |
| Noise Level (Hi/Lo) | 50/49.5 dB |
| Noise Level | 64 dB |
| Dehumidification | 1.1 pt/h |
System Specs
| Cooling Capacity | 9300 / 9200 (208/230V) Btu/h |
|---|---|
| EER2 | 11.4 |
| Heating — Heat Pump | 8100 / 7900 Btu/h (COP 3.4) |
| Heating — PTC Electric (backup) | 10900 / 8900 Btu/h |
| Refrigerant / Charge | R32 / 15.17 oz |
| Indoor Air Flow (Hi/Lo) | 362.9 / 300 CFM |
| Indoor Noise (Hi/Lo) | 50 / 49.5 dB(A) |
| Unit Dimensions (W×H×D) | 42 x 21 x 16 in |
| Net / Gross Weight | 99.2 / 108 lbs |
| Operating Range (cool / heat, outdoor) | 64-109 / 23-76 F |
| Wall Sleeve / Grille | 42" PTAC sleeve (CH-PTSLV1) + grille (CH-PTGRL1) — sold separately; bundle SKUs include them |
| Recommended Coverage | up to ~? sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Model
| Specification | CH-PTW-09HPGFThis model | CH-PTW-12HPGF | CH-PTW-HE15HP |
|---|---|---|---|
| Power Supply | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Cooling | Rated Capacity | 9,300/9,200 Btu/h | 12,000/11,800 Btu/h |
| Input | 820/810 W | 1,040/1,020 W | 1,390/1,370 W |
| Current | 4.2/4.6 A | 5.3/5.8 A | 6.5/7.4 A |
| EER2 | 11.4 W/W | 10.5 W/W | 10.6 W/W |
| Heating (PTC) | Capacity | 10,900/8,900 Btu/h | 10,900/8,900 Btu/h |
| Input(Heater) | 3,500/2,897 W | 3,500/2,897 W | 3,500/2,897 W |
| Current | 15.3/13.7 A | 15.3/13.7 A | 15.3/13.7 A |
| Heating (Heat pump) | Capacity | 8,100/7,900 Btu/h | 10,800/10,500 Btu/h |
| Input | 720/690 W | 890/850 W | 1,170/1,120 W |
| Current | 3.9/4.3 A | 5.0/5.3 A | 6.0/6.4 A |
| COP | 3.4 W/W | 3.2 W/W | 3.2 W/W |
| Indoor Air Flow (Hi/Lo) | 362.9/300 CMF | 438/344 CMF | 416/330 CMF |
| Indoor Noise Level (Hi/Lo) | 50/49.5 dB(A) | 52/51.5 dB(A) | 53/52.5 dB(A) |
| Outdoor Noise Level (Hi) | 64 dB(A) | 67 dB(A) | 67 dB(A) |
| Refrigerant Type | R32 | R32 | R32 |
| Design Pressure (Lo/Hi) | 15.17 oz | 26.81 oz | 31.75 oz |
| OperationTemp | 540/300 psi | 540/300 psi | 540/300 psi |
| Indoor (Cooling/Heating) | 62-90 / 32-80 °F | 62-90 / 32-80 °F | 62-90 / 32-80 °F |
| Outdoor (Cooling/Heating) | 64-109 / 23-76 °F | 64-109 / 23-76 °F | 64-109 / 23-76 °F |
| Dimension (WxDxH) | 42.01x20.91x15.98 in | 42.01x20.91x15.98 in | 42.01x20.91x15.98 in |
| Packing (WxDxH) | 44.49x24.61x19.29 in | 44.49x24.61x19.29 in | 44.49x24.61x19.29 in |
| Net/Gross Weight | 99.21 / 108.03 lbs | 110.23 / 119.05 lbs | 113.54 / 122.36 lbs |
Frequently asked questions.
What size mini split do I need for my space?
For coverage of up to 350 sq ft, the Cooper & Hunter 9,000 BTU PTAC Air Conditioner is an ideal choice. This capacity is suitable for small to medium-sized rooms, ensuring efficient heating and cooling.
How much does a mini split system cost?
The price of the Cooper & Hunter 9,000 BTU PTAC Air Conditioner can vary based on installation options, such as the choice of a 16ft, 25ft, or 50ft installation kit. Generally, you can expect to invest in a system that balances efficiency and performance with its 21+ SEER rating.
Can I install a mini split myself?
While the Cooper & Hunter 9,000 BTU PTAC Air Conditioner can be installed by a DIY enthusiast, proper knowledge of HVAC systems is essential. Ensure you follow installation guidelines, especially since it requires a 230V electrical connection.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 9,000 BTU PTAC Air Conditioner is pre-charged with R32 refrigerant for up to 25 ft of line set. This feature simplifies installation, but it's crucial to check refrigerant levels if extending beyond that distance.
What warranty does the Cooper & Hunter offer?
The Cooper & Hunter 9,000 BTU PTAC Air Conditioner comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register within 30 days of purchase. This warranty ensures peace of mind for your investment.
What SEER rating do I need for energy efficiency?
The Cooper & Hunter 9,000 BTU PTAC Air Conditioner boasts a SEER rating of 21+, which exceeds the minimum efficiency requirements for most regions. Choosing a unit with such a high rating will help reduce energy costs and improve comfort.
