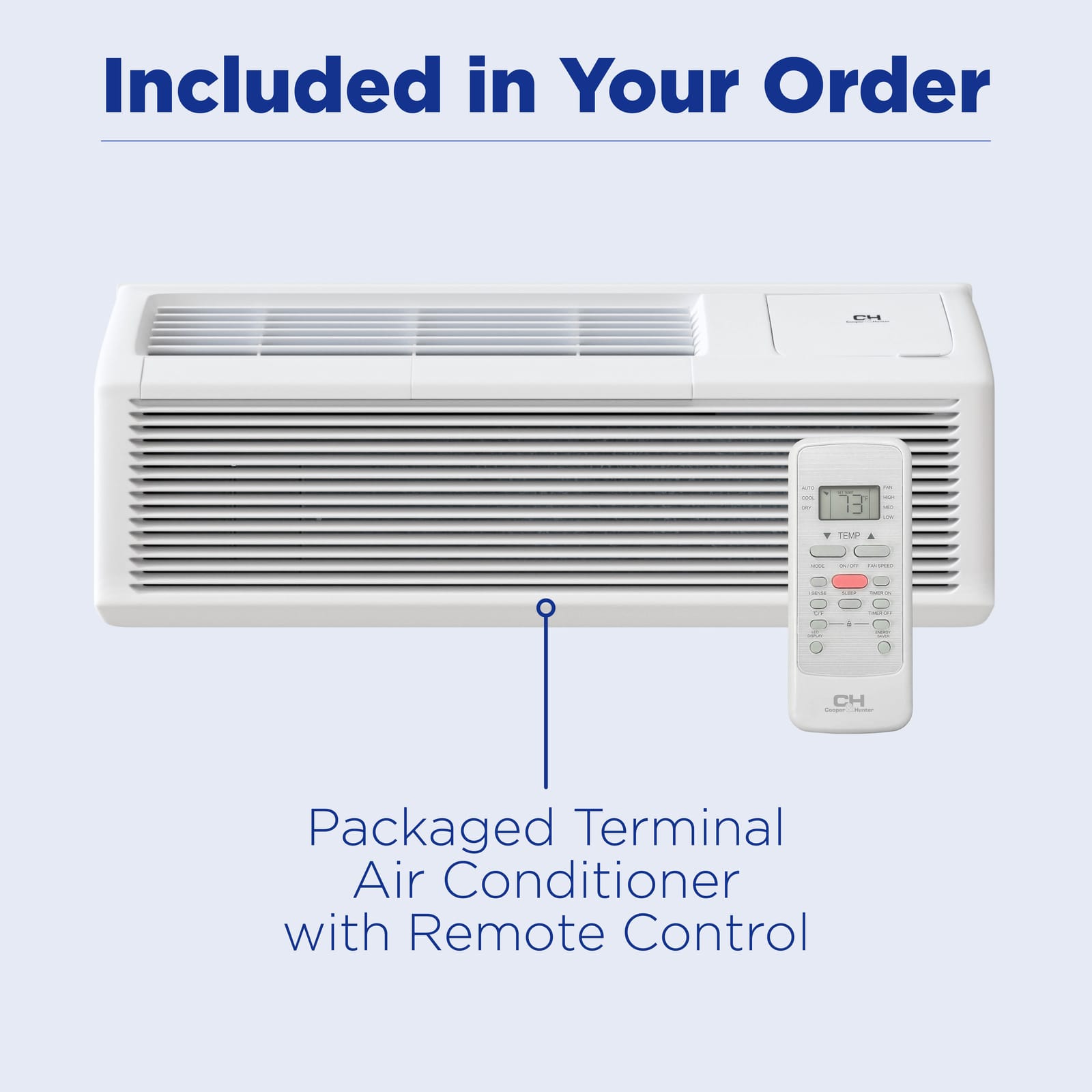

Cooper & Hunter 12,000 BTU PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and Remote
Cooper & Hunter1-Yr WarrantySKU: CH-PTW-12HPGF
Product specifications
- Voltage
- 230V
- WiFi
- Included
- Zone
- Single Zone
- Type
- PTAC
- Freon
R32
Choose Your Configuration
Size — match your room area
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · STANDARD
Built for year-round comfort
CH-PTW-12HPGF
System Specs
| Cooling Capacity | 12000 / 11800 (208/230V) BTU/h |
|---|---|
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Rotary |
| Climate Range | 64-109 / 23-76 F |
|---|---|
| Sound Level (indoor) | 52/51.5 dB |
| Warranty | 1-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight |
|---|---|
| 42.01 × 20.94 × 15.98 in | 110.23 / 119.05 lb |
Product Description

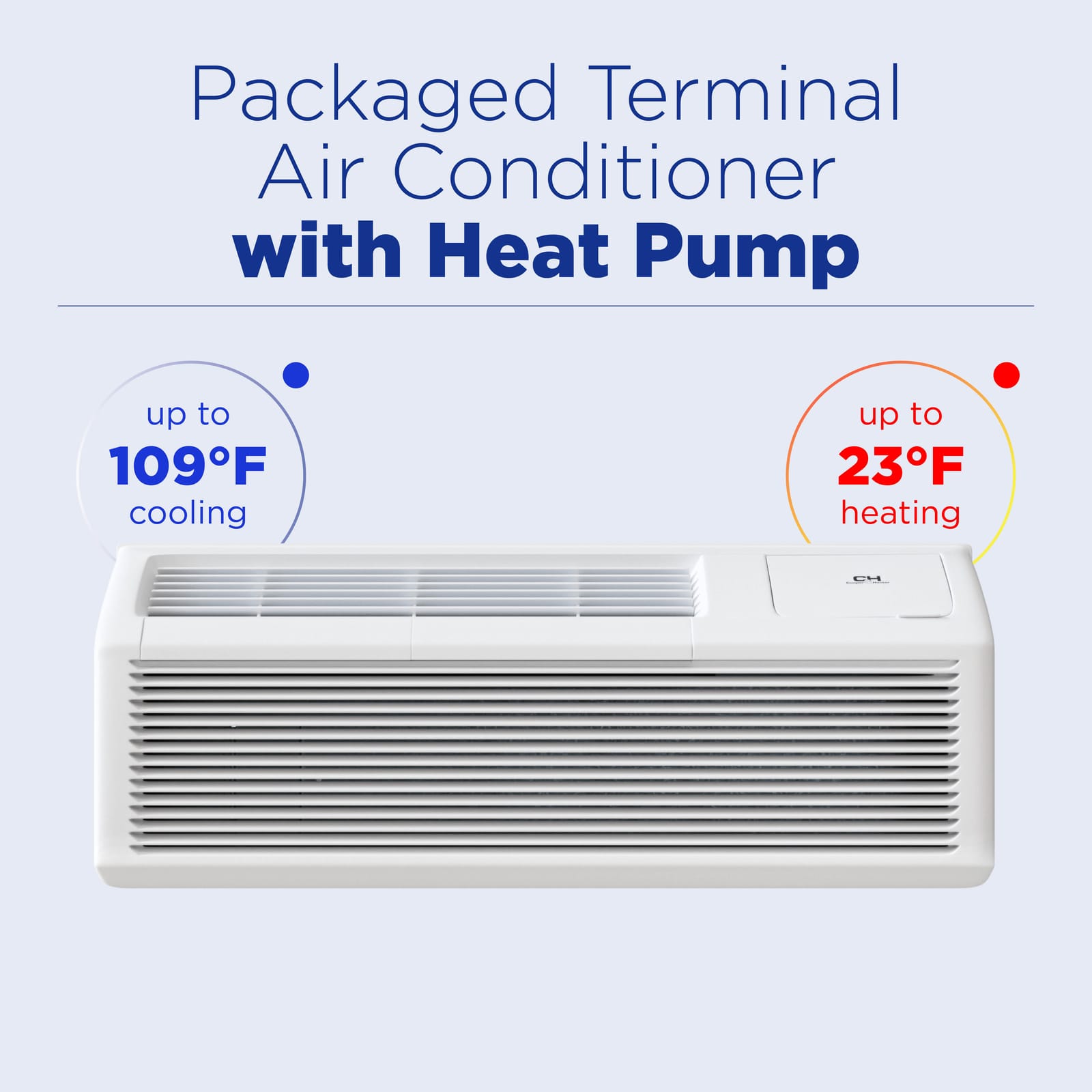

The Cooper & Hunter 12,000 BTU PTAC is a packaged terminal heat pump — a self-contained, hotel-style unit for a standard 42-inch PTAC sleeve. Unlike electric-only PTACs, it heats with an efficient heat pump and adds supplemental PTC electric heat for cold weather, so it cools and heats a single room with no outdoor condenser or line sets. Runs on 208/230V-1Ph-60Hz R32, Wi-Fi built in.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 1-year coverage
With product registration after professional installation.
Parts & components: 1-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— CH-PTW-12HPGF
| Model | CH-PTW-12HPGF |
|---|---|
| Unit Dimensions (WxDxH) | 42.01x20.94x15.98 in |
| Net/Gross Weight | 110.23/119.05 lb |
| Packing Dimensions (WxDxH) | 44.49x24.61x19.29 in |
| Power Supply | 208/230V,1Ph,60Hz |
| Noise Level (Hi/Lo) | 52/51.5 dB |
| Noise Level | 67 dB |
| Dehumidification | 2.9 pt/h |
System Specs
| Cooling Capacity | 12000 / 11800 (208/230V) Btu/h |
|---|---|
| EER2 | 10.5 |
| Heating — Heat Pump | 10800 / 10500 Btu/h (COP 3.2) |
| Heating — PTC Electric (backup) | 10900 / 8900 Btu/h |
| Refrigerant / Charge | R32 / 26.81 oz |
| Indoor Air Flow (Hi/Lo) | 438 / 344 CFM |
| Indoor Noise (Hi/Lo) | 52 / 51.5 dB(A) |
| Unit Dimensions (W×H×D) | 42 x 21 x 16 in |
| Net / Gross Weight | 110.2 / 119 lbs |
| Operating Range (cool / heat, outdoor) | 64-109 / 23-76 F |
| Wall Sleeve / Grille | 42" PTAC sleeve (CH-PTSLV1) + grille (CH-PTGRL1) — sold separately; bundle SKUs include them |
| Recommended Coverage | up to ~550 sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Model
| Specification | CH-PTW-12HPGFThis model | CH-PTW-09HPGF | CH-PTW-HE15HP |
|---|---|---|---|
| Power Supply | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Cooling | 9,300/9,200 Btu/h | Rated Capacity | 12,000/11,800 Btu/h |
| Input | 1,040/1,020 W | 820/810 W | 1,390/1,370 W |
| Current | 5.3/5.8 A | 4.2/4.6 A | 6.5/7.4 A |
| EER2 | 10.5 W/W | 11.4 W/W | 10.6 W/W |
| Heating (PTC) | 10,900/8,900 Btu/h | Capacity | 10,900/8,900 Btu/h |
| Input(Heater) | 3,500/2,897 W | 3,500/2,897 W | 3,500/2,897 W |
| Current | 15.3/13.7 A | 15.3/13.7 A | 15.3/13.7 A |
| Heating (Heat pump) | 8,100/7,900 Btu/h | Capacity | 10,800/10,500 Btu/h |
| Input | 890/850 W | 720/690 W | 1,170/1,120 W |
| Current | 5.0/5.3 A | 3.9/4.3 A | 6.0/6.4 A |
| COP | 3.2 W/W | 3.4 W/W | 3.2 W/W |
| Indoor Air Flow (Hi/Lo) | 438/344 CMF | 362.9/300 CMF | 416/330 CMF |
| Indoor Noise Level (Hi/Lo) | 52/51.5 dB(A) | 50/49.5 dB(A) | 53/52.5 dB(A) |
| Outdoor Noise Level (Hi) | 67 dB(A) | 64 dB(A) | 67 dB(A) |
| Refrigerant Type | R32 | R32 | R32 |
| Design Pressure (Lo/Hi) | 26.81 oz | 15.17 oz | 31.75 oz |
| OperationTemp | 540/300 psi | 540/300 psi | 540/300 psi |
| Indoor (Cooling/Heating) | 62-90 / 32-80 °F | 62-90 / 32-80 °F | 62-90 / 32-80 °F |
| Outdoor (Cooling/Heating) | 64-109 / 23-76 °F | 64-109 / 23-76 °F | 64-109 / 23-76 °F |
| Dimension (WxDxH) | 42.01x20.91x15.98 in | 42.01x20.91x15.98 in | 42.01x20.91x15.98 in |
| Packing (WxDxH) | 44.49x24.61x19.29 in | 44.49x24.61x19.29 in | 44.49x24.61x19.29 in |
| Net/Gross Weight | 110.23 / 119.05 lbs | 99.21 / 108.03 lbs | 113.54 / 122.36 lbs |
Frequently asked questions.
What size mini split do I need for my room?
For a room size of up to 550 sq ft, the Cooper & Hunter 12,000 BTU PTAC Air Conditioner is ideal. It's designed to efficiently cool and heat spaces of this size, making it a great choice for single-zone applications.
Can I install a mini split myself?
While DIY installation is possible, it's recommended to hire a professional for optimal results. The Cooper & Hunter 12,000 BTU model comes with installation kit options of up to 50 ft, providing flexibility for your setup.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 12,000 BTU PTAC Air Conditioner is pre-charged with R32 refrigerant for up to 25 ft of line set. This ensures quick and efficient operation right after installation.

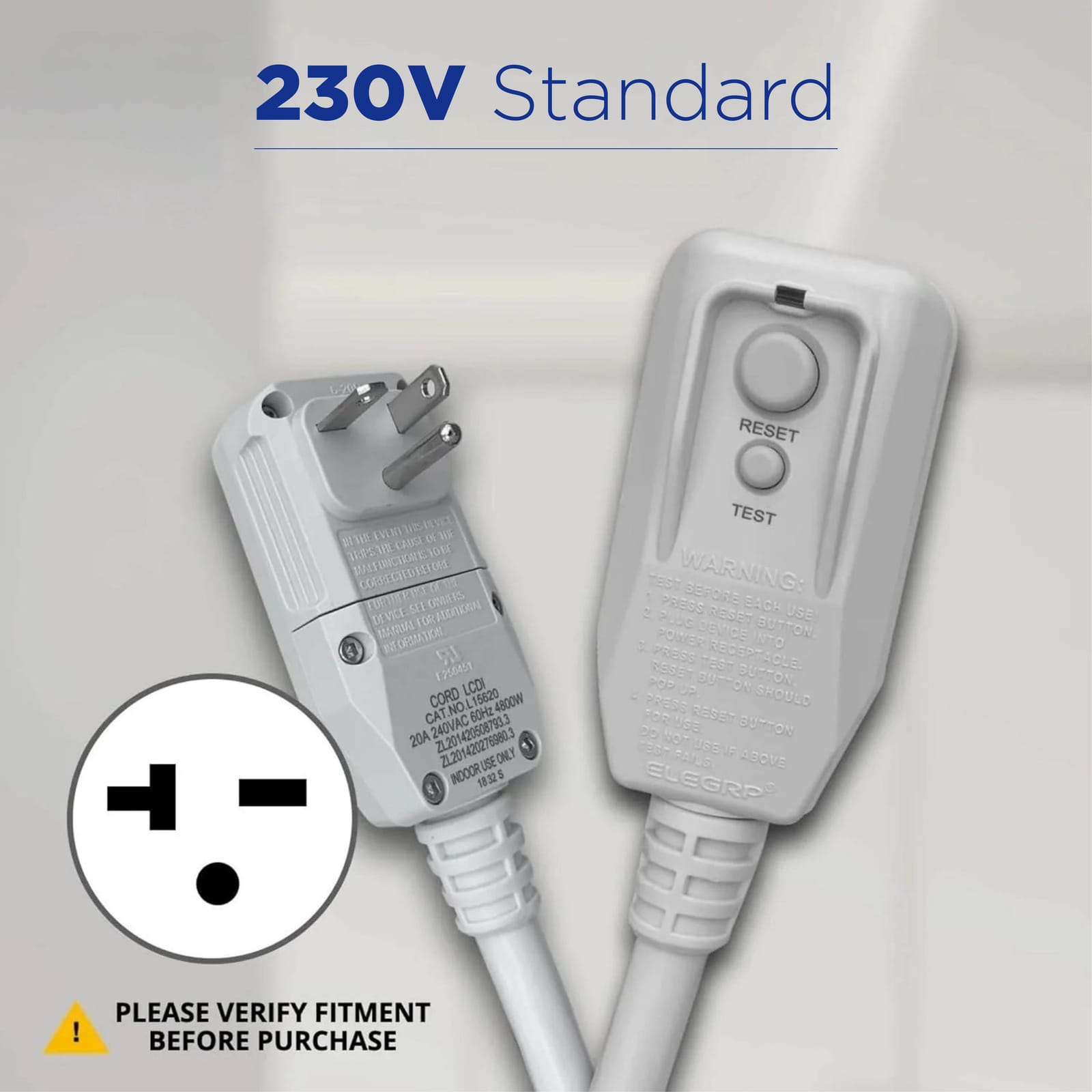

What voltage does the Cooper & Hunter mini split require?
The Cooper & Hunter 12,000 BTU PTAC unit operates on 230V, making it suitable for most residential applications. Ensure your electrical system can accommodate this voltage before installation.
What warranty does Cooper & Hunter offer on this model?
The Cooper & Hunter 12,000 BTU PTAC Air Conditioner comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register within 30 days of purchase. This gives you peace of mind with your investment.
What SEER rating do I need for energy efficiency?
The Cooper & Hunter model boasts a SEER rating of 21+, which is excellent for energy efficiency. A higher SEER rating means lower energy bills, making this unit a smart choice for both heating and cooling.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32HEATS down to 23°FCOOLS up to 109°F
1-Yr Warranty
Cooper & HunterCooper & Hunter 9,000 BTU PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and RemoteFree Shipping
- R32Heats & Cools
1-Yr Warranty
OLMO12,000 BTU PTAC OLMO Air Conditioner, Heat Strip, Heating And Cooling w/Electric Cord and RemoteFree Shipping
- R32Heats & Cools
1-Yr Warranty
OLMO15,000 BTU PTAC OLMO Air Conditioner, Heat Strip, Heating And Cooling w/Electric Cord and RemoteFree Shipping
- R32HEATS down to 23°FCOOLS up to 109°F
1-Yr Warranty
Cooper & HunterCooper & Hunter 15,000 BTU PTAC Air Conditioner, Heat Pump, Heating And Cooling w/ Electric Cord and RemoteFree Shipping
The Cooper & Hunter 12,000 BTU PTAC is a packaged terminal heat pump — a self-contained, hotel-style unit for a standard 42-inch PTAC sleeve. Unlike electric-only PTACs, it heats with an efficient heat pump and adds supplemental PTC electric heat for cold weather, so it cools and heats a single room with no outdoor condenser or line sets. Runs on 208/230V-1Ph-60Hz R32, Wi-Fi built in.
Key Features
- 12,000 Btu/h cooling / heat pump 10,800 Btu/h (COP 3.2) + PTC backup heat
- 10.5 EER2 — heat-pump heating is far more efficient than electric-strip-only PTACs
- Packaged terminal (PTAC) design — fits the standard 42" sleeve; self-contained
- Smart Kit built in (Wi-Fi, C&H app) + remote; Auto Restart, Fresh Air Ventilation, Auto Defrost, LED Display, Constant Fan Function
- Power: 208/230V-1Ph-60Hz
