Cooper & Hunter 9,000 BTU Inverter PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and Remote
Cooper & Hunter1-Yr WarrantySKU: CH-PTI-09HP
Product specifications
- Voltage
- 230V
- SEER
- 22.0
- WiFi
- Included
- Zone
- Single Zone
- Type
- PTAC
- Freon
R32
Choose Your Configuration
Size — match your room area
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · STANDARD
Built for year-round comfort
CH-PTI-09HP
System Specs
| Cooling Capacity | 9,000 BTU/h |
|---|---|
| SEER2 | 22.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Climate Range | 32-122 / 25-75 °F |
| Sound Level (indoor) | 46 / 44 / 40 / 31 dB(A) |
| Warranty | 1-Yr Compressor |
Product Description
The Cooper & Hunter 9,000 BTU Inverter PTAC is a packaged terminal heat pump built around next-generation inverter compressor technology — a self-contained, hotel-style unit for a standard 42-inch PTAC sleeve. Inverter operation varies compressor speed to match the room's actual load, delivering steadier temperatures with up to 56% cooling and 75% heating energy savings versus non-inverter PTACs. Runs on 208/230V-1Ph-60Hz R32, Wi-Fi Smart Kit built in.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 1-year coverage
With product registration after professional installation.
Parts & components: 1-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
System Specs
| Cooling Capacity | 9,000 Btu/h |
|---|---|
| EER2 / SEER2 | 13.5 / 22 |
| Heating — Heat Pump | 9,000 Btu/h (COP 4.0) |
| Power Supply | 208/230V-1Ph-60Hz |
| Refrigerant / Charge | R32 / 22.93 oz |
| Indoor Air Flow (Hi/Med/Lo) | 335 / 279 / 229 CFM |
| Indoor Noise (Hi/Med/Lo/Silent) | 46 / 44 / 40 / 31 dB(A) |
| Outdoor Noise (Hi) | 63.5 dB(A) |
| Unit Dimensions (W×D×H) | 42 x 21 x 16 in |
| Net / Gross Weight | 93.48 / 102.07 lbs |
| Operating Range (cool / heat, outdoor) | 32-122 / 25-75 °F |
| Wall Sleeve / Grille | 42" PTAC sleeve (CH-PTSLV1) + grille (CH-PTGRL1) — sold separately; bundle SKU includes them |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Model
| Specification | CH-PTI-09HPThis model | CH-PTI-12HP | CH-PTI-15HP |
|---|---|---|---|
| Power Supply | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Cooling — Rated Capacity | 9,000 Btu/h | 12,000 Btu/h | 15,000 Btu/h |
| Cooling — Input | 670 W | 1,350 W | 1,300 W |
| Cooling — Current | 4.8/5.3 A | 6.5/7.2 A | 5.7/6.3 A |
| EER2 | 13.5 W/W | 12.8 W/W | 11.5 W/W |
| SEER2 | 22 Btu/h/W | 20.5 Btu/h/W | 19.0 Btu/h/W |
| Heating (Heat Pump/Inverter) — Rated Capacity | 9,000 Btu/h | 12,000 Btu/h | 14,000 Btu/h |
| Heating — Input | 659 W | 1,150 W | 1,110 W |
| Heating — Current | 3.3/3.6 A | 5.2/5.8 A | 4.9/5.4 A |
| COP | 4.0 W/W | 3.80 W/W | 3.70 W/W |
| Indoor Air Flow (Hi/Med/Lo) | 335/279/229 CFM | 335/279/229 CFM | 404/354/300 CFM |
| Indoor Noise Level (Hi/Med/Lo/Silent) | 46/44/40/31 dB(A) | 46/43/38.5/31 dB(A) | 49.5/46/42/31 dB(A) |
| Outdoor Noise Level (Hi) | 63.5 dB(A) | 64 dB(A) | 67 dB(A) |
| Refrigerant Type | R32 | R32 | R32 |
| Refrigerant Charge | 22.93 oz | 31.75 oz | 31.75 oz |
| Design Pressure (Lo/Hi) | 300/580 psi | 300/580 psi | 300/580 psi |
| Indoor Operating Temp (Cooling/Heating) | 62-90 / 32-80 °F | 62-90 / 32-80 °F | 62-90 / 32-80 °F |
| Outdoor Operating Temp (Cooling/Heating) | 32-122 / 25-75 °F | 32-122 / 25-75 °F | 32-122 / 25-75 °F |
| Dimension (WxDxH) | 42x21x16 in | 42x21x16 in | 42x21x16 in |
| Packing (WxDxH) | 44.12x24.5x19.3 in | 44.12x24.5x19.3 in | 44.12x24.5x19.3 in |
| Net/Gross Weight | 93.48 / 102.07 lbs | 98.77 / 107.36 lbs | 98.77 / 107.36 lbs |
Frequently asked questions.
What makes this different from a standard (non-inverter) PTAC?
The inverter compressor varies its speed to match the room's load instead of just cycling on/off, holding a steadier temperature while using up to 56% less energy cooling and 75% less energy heating than a standard PTAC.
Is this a heat pump or electric heat?
Heat pump. It heats with an efficient inverter-driven heat pump rated at 9,000 Btu/h (COP 4.0), rated for up to 100% heating capacity down to 5°F outdoor ambient.
Do I need a sleeve and grille?
Yes. A standard 42-inch PTAC wall sleeve (CH-PTSLV1) and exterior grille (CH-PTGRL1) are required. The base unit excludes them; choose the bundle option to include them.

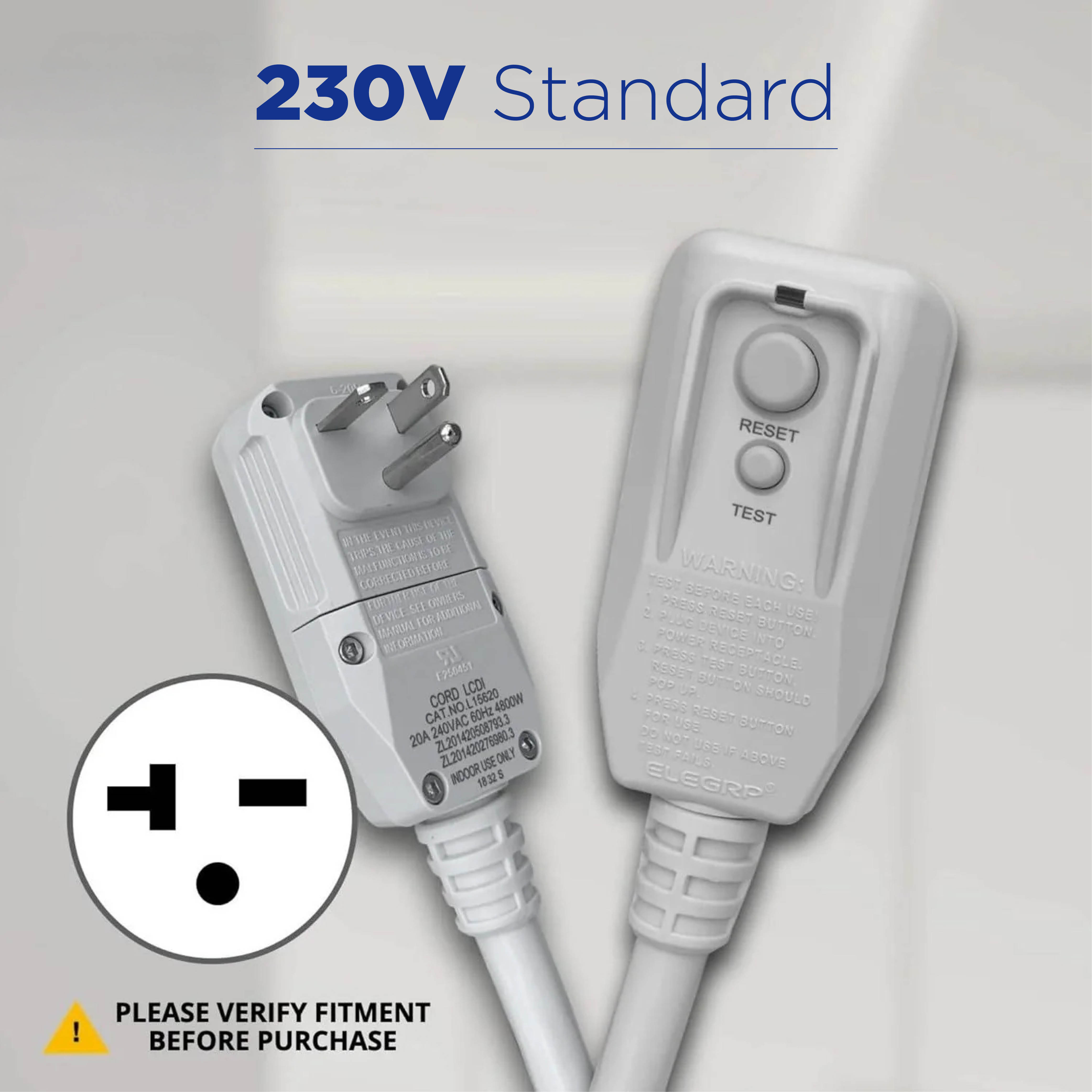

What electrical does it need?
208/230V-1Ph-60Hz on a dedicated circuit with an LCDI power cord. Confirm your panel with a licensed electrician.
Can I use my own thermostat?
Yes — beyond the included remote, it supports the optional 120N wired control or the CH-WTH24V smart thermostat (both sold separately), and the CH-WTH24V is also compatible with any 3rd-party 24V thermostat.
How is it installed?
It slides into a 42-inch PTAC sleeve through an exterior wall — self-contained, no outdoor unit or refrigerant lines. Professional install recommended.
What's the warranty?
Cooper & Hunter 7-year compressor / 5-year parts / 1-year remote (register within 60 days).
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 21.5HEATS down to 5°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter MIA 6,000 BTU Single Zone Wall Mount, 115V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.2HEATS down to 5°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter MIA 9,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.2HEATS down to 5°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter MIA 9,000 BTU Single Zone Wall Mount, 115V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R32HEATS down to 23°FCOOLS up to 109°F
1-Yr Warranty
Cooper & HunterCooper & Hunter 9,000 BTU PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and RemoteFree Shipping
The Cooper & Hunter 9,000 BTU Inverter PTAC is a packaged terminal heat pump built around next-generation inverter compressor technology — a self-contained, hotel-style unit for a standard 42-inch PTAC sleeve. Inverter operation varies compressor speed to match the room's actual load, delivering steadier temperatures with up to 56% cooling and 75% heating energy savings versus non-inverter PTACs. Runs on 208/230V-1Ph-60Hz R32, Wi-Fi Smart Kit built in.
Key Features
- 9,000 Btu/h cooling (13.5 EER2 / 22 SEER2) / heat pump 9,000 Btu/h heating (COP 4.0)
- Up to 100% cooling capacity at 115°F outdoor ambient and up to 100% heating capacity at 5°F — built for extreme climates
- Ultra-quiet operation — down to 31 dB(A) in silent mode, up to 40% quieter than standard PTACs
- Built-In Fresh Air Module with MERV 13 filtration — brings filtered outdoor air indoors with no separate system needed
- Smart Kit built in (Wi-Fi, C&H Remote app) + physical remote; Front-Access PCB, Reversible Air Louvers, Self-Cleaning Evaporator, Washable Front Filters, Corrosion Protection, Compressor Restart Delay, High-Temperature Protection
- Power: 208/230V-1Ph-60Hz
