12,000 BTU PTAC OLMO Air Conditioner, Heat Strip, Heating And Cooling w/Electric Cord and Remote
OLMO1-Yr WarrantySKU: OS-MBW-12HS
Product specifications
- Voltage
- 230V
- WiFi
- Included
- Zone
- Single Zone
- Type
- PTAC
- Freon
R32
Choose Your Configuration
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
OLMO · STANDARD
Built for year-round comfort
OS-MBW-12HS
System Specs
| Cooling Capacity | 12000 / 11800 (208/230V) BTU/h |
|---|---|
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Rotary |
|---|---|
| Sound Level (indoor) | 87 |
| Warranty | 1-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight |
|---|---|
| 62/60/56 in | 52 / 51.5 lb |
Product Description

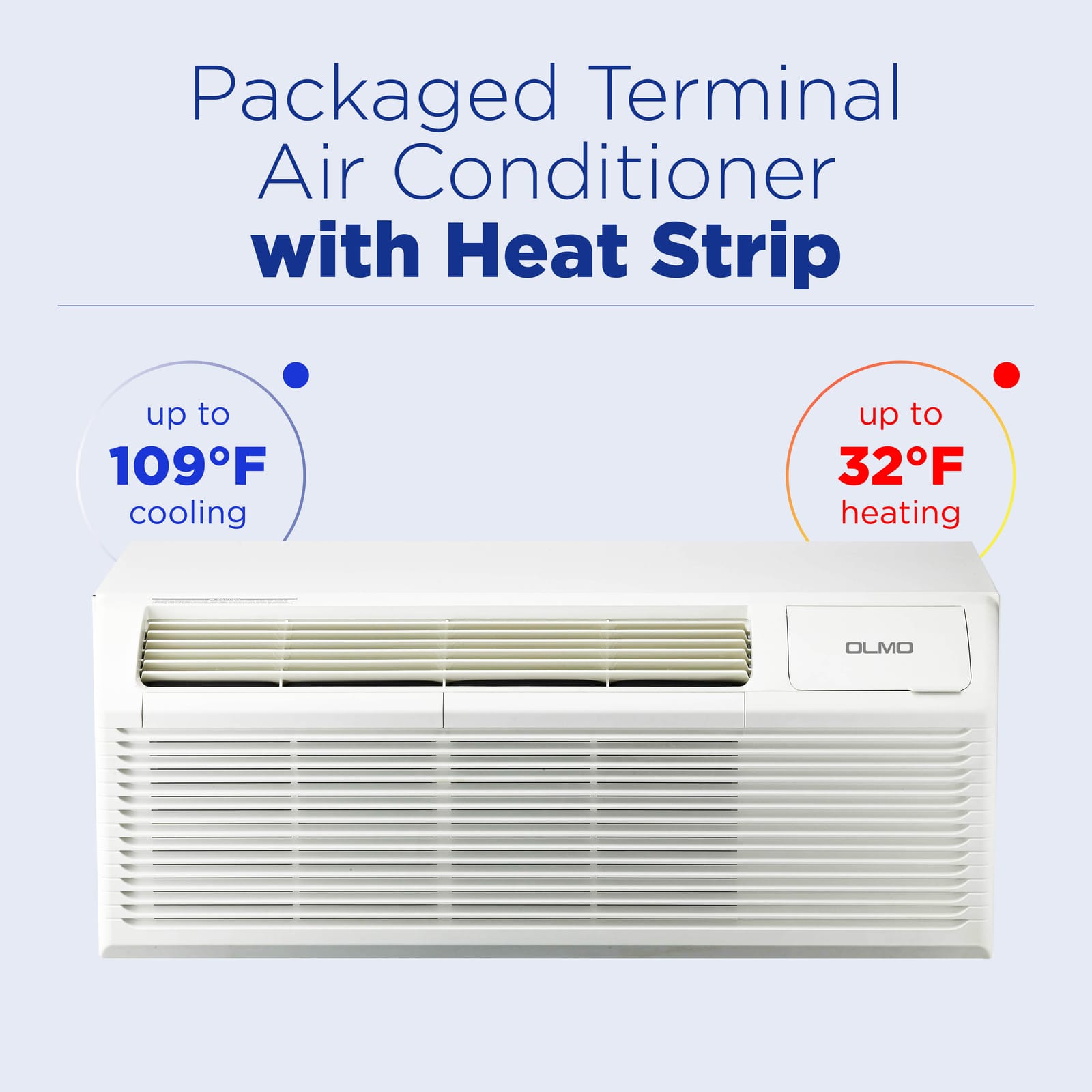

The OLMO 12,000 BTU PTAC is a packaged terminal air conditioner — the self-contained, hotel-style unit that mounts through the wall in a standard 42-inch PTAC sleeve. It cools and adds electric heat-strip heating for a single room, with no outdoor condenser or line sets. Runs on 208-230V-1Ph-60Hz R32 refrigerant, with a remote and built-in Wi-Fi.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE

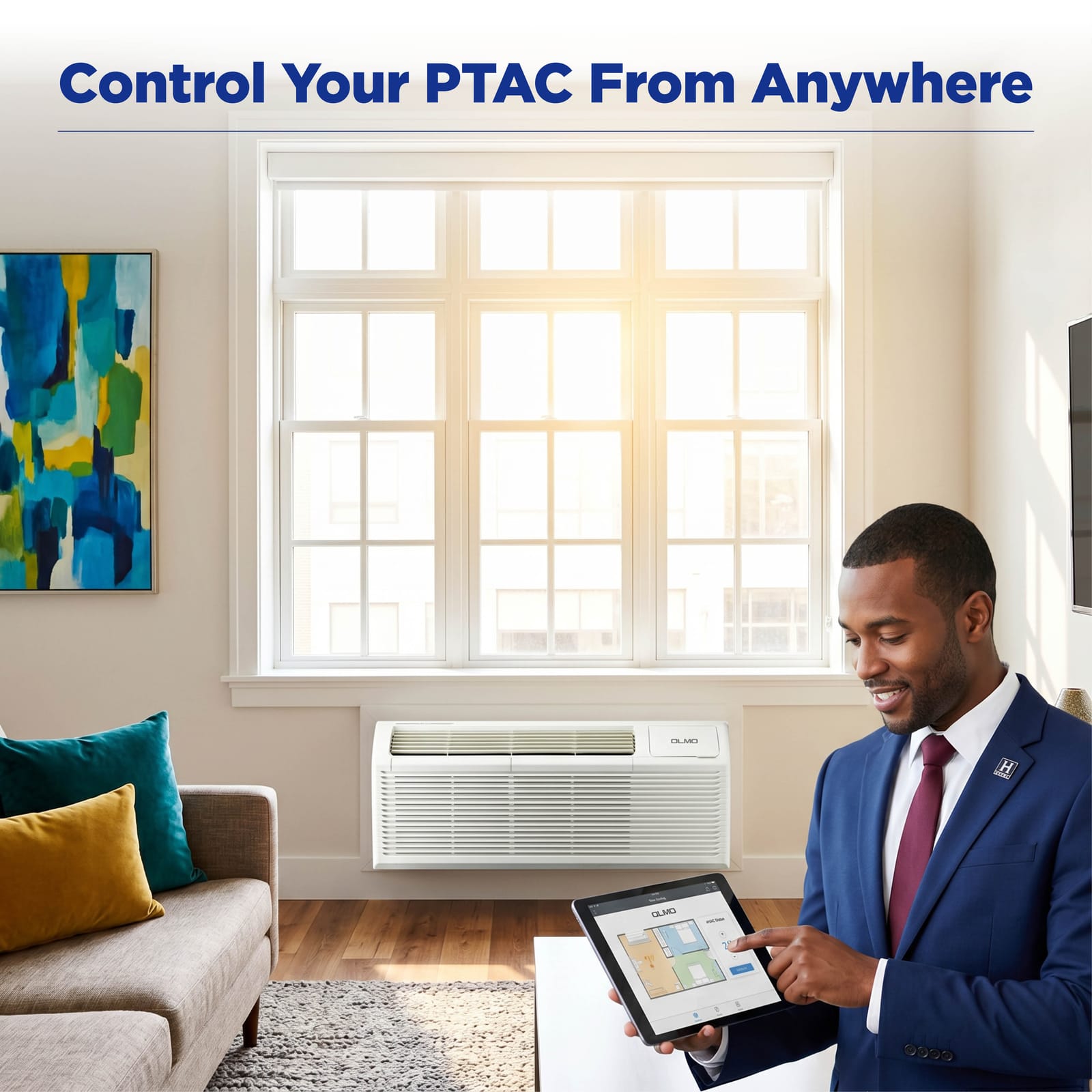

Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
WARRANTY
BACKED BY OLMO COMFORT
Industry-leading protection on every unit
Compressor: 1-year coverage
With product registration after professional installation.
Parts & components: 1-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— OS-MBW-12HS
| Model | OS-MBW-12HS |
|---|---|
| Electrical heating input (W) | 14.96/13.7 |
| Packing dimensions (WxDxH) | 68.47 |
| Unit dimensions (WxDxH) | 62/60/56 |
| Design pressure (psi) | 67 |
| Dehumidification (Pnt/H) | 431.2///348.2 |
| Fresh air ventelation (CFM) | 3 |
| Outdoor noise level (dB) | 87 |
| Outdoor air flow (CFM) | VG68 10.1 |
| Outdoor fan capacitor (uF) | 35 |
| Outdoor fan Output (W) | 28.5±10% |
| Waterproof class | 4.18/3.85 |
| Refrigerant Oil / Oil charge | 850/875 |
| Capacitor | 3,590/3,620 |
| Locked rotor (LRA) (A) | ROTARY |
| Rated current cooling (A) | 20 |
| Compressor input (W) | LCDI(6-20P) |
| Heating HS Capacity (Btu/h) | 3,500/2,897 |
| Cooling input (W) | 5.5/6.1 |
| SEER2 up to | 1,080/1,060 |
| EER up to | 10.7 |
| Cooling capacity (Min/Max) (BTU/h) | 12,000/11,800 |
| Power source | 208/230V,1Ph,60Hz |
| Refrigerant type | R32 |
| Net/Gross weight (lb) | 52/51.5 |
System Specs
| Cooling Capacity | 12000 / 11800 (208/230V) Btu/h |
|---|---|
| Heating | Electric heat strip — 10900 / 8900 |
| Power Supply | 208-230V-1Ph-60Hz |
| Refrigerant | R32 |
| Unit Dimensions (W×H×D) | 42 x 21 x 16 in |
| Net / Gross Weight | 103.6 / 112.4 lbs |
| Controls | Remote control included + Smart Connect built-in (WiFi); compatible with 24V thermostat |
| Wall Sleeve / Grille | 42" PTAC sleeve + grille — sold separately (base unit excludes them) |
| Recommended Coverage | up to ~550 sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Model
| Specification | OS-MBW-12HSThis model | OS-MBW-09HS | OS-MBW-15HS |
|---|---|---|---|
| Power Supply | 208-230V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 |
| Cooling | 9200/9000 Btu/h | Capacity | 12000/11800 Btu/h |
| Input | 1080/1060 W | 790/780 W | 1390/1370 W |
| Current | 5.5/6.1 A | 4.3/4.9 A | 7.5/8.9 A |
| EER2 | 10.7 W/W | 11.3 W/W | 10.6 W/W |
| Heating (Heat Strip) | 10900/8900 Btu/h | Rated Capacity | 10900/8900 Btu/h |
| Rated Input (Heater) | 3.5 W | 3.5 W | 5 W |
| Rated Current | 14.96/13.7 A | 15.3/13.7 A | 22.3/20.1 A |
| Refrigerant Type | R32 | R32 | R32 |
| Indoor Air Flow (Hi/Mi/Lo) | 431.1/348.2 ft3/min | 430.0/342.3 ft3/min | 430.0/349.4 ft3/min |
| Indoor Noise Level (Hi/Mi/Lo) | 52/51.5 dB(A) | 50/49.5 dB(A) | 51/50.5 dB(A) |
| Outdoor Air Flow (Hi/Med/Lo) | 424.7/360.6/296.5 ft3/min | 467.7/394.1/333.5 ft3/min | 544.1/485.3/424.1 ft3/min |
| Outdoor Side Noise Level (Hi/Med/Lo) | 67 dB(A) | 63 dB(A) | 65 dB(A) |
| Design Pressure (Lo/Hi) | 300/580 PSI | 300/580 PSI | 300/580 PSI |
| Indoor Operation Temp | 63°F-90°F/32°F-80°F | 63°F-90°F/32°F-80°F | 63°F-90°F/32°F-80°F |
| Outdoor Operation Temp | 64°F-109°F/41°F-75°F | 64°F-109°F/41°F-75°F | 64°F-109°F/41°F-75°F |
| Dimension (WxDxH) | 42x21x16 in | 42x21x16 in | 42x21x16 in |
| Packing (WxDxH) | 44.5x25x19.3 in | 44.5x25x19.3 in | 44.5x25x19.3 in |
| Net/Gross Weight | 103.6/112.4 lbs | 97.0/105.8 lbs | 105.8/114.6 lbs |
Frequently asked questions.
What size mini split do I need for my room?
For spaces up to 550 sq ft, the 12,000 BTU Olmo PTAC air conditioner is an excellent choice. Its capacity ensures efficient heating and cooling for medium-sized rooms.
Can I install a mini split myself?
Yes, the Olmo 12,000 BTU PTAC unit is designed for easier installation, especially with the option of installation kits available in lengths up to 50 ft. However, it's recommended to follow local codes and consider hiring a professional for optimal performance.
Does the mini split come pre-charged with refrigerant?
Yes, the Olmo PTAC air conditioner comes pre-charged with R32 refrigerant for up to 25 ft of line set, making the installation process more straightforward. This feature helps you save time and ensures immediate operation upon installation.
What voltage does the Olmo mini split require?

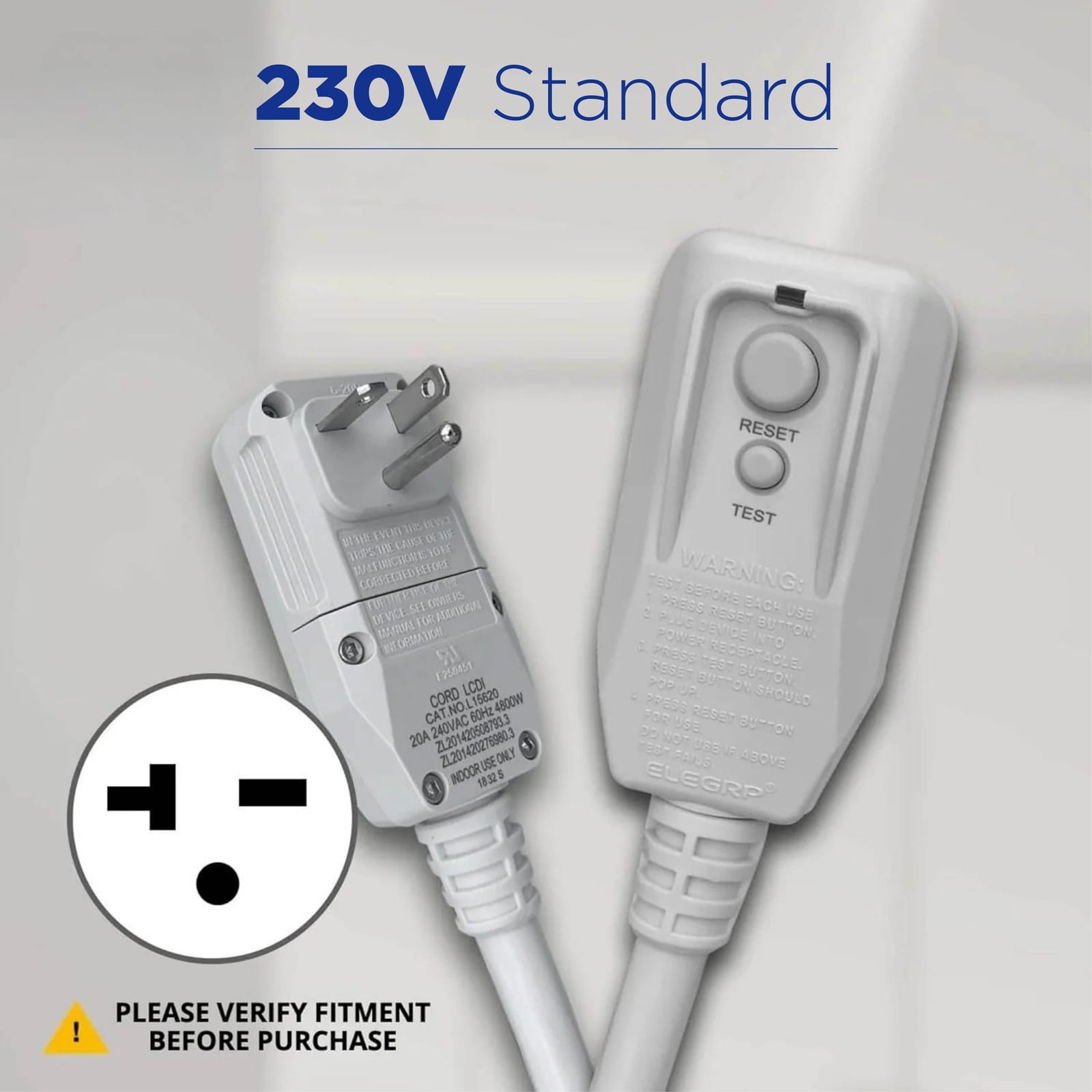

The Olmo 12,000 BTU PTAC air conditioner operates on 230V, which is standard for many residential mini-split systems. Make sure your electrical system can accommodate this voltage before installation.
What warranty does the Olmo PTAC air conditioner offer?
The Olmo 12,000 BTU PTAC air conditioner comes with a 5-year parts and compressor warranty. This coverage provides peace of mind regarding the unit's reliability and performance over time.
What SEER rating do I need for efficiency?
The Olmo PTAC air conditioner boasts a SEER rating of 21+, which exceeds the minimum efficiency standards set for HVAC systems. A higher SEER rating means greater energy efficiency, helping to lower your utility bills.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32HEATS down to 23°FCOOLS up to 109°F
1-Yr Warranty
Cooper & HunterCooper & Hunter 9,000 BTU PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and RemoteFree Shipping
- R32HEATS down to 23°FCOOLS up to 109°F
1-Yr Warranty
Cooper & HunterCooper & Hunter 12,000 BTU PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and RemoteFree Shipping
- R32Heats & Cools
1-Yr Warranty
OLMO15,000 BTU PTAC OLMO Air Conditioner, Heat Strip, Heating And Cooling w/Electric Cord and RemoteFree Shipping
- R32HEATS down to 23°FCOOLS up to 109°F
1-Yr Warranty
Cooper & HunterCooper & Hunter 15,000 BTU PTAC Air Conditioner, Heat Pump, Heating And Cooling w/ Electric Cord and RemoteFree Shipping
The OLMO 12,000 BTU PTAC is a packaged terminal air conditioner — the self-contained, hotel-style unit that mounts through the wall in a standard 42-inch PTAC sleeve. It cools and adds electric heat-strip heating for a single room, with no outdoor condenser or line sets. Runs on 208-230V-1Ph-60Hz R32 refrigerant, with a remote and built-in Wi-Fi.
Key Features
- 12,000 Btu/h cooling + electric heat-strip heating for year-round single-room comfort
- Packaged terminal (PTAC) design — fits the standard 42" hotel/apartment sleeve; self-contained
- R32 refrigerant; Auto Defrost, Dual Fan Speed, Auto Restart, LED Display, Fresh Air Input

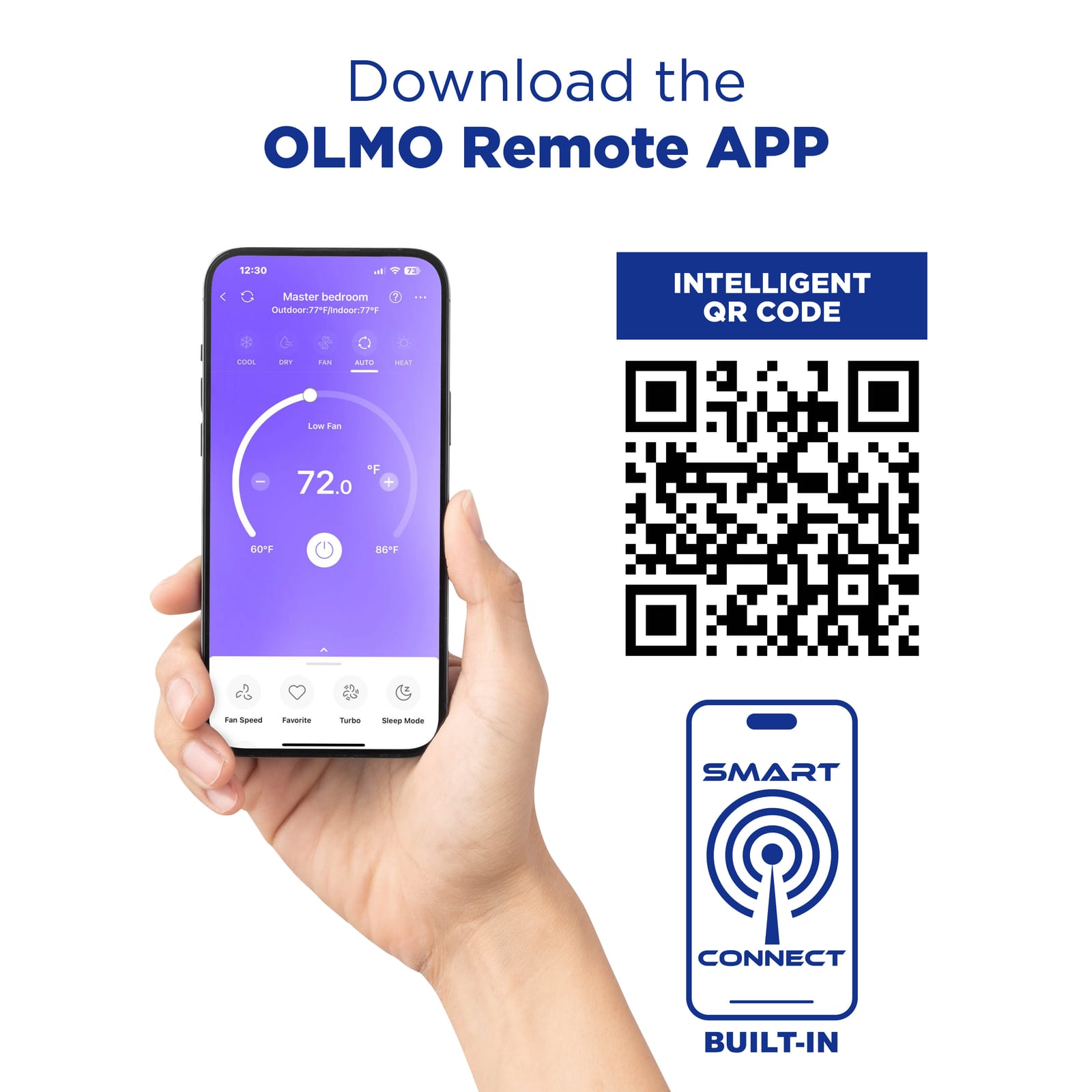

- Remote + built-in Wi-Fi (Smart Connect); compatible with a 24V thermostat
- Power: 208-230V-1Ph-60Hz
