Cooper & Hunter 15,000 BTU PTAC Air Conditioner, Heat Pump, Heating And Cooling w/ Electric Cord and Remote
Cooper & Hunter1-Yr WarrantySKU: CH-PTW-HE15HP
Product specifications
- Voltage
- 230V
- WiFi
- Included
- Zone
- Single Zone
- Type
- PTAC
- Freon
R32
Choose Your Configuration
Size — match your room area
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · STANDARD
Built for year-round comfort
CH-PTW-HE15HP
System Specs
| Cooling Capacity | 14700 / 14500 (208/230V) [labeled 15,000 by store] BTU/h |
|---|---|
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Rotary |
| Climate Range | 64-109 / 23-76 F |
|---|---|
| Sound Level (indoor) | 53/52.5 dB |
| Warranty | 1-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight |
|---|---|
| 42.01 × 20.94 × 15.98 in | 113.54 / 122.36 lb |
Product Description

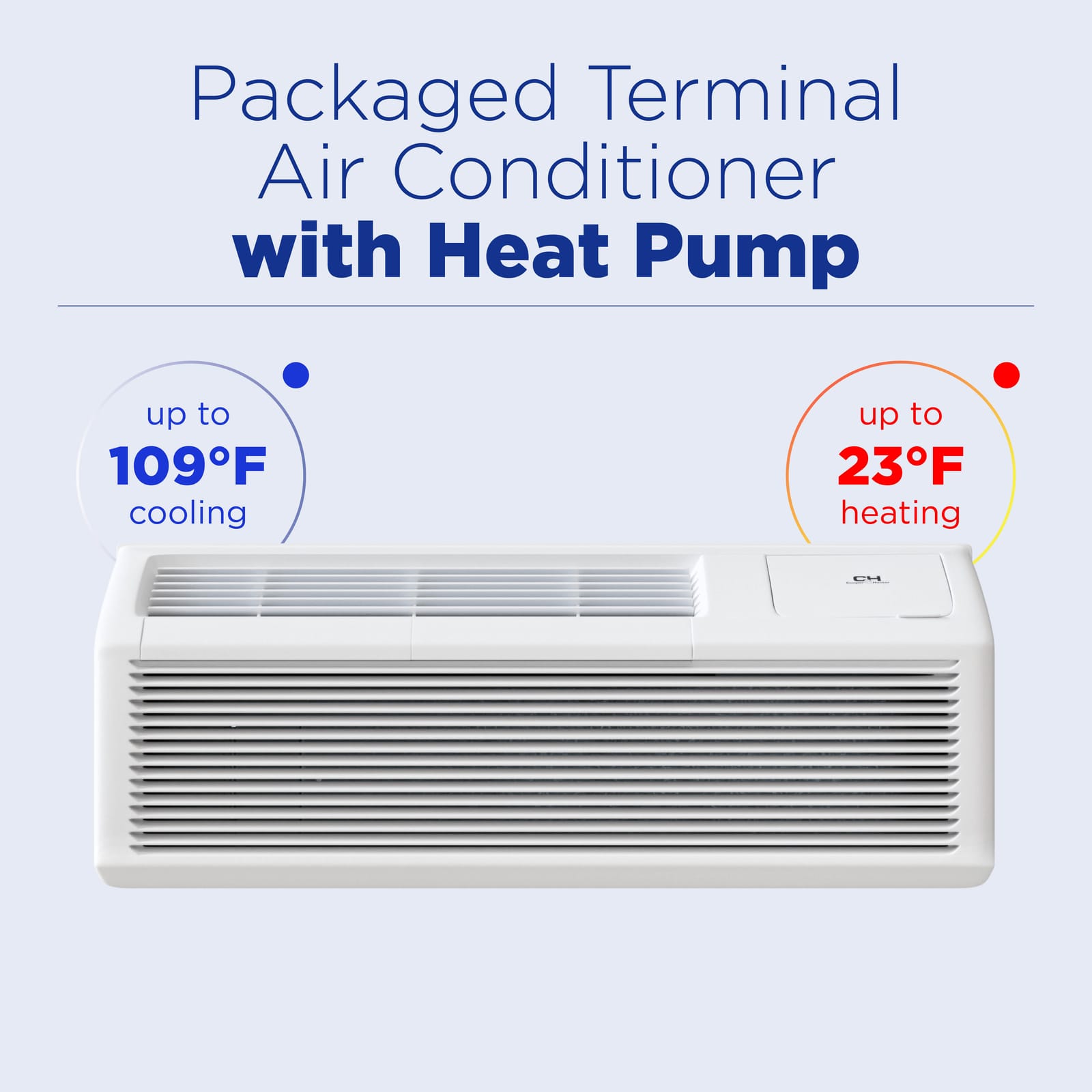

The Cooper & Hunter 14,700 BTU (marketed as 15,000) PTAC is a packaged terminal heat pump — a self-contained, hotel-style unit for a standard 42-inch PTAC sleeve. Unlike electric-only PTACs, it heats with an efficient heat pump and adds supplemental PTC electric heat for cold weather, so it cools and heats a single room with no outdoor condenser or line sets. Runs on 208/230V-1Ph-60Hz R32, Wi-Fi built in.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 1-year coverage
With product registration after professional installation.
Parts & components: 1-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— CH-PTW-HE15HP
| Model | CH-PTW-HE15HP |
|---|---|
| Unit Dimensions (WxDxH) | 42.01x20.94x15.98 in |
| Net/Gross Weight | 113.54/122.36 lb |
| Packing Dimensions (WxDxH) | 44.49x24.61x19.29 in |
| Power Supply | 208/230V,1Ph,60Hz |
| Noise Level (Hi/Lo) | 53/52.5 dB |
| Noise Level | 67 dB |
| Dehumidification | 4.3 pt/h |
System Specs
| Cooling Capacity | 14700 / 14500 (208/230V) [labeled 15,000 by store] Btu/h |
|---|---|
| EER2 | 10.6 |
| Heating — Heat Pump | 13500 / 13200 Btu/h (COP 3.2) |
| Heating — PTC Electric (backup) | 10900 / 8900 Btu/h |
| Refrigerant / Charge | R32 / 31.75 oz |
| Indoor Air Flow (Hi/Lo) | 416 / 330 CFM |
| Indoor Noise (Hi/Lo) | 53 / 52.5 dB(A) |
| Unit Dimensions (W×H×D) | 42 x 21 x 16 in |
| Net / Gross Weight | 113.5 / 122 lbs |
| Operating Range (cool / heat, outdoor) | 64-109 / 23-76 F |
| Wall Sleeve / Grille | 42" PTAC sleeve (CH-PTSLV1) + grille (CH-PTGRL1) — sold separately; bundle SKUs include them |
| Recommended Coverage | up to ~650 sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Model
| Specification | CH-PTW-HE15HPThis model | CH-PTW-09HPGF | CH-PTW-12HPGF |
|---|---|---|---|
| Power Supply | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Cooling | 12,000/11,800 Btu/h | Rated Capacity | 9,300/9,200 Btu/h |
| Input | 1,390/1,370 W | 820/810 W | 1,040/1,020 W |
| Current | 6.5/7.4 A | 4.2/4.6 A | 5.3/5.8 A |
| EER2 | 10.6 W/W | 11.4 W/W | 10.5 W/W |
| Heating (PTC) | 10,900/8,900 Btu/h | Capacity | 10,900/8,900 Btu/h |
| Input(Heater) | 3,500/2,897 W | 3,500/2,897 W | 3,500/2,897 W |
| Current | 15.3/13.7 A | 15.3/13.7 A | 15.3/13.7 A |
| Heating (Heat pump) | 10,800/10,500 Btu/h | Capacity | 8,100/7,900 Btu/h |
| Input | 1,170/1,120 W | 720/690 W | 890/850 W |
| Current | 6.0/6.4 A | 3.9/4.3 A | 5.0/5.3 A |
| COP | 3.2 W/W | 3.4 W/W | 3.2 W/W |
| Indoor Air Flow (Hi/Lo) | 416/330 CMF | 362.9/300 CMF | 438/344 CMF |
| Indoor Noise Level (Hi/Lo) | 53/52.5 dB(A) | 50/49.5 dB(A) | 52/51.5 dB(A) |
| Outdoor Noise Level (Hi) | 67 dB(A) | 64 dB(A) | 67 dB(A) |
| Refrigerant Type | R32 | R32 | R32 |
| Design Pressure (Lo/Hi) | 31.75 oz | 15.17 oz | 26.81 oz |
| OperationTemp | 540/300 psi | 540/300 psi | 540/300 psi |
| Indoor (Cooling/Heating) | 62-90 / 32-80 °F | 62-90 / 32-80 °F | 62-90 / 32-80 °F |
| Outdoor (Cooling/Heating) | 64-109 / 23-76 °F | 64-109 / 23-76 °F | 64-109 / 23-76 °F |
| Dimension (WxDxH) | 42.01x20.91x15.98 in | 42.01x20.91x15.98 in | 42.01x20.91x15.98 in |
| Packing (WxDxH) | 44.49x24.61x19.29 in | 44.49x24.61x19.29 in | 44.49x24.61x19.29 in |
| Net/Gross Weight | 113.54 / 122.36 lbs | 99.21 / 108.03 lbs | 110.23 / 119.05 lbs |
Frequently asked questions.
What size mini split do I need for my room?
For optimal performance, the Cooper & Hunter 15,000 BTU PTAC Air Conditioner can effectively cover areas of varying sizes, typically around 600-800 square feet depending on insulation and climate. Ensure to calculate the specific BTU requirements based on your room's dimensions and conditions.
Can I install a mini split myself?
While the Cooper & Hunter 15,000 BTU model can be a DIY project for those with basic HVAC knowledge, it’s advisable to consult a professional for installation to ensure proper setup and efficiency. Keep in mind that the unit can be paired with installation kits of 16ft, 25ft, or 50ft, depending on your needs.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 15,000 BTU PTAC Air Conditioner is pre-charged with R32 refrigerant for up to 25 ft of line set, allowing for a straightforward installation. This pre-charge helps to streamline the setup process and ensures optimal performance right out of the box.
What voltage does a mini split require?

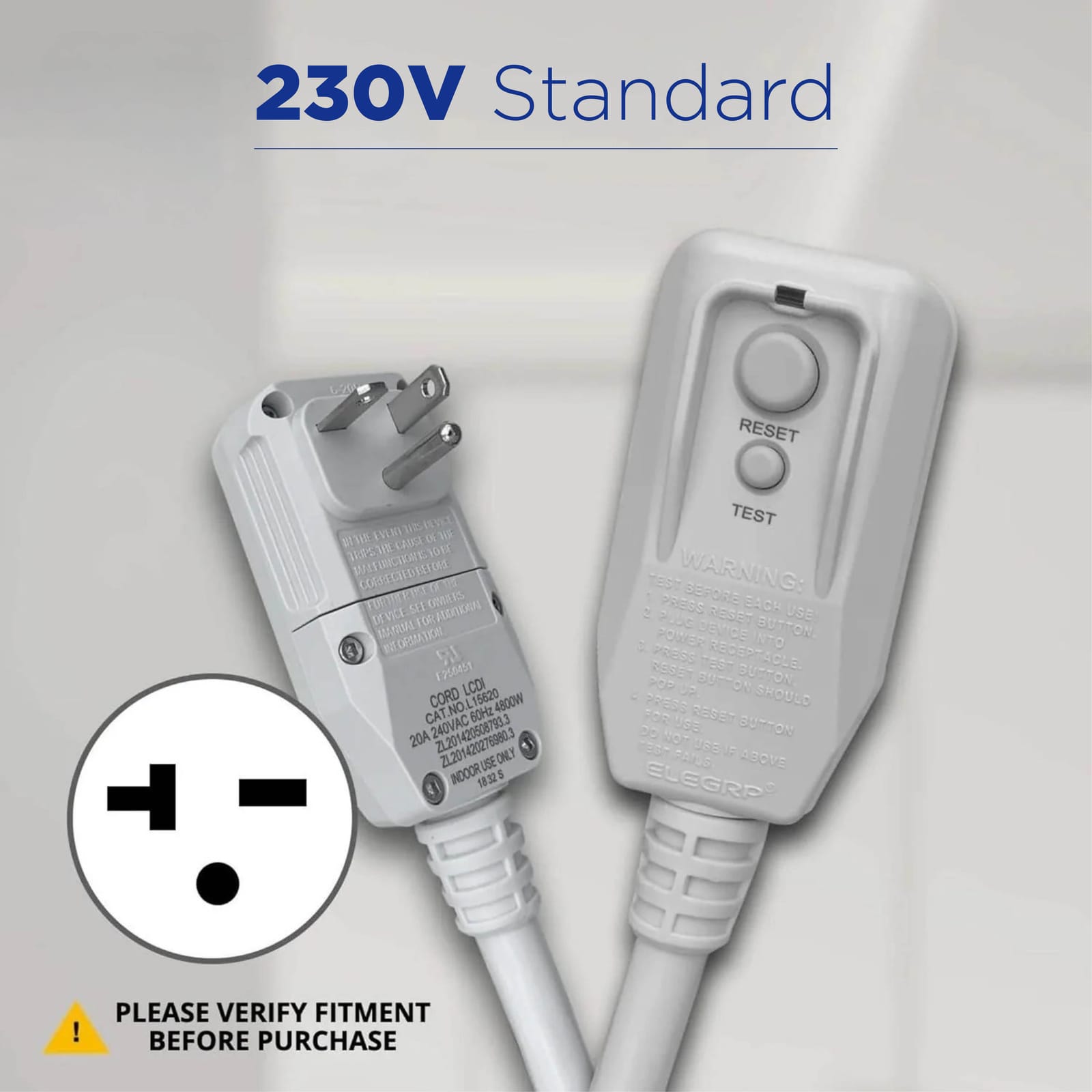

The Cooper & Hunter 15,000 BTU PTAC Air Conditioner operates on a 230V electrical system, which is standard for many residential and commercial applications. Ensure your electrical setup aligns with this requirement to avoid any installation issues.
What warranty does Cooper & Hunter offer on this unit?
The Cooper & Hunter 15,000 BTU PTAC Air Conditioner comes with a 5-year parts warranty and a 7-year compressor warranty, provided that registration is completed within 30 days of purchase. This warranty reflects the brand's confidence in its product's durability and performance.
What SEER rating do I need for efficiency?
The Cooper & Hunter 15,000 BTU model boasts an impressive SEER rating of 21+, making it a highly efficient option for both heating and cooling. A higher SEER rating indicates greater energy efficiency; therefore, look for models like this if you're aiming to reduce energy costs.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 21.5HEATS down to 5°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter MIA 6,000 BTU Single Zone Wall Mount, 115V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.2HEATS down to 5°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter MIA 9,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.2HEATS down to 5°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter MIA 9,000 BTU Single Zone Wall Mount, 115V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R32HEATS down to 23°FCOOLS up to 109°F
1-Yr Warranty
Cooper & HunterCooper & Hunter 9,000 BTU PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and RemoteFree Shipping
The Cooper & Hunter 14,700 BTU (marketed as 15,000) PTAC is a packaged terminal heat pump — a self-contained, hotel-style unit for a standard 42-inch PTAC sleeve. Unlike electric-only PTACs, it heats with an efficient heat pump and adds supplemental PTC electric heat for cold weather, so it cools and heats a single room with no outdoor condenser or line sets. Runs on 208/230V-1Ph-60Hz R32, Wi-Fi built in.
Key Features
- 14,700 Btu/h cooling / heat pump 13,500 Btu/h (COP 3.2) + PTC backup heat
- 10.6 EER2 — heat-pump heating is far more efficient than electric-strip-only PTACs
- Packaged terminal (PTAC) design — fits the standard 42" sleeve; self-contained
- Smart Kit built in (Wi-Fi, C&H app) + remote; Auto Restart, Fresh Air Ventilation, Auto Defrost, LED Display, Constant Fan Function
- Power: 208/230V-1Ph-60Hz
