Cooper & Hunter Hyper Heat 24,000 BTU Single Zone Slim Duct, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-RHP24-230VO24DT
Product specifications
- Voltage
- 230V
- SEER
- 22.3
- WiFi
- Not Included
- Zone
- Single Zone
- Type
- Concealed Duct
- Freon
R454B
Choose Your Configuration
“No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · HYPER HEAT
Built for year-round comfort
CH-RHP24-230VO24DT
System Specs
| Cooling Capacity | 24,000 BTU/h |
|---|---|
| SEER2 | 19.0 |
| EER2 | 12.0 |
| Voltage | 230V |
| Refrigerant | R454B |

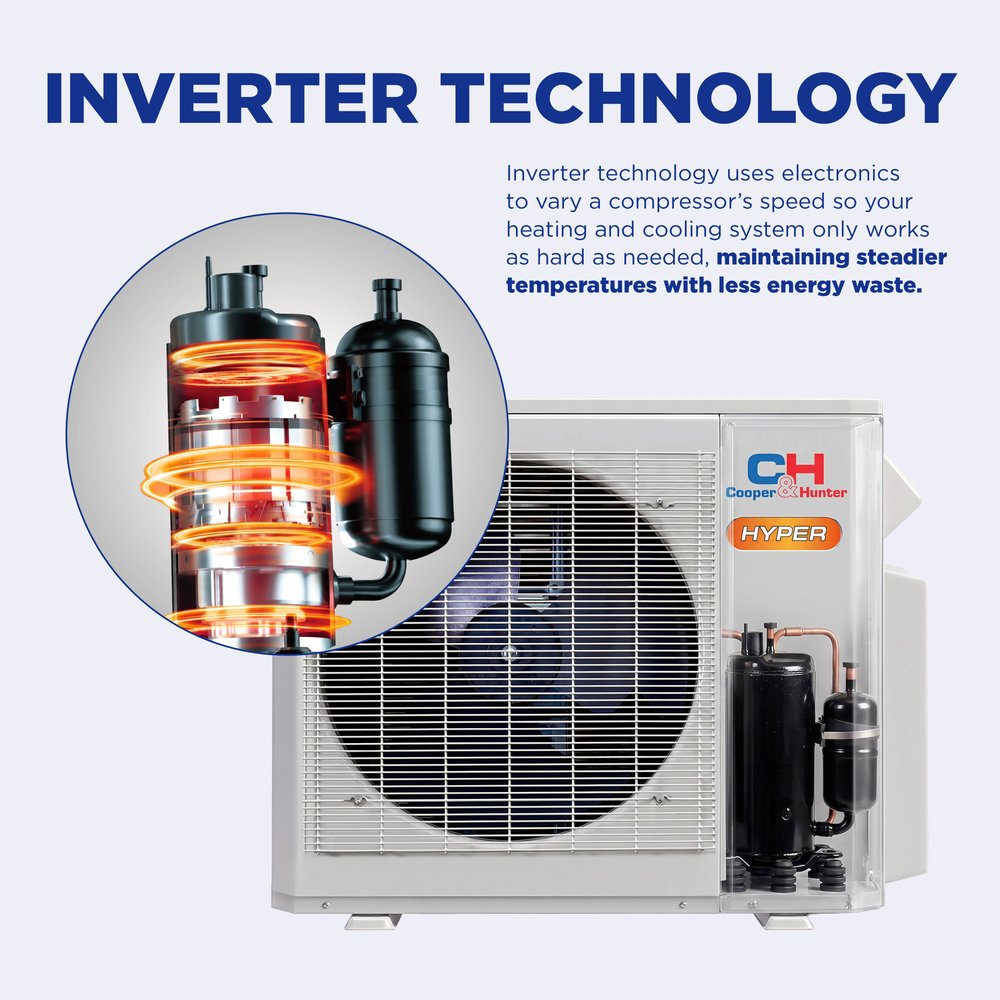

| Compressor | Inverter |
|---|---|

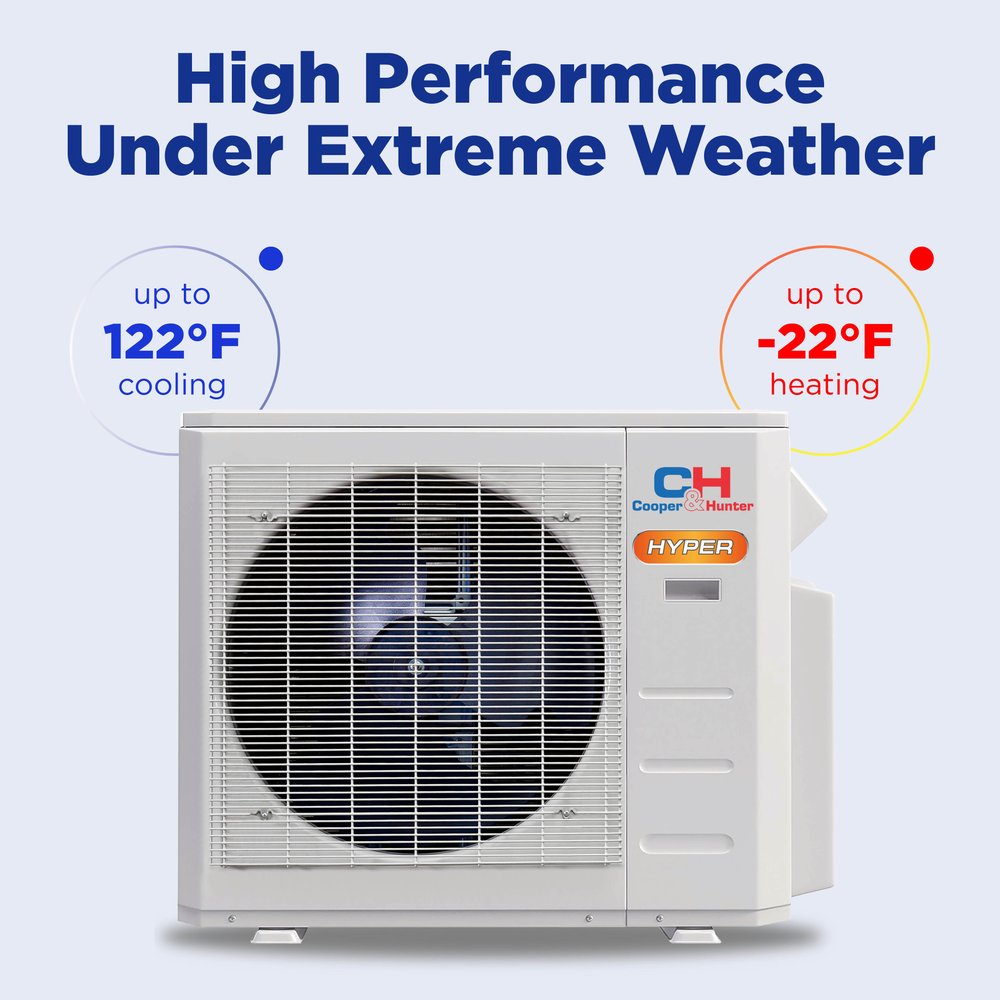

| Climate Range | −22–122°F / −22–75°F outdoor ambient |
| Sound Level (indoor) | 40/37/35 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 39.37 × 29.53 × 9.65 in | 54.45 / 66.14 lb | Wire controller + remote controller available |
Hyper Heat Series Description
The Cooper & Hunter Hyper Heat 24,000 BTU (2 Ton) single-zone slim duct mini split is a concealed-duct air conditioner and heat pump built for cold climates: full heating operation down to −22°F outdoor ambient on next-generation R454B refrigerant. The low-profile ducted air handler hides above a ceiling or in a soffit — central-air comfort with 19.0 SEER2 inverter efficiency (208/230V). Energy Star Cold Climate certified.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

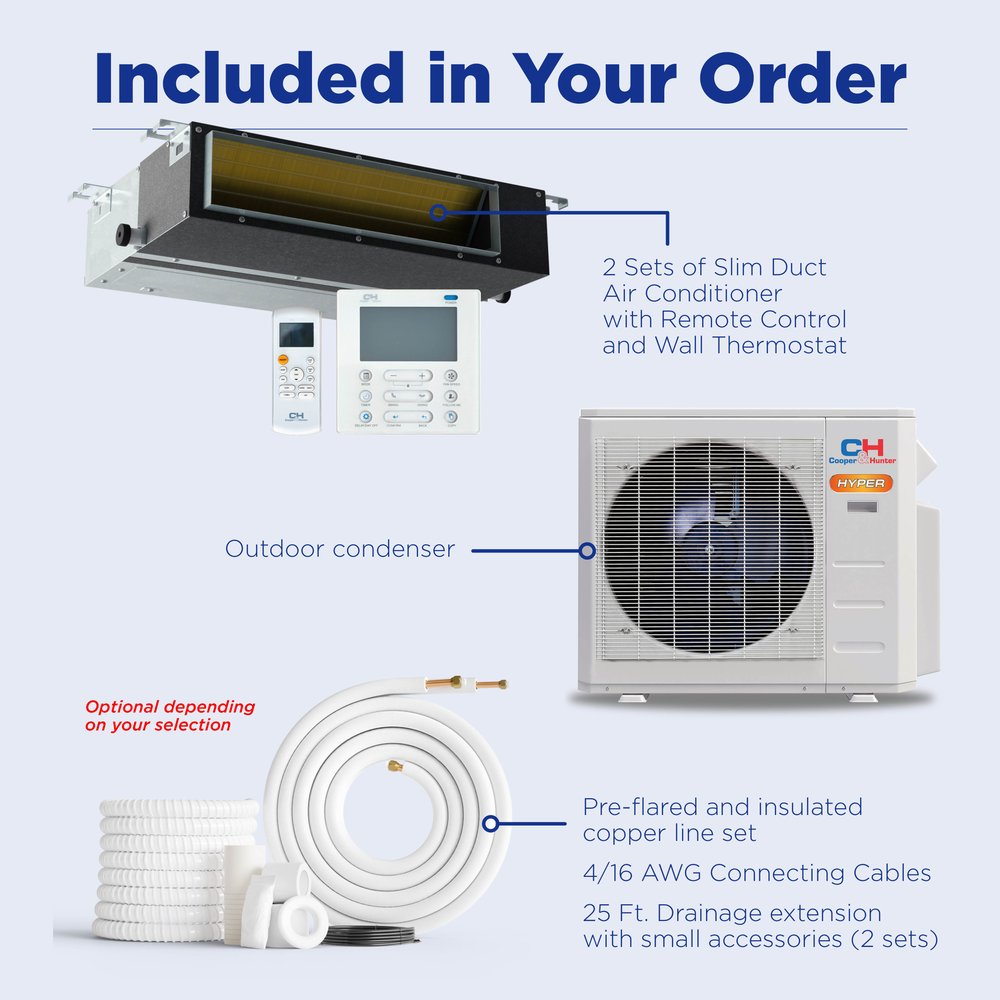

IN THE BOX
Everything included with this system
- Cooper & Hunter Hyper 24,000 BTU Outdoor Condenser, 230V, R454B - Single Zone Mini Split Air Conditioner Heat Pump
- Indoor Concealed Duct — CH-RS24MDT-HS
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications

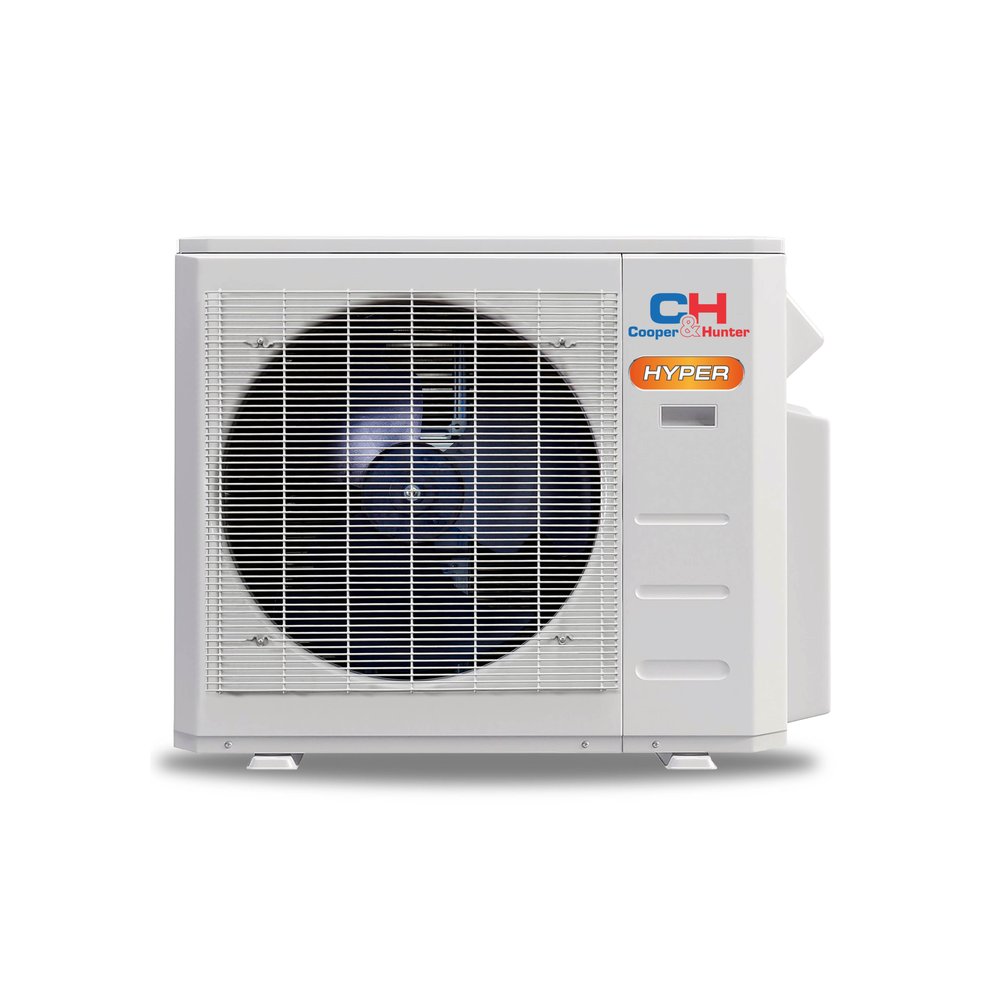

Outdoor Unit Specs— CH-RHP24-230VO
| Model | CH-RHP24-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 in |
| Net/Gross Weight | 130.29/141.31 lb |
| Packing Dimensions (WxDxH) | 42.91 x 19.68 x 34.84 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 25 A |
| Min. Circuit Ampacity | 24.9 A |
| Copper Line Size (Liquid/Gas) | 3/8"/5/8" |
| Noise Level | 61 dB |
| Airflow | 2,235.3 CFM |
| Dehumidification | 5.50 pt/h |

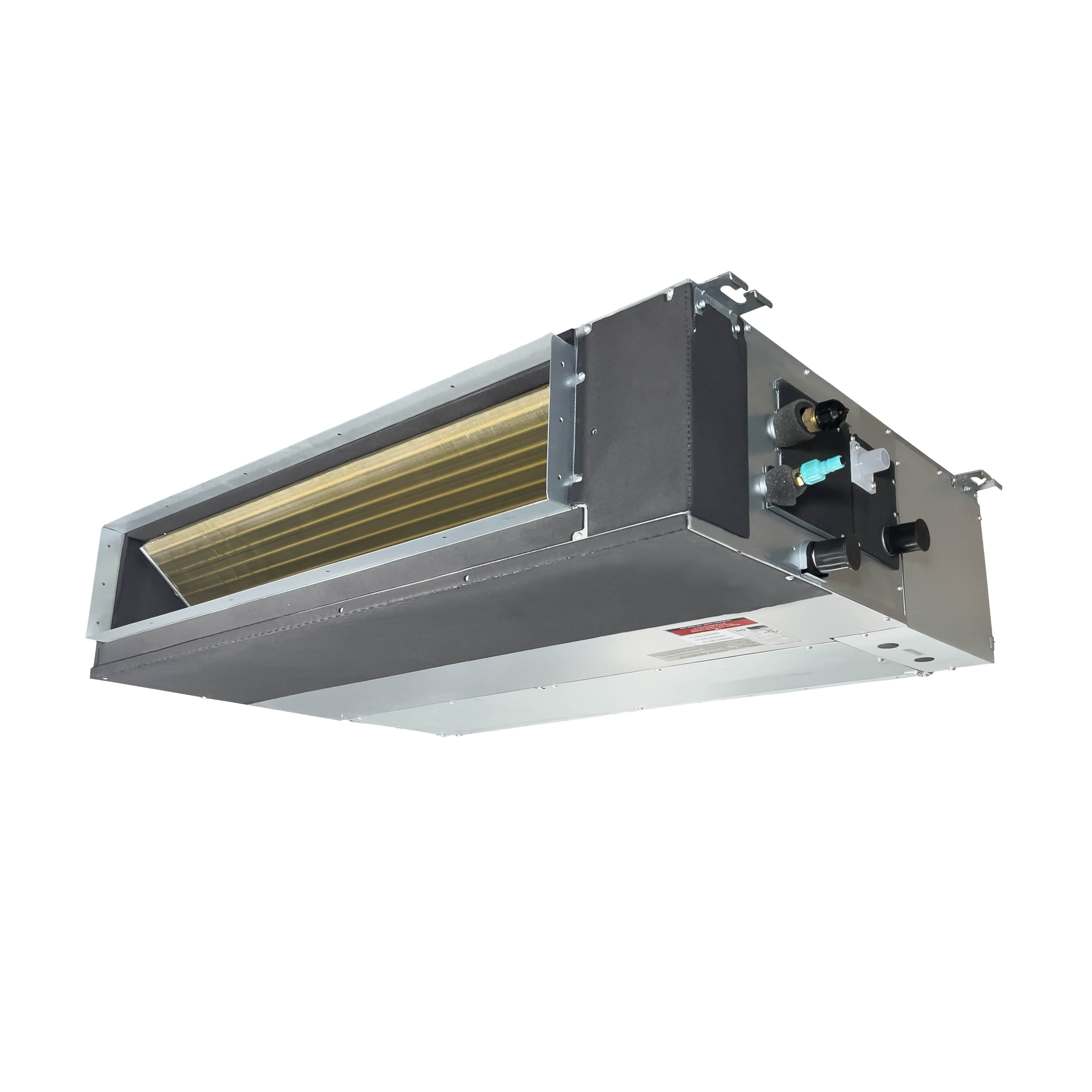

Indoor Unit Specs— CH-RS24MDT-HS
| Model | CH-RS24MDT-HS |
|---|---|
| Unit Dimensions (WxDxH) | 39.37 x 29.53 x 9.65 in |
| Net/Gross Weight | 54.45/66.14 lb |
| Packing Dimensions (WxDxH) | 42.13 x 28.54 x 11.02 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 3 A |
| Copper Line Size (Liquid/Gas) | 3/8"/5/8" |
| Noise Level (Hi/Med/Lo) | 40/37/35 dB |
| Dehumidification | 4.29 pt/h |
| Filter Dimensions | 17.28x7.95 in |
| Drain Pipe Diameter | 1" |
| Controller | wire controller + remote controller available |
System Specs
| Cooling — Rated Capacity (Range) | 24,000 Btu/h (5,000–28,000) |
|---|---|
| Heating — Rated Capacity (Range) | 26,000 Btu/h (7,300–31,400) |
| SEER2 / EER2 | 19.0 / 12.0 |
| HSPF4 / HSPF5 / COP (47°F) | 11.7 / 9.3 / 3.81 |
| Rated Current (Cooling / Heating) | 8.8 A / 8.8 A |
| Minimum Circuit Ampacity — Outdoor / Indoor | 24.9 A / 3 A |
| Max. Fuse — Outdoor / Indoor | 25 A / 15 A |
| External Static Pressure (ESP) | 0–0.8 in.WG (high static) |
| Indoor Air Flow (Turbo/Hi/Mid/Lo) | 854 / 706 / 618 / 500 CFM |
| Indoor Noise Level | 40 / 37 / 35 / 29.5 dB(A) (Hi/Mid/Lo/Silent) |
| Indoor Unit Dimensions (W×D×H) | 39.37 × 29.53 × 9.65 in |
| Indoor Unit Net Weight | 80.5 lbs |
| Outdoor Air Flow (Max.) | 2,237 CFM |
| Outdoor Noise Level | 61.0 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 37.24 × 16.14 × 31.89 in |
| Outdoor Unit Net / Gross Weight | 130.3 / 141.3 lbs |
| Refrigerant Type / Charge | R454B / 63.49 oz |
| Pre-charged Line Length | 25 ft (add 0.32 oz per additional ft) |
| Line Set (Liquid / Gas) | 3/8" / 5/8" |
| Max. Pipe Length | 164 ft |
| Max. Elevation Difference | 82 ft |
| Operating Range — Cooling / Heating | −22–122°F / −22–75°F outdoor ambient |
| Drain Pump | Built-in |
Frequently asked questions.
What size mini split do I need for my space?
For spaces up to 1,200 sq ft, the Cooper & Hunter Hyper Heat 24,000 BTU mini split is an excellent choice. Its coverage is ideal for larger rooms or open floor plans.
How much does a mini split system like Cooper & Hunter cost?
The price of the Cooper & Hunter Hyper Heat 24,000 BTU mini split system can vary based on installation kits, but typically, you should expect to invest in the range of $2,500 to $4,000, depending on your specific needs.
Can I install a mini split myself?
While some homeowners may attempt a DIY installation, it is recommended to hire a professional for the Cooper & Hunter Hyper Heat 24,000 BTU system, especially since proper setup is crucial for optimal performance and efficiency.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter Hyper Heat 24,000 BTU mini split comes pre-charged with R454B refrigerant for up to 25 ft of line set, ensuring efficient operation right out of the box.
What is the voltage requirement for a mini split like Cooper & Hunter?
The Cooper & Hunter Hyper Heat 24,000 BTU mini split requires a 230V power supply, making it suitable for most residential electrical systems.
What warranty does Cooper & Hunter offer on their mini splits?
Cooper & Hunter provides a 5-year parts warranty and a 7-year compressor warranty for the Hyper Heat 24,000 BTU model, but registration is required within 30 days of purchase to activate these warranties.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 18.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 6,000 BTU Single Zone Slim Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 22.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia 6,000 BTU Single Zone One-Way Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 24.6HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 9,000 BTU Single Zone Mini Floor Console, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 18.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 9,000 BTU Single Zone Slim Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
The Cooper & Hunter Hyper Heat 24,000 BTU (2 Ton) single-zone slim duct mini split is a concealed-duct air conditioner and heat pump built for cold climates: full heating operation down to −22°F outdoor ambient on next-generation R454B refrigerant. The low-profile ducted air handler hides above a ceiling or in a soffit — central-air comfort with 19.0 SEER2 inverter efficiency (208/230V). Energy Star Cold Climate certified.
Key Features
- Hyper Heat: heats at −22°F outdoor ambient (cooling −22–122°F) — built for northern winters
- 24,000 BTU cooling / 26,000 BTU heating — inverter range 5,000–28,000 Btu/h cooling, 7,300–31,400 Btu/h heating
- 19.0 SEER2 / 12.0 EER2 / 11.7 HSPF4 — current R454B-generation ratings
- Concealed installation: external static pressure 0–0.8 in.WG (high static) — supports real duct runs, grilles and filters
- Built-in condensate drain pump — simplifies above-ceiling installation
- Wired wall thermostat and IR remote included; Smart Kit built in (Wi-Fi via wall thermostat connection)
- 208/230V, 1Ph, 60Hz — MCA 24.9 A, max fuse 25 A

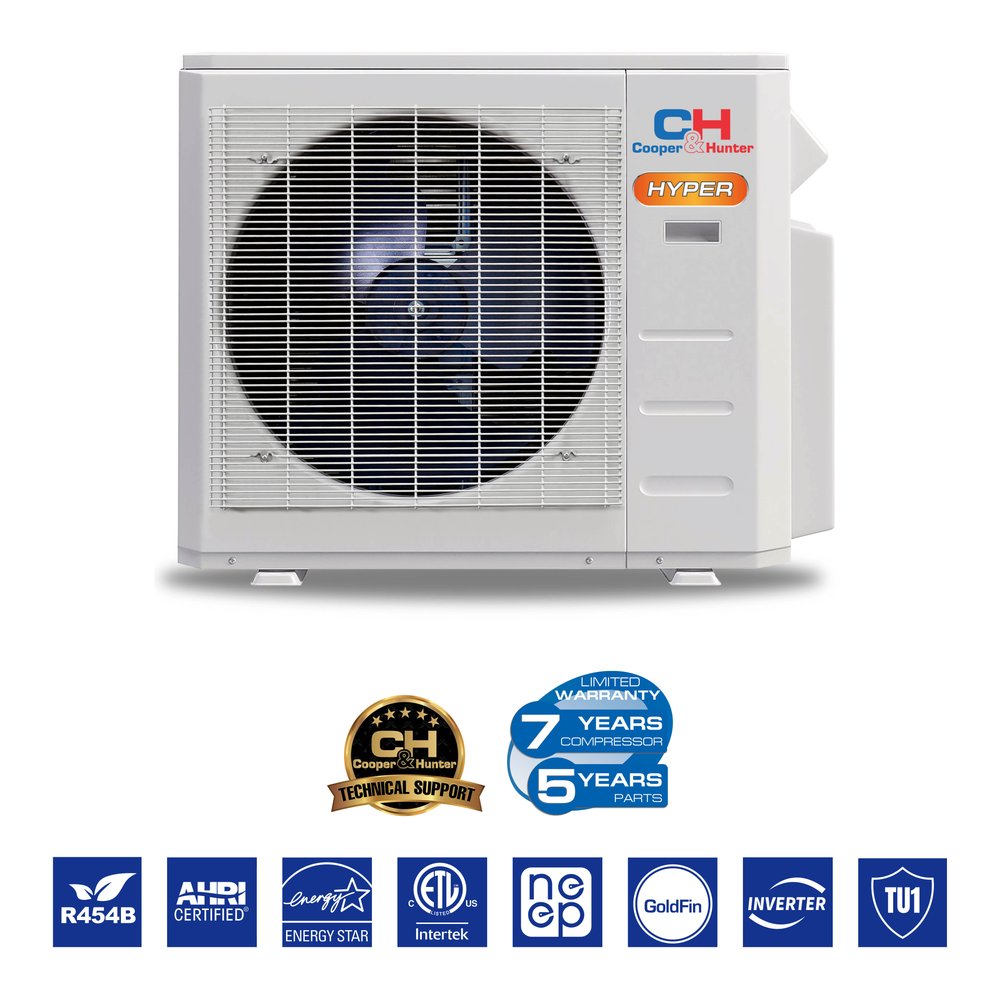

- ETL listed, AHRI certified, NEEP listed, Energy Star Cold Climate
Cooper & Hunter Hyper Heat Slim Duct (R454B) Lineup
| Capacity | Model (Indoor + Outdoor) | SEER2 |
| 6,000 BTU | CH-RS06-12MDT-MS + CH-RHP06F9-230VO | 21.4 |
| 9,000 BTU | CH-RS06-12MDT-MS + CH-RHP09-230VO | 21.4 |
| 12,000 BTU | CH-RS06-12MDT-MS + CH-RHP12-230VO | 20.0 |
| 18,000 BTU | CH-RS18MDT-MS + CH-RHP18-230VO | 18.0 |
| 24,000 BTU | CH-RS24MDT-HS + CH-RHP24-230VO | 19.0 |
| 36,000 BTU | CH-RS36LCDT-HS + CH-RHP36LCU-230VO | 17.7 |
| 48,000 BTU | CH-RS48LCDT-HS + CH-RHP48LCU-230VO | 16.7 |
| 60,000 BTU | CH-RS60LCDT-HS + CH-RHP60LCU-230VO | 15.8 |
