Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump

Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 1
Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 2
Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 3
Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 4
Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 5
Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 6
Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 7
Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 8
Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 9
Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 10
Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 11
1 / 11
Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 1
SEER2 22.2HEATS down to −22°FCOOLS up to 122°FR454B

Cooper & Hunter7-Yr WarrantySKU: CH-RHP55M-230VO/M06OW+M06OW+M12OW+M12OW-NO

$10,828.82
As low as $903/mo withaffirm
Product specifications
Voltage
230V
SEER
22.2
WiFi
Included
Zone
Four Zone
Type
1 Way Cassette
Freon
R454B
See full Tech Specs

Choose Your Configuration

All Zones Installation Kit: No Installation Kit

“No Installation Kit” ships the units only.

Save 10% on these accessories

  • ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
  • ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs CapacityARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
  • ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC SystemsARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
  • ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power ConnectionARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
1

FREE Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included
30-Day Returns

COOPER & HUNTER · 1 WAY CASSETTE

Built for year-round comfort

Indoor unit

CH-RHP55M-230VO/M06OW+M06OW+M12OW+M12OW-NO

System Specs

Cooling Capacity51,000 BTU/h
Heating Capacity55,000 BTU/h
SEER222.2
EER212
Voltage230V
RefrigerantR454B
CompressorInverter
Climate Range-22–122°F / -22–75°F outdoor ambient
Sound Level (indoor)41/37/33 dB
Warranty7-Yr Compressor

Indoor Unit Specs

Unit Dimensions (WxDxH)Net / Gross WeightRemote Control
50.31 × 13.19 × 8.98 in45.19 / 82.45 lbWire controller + remote controller available

Product Description

The Cooper & Hunter Hyper Heat 4-Zone Mini Split System features four one-way cassette zones with a total nominal cooling capacity of 55,000 BTU and includes Wi-Fi control for remote operation. It operates efficiently with a SEER2 rating of 22.2, uses R454B refrigerant, and provides heating down to -22°F ambient temperatures.

Tech Specifications

6 Modes for Maximum Comfort

Engineered to adapt to every season, every room, every need.

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

WHEREVER YOU ARE

Control your comfort, your way

  • Easy scheduling & timer
  • Multiple ways to control your comfort
  • Smart geo location
  • In-app support & assistance
  • Voice control
Easy scheduling & timer

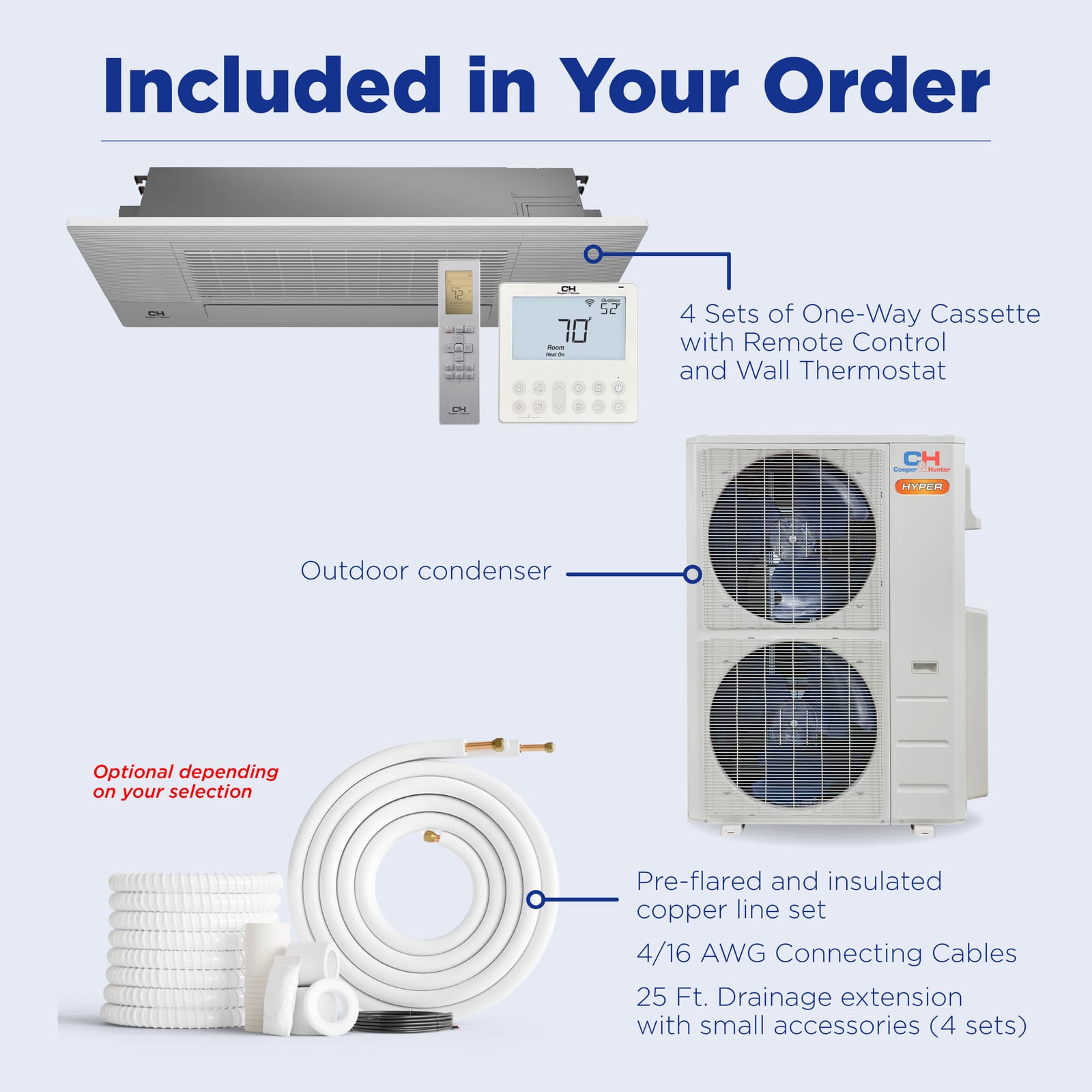

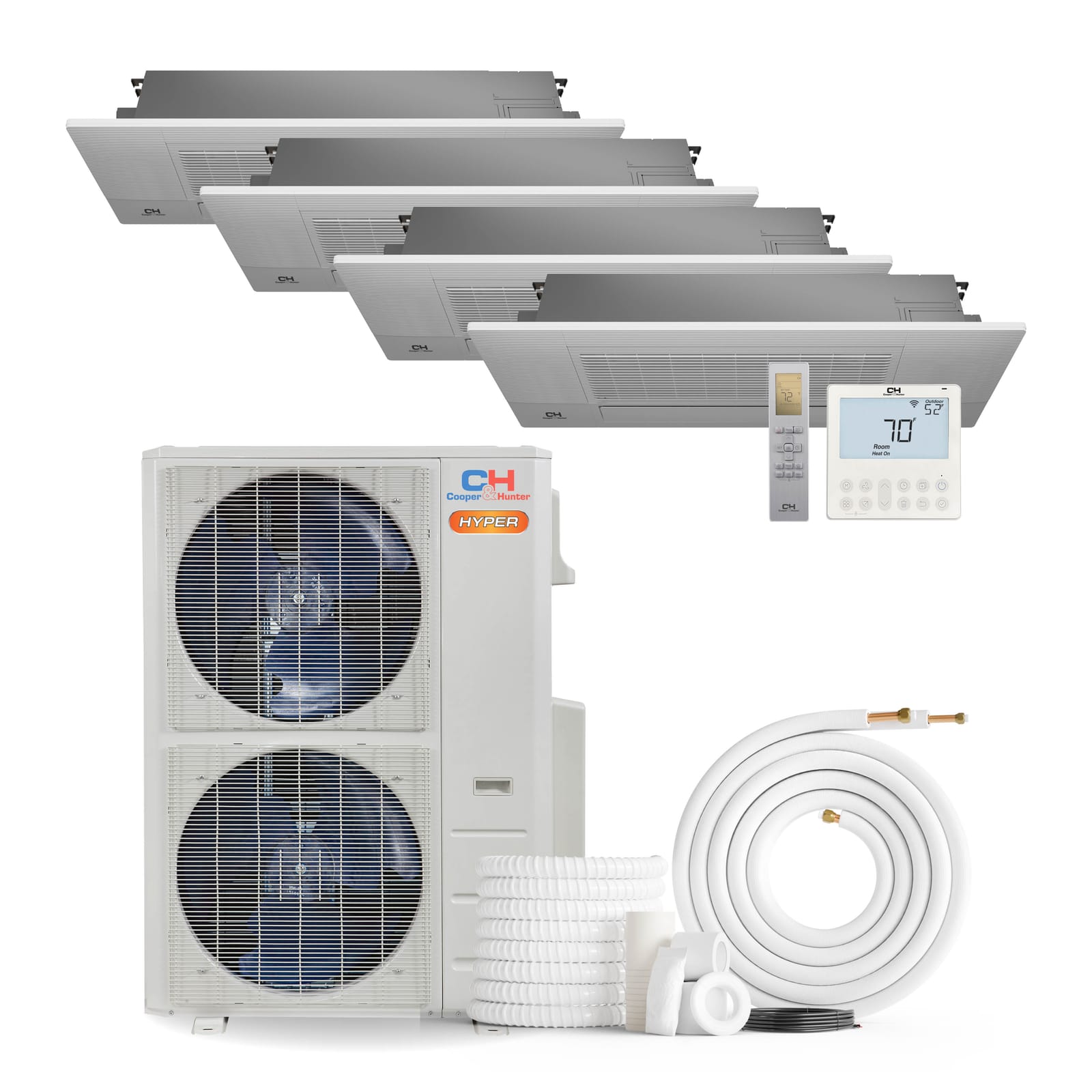

Package contents

IN THE BOX

Everything included with this system

  1. Cooper & Hunter Hyper Heat 55,000 BTU Outdoor Condenser, 230V, R454B - Mini Split Air Conditioner Heat Pump

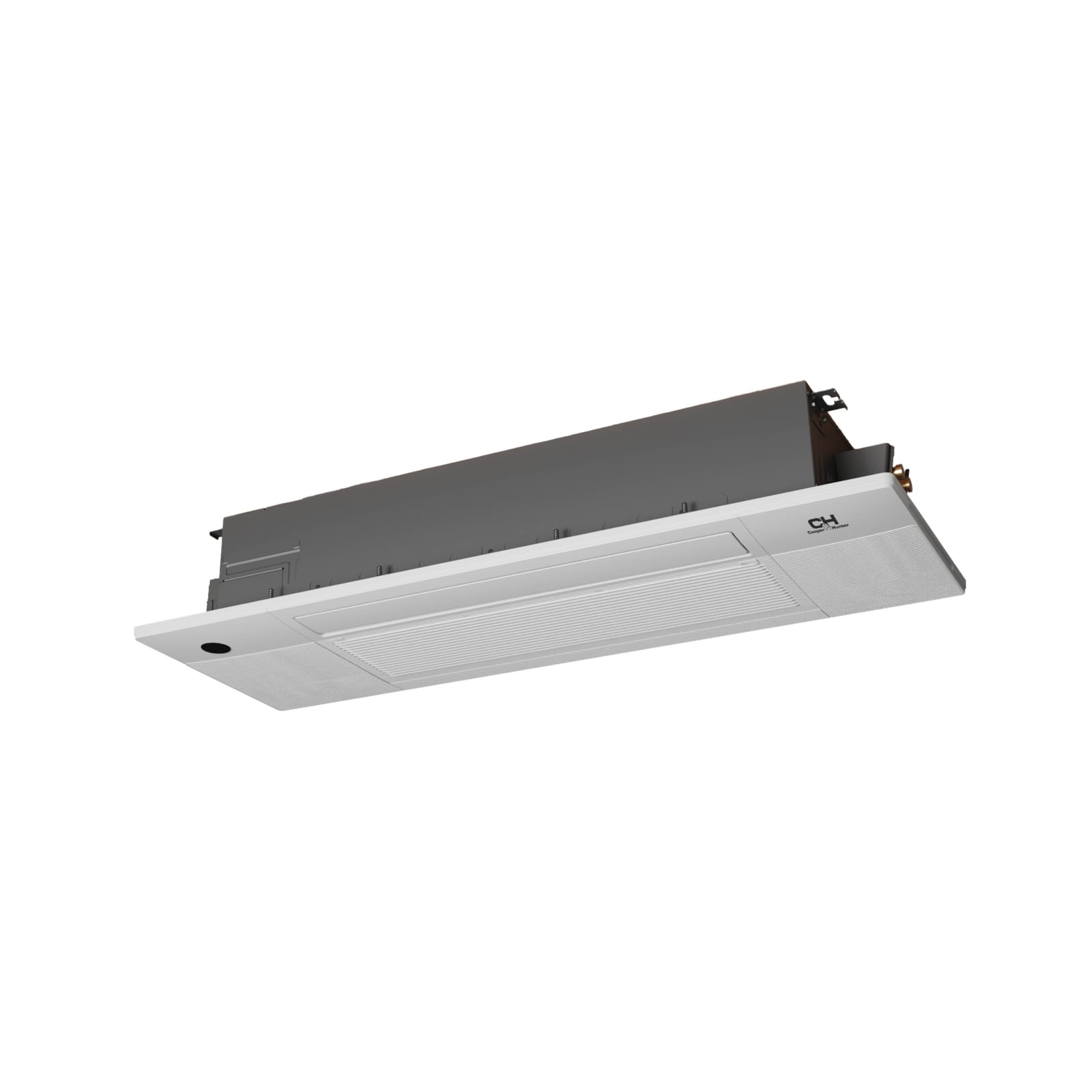

  2. Indoor 1 Way Cassette — CH-RSH06-12MCT1W × 4
7YEAR COMPRESSOR
WARRANTY

BACKED BY COOPER & HUNTER

Industry-leading protection on every unit

  • Compressor: 7-year coverage

    With product registration after professional installation.

  • Parts & components: 5-year coverage

    All major components and refrigerant circuit parts.

Technical Specifications

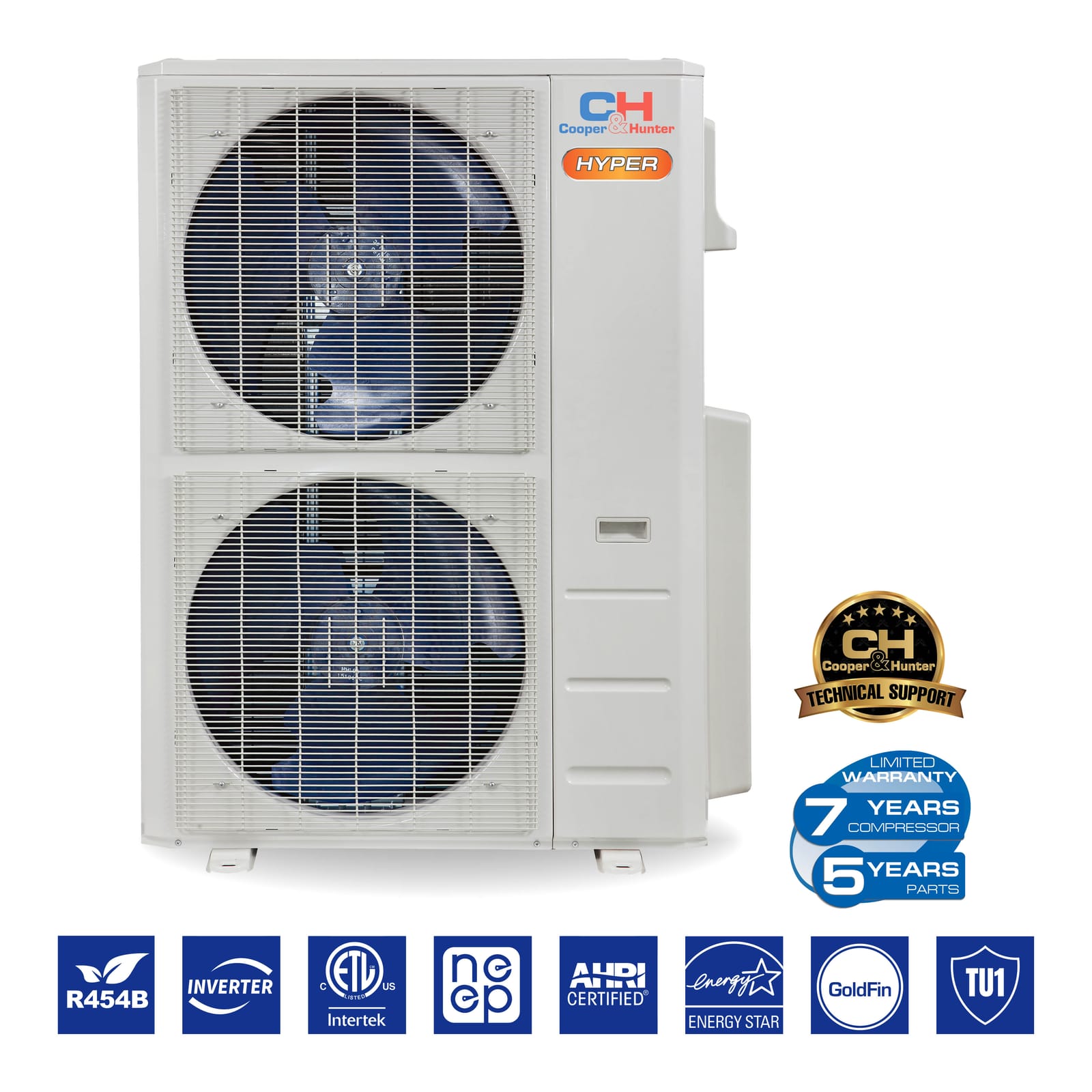

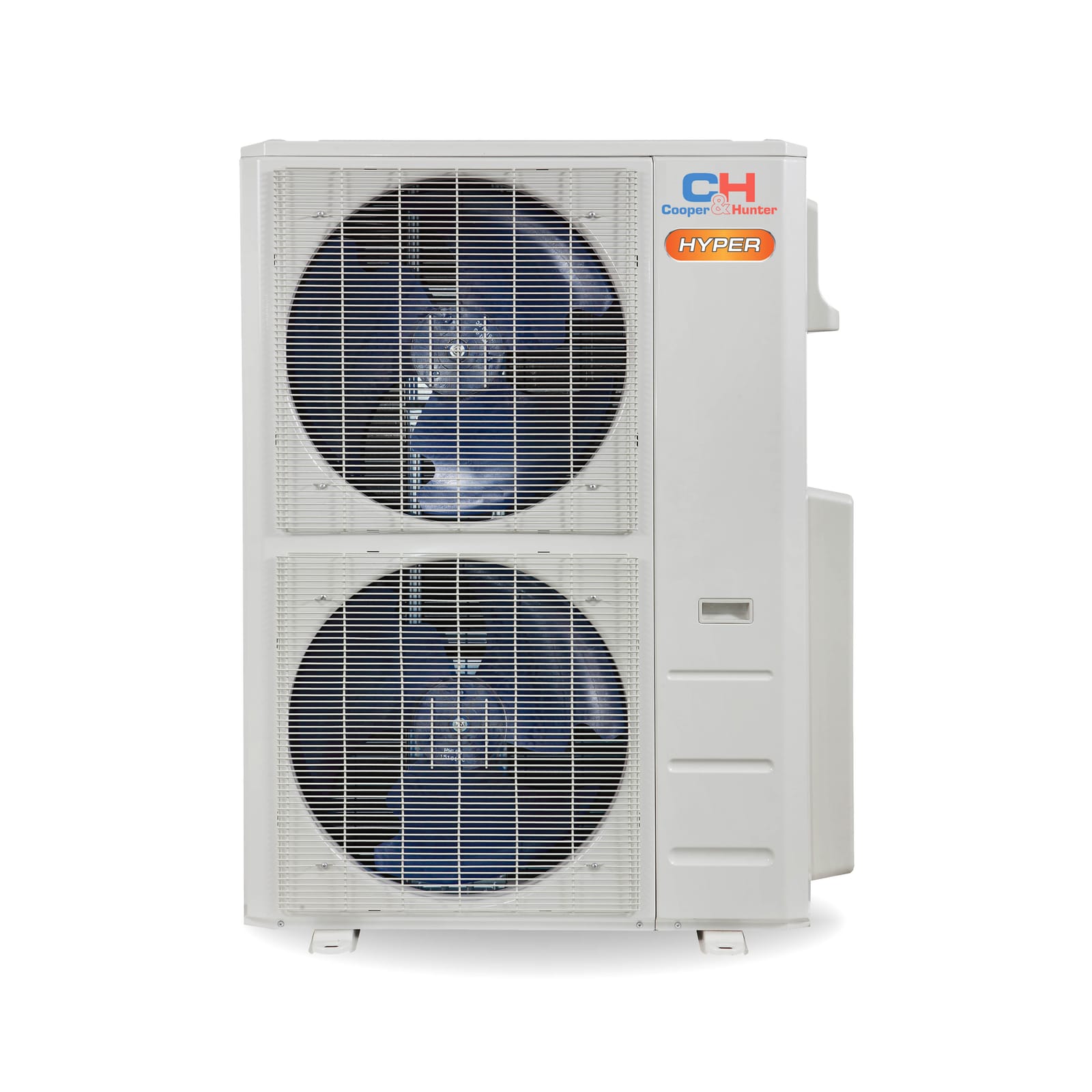

Outdoor Unit Specs— CH-RHP55M-230VO

Outdoor Unit — CH-RHP55M-230VO
ModelCH-RHP55M-230VO
Unit Dimensions (WxDxH)37.48 x 16.34 x 52.48 in
Net/Gross Weight246.47/276.68 lb
Packing Dimensions (WxDxH)43.11 x 19.49 x 58.27 in
Power Supply208-230V, 1Ph, 60Hz
Maximum Fuse Size45 A
Min. Circuit Ampacity43 A
Copper Line Size (Liquid/Gas)6x1/4" - 4x3/8"+2x1/2"
Noise Level65 dB
Airflow4,502.8 CFM
Dehumidification5.29 pt/h

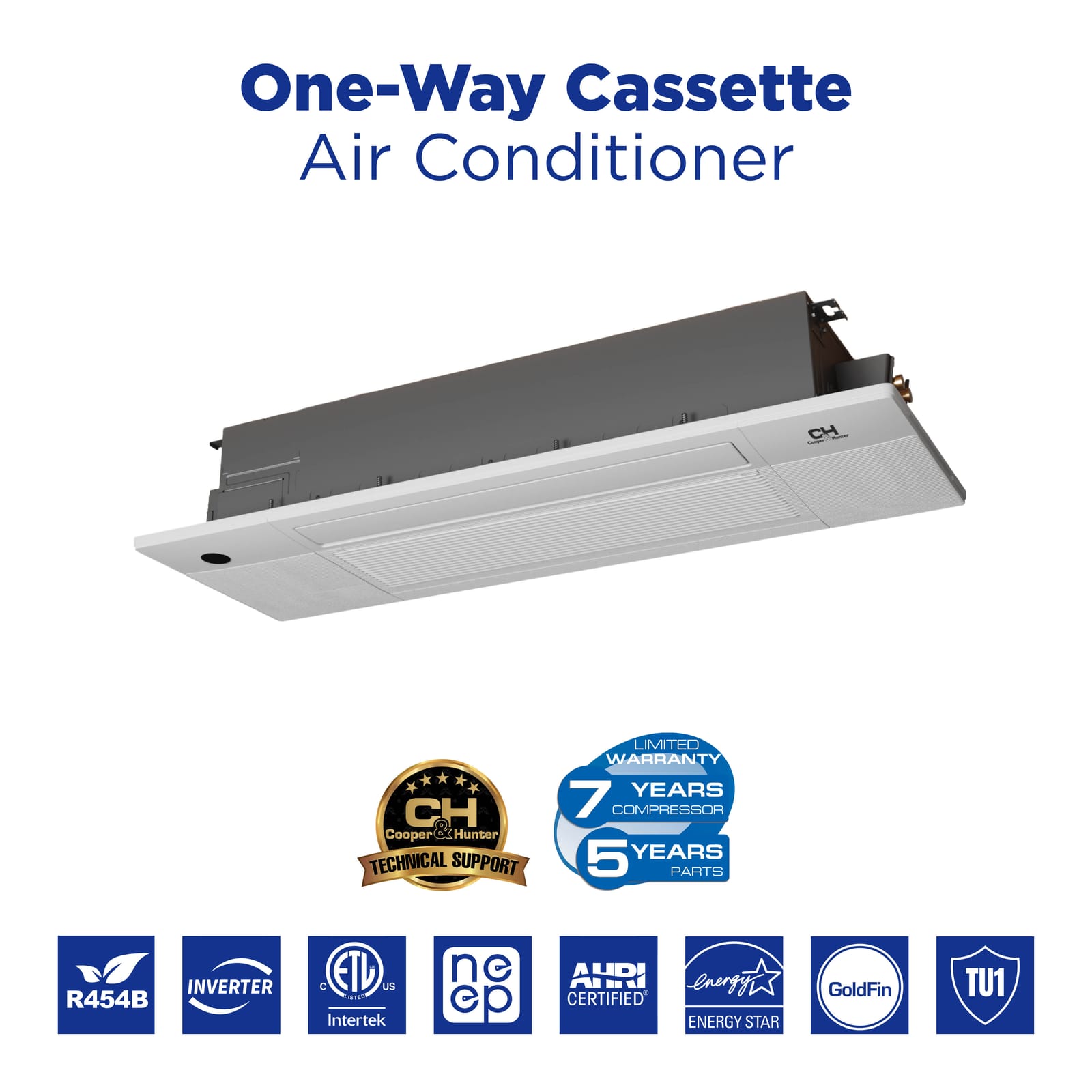

Indoor Unit Specs— CH-RSH06-12MCT1W

Indoor Unit — CH-RSH06-12MCT1W
ModelCH-RSH06-12MCT1W
Unit Dimensions (WxDxH)50.31 x 13.19 x 8.98 in
Net/Gross Weight45.19/82.45 lb
Packing Dimensions (WxDxH)57.60 x 22.48 x 22.64 in
Power Supply208-230V, 1Ph, 60Hz
Maximum Fuse Size15 A
Min. Circuit Ampacity3 A
Copper Line Size (Liquid/Gas)1/4"/3/8"
Noise Level (Hi/Med/Lo)41/37/33 dB
Dehumidification3.57 pt/h
Drain Pipe Diameter3/4"
Controllerwire controller + remote controller available

System Specs

System
Cooling — Rated Capacity (Range)51,000 Btu/h (19,000–59,000)
Heating at 47°F — Rated Capacity (Range)55,000 Btu/h (20,000–59,000)
Rated Heating at 5°F47,000 Btu/h
SEER2 / EER222.2 / 12
HSPF4 / HSPF5 / COP (47°F)10.5 / 8.5 / 3.5
Outdoor Unit MCA / Max. Fuse39.5 A / 40 / 45 A
Max. Connectable Indoor Units6
Outdoor Noise Level65 dB(A)
Outdoor Unit Dimensions (W×D×H)37.48 × 16.34 × 52.48 in
Outdoor Unit Net / Gross Weight246.47 / 276.68 lbs
Refrigerant Type / ChargeR454B / 151.68 oz
Pre-charged Line Length150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe)
Max. Total Pipe Length / Max. to One Indoor262.4 ft / 114.8 ft
Max. Height Difference (Indoor–Outdoor / Between Indoors)49.2 ft / 33 ft
Operating Range — Cooling / Heating-22–122°F / -22–75°F outdoor ambient

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor Model

SpecificationCH-06MCT1W-230VICH-06MCT1W-W*CH-09MCT1W-230VICH-09MCT1W-W*CH-12MCT1W-230VICH-12MCT1W-W*CH-18MCT1W-230VICH-18MCT1W-W*CH-09MCT1W-230VICH-09MCT1W-W*CH-12MCT1W-230VICH-12MCT1W-W*CH-18MCT1W-230VICH-18MCT1W-W*
Power Supply (V, Ph, Hz)208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60
Cooling Rated Capacity (Btu/h)6,5009,00012,00016,7009,00012,00018,000
Heating Rated Capacity (Btu/h)7,10010,90012,50020,00011,00012,50019,000
Minimum Circuit Ampacity (MCA) (A)3333333
Max. Fuse (A)15151515151515
Indoor Air Flow (Turbo/Hi/Mi/Lo) (CFM)341/294/258/235341/294/258/235352/311/282/247400/351/300/207341/294/258/235353/312/282/247400/352/300/207
Indoor Noise Level (Hi/Mi/Lo) (dB(A))37.5/35.5/32.537.5/35.5/3138.5/37/32.544/40.5/3538/36/3340.5/38.5/34.544/41/34
Dimension (WxDxH) (inch)50.31x13.19x8.9850.31x13.19x8.9850.31x13.19x8.9850.31x13.19x8.9850.31x13.19x8.9850.31x13.19x8.9850.31x13.19x8.98
Packing (WxDxH) (inch)57.60x22.48x22.6457.60x22.48x22.6457.60x22.48x22.6457.60x22.48x22.6457.60x22.48x22.6457.60x22.48x22.6457.60x22.48x22.64
Net/Gross Weight (lbs.)43.87/81.3543.87/81.3545.19/82.8945.19/82.8943.87/81.3545.19/82.8945.19/82.89
Room Temperature Cooling (°F)60~9060~9060~9060~9060~9060~9060~90
Room Temperature Heating (°F)32~8632~8632~8632~8632~8632~8632~86
Liquid Side / Gas Side (inch)1/4" / 3/8"1/4" / 3/8"1/4" / 1/2"1/4" / 1/2"1/4" / 3/8"1/4" / 1/2"1/4" / 1/2"

Outdoor Regular

SpecificationCH-R18MES-230VOCH-R28MES-230VOCH-R36MES-230VOCH-R48MES-230VOCH-R60MES-230VO
Power Supply (V, Ph, Hz)208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60
Voltage Range (V)187-253187-253187-253187-253187-253
Cooling Rated Capacity (range) (Btu/h)5,400~21,6007,200~32,0009,000~42,00012,000~55,00019,000~62,000
Cooling Rated Current (A)69.213.516.626.2
EER214131212.510
SEER225.125242422
Heating Rated Capacity (range) (Btu/h)5,700~21,6008,400~29,00010,000~42,50013,000~53,00020,000~60,000
Heating Rated Current (A)6.89.21416.321
Heating at 47°F COP (W/W)3.83.83.53.83.7
HSPF49.89.59.510.39.5
HSPF57.87787.4
Heating at 5°F Rated Capacity (Btu/h)13,50019,00026,00036,00039,000
Minimum Circuit Ampacity (Outdoor unit) (A)162330.54040
Max. Fuse (Outdoor unit) (A)2025354545
Outdoor Air Flow (Max) (CFM)1,765.82,130.72,148.44,502.84,502.8
Outdoor Noise Level (Sound Pressure) (dB(A))59.56164.56365
Dimension (W×D×H) (inch)35.04x13.46x26.5037.24x16.14x31.8937.24x16.14x31.8937.48x16.34x52.4837.48x16.34x52.48
Packing (W×D×H) (inch)40.55x17.24x29.5342.91x19.68x34.8442.91x19.68x34.8443.11x19.49x58.2743.11x19.49x58.27
Net/Gross Weight (lbs)100.53/109.35138.89/149.69168.87/180.12222.00/254.19237.88/270.28
Refrigerant Type/Charged (oz)R454B/61.73R454B/84.66R454B/120.63R454B/148.15R454B/151.68
Refrigerant Precharge (ft)75100125150150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft)0.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.32
Design Pressure (PSIG)550/340550/340550/340550/340550/340
Refrigerant Piping Liquid Side (inch)3 x 1/4"4 x 1/4"5 x 1/4"6 x 1/4"6 x 1/4"
Refrigerant Piping Gas Side (inch)3 x 3/8"3 x 3/8" + 1 x 1/2"4 x 3/8" + 1 x 1/2"4 x 3/8" + 2 x 1/2"4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft)196.8262.4262.4262.4262.4
Max. Length for One Indoor Unit (ft)98.4114.8114.8114.8114.8
Max. Height Difference in Level (ft)49.249.249.249.249.2
Max. Height Difference Between Indoor Units (ft)3333333333
Ambient Temperature Cooling (°F)-13~122-13~122-13~122-13~122-13~122
Ambient Temperature Heating (°F)-13~75-13~75-13~75-13~75-13~75
Certification: AHRI✔✔✔✔✔
Certification: Energy Star✔✔✔✔✔
Certification: NEEP✔✔✔✔✔
Certification: ETL✔✔✔✔✔

Outdoor Hyper

SpecificationCH-RVHP19M-230VOCH-RVHP28M-230VOCH-RVHP36M-230VOCH-RVHP48M-230VOCH-RVHP55M-230VO
Power Supply (V/Ph/Hz)208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60
Operating Range (V)187-253187-253187-253187-253187-253
Cooling Capacity (BTU/h)5,400~28,0007,200~37,0009,000~43,00012,000~57,00019,000~59,000
SEER25.69.51217.318.5
EER1512.5131212
IEER2523232322.2
Heating Capacity (BTU/h)5,700~27,0008,400~36,00010,000~44,00013,000~57,00020,000~59,000
HSPF26.59.111.517.320.1
COP43.843.73.5
SCOP10.410.510.71110.5
Power Input (W)8.58.58.598.5
Air Flow (CFM)19,00027,00036,00047,00047,000
Sound Level Indoor (dBA)17.530373739.5
Sound Level Outdoor (dBA)2035404040
Weight Indoor (lbs)2,130.72,148.43,037.24,502.84,502.8
Weight Outdoor (lbs)61.561656565
Dimensions Indoor (in)37.24x16.14x31.8937.24x16.14x31.8938.58x16.34x38.3937.48x16.34x52.4837.48x16.34x52.48
Dimensions Outdoor (in)42.91x19.68x34.8442.91x19.68x34.8445.08x19.68x42.5243.11x19.49x58.2743.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs)137.35/148.15168.43/179.67211.86/244.71246.47/276.68246.47/276.68
Refrigerant Type/Amount (lbs)R454B/78.31R454B/120.63R454B/134.04R454B/151.68R454B/151.68
Fuse Size (A)75100125150150
Wire Size (AWG)0.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.32
Control Voltage (V)550/340550/340550/340550/340550/340
Liquid Line3 x 1/4"4 x 1/4"5 x 1/4"6 x 1/4"6 x 1/4"
Suction Line3 x 3/8"3 x 3/8" + 1 x 1/2"3 x 3/8" + 2 x 1/2"4 x 3/8" + 2 x 1/2"4 x 3/8" + 2 x 1/2"
Max Line Length (ft)196.8262.4262.4262.4262.4
Max Elevation Diff (ft)98.4114.8114.8114.8114.8
Max Head Pressure (ft)49.249.249.249.249.2
Max Suction Pressure (ft)3333333333
Operating Range Cooling (°F)-22~122-22~122-22~122-22~122-22~122
Operating Range Heating (°F)-22~75-22~75-22~75-22~75-22~75
Feature 1✓✓✓✓✓
Feature 2✓✓✓✓✓
Feature 3✓✓✓✓✓
Feature 4✓✓✓✓✓

Which system is right for you?

Your selectionCooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpCooper & HunterCooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$10,828.82Cooper & Hunter Hyper 55,000 BTU 2-Zone 12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpCooper & HunterCooper & Hunter Hyper 55,000 BTU 2-Zone 12K+12K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$8,167.16Cooper & Hunter Hyper 55,000 BTU 3-Zone 6K+9K+9K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpCooper & HunterCooper & Hunter Hyper 55,000 BTU 3-Zone 6K+9K+9K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$9,497.99Cooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+6K+6K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpCooper & HunterCooper & Hunter Hyper 55,000 BTU 4-Zone 6K+6K+6K+6K One-Way Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$10,828.82
Cooling Capacity55,000 BTU/h55,000 BTU/h55,000 BTU/h55,000 BTU/h
SEER2 Rating22.222.222.222.2
RefrigerantR454BR454BR454BR454B
ZonesFour ZoneDual ZoneThree ZoneFour Zone
Voltage230V230V230V230V
Shop Now →Shop Now →Shop Now →

Frequently asked questions.

How many rooms can the Cooper & Hunter 55,000 BTU mini split cool?

It cools/heats four independent zones — suitable for four large rooms or areas.

Can I mix BTU sizes with the Cooper & Hunter multi-zone system?

Yes — the combined indoor BTU should not exceed the outdoor capacity of 55,000 BTU.

Do all zones run simultaneously?

Each zone operates independently; you can condition specific areas without affecting others.

What warranty does the Cooper & Hunter OLIVIA offer?

5-year parts and 7-year compressor warranty when registered and installed by a licensed HVAC professional.

Does it come pre-charged?

Yes — pre-charged with R454B refrigerant for up to 25 ft of line set.

Talk to a Sales Specialist

Not sure which system is right for your space? Our experts help with sizing and installation questions.

Mon – Fri, 8 AM – 5 PM (PST)

Get Support

Manufacturer Technical Support

Reach your brand's tech support team directly

Cooper & Hunter

(888) 201-2119

Olmo Comfort

(800) 977-0724

AC Bravo

(786) 953-6706

You may also like

The Cooper & Hunter Hyper Heat 4-Zone Mini Split System features four one-way cassette zones with a total nominal cooling capacity of 55,000 BTU and includes Wi-Fi control for remote operation. It operates efficiently with a SEER2 rating of 22.2, uses R454B refrigerant, and provides heating down to -22°F ambient temperatures.

Key Features

  • 4-zone Hyper Heat system — the CH-RHP55M-230VO outdoor unit supports up to 6 independently controlled indoor units
  • 55,000 BTU nominal capacity across 4 zones, each on its own remote
  • 22.2 SEER2 inverter efficiency
  • Hyper Heat — heats down to -22°F outdoor ambient, for cold climates
  • R454B refrigerant, factory pre-charged; Wi-Fi control

This System’s Zones

Zone Type Cooling (nominal)
1 One-Way Cassette 6,000 Btu/h
2 One-Way Cassette 6,000 Btu/h
3 One-Way Cassette 12,000 Btu/h
4 One-Way Cassette 12,000 Btu/h
Cart

Add $300.00 more for FREE shipping!

Your cart is empty

Looks like you haven't added anything yet.
