Cooper & Hunter Hyper 48,000 BTU 4-Zone 9k+12k+16k+16k Mini Floor Console, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
SEER2 24.0Heats & CoolsR454B
Cooper & Hunter7-Yr WarrantySKU: CH-RHP48M-230VO/M09MC+M12MC+M16MC+M16MC-NO
$7,713.34
As low as $643/mo withaffirm
Product specifications
- Voltage
- 230V
- SEER
- 24.0
- WiFi
- Included
- Zone
- Four Zone
- Type
- Mini Floor Consoles
- Freon
R454B
Choose Your Configuration
All Zones Installation Kit: No Installation Kit
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
1
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
Warranty Included
30-Day Returns
COOPER & HUNTER · MINI FLOOR CONSOLES
Built for year-round comfort
CH-RHP48M-230VO/M09MC+M12MC+M16MC+M16MC-NO
System Specs
| Cooling Capacity | 48,000 BTU/h |
|---|---|
| SEER2 | 24.0 |
| Voltage | 230V |
| Refrigerant | R454B |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 41/37.5/25.5 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 31.26 × 7.87 × 24.45 in | 32.85 / 41.89 lb | Remote controller |
Product Description
The Cooper & Hunter Hyper Heat 4-Zone Mini Split System features an outdoor unit model CH-RHP48M-230VO with a nominal total cooling capacity of 48,000 BTU, divided into four floor console zones (9,000+12,000+16,000+16,000 BTU) with built-in Wi-Fi control. It offers energy efficiency with a SEER2 rating of 24, operates down to -22°F ambient temperatures, and uses R454B refrigerant.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Auto mode
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

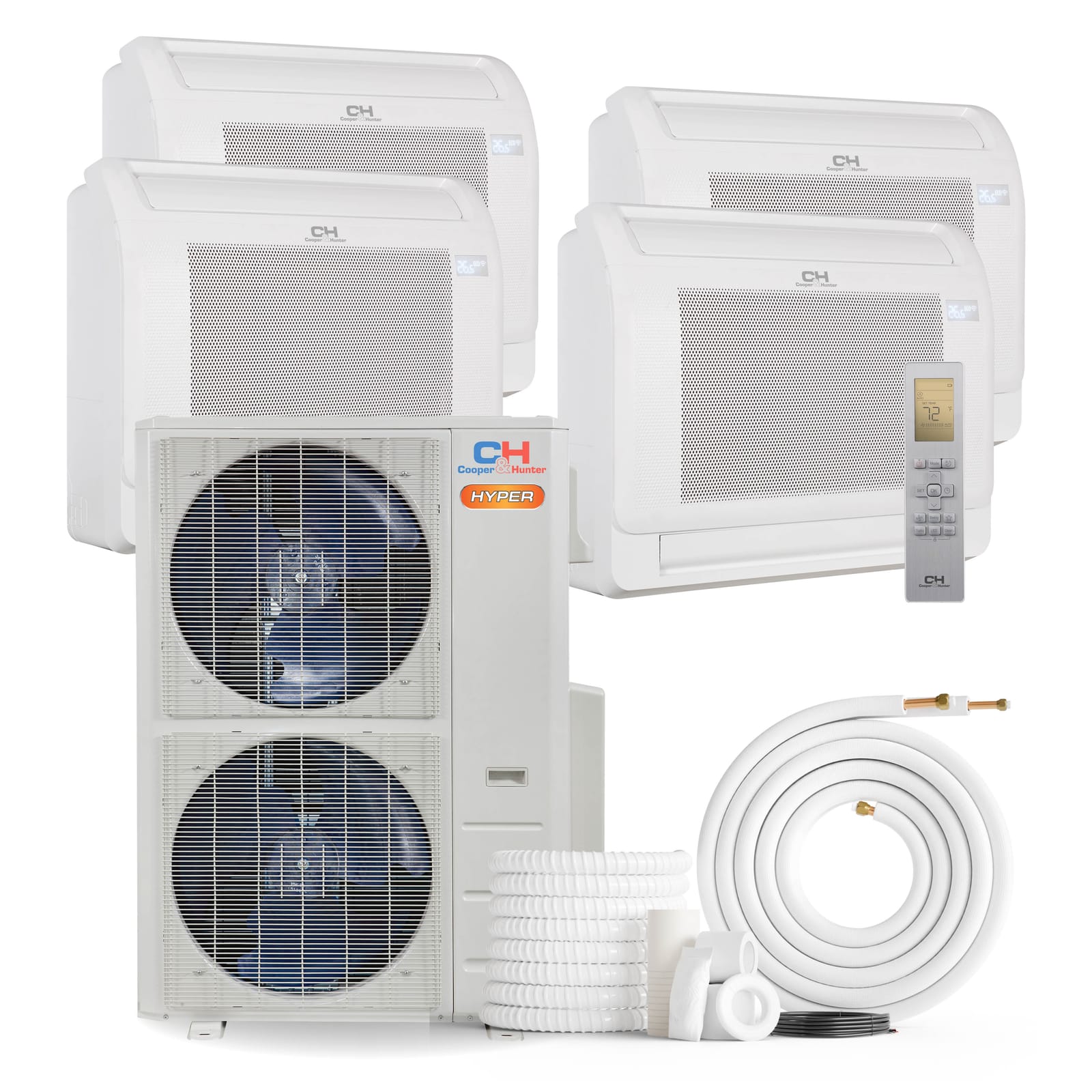

IN THE BOX
Everything included with this system

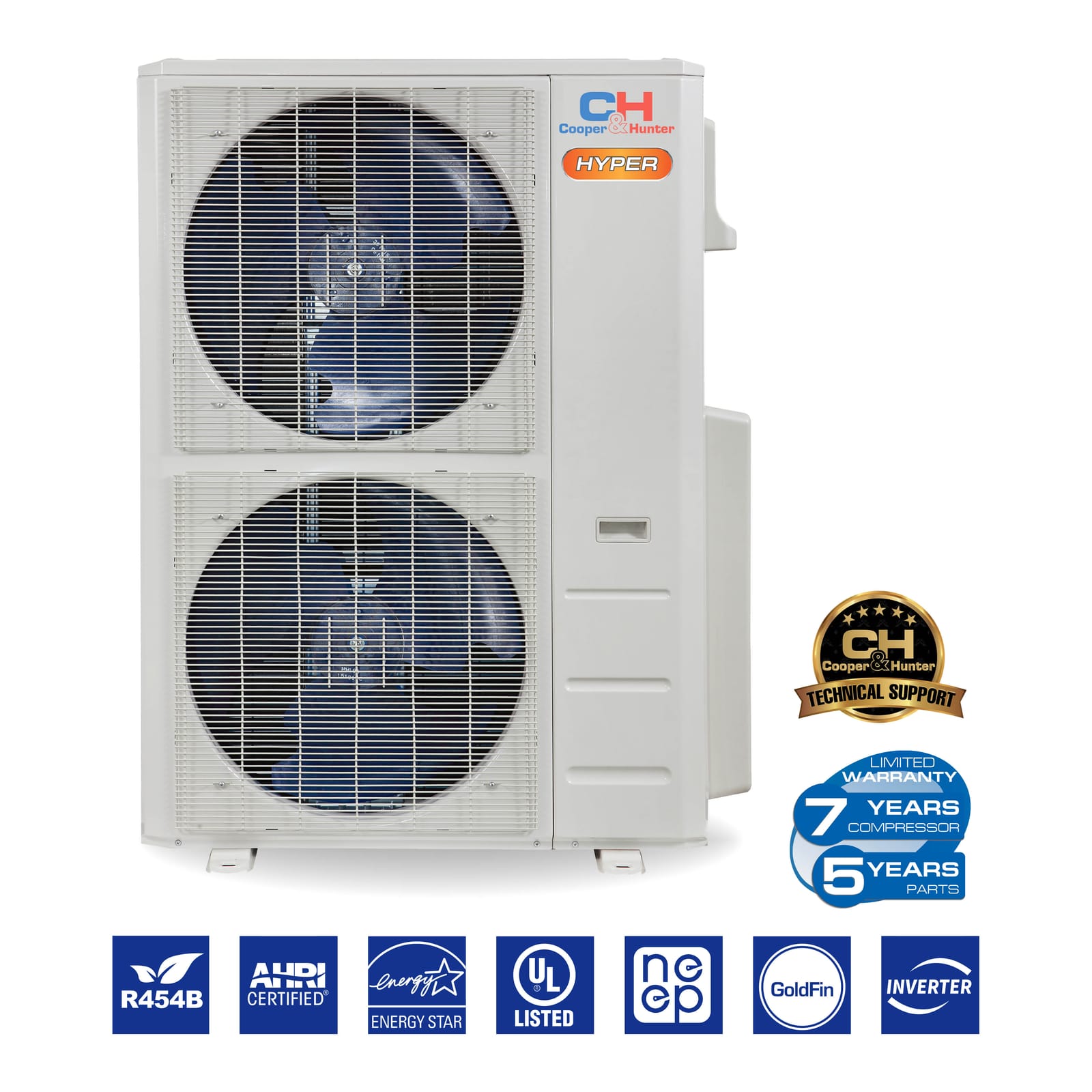

- Cooper & Hunter Hyper Heat 48,000 BTU Outdoor Condenser, 230V, R454B - Mini Split Air Conditioner Heat Pump
- Indoor Mini Floor Consoles — CH-RSH09MMC
- Indoor Mini Floor Consoles — CH-RSH12MMC
- Indoor Mini Floor Consoles — CH-RSH16MMC × 2
7YEAR COMPRESSOR
WARRANTY
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— CH-RHP48M-230VO
| Model | CH-RHP48M-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 37.48 x 16.34 x 52.48 in |
| Net/Gross Weight | 246.47/276.68 lb |
| Packing Dimensions (WxDxH) | 43.11 x 19.49 x 58.27 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 45 A |
| Min. Circuit Ampacity | 43 A |
| Copper Line Size (Liquid/Gas) | 6x1/4" - 4x3/8"+2x1/2" |
| Noise Level | 65 dB |
| Airflow | 4,502.8 CFM |
| Dehumidification | 9.30 pt/h |
Indoor Unit Specs
| Model | CH-RSH09MMC | CH-RSH12MMC | CH-RSH16MMC |
|---|---|---|---|
| Unit Dimensions (WxDxH) | 31.26 x 7.87 x 24.45 in | 31.26 x 7.87 x 24.45 in | 31.26 x 7.87 x 24.45 in |
| Net/Gross Weight | 32.85/41.89 lb | 32.85/41.89 lb | 32.85/41.89 lb |
| Packing Dimensions (WxDxH) | 34.06 x 11.02 x 28.31 in | 34.06 x 11.02 x 28.31 in | 34.06 x 11.02 x 28.31 in |
| Power Supply | 208-230V, 1Ph, 60Hz | 208-230V, 1Ph, 60Hz | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A | 15 A | 15 A |
| Min. Circuit Ampacity | 3 A | 3 A | 3 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" | 1/4"/1/2" | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 41/37.5/25.5 dB | 40.5/37/26.5 dB | 43.5/40.5/30.5 dB |
| Dehumidification | 1.71 pt/h | 3.13 pt/h | 4.61 pt/h |
| Drain Pipe Diameter | 5/8" | 5/8" | 5/8" |
| Controller | remote controller | remote controller | remote controller |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor model
| Specification | CH-RSH09MMC | CH-RSH12MMC | CH-RSH16MMC |
|---|---|---|---|
| Power Supply - Rated (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Rated Capacity - Cooling (Btu/h) | 9,000 | 12,000 | 16,000 |
| Rated Capacity - Heating (Btu/h) | 9,000 | 12,000 | 17,000 |
| Minimum Circuit Ampacity (MCA) (A) | 3 | 3 | 3 |
| Max. Fuse (A) | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM) | 441.4/376.7/323.7/188.4/129.5 | 441.4/376.7/323.7/188.4/129.5 | 500.3/441.4/382.6/323.7/206.0 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A)) | 45/41.0/37.5/25.5/22 | 44/40.5/37.0/26.5/24 | 47/43.5/40.5/30.5/25.5 |
| Dimension (W×D×H) (inch) | 31.26×7.87×24.45 | 31.26×7.87×24.45 | 31.26×7.87×24.45 |
| Packing (W×D×H) (inch) | 34.06×11.02×28.31 | 34.06×11.02×28.31 | 34.06×11.02×28.31 |
| Net/Gross Weight (lbs.) | 32.85/41.89 | 32.85/41.89 | 32.85/41.89 |
| Room Temperature - Cooling (°F) | 60~90 | 60~90 | 60~90 |
| Room Temperature - Heating (°F) | 32~86 | 32~86 | 32~86 |
| Refrigerant Piping (Liquid Side/Gas Side) (inch) | 1/4”/3/8” | 1/4”/3/8” | 1/4”/1/2” |
Outdoor Regular
| Specification | CH-R18MES-230VO | CH-R28MES-230VO | CH-R36MES-230VO | CH-R48MES-230VO | CH-R60MES-230VO |
|---|---|---|---|---|---|
| Power Supply (V, Ph, Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Voltage Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Cooling Rated Capacity (range) (Btu/h) | 5,400~21,600 | 7,200~32,000 | 9,000~42,000 | 12,000~55,000 | 19,000~62,000 |
| Cooling Rated Current (A) | 6 | 9.2 | 13.5 | 16.6 | 26.2 |
| EER2 | 14 | 13 | 12 | 12.5 | 10 |
| SEER2 | 25.1 | 25 | 24 | 24 | 22 |
| Heating Rated Capacity (range) (Btu/h) | 5,700~21,600 | 8,400~29,000 | 10,000~42,500 | 13,000~53,000 | 20,000~60,000 |
| Heating Rated Current (A) | 6.8 | 9.2 | 14 | 16.3 | 21 |
| Heating at 47°F COP (W/W) | 3.8 | 3.8 | 3.5 | 3.8 | 3.7 |
| HSPF4 | 9.8 | 9.5 | 9.5 | 10.3 | 9.5 |
| HSPF5 | 7.8 | 7 | 7 | 8 | 7.4 |
| Heating at 5°F Rated Capacity (Btu/h) | 13,500 | 19,000 | 26,000 | 36,000 | 39,000 |
| Minimum Circuit Ampacity (Outdoor unit) (A) | 16 | 23 | 30.5 | 40 | 40 |
| Max. Fuse (Outdoor unit) (A) | 20 | 25 | 35 | 45 | 45 |
| Outdoor Air Flow (Max) (CFM) | 1,765.8 | 2,130.7 | 2,148.4 | 4,502.8 | 4,502.8 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 59.5 | 61 | 64.5 | 63 | 65 |
| Dimension (W×D×H) (inch) | 35.04x13.46x26.50 | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Packing (W×D×H) (inch) | 40.55x17.24x29.53 | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 43.11x19.49x58.27 | 43.11x19.49x58.27 |
| Net/Gross Weight (lbs) | 100.53/109.35 | 138.89/149.69 | 168.87/180.12 | 222.00/254.19 | 237.88/270.28 |
| Refrigerant Type/Charged (oz) | R454B/61.73 | R454B/84.66 | R454B/120.63 | R454B/148.15 | R454B/151.68 |
| Refrigerant Precharge (ft) | 75 | 100 | 125 | 150 | 150 |
| Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft) | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side (inch) | 3 x 1/4" | 4 x 1/4" | 5 x 1/4" | 6 x 1/4" | 6 x 1/4" |
| Refrigerant Piping Gas Side (inch) | 3 x 3/8" | 3 x 3/8" + 1 x 1/2" | 4 x 3/8" + 1 x 1/2" | 4 x 3/8" + 2 x 1/2" | 4 x 3/8" + 2 x 1/2" |
| Max. Pipe Length (ft) | 196.8 | 262.4 | 262.4 | 262.4 | 262.4 |
| Max. Length for One Indoor Unit (ft) | 98.4 | 114.8 | 114.8 | 114.8 | 114.8 |
| Max. Height Difference in Level (ft) | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 |
| Max. Height Difference Between Indoor Units (ft) | 33 | 33 | 33 | 33 | 33 |
| Ambient Temperature Cooling (°F) | -13~122 | -13~122 | -13~122 | -13~122 | -13~122 |
| Ambient Temperature Heating (°F) | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 |
| Certification: AHRI | ✔ | ✔ | ✔ | ✔ | ✔ |
| Certification: Energy Star | ✔ | ✔ | ✔ | ✔ | ✔ |
| Certification: NEEP | ✔ | ✔ | ✔ | ✔ | ✔ |
| Certification: ETL | ✔ | ✔ | ✔ | ✔ | ✔ |
Outdoor Hyper
| Specification | CH-RVHP19M-230VO | CH-RVHP28M-230VO | CH-RVHP36M-230VO | CH-RVHP48M-230VO | CH-RVHP55M-230VO |
|---|---|---|---|---|---|
| Power Supply (V/Ph/Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Operating Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Cooling Capacity (BTU/h) | 5,400~28,000 | 7,200~37,000 | 9,000~43,000 | 12,000~57,000 | 19,000~59,000 |
| SEER2 | 5.6 | 9.5 | 12 | 17.3 | 18.5 |
| EER | 15 | 12.5 | 13 | 12 | 12 |
| IEER | 25 | 23 | 23 | 23 | 22.2 |
| Heating Capacity (BTU/h) | 5,700~27,000 | 8,400~36,000 | 10,000~44,000 | 13,000~57,000 | 20,000~59,000 |
| HSPF2 | 6.5 | 9.1 | 11.5 | 17.3 | 20.1 |
| COP | 4 | 3.8 | 4 | 3.7 | 3.5 |
| SCOP | 10.4 | 10.5 | 10.7 | 11 | 10.5 |
| Power Input (W) | 8.5 | 8.5 | 8.5 | 9 | 8.5 |
| Air Flow (CFM) | 19,000 | 27,000 | 36,000 | 47,000 | 47,000 |
| Sound Level Indoor (dBA) | 17.5 | 30 | 37 | 37 | 39.5 |
| Sound Level Outdoor (dBA) | 20 | 35 | 40 | 40 | 40 |
| Weight Indoor (lbs) | 2,130.7 | 2,148.4 | 3,037.2 | 4,502.8 | 4,502.8 |
| Weight Outdoor (lbs) | 61.5 | 61 | 65 | 65 | 65 |
| Dimensions Indoor (in) | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 38.58x16.34x38.39 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Dimensions Outdoor (in) | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 45.08x19.68x42.52 | 43.11x19.49x58.27 | 43.11x19.49x58.27 |
| Shipping Weight Indoor/Outdoor (lbs) | 137.35/148.15 | 168.43/179.67 | 211.86/244.71 | 246.47/276.68 | 246.47/276.68 |
| Refrigerant Type/Amount (lbs) | R454B/78.31 | R454B/120.63 | R454B/134.04 | R454B/151.68 | R454B/151.68 |
| Fuse Size (A) | 75 | 100 | 125 | 150 | 150 |
| Wire Size (AWG) | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 |
| Control Voltage (V) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Liquid Line | 3 x 1/4" | 4 x 1/4" | 5 x 1/4" | 6 x 1/4" | 6 x 1/4" |
| Suction Line | 3 x 3/8" | 3 x 3/8" + 1 x 1/2" | 3 x 3/8" + 2 x 1/2" | 4 x 3/8" + 2 x 1/2" | 4 x 3/8" + 2 x 1/2" |
| Max Line Length (ft) | 196.8 | 262.4 | 262.4 | 262.4 | 262.4 |
| Max Elevation Diff (ft) | 98.4 | 114.8 | 114.8 | 114.8 | 114.8 |
| Max Head Pressure (ft) | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 |
| Max Suction Pressure (ft) | 33 | 33 | 33 | 33 | 33 |
| Operating Range Cooling (°F) | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 |
| Operating Range Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| Feature 1 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Feature 2 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Feature 3 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Feature 4 | ✓ | ✓ | ✓ | ✓ | ✓ |
Which system is right for you?
| Your selectionCooper & HunterCooper & Hunter Hyper 48,000 BTU 4-Zone 9k+12k+16k+16k Mini Floor Console, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$7,713.34 |  Cooper & HunterCooper & Hunter Hyper 48,000 BTU 2-Zone 12k+12k Mini Floor Console, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$6,214.30 |  Cooper & HunterCooper & Hunter Hyper 48,000 BTU 3-Zone 9k+9k+9k Mini Floor Console, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$6,811.90 |  Cooper & HunterCooper & Hunter Hyper 48,000 BTU 4-Zone 9k+9k+9k+9k Mini Floor Console, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$7,452.70 | |
|---|---|---|---|---|
| Cooling Capacity | 48,000 BTU/h | 48,000 BTU/h | 48,000 BTU/h | 48,000 BTU/h |
| SEER2 Rating | 24.0 | 24.0 | 24.0 | 24.0 |
| Refrigerant | R454B | R454B | R454B | R454B |
| Zones | Four Zone | Dual Zone | Three Zone | Four Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can this system heat and cool?
This is a 4-zone Hyper Heat system with four 9,000 / 12,000 / 16,000 / 16,000 BTU floor console indoor units, all controlled from one installation kit selection, conditioning 4 separate rooms at once.
How well does it heat in cold weather?
It's a Hyper Heat inverter heat pump rated to keep heating down to -22°F outdoor ambient — built for cold-climate winters.
Does it have Wi-Fi?
Yes — a Wi-Fi Smart Kit is built in on each Floor Console indoor unit for app control.
What refrigerant does it use?
R454B — a next-generation lower-GWP (A2L) refrigerant, factory pre-charged.
What is the warranty?
A 7-year compressor / 5-year parts limited warranty from Cooper & Hunter. Register within 60 days of professional installation to keep it valid.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 18.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 6,000 BTU Single Zone Slim Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 22.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia 6,000 BTU Single Zone One-Way Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 24.6HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 9,000 BTU Single Zone Mini Floor Console, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 18.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 9,000 BTU Single Zone Slim Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
The Cooper & Hunter Hyper Heat 4-Zone Mini Split System features an outdoor unit model CH-RHP48M-230VO with a nominal total cooling capacity of 48,000 BTU, divided into four floor console zones (9,000+12,000+16,000+16,000 BTU) with built-in Wi-Fi control. It offers energy efficiency with a SEER2 rating of 24, operates down to -22°F ambient temperatures, and uses R454B refrigerant.
Key Features
- 4-zone Hyper Heat system — the CH-RHP48M-230VO outdoor unit supports multiple independently controlled indoor units
- 9,000+12,000+16,000+16,000 BTU floor console zones, each on its own remote
- 24 SEER2 inverter efficiency
- Hyper Heat — heats down to -22°F outdoor ambient, for cold climates
- Wi-Fi Smart Kit built in — Cooper & Hunter app control included with each indoor unit
- R454B refrigerant, factory pre-charged
This System’s Zones
| Zone | Type | Cooling (nominal) |
| 1 | Floor Console | 9,000 Btu/h |
| 2 | Floor Console | 12,000 Btu/h |
| 3 | Floor Console | 16,000 Btu/h |
| 4 | Floor Console | 16,000 Btu/h |
