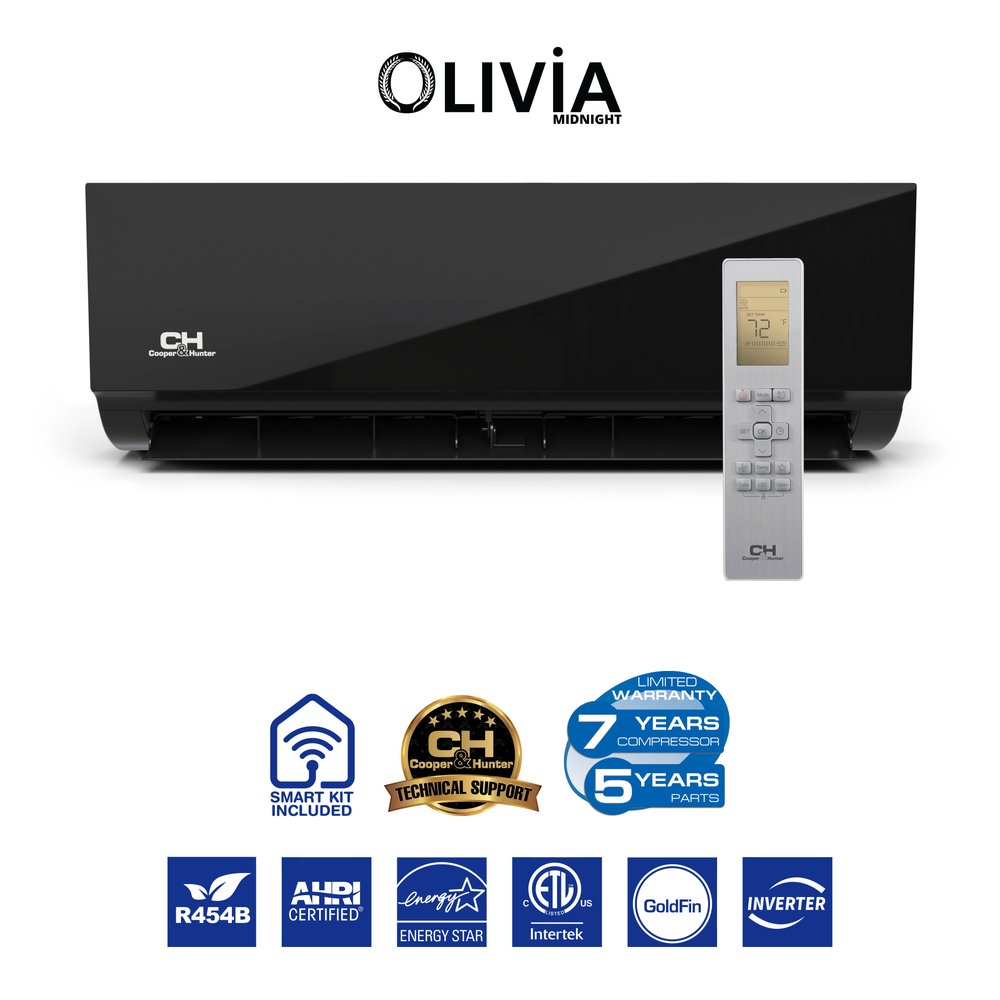

Cooper & Hunter Olivia Midnight 18,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-RES18-230VO18OLV
Product specifications
- Voltage
- 230V
- SEER
- 24.0
- WiFi
- Included
- Zone
- Single Zone
- Type
- Wall Mount
- Freon
R454B
Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · OLIVIA MIDNIGHT
Built for year-round comfort
CH-RES18-230VO18OLV
System Specs
| Cooling Capacity | 18,000 BTU/h |
|---|---|
| Heating Capacity | 7,600–22,000 BTU/h |
| SEER2 | 24.0 |
| EER2 | 13.5 |
| Voltage | 230V |
| Refrigerant | R454B |
|---|---|

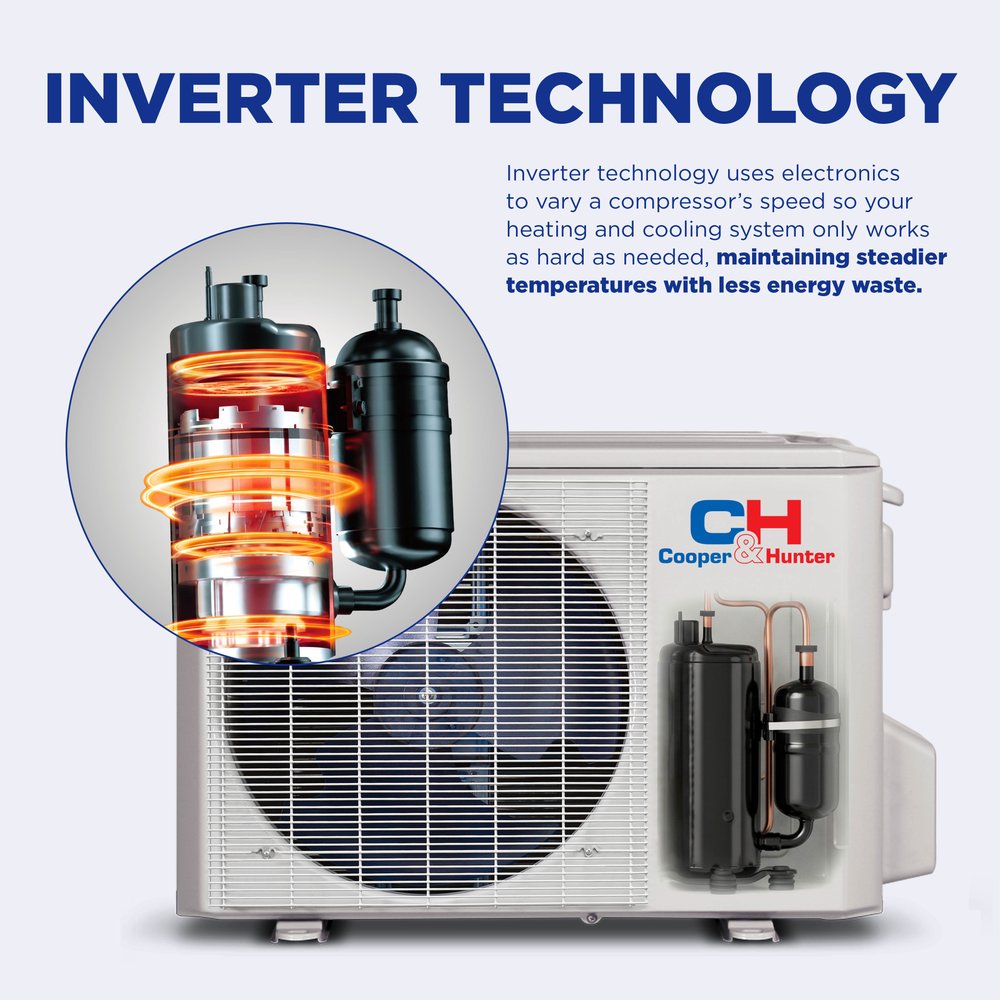

| Compressor | Inverter |

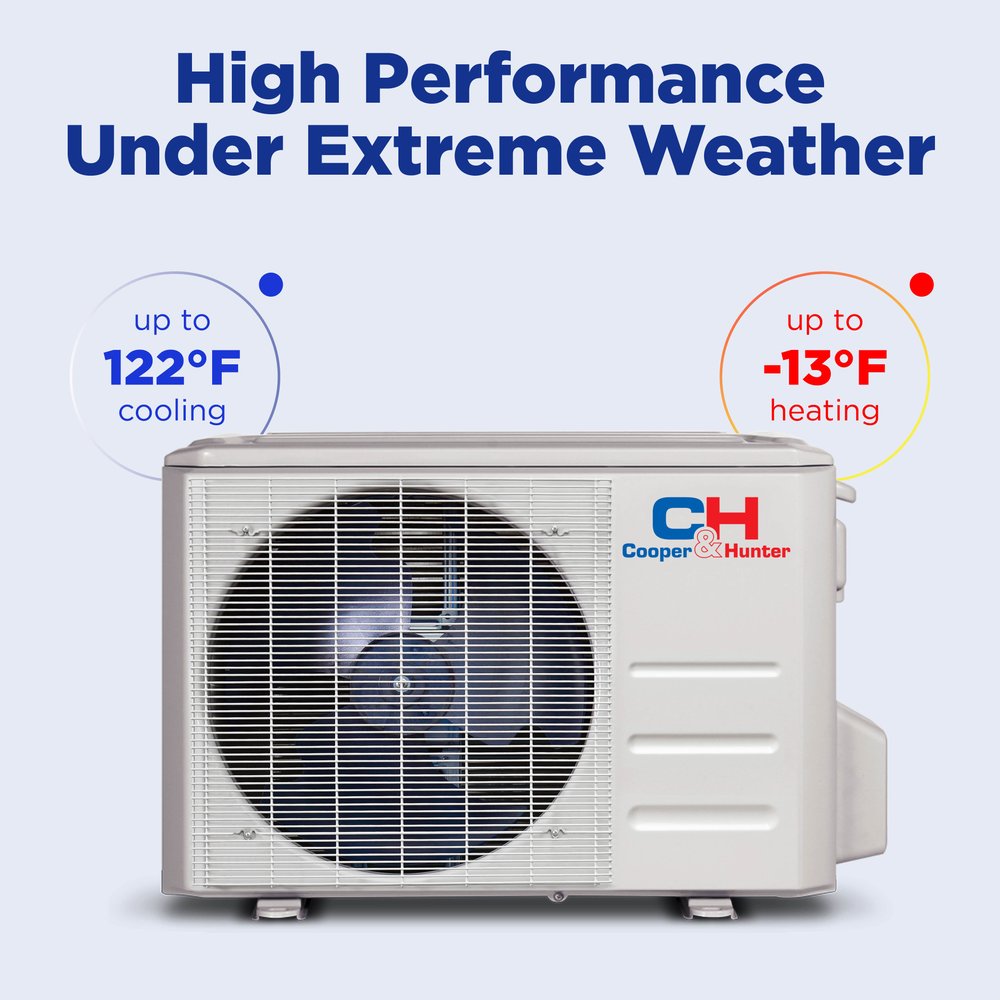

| Climate Range | -13–122°F / -13–75°F outdoor ambient |
| Sound Level (indoor) | 45.5/41/24.5 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 42.64 × 9.61 × 13.23 in | 29.54 / 37.48 lb | RG10K-exclusive remote |
Olivia Midnight Series Description
The Cooper & Hunter Olivia Midnight 18,000 BTU (1.5 Ton) wall mount mini split is a single-zone ductless air conditioner and heat pump on next-generation R454B refrigerant. This is the Olivia Midnight Edition with a jet-black casing — the same engineering as the classic Olivia. The slim wall-mounted air handler suits bedrooms, living rooms, home offices, additions, and garages. With a 24.0 SEER2 inverter system on 208/230V, it cools and heats spaces up to approximately 1,000 sq ft and keeps heating in outdoor temperatures as low as -13°F. Wi-Fi control is built in.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

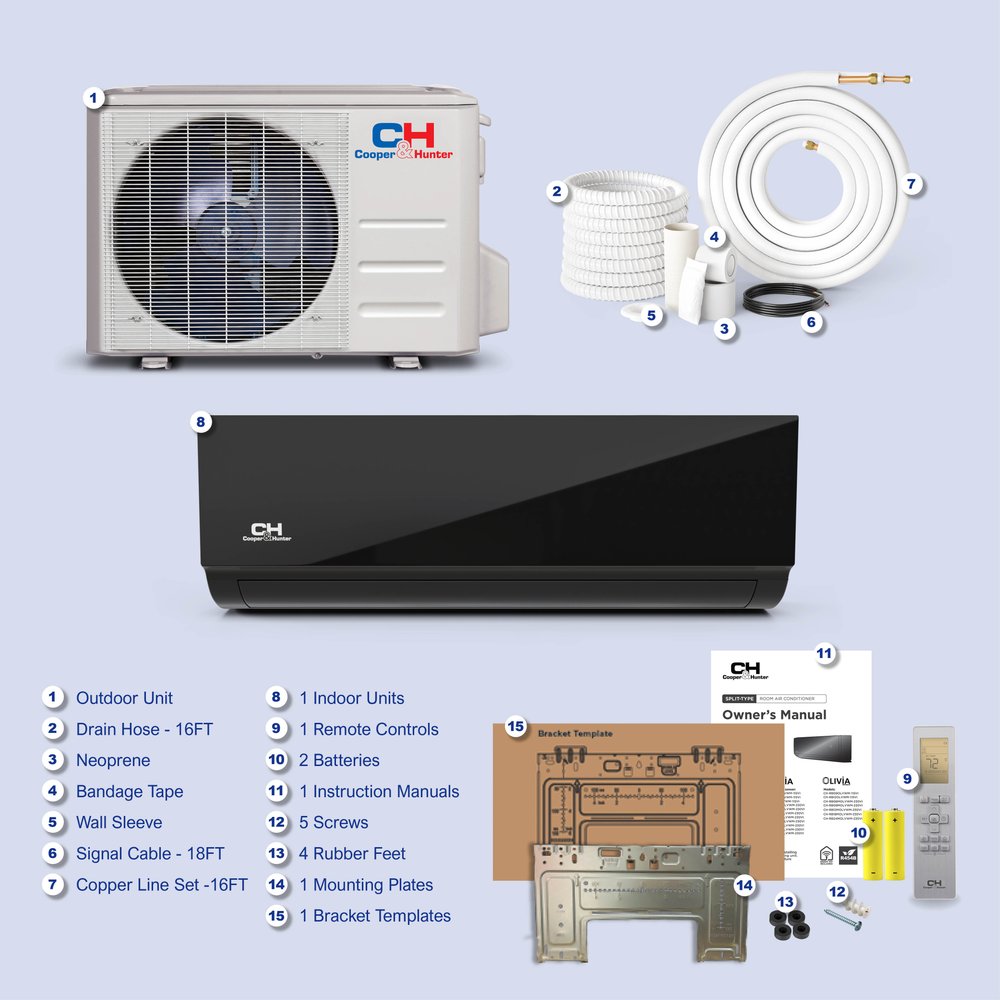

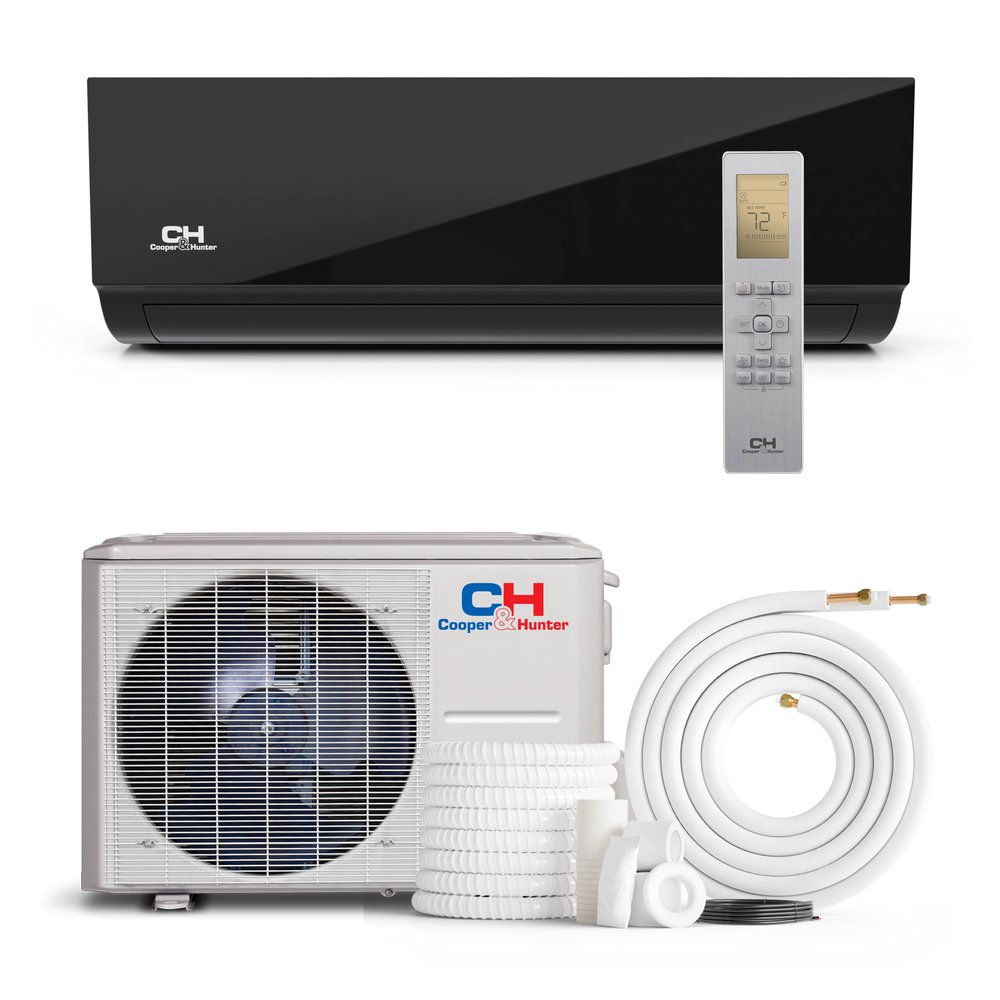

IN THE BOX
Everything included with this system
- Cooper & Hunter 18,000 BTU Outdoor Condenser, 230V, R454B - Single Zone Mini Split Air Conditioner Heat Pump

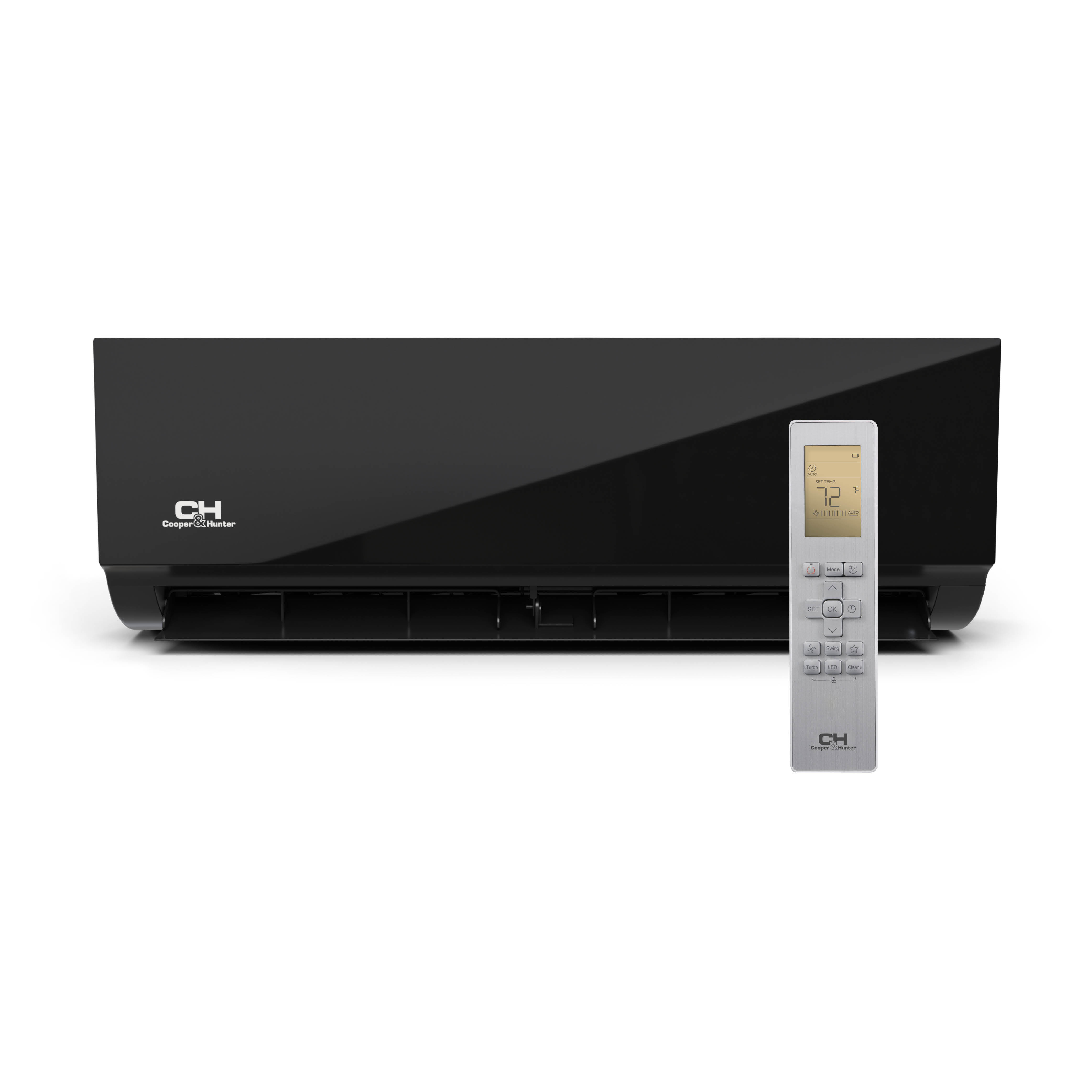

- Indoor Wall Mount — CH-RB18MOLVWM-230VI
- 16 ft Line Set
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications

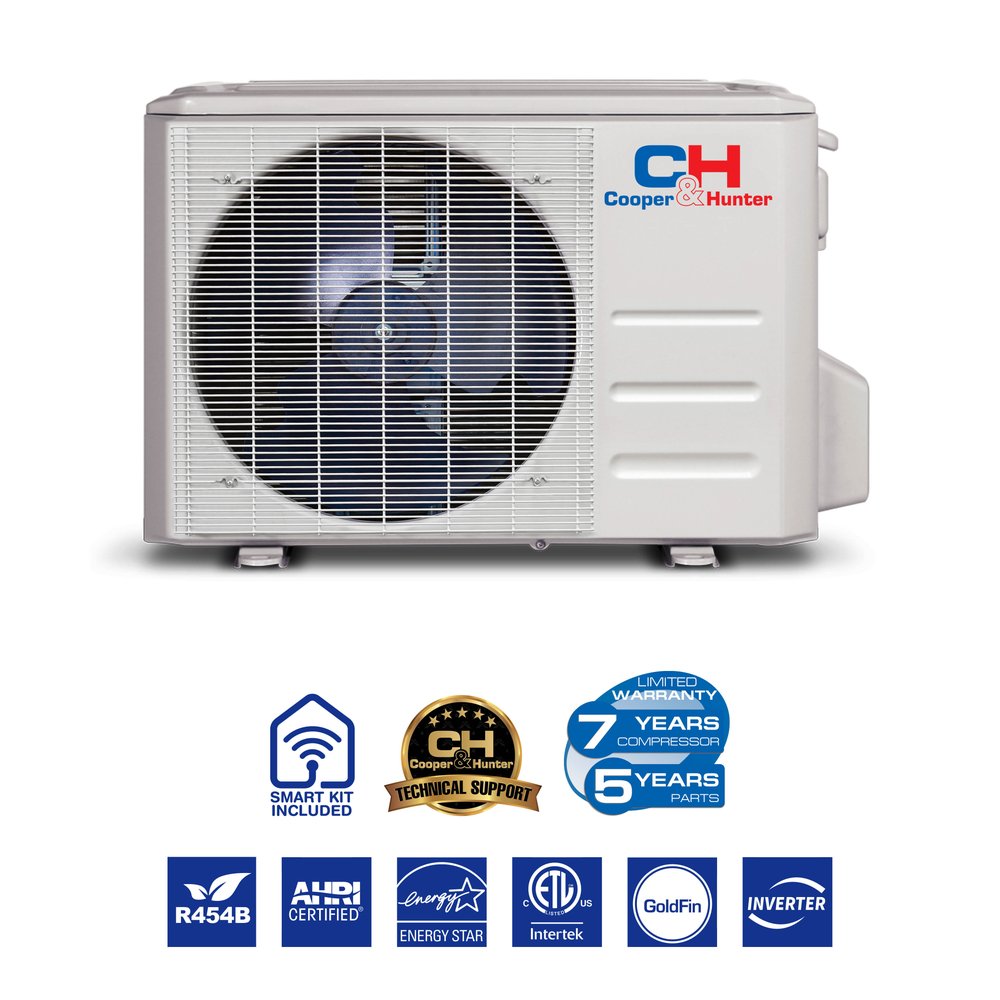

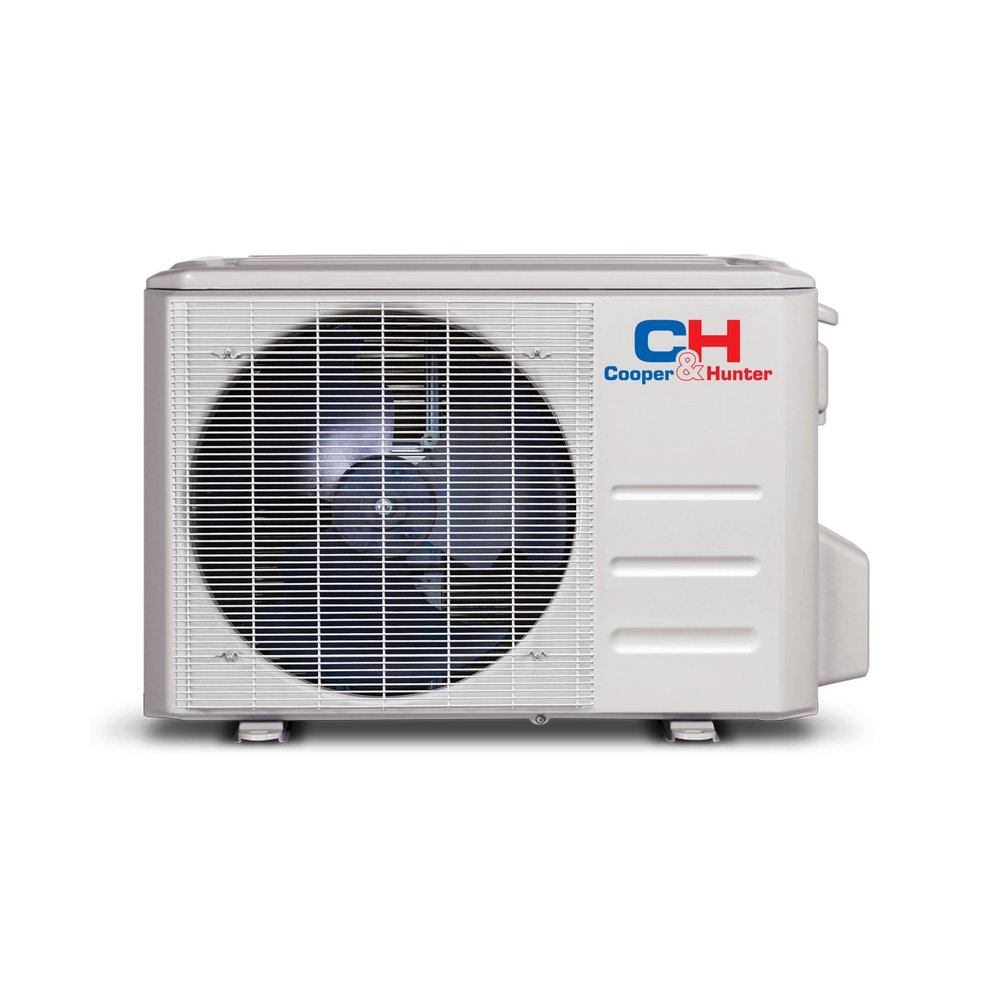

Outdoor Unit Specs— CH-RES18-230VO
| Model | CH-RES18-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 35.04 x 13.46 x 26.5 in |
| Net/Gross Weight | 92.59/100.31 lb |
| Packing Dimensions (WxDxH) | 39.17 x 15.67 x 29.13 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 20 A |
| Min. Circuit Ampacity | 18 A |
| Copper Line Size (Liquid/Gas) | 1/4"/1/2" |
| Noise Level | 59 dB |
| Airflow | 1,764.7 CFM |
| Dehumidification | 2.96 pt/h |
Indoor Unit Specs— CH-RB18MOLVWM-230VI
| Model | CH-RB18MOLVWM-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 42.64x9.61x13.23 in |
| Net/Gross Weight | 29.54/37.48 lb |
| Packing Dimensions (WxDxH) | 45.47x16.34x12.40 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 3 A |
| Copper Line Size (Liquid/Gas) | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 45.5/41/24.5 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 760.59/530.59/458.82/382.35 CFM |
| Dehumidification | 3.28 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | RG10K-exclusive remote |
System Specs
| Cooling — Rated Capacity (Range) | 18,000 Btu/h (3,600–20,000) |
|---|---|
| Heating Capacity Range (47°F) | 7,600–22,000 Btu/h |
| Rated Heating at 17°F (AHRI) | 14,500 Btu/h |
| SEER2 / EER2 | 24.0 / 13.5 |
| HSPF4 / HSPF5 / COP (47°F) | 11.1 / 8.3 / 3.81 |
| Outdoor Unit MCA / Max. Fuse | 18 A / 20 A |
| Indoor Unit MCA / Max. Fuse | 3 A / 15 A |
| Indoor Air Flow (Turbo/Hi/Mid/Lo) | 759.3 / 500.3 / 441.4 / 370.8 CFM |
| Indoor Noise Level (Turbo/Hi/Mid/Lo/Silent) | 54 / 45 / 40.0 / 26 / 20 dB(A) |
| Indoor Unit Dimensions (W×D×H) | 42.64 × 9.61 × 13.23 in |
| Indoor Unit Net / Gross Weight | 30.42 / 39.68 lbs |
| Outdoor Noise Level | 59.0 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 35.04 × 13.46 × 26.50 in |
| Outdoor Unit Net / Gross Weight | 92.59 / 100.31 lbs |
| Refrigerant Type / Charge | R454B / 47.97 oz |
| Pre-charged Line Length | 25 ft (add 0.16 oz per additional ft) |
| Line Set (Liquid / Gas) | 1/4" / 1/2" |
| Max. Pipe Length | 98.4 ft |
| Max. Elevation Difference | 65.6 ft |
| Operating Range — Cooling / Heating | -13–122°F / -13–75°F outdoor ambient |
| Recommended Coverage | up to 1,000 sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor HYPER
| Specification | CH-RB06MOLVWM-230VI | CH-RB09MOLVWM-230VI | CH-RB12MOLVWM-230VI | CH-RB18MOLVWM-230VI | CH-RB24MOLVWM-230VI |
|---|---|---|---|---|---|
| Rated | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Rated Capacity | 6,000 Btu/h | 9,000 Btu/h | 12,000 Btu/h | 18,000 Btu/h | 23,000 Btu/h |
| Minimum Circuit Ampacity (MCA) | 3 A | 3 A | 3 A | 3 A | 3 A |
| Max. Fuse | 15 A | 15 A | 15 A | 15 A | 15 A |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) | 294.3/235.4/176.6/141.3/ \A | 382.6/294.3/194.2/153.0/NA | 382.6/294.3/194.2/153.0 / / | 759.3/500.3/441.4/ 370.8 / / | 799.3/588.6/459.1/ 382.6 / / |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) | 42/37/32/24/20 dB(A) | N\A/38.5/33/24/20.5 dB(A) | N\A/42/35.5/22.5/20 dB(A) | 54.5/45/40/24.5/20 dB(A) | 54.5/45.5/43.5/34.5/20.5 dB(A) |
| Dimension (WxDxH) | 28.70x7.87x11.50 inch | 31.57x7.87x11.61 inch | 31.57x7.87x11.61 inch | 42.60x9.21x13.27 inch | 42.60x9.21x13.27 inch |
| Packing (WxDxH) | 31.10x10.63x14.76 inch | 34.45x11.22x14.96 inch | 34.45x11.22x14.96 inch | 45.47x12.40x16.34 inch | 45.47x12.40x16.34 inch |
| Net/Gross Weight | 17.64/23.15 lbs. | 18.96/24.25 lbs. | 18.96/24.25 lbs. | 30.42/39.68 lbs. | 30.86/40.56 lbs. |
| Cooling | 60 ~ 90 °F | 60 ~ 90 °F | 60 ~ 90 °F | 60 ~ 90 °F | 60 ~ 90 °F |
| Heating | 32 ~ 86 °F | 32 ~ 86 °F | 32 ~ 86 °F | 32 ~ 86 °F | 32 ~ 86 °F |
Outdoor HYPER
| Specification | CH-RHP06F9-230VO | CH-RHP09-230VO | CH-RHP12-230VO | CH-RHP18-230V0 | CH-RHP24-230VO |
|---|---|---|---|---|---|
| Rated (V, Ph, Hz) | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 |
| Voltage Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Capacity (range) (Btu/h) | 2,500~11,500 | 3,600~13,500 | 3,600~13,500 | 8,400~20,200 | 16,800~24,500 |
| Rated Current (A) | 3.1 | 4.0 | 4.1 | 9.0 | 8.4 |
| EER2 (Btu/h) | 16.0 | 15.0 | 13.2 | 13.0 | 12.5 |
| SEER2 (Btu/h) | 25.3 | 26.0 | 24.0 | 21.7 | 22.3 |
| Rated Capacity (range) (Btu/h) | 3,200~10,700 | 3,800~16,000 | 3,800~16,000 | 10,900~23,000 | 11,800~28,100 |
| Rated current (A) | 4.0 | 4.3 | 4.3 | 9.5 | 11.2 |
| COP (W/W) | 3.80 | 3.83 | 3.83 | 3.54 | 3.05 |
| HSPF4 | 14.6 | 12.5 | 10.5 | 10.8 | 13.3 |
| HSPF5 | 11.2 | 10.1 | 8.0 | 8.8 | 9.6 |
| Rated capacity (Btu/h) | 8,600 | 12,800 | 12,800 | 19,800 | 24,400 |
| Minimum Circuit Ampacity (A) | 12 | 15 | 15 | 19 | 24.9 |
| Max.Fuse (Outdoor Unit) (A) | 15 | 15 | 15 | 20 | 25 |
| Outdoor Air Flow (Max.) (CFM) | 1,235.3 | 1,470.6 | 1,470.6 | 1,764.7 | 2,235.3 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 53.0 | 56.0 | 56.0 | 59.0 | 61.0 |
| Dimension (WxDxH) (inch) | 30.12x11.93x21.85 | 31.69x12.99x21.81 | 31.69x12.99x21.81 | 35.04x13.46x26.50 | 37.24x16.14x31.89 |
| Packing (WxDxH) (inch) | 34.92x13.27x24.02 | 36.02x14.57x24.21 | 36.02x14.57x24.21 | 39.17x15.67x29.13 | 42.91x19.66x34.84 |
| Net/Gross Weight (lbs.) | 62.17/67.68 | 72.75/78.70 | 72.75/78.70 | 98.87/107.80 | 130.29/141.31 |
| Refrigerant Type / Charge (oz.) | R4548/32.45 | R4548/35.27 | R4548/35.27 | R4548/55.38 | R4548/63.49 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
| Max. Pipe Length (ft.) | 82 | 82 | 82 | 98.4 | 164 |
| Max. Difference in Level (ft.) | 49.2 | 49.2 | 49.2 | 65.6 | 82 |
| Cooling (-*F) | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 |
| Heating (*F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| ETL | ✓ | ✓ | ✓ | ✓ | ✓ |
| AHRI | ✓ | ✓ | ✓ | ✓ | ✓ |
| Energy Star | ✓ | ✓ | ✓ | ✓ | ✓ |
| NEEP | ✓ | ✓ | ✓ | ✓ | ✓ |
Indoor REGULAR
| Specification | CH-RB090LVWM-115VI | CH-RB120LVWM-115VI | CH-RB09MOLVWM-230VI | CH-RB12MOLVWM-230VI | CH-RB18MOLVWM-230VI | CH-RB24MOLVWM-230VI |
|---|---|---|---|---|---|---|
| Power Supply | 115,1, 60 | 115,1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Rated Capacity | 9,000 | 12,000 | 9,000 | 12,000 | 18,000 | 24,000 |
| MCA | 3 | 3 | 3 | 3 | 3 | 3 |
| Max. Fuse | 15 | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) | 370.8/306.1/235.4/188.4/141.3 | 370.8/306.1/235.4/188.4/141.3 | 382.6/294.3/194.2/153.0/ N/A | 382.6/294.3/194.2/153.0 / / | 759.3/500.3/441.4/ 370.8 / / | 759.3/588.6/459.1/382.6 / / |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) | 44.0/40.5/35.0/26.5/17.5 | 44.0/40.5/35.0/26.5/17.5 | 45.5/42/36/21/19.5 | 46/43/37/20/19 | 54/45/40/26/20 | 54.0/48.5/43.5/27.5/20.5 |
| Dimension (WxDxH) | 31.57x7.87x11.61 | 31.57x7.87x11.61 | 31.57x7.87x11.61 | 31.57x7.87x11.61 | 42.64x9.61x13.23 | 42.60x9.21x13.27 |
| Packing (WxDxH) | 34.45x11.22x14.96 | 34.45x11.22x14.96 | 34.45x11.22x14.96 | 34.45x11.22x14.96 | 45.47x12.40x16.34 | 45.47x12.40x16.34 |
| Net/Gross Weight | 18.96/24.47 | 18.96/24.47 | 18.96/24.25 | 18.96/24.25 | 30.42/39.68 | 30.86/40.56 |
| Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
Outdoor REGULAR
| Specification | CH-RES18-230VOThis model | CH-RES09-115VO | CH-RES12-115VO | CH-RES09-230VO | CH-RES12-230VO | CH-RES24-230VO |
|---|---|---|---|---|---|---|
| Power Supply | 208/230,1, 60 | 115,1, 60 | 115,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 |
| Voltage Range | 187-253 | 103.5~126.5 | 103.5~126.5 | 187-253 | 187-253 | 187-253 |
| Rated Capacity (Btu/h) | 3,600~20,000 | 2,600~13,000 | 3,100~10,900 | 2,600~13,000 | 2,600~13,700 | 9,700~27,000 |
| Rated Current (A) | 6.0 | 6.9 | 10.0 | 4.6 | 4.5 | 8.0 |
| Max. Fuse (A) | 20.0 | 15.0 | 15.0 | 15.0 | 15.0 | 25.0 |
| EER2 | 23.0 | 24.5 | 23.2 | 24.6 | 24.1 | 23.5 |
| SEER2 | 24.0 | 24.5 | 24.6 | 24.6 | 23.1 | 23.5 |
| Rated Capacity (Heating, Btu/h) | 7,600~22,000 | 4,500~12,800 | 4,500~12,800 | 4,200~14,200 | 4,100~14,400 | 11,300~32,700 |
| Rated Current (Heating, A) | 6.2 | 7.6 | 10.3 | 3.6 | 4.3 | 10.4 |
| COP (W/W) | 3.8 | 3.6 | 3.6 | 3.6 | 3.9 | 3.8 |
| HSPF4 | 8.3 | 8.2 | 7.6 | 9.5 | 8.5 | 7.7 |
| HSPF5 | 14,500 | 8,900 | 10,200 | 8,900 | 9,900 | 21,300 |
| Minimum Circuit Ampacity (A) | 18 | 18 | 18 | 12 | 12 | 24 |
| Max. Fuse (Outdoor Unit) (A) | 20 | 20 | 20 | 15 | 15 | 25 |
| Outdoor Air Flow (Max.) (CFM) | 1,764.7 | 1,235.3 | 1,235.3 | 1,235.3 | 1,235.3 | 2,235.3 |
| Outdoor Noise Level (dB(A)) | 59.0 | 53.0 | 53.0 | 52.5 | 54.0 | 60.0 |
| Dimension (WxDxH) (inch) | 35.04x13.46x26.50 | 30.12x11.93x21.85 | 30.12x11.93x21.85 | 30.12x11.93x21.85 | 30.12x11.93x21.85 | 37.24x16.14x31.89 |
| Packing (WxDxH) (inch) | 39.17x15.67x29.13 | 34.92x13.27x24.02 | 34.92x13.27x24.02 | 34.92x13.27x24.02 | 34.92x13.27x24.02 | 42.91x19.69x34.84 |
| Net/Gross Weight (lbs.) | 92.59/100.31 | 64.59/70.11 | 64.59/70.11 | 62.17/67.68 | 62.17/67.68 | 122.13/132.28 |
| Refrigerant Type / Charge (oz.) | R454B/47.97 | R454B/33.51 | R454B/33.51 | R454B/32.45 | R454B/32.45 | R454B/70.55 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4\" / 1/2\" | 1/4\" / 3/8\" | 1/4\" / 3/8\" | 1/4\" / 3/8\" | 1/4\" / 3/8\" | 3/8\" / 5/8\" |
| Max. Pipe Length (ft.) | 98.4 | 82 | 82 | 82 | 82 | 164 |
| Max. Difference in Level (ft.) | 65.6 | 49.2 | 49.2 | 49.2 | 49.2 | 82 |
| Ambient Temp Cooling (°F) | -13~122 | -13~122 | -13~122 | -13~122 | -13~122 | -13~122 |
| Ambient Temp Heating (°F) | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 |
| ETL | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| AHRI | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Energy Star | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| NEEP | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Frequently asked questions.
What size mini split do I need for my home?
For a space up to 850 sq ft, the Cooper & Hunter Olivia Midnight 18,000 BTU mini split is an excellent choice. With its high efficiency rating of 24.0 SEER, it can effectively cool or heat larger rooms while maintaining energy efficiency.
Can I install a mini split myself?
While it's possible to install the Cooper & Hunter Olivia Midnight mini split yourself, professional installation is recommended for optimal performance. Keep in mind that the system uses 230V and requires proper handling of refrigerant R454B to ensure safe and efficient operation.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter Olivia Midnight mini split comes pre-charged with R454B refrigerant for line sets up to 25 ft. This feature simplifies installation, but make sure to follow the manufacturer's guidelines for any additional refrigerant needed for longer runs.
What warranty does the Cooper & Hunter Olivia Midnight offer?
The Cooper & Hunter Olivia Midnight mini split features a 5-year parts warranty and a 7-year compressor warranty, provided you register the product within 30 days of purchase. This warranty offers peace of mind for your investment in an efficient 18,000 BTU cooling and heating system.
What voltage does a mini split require?
The Cooper & Hunter Olivia Midnight operates on a 230V electrical system, which is standard for many residential mini splits. Ensure your home's electrical system meets this requirement for safe and effective operation.
What SEER rating do I need for my mini split?
A SEER rating of 24.0, like that of the Cooper & Hunter Olivia Midnight mini split, is excellent for energy efficiency. Generally, a SEER rating of 16 or higher is recommended for optimal energy savings, making this model a strong choice for eco-conscious buyers.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 24.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia Midnight Hyper Heat 12,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.7HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia Midnight Hyper Heat 18,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R410ASEER2 20.0Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Astoria 30,000 BTU Single Zone Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 24.0HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia 12,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
The Cooper & Hunter Olivia Midnight 18,000 BTU (1.5 Ton) wall mount mini split is a single-zone ductless air conditioner and heat pump on next-generation R454B refrigerant. This is the Olivia Midnight Edition with a jet-black casing — the same engineering as the classic Olivia. The slim wall-mounted air handler suits bedrooms, living rooms, home offices, additions, and garages. With a 24.0 SEER2 inverter system on 208/230V, it cools and heats spaces up to approximately 1,000 sq ft and keeps heating in outdoor temperatures as low as -13°F. Wi-Fi control is built in.
Key Features
- 18,000 Btu/h rated cooling — inverter cooling range 3,600–20,000 Btu/h; heating capacity range 7,600–22,000 Btu/h at 47°F
- 14,500 Btu/h AHRI rated heating at 17°F — certified low-ambient heat output
- 24.0 SEER2 / 13.5 EER2 / 11.1 HSPF4 — current R454B-generation efficiency
- Heats down to -13°F outdoor ambient; cooling operation -13–122°F
- Auto-swing horizontal louvers with Turbo Mode, Follow Me mode, Sleep Mode, and Timer On/Off
- Self-Cleaning and Eco modes (active on single-zone systems); 46°F freeze-protection function
- Quiet: indoor unit from 20 dB(A) with Genius Core ultra-low 12Hz compressor speeds; outdoor unit 59.0 dB(A)
- Wi-Fi Smart Kit built in — Cooper & Hunter app control; remote control included; compatible with C&H 12V wall thermostat (sold separately)
- ETL listed, AHRI certified, Energy Star Cold Climate & NEEP listed
Cooper & Hunter Olivia Wall Mount (R454B) Lineup
| Capacity | Outdoor + Indoor Unit | SEER2 | Heats down to | Coverage* |
| 6,000 BTU Hyper Heat | CH-RHP06F9-230VO + CH-R06MOLVWM-230VI | 25.3 | -22°F | up to 300 sq ft |
| 9,000 BTU | CH-RES09-230VO + CH-R09MOLVWM-230VI | 24.6 | -13°F | up to 400 sq ft |
| 9,000 BTU Hyper Heat | CH-RHP09-230VO + CH-R09MOLVWM-230VI | 26.0 | -22°F | up to 400 sq ft |
| 12,000 BTU | CH-RES12-230VO + CH-R12MOLVWM-230VI | 23.1 | -13°F | up to 550 sq ft |
| 12,000 BTU (115V) | CH-RES12-115VO + CH-R12OLVWM-115VI | 23.2 | -13°F | up to 550 sq ft |
| 12,000 BTU Hyper Heat | CH-RHP12-230VO + CH-R12MOLVWM-230VI | 24.0 | -22°F | up to 550 sq ft |
| 18,000 BTU | CH-RES18-230VO + CH-R18MOLVWM-230VI | 24.0 | -13°F | up to 1,000 sq ft |
| 18,000 BTU Hyper Heat | CH-RHP18-230VO + CH-R18MOLVWM-230VI | 21.7 | -22°F | up to 1,000 sq ft |
| 24,000 BTU | CH-RES24-230VO + CH-R24MOLVWM-230VI | 23.5 | -13°F | up to 1,500 sq ft |
| 24,000 BTU Hyper Heat | CH-RHP24-230VO + CH-R24MOLVWM-230VI | 22.3 | -22°F | up to 1,400 sq ft |
| 30,000 BTU | CH-REL30-230VO + CH-R30MELVWM-230VI | 22.3 | -13°F | up to 1,800 sq ft |
| 36,000 BTU | CH-REL36-230VO + CH-R36MELVWM-230VI | 19.5 | -13°F | up to 2,200 sq ft |
*Coverage is sizing guidance; actual load depends on insulation, ceiling height, sun exposure, and climate.
