Cooper & Hunter 12FT PVC Decorative Line Set Cover Kit for Ductless Mini Split Air Conditioners
Cooper & HunterSKU: CH-3LNSC12
Choose Your Configuration
Fast Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · HVAC ACCESSORIES
Built for year-round comfort
CH-3LNSC12
Product Description

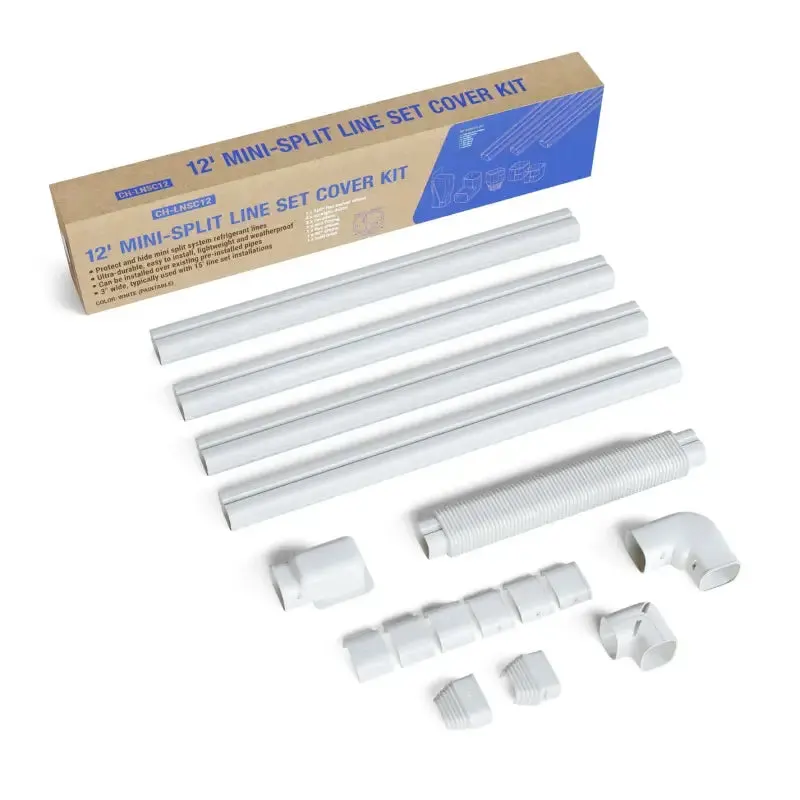

12’ Mini-Split Line Set Cover Kit Comes in 12ft attachable sections, you can get multiple and connect them if you need longer coverage Protect and hide mini split line set refrigerant lines Ultra-durable, easy to install, lightweight and weatherproof Can be installed over existing pre-installed pipes 3" or 4'' wide (depending on your selection), typically used with ~15' Installation Kits Color = White (easily paintable) Package Dimensions: 11.5" x 40" x 4" (9.5 lbs)
Technical Specifications
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor unit model
| Specification | CH-NY06MIA-115VI | CH-NY09MIA-115VI | CH-NY12MIA-115VI | CH-NY09MIA-230VI | CH-NY12MIA-230VI | CH-NY18MIA-230VI | CH-NY24MIA-230VI |
|---|---|---|---|---|---|---|---|
| Power supply, V, Ph, Hz | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz |
| Cooling Capacity, Btu/h | 6,000 | 9,000 | 12,000 | 9,000 | 12,000 | 18,000 | 24,000 |
| MAX. FUSE (Indoor unit), A | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 |
| Indoor air flow (Hi/Mi/Lo), CFM | 282/247/182/129 | 282/247/182/129 | 341/308/205/176 | 309/258/192/135 | 358/317/192/135 | 450/388/258/217 | 705/588/450/352 |
| Indoor noise level (Hi/Mi/Lo), dB(A) | 36/31/22 | 36/31/22 | 41/30/26 | 40/30/24 | 37/30/22 | 43/34/30 | 45/39/35 |
| Unit Dimensions (W*D*H), inch | 28.4x7.3x11.4 | 28.4x7.3x11.4 | 31.5x7.4x11.6 | 28.4x7.3x11.4 | 31.5x7.4x11.6 | 37.9x8.4x12.5 | 42.5x8.9x13.1 |
| Packing Dimensions (W*D*H), inch | 31x10x14 | 31x10x14 | 34x11x14 | 31x10x14 | 34x11x14 | 41x12x16 | 45x16x12 |
| Net/Gross weight, lbs. | 16.98/22.2 | 16.98/22.2 | 19.84/24.2 | 16.98/22.2 | 18.96/22.2 | 23.81/31.5 | 29.98/38.5 |
| Design Pressure, PSIG | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Room Temperature, °F | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 |
Outdoor unit model
| Specification | CH-NY06MIA-115VO | CH-NY09MIA-115VO | CH-NY12MIA-115VO | CH-NY09MIA-230VO | CH-NY12MIA-230VO | CH-NY18MIA-230VO | CH-NY24MIA-230VO |
|---|---|---|---|---|---|---|---|
| Cooling Capacity, Btu/h | 6,000 (2,650-10,300) | 10,000 (2,700-10,500) | 12,000 (4,000-12,500) | 10,000 (2,400-10,900) | 12,000 (2,730-12,500) | 18,800 (6,300-19,400) | 24,000 (6,900-28,100) |
| SEER | 21.5 | 21.5 | 20.8 | 21.7 | 21.4 | 19 | 18 |
| EER | 12.5 | 12.5 | 10.3 | 12.6 | 12.6 | 10.5 | 9 |
| Heating Capacity, Btu/h | 7,000 (2,700-10,500) | 10,000 (2,700-10,500) | 12,000 (4,000-12,500) | 10,000 (2,400-10,900) | 12,000 (2,730-12,500) | 18,800 (6,300-19,400) | 24,000 (6,900-28,100) |
| COP | 2.93 | 2.93 | 3.13 | 3.29 | 3.23 | 2.93 | 3.03 |
| HSPF4 | 9 | 9 | 8.2 | 9.1 | 9.1 | 8.7 | 8.6 |
| HSPF5 | 6.9 | 6.9 | 6.6 | 6.9 | 6.9 | 6.8 | 6.6 |
| MINIMUM CIRCUIT AMPACTY (MCA), A | 20 | 20 | 18.5 | 12 | 15 | 15 | 19 |
| MAX. FUSE, A | 30 | 30 | 25 | 15 | 15 | 20 | 30 |
| Air Flow (Max), CFM | 1,294 | 1,294 | 1,235 | 1,294 | 1,235 | 1,235 | 1,764 |
| Outdoor Noise, [dB(A)] | 54 | 55 | 53 | 54 | 53 | 57 | 60 |
| Dimension (WxDxH), (inch) | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 31.7x12.9x21.8 | 35x13.5x26.5 |
| Packing (WxDxH), (inch) | 34.9x13x24 | 34.9x13x24 | 34.9x13x24 | 34.9x13.27x24 | 34.9x13.27x24 | 36.02x14.57x24.21 | 39.17x15.67x29.13 |
| Net/ Gross weight, (lbs.) | 57/63 | 57/63 | 62/67 | 55/60 | 59/64 | 73/79 | 97/104 |
| Refrigerant precharge, (ft) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional charge for each ft, (oz/ft) | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 |
| Design pressure, (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid side/ Gas side, (inch) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" |
| Max. refrigerent pipe length,(ft) | 82 | 82 | 82 | 82 | 82 | 98 | 164 |
| Max. diffrence in level,(ft) | 32.8 | 32.8 | 32.8 | 32.8 | 32.8 | 66 | 82 |
| Ambient temperature Cooling, (°F) | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 |
| Heating, (°F) | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 |
Frequently asked questions.
Will this fit my system?
This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.
Is this part included with a mini split system, or sold separately?
This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.
Do you offer support choosing the right part?
Yes — contact us with your system model number and what you need, and we will help you pick the correct part.
What warranty does it come with?
Cooper & Hunter backs it with a 7-year compressor and 5-year parts limited warranty (with professional installation and registration).
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like

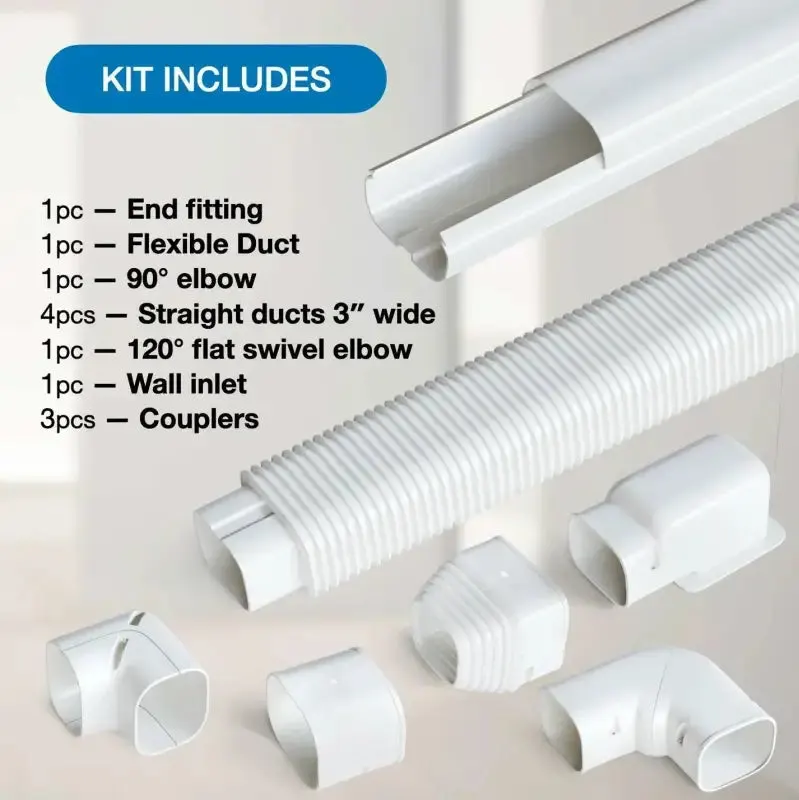

12’ Mini-Split Line Set Cover Kit
- Comes in 12ft attachable sections, you can get multiple and connect them if you need longer coverage
- Protect and hide mini split line set refrigerant lines
- Ultra-durable, easy to install, lightweight and weatherproof
- Can be installed over existing pre-installed pipes
- 3" or 4'' wide (depending on your selection), typically used with ~15' Installation Kits
- Color = White (easily paintable)
- Package Dimensions: 11.5" x 40" x 4" (9.5 lbs)
The kit consists of 12-foot attachable sections, allowing for customization based on your coverage needs. It can easily accommodate insulated pre-flared pipes, with options for widths of 3 inches or 4 inches to suit your installation requirements. Made from lightweight, weatherproof materials, this line set cover is also straightforward to install over existing pipes.
Available in white, it can be painted to match your decor seamlessly. The product's package dimensions are 11.5 inches by 40 inches by 4 inches, weighing 9.5 pounds, making it a practical choice for homeowners looking to maintain a clean and organized appearance for their mini split systems.
