OLMO TTW Universal Through The Wall Folded Metal Wall Sleeve

Name: OLMO TTW Universal Through The Wall Folded Metal Wall Sleeve
Brand: HVAC Mart
SKU: OW-TTWSLV
Price: 90.09 USD
Availability: InStock

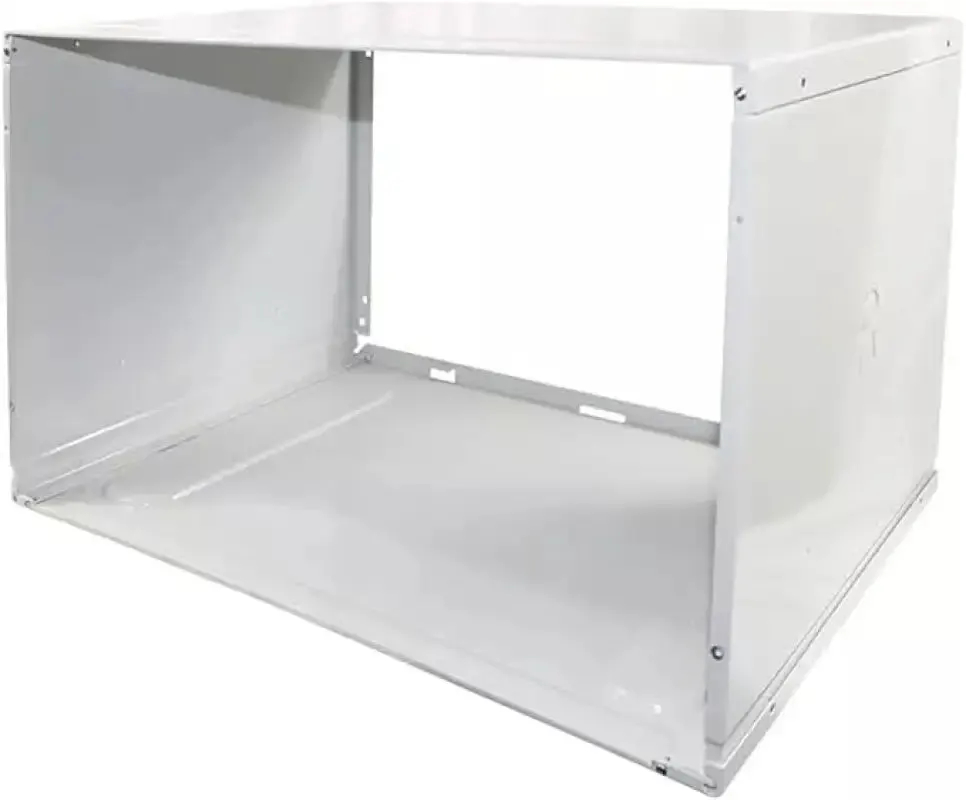

OLMO TTW Universal Through The Wall Folded Metal Wall Sleeve — photo 2

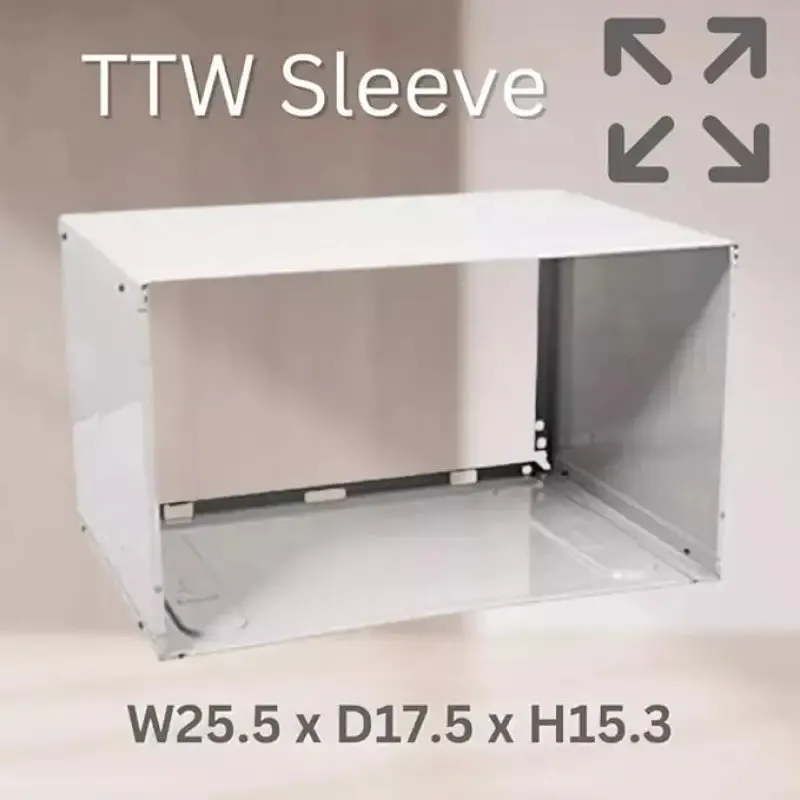

OLMO TTW Universal Through The Wall Folded Metal Wall Sleeve — photo 3

1 / 3

OLMOSKU: OW-TTWSLV

$90.09

As low as $8/mo withaffirm

Choose Your Configuration

Default: Default Title

Fast Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included

30-Day Returns

OLMO · ACCESSORIES

Built for year-round comfort

OW-TTWSLV

Product Description

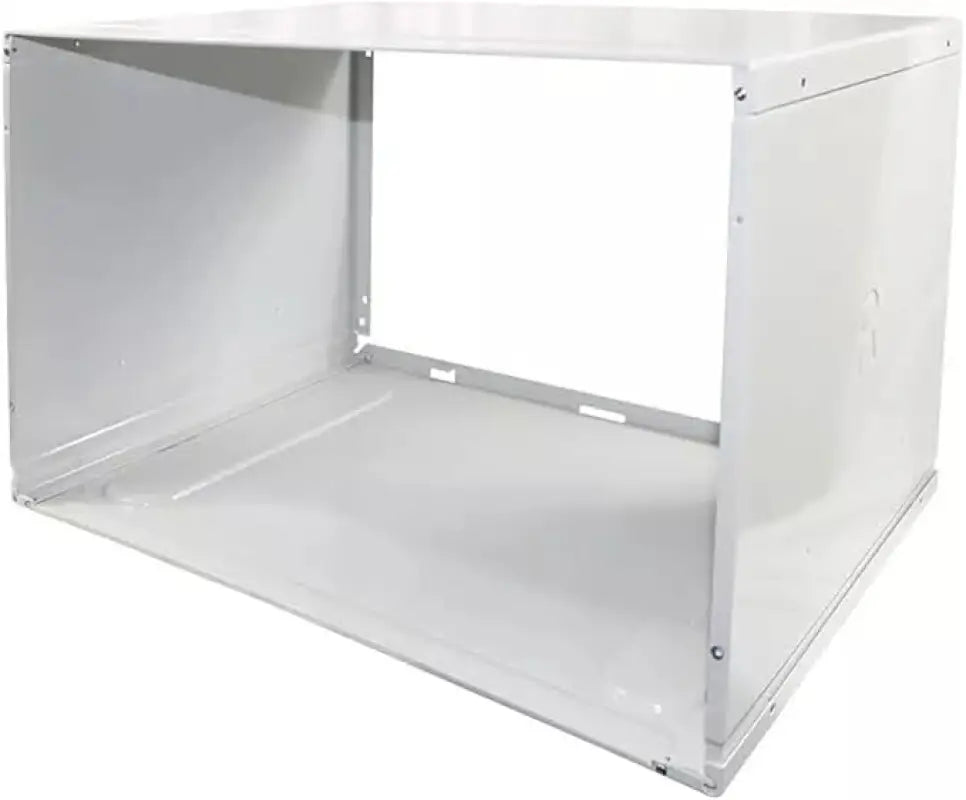

Olmo Unassembled Metal Wall Sleeve for Through the Wall Air Conditioners. Coated and Insulated. Actual size 25.5” x 17.5” x 15.3” Designed especially for Olmo through the wall air conditioners but can be used with others using standard 25.5"x15.3" size This wall sleeve is insulated for thermal efficiency and noise reduction. Wall Sleeve ships flat and requires assembly.

Tech Specifications

Technical Specifications

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor unit model

Specification	CH-NY06MIA-115VI	CH-NY09MIA-115VI	CH-NY12MIA-115VI	CH-NY09MIA-230VI	CH-NY12MIA-230VI	CH-NY18MIA-230VI	CH-NY24MIA-230VI
Power supply, V, Ph, Hz	115V,1Ph,60Hz	115V,1Ph,60Hz	115V,1Ph,60Hz	208/230V,1Ph,60Hz	208/230V,1Ph,60Hz	208/230V,1Ph,60Hz	208/230V,1Ph,60Hz
Cooling Capacity, Btu/h	6,000	9,000	12,000	9,000	12,000	18,000	24,000
MAX. FUSE (Indoor unit), A	15.0	15.0	15.0	15.0	15.0	15.0	15.0
Indoor air flow (Hi/Mi/Lo), CFM	282/247/182/129	282/247/182/129	341/308/205/176	309/258/192/135	358/317/192/135	450/388/258/217	705/588/450/352
Indoor noise level (Hi/Mi/Lo), dB(A)	36/31/22	36/31/22	41/30/26	40/30/24	37/30/22	43/34/30	45/39/35
Unit Dimensions (WDH), inch	28.4x7.3x11.4	28.4x7.3x11.4	31.5x7.4x11.6	28.4x7.3x11.4	31.5x7.4x11.6	37.9x8.4x12.5	42.5x8.9x13.1
Packing Dimensions (WDH), inch	31x10x14	31x10x14	34x11x14	31x10x14	34x11x14	41x12x16	45x16x12
Net/Gross weight, lbs.	16.98/22.2	16.98/22.2	19.84/24.2	16.98/22.2	18.96/22.2	23.81/31.5	29.98/38.5
Design Pressure, PSIG	550/340	550/340	550/340	550/340	550/340	550/340	550/340
Room Temperature, °F	62~90	62~90	62~90	62~90	62~90	62~90	62~90

Outdoor unit model

Specification	CH-NY06MIA-115VO	CH-NY09MIA-115VO	CH-NY12MIA-115VO	CH-NY09MIA-230VO	CH-NY12MIA-230VO	CH-NY18MIA-230VO	CH-NY24MIA-230VO
Cooling Capacity, Btu/h	6,000 (2,650-10,300)	10,000 (2,700-10,500)	12,000 (4,000-12,500)	10,000 (2,400-10,900)	12,000 (2,730-12,500)	18,800 (6,300-19,400)	24,000 (6,900-28,100)
SEER	21.5	21.5	20.8	21.7	21.4	19	18
EER	12.5	12.5	10.3	12.6	12.6	10.5	9
Heating Capacity, Btu/h	7,000 (2,700-10,500)	10,000 (2,700-10,500)	12,000 (4,000-12,500)	10,000 (2,400-10,900)	12,000 (2,730-12,500)	18,800 (6,300-19,400)	24,000 (6,900-28,100)
COP	2.93	2.93	3.13	3.29	3.23	2.93	3.03
HSPF4	9	9	8.2	9.1	9.1	8.7	8.6
HSPF5	6.9	6.9	6.6	6.9	6.9	6.8	6.6
MINIMUM CIRCUIT AMPACTY (MCA), A	20	20	18.5	12	15	15	19
MAX. FUSE, A	30	30	25	15	15	20	30
Air Flow (Max), CFM	1,294	1,294	1,235	1,294	1,235	1,235	1,764
Outdoor Noise, [dB(A)]	54	55	53	54	53	57	60
Dimension (WxDxH), (inch)	30.1x11.9x21.9	30.1x11.9x21.9	30.1x11.9x21.9	30.1x11.9x21.9	30.1x11.9x21.9	31.7x12.9x21.8	35x13.5x26.5
Packing (WxDxH), (inch)	34.9x13x24	34.9x13x24	34.9x13x24	34.9x13.27x24	34.9x13.27x24	36.02x14.57x24.21	39.17x15.67x29.13
Net/ Gross weight, (lbs.)	57/63	57/63	62/67	55/60	59/64	73/79	97/104
Refrigerant precharge, (ft)	25	25	25	25	25	25	25
Additional charge for each ft, (oz/ft)	0.16	0.16	0.16	0.16	0.16	0.16	0.32
Design pressure, (PSIG)	550/340	550/340	550/340	550/340	550/340	550/340	550/340
Refrigerant Piping Liquid side/ Gas side, (inch)	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	1/4" / 3/8"	1/4" / 1/2"	1/4" / 1/2"	3/8" / 5/8"
Max. refrigerent pipe length,(ft)	82	82	82	82	82	98	164
Max. diffrence in level,(ft)	32.8	32.8	32.8	32.8	32.8	66	82
Ambient temperature Cooling, (°F)	5~122	5~122	5~122	5~122	5~122	5~122	5~122
Heating, (°F)	5~86	5~86	5~86	5~86	5~86	5~86	5~86

Frequently asked questions.

Will this fit my system?

This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.

Is this part included with a mini split system, or sold separately?

This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.

Do you offer support choosing the right part?

Yes — contact us with your system model number and what you need, and we will help you pick the correct part.

What warranty does it come with?

It is backed by OLMO’s limited manufacturer warranty — 5-year compressor, 2-year parts, and 1-year remote ; professional installation and registration at olmo-comfort.com within 60 days are required to keep coverage valid.
