ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Foldable 304 Stainless Steel, Vibration-Absorbing (Up to 550 lbs Each)
ArmbridgeSKU: AB-WB-GT
Choose Your Configuration
Fast Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
ARMBRIDGE · ACCESSORIES
Built for year-round comfort
AB-WB-GT
Product Description

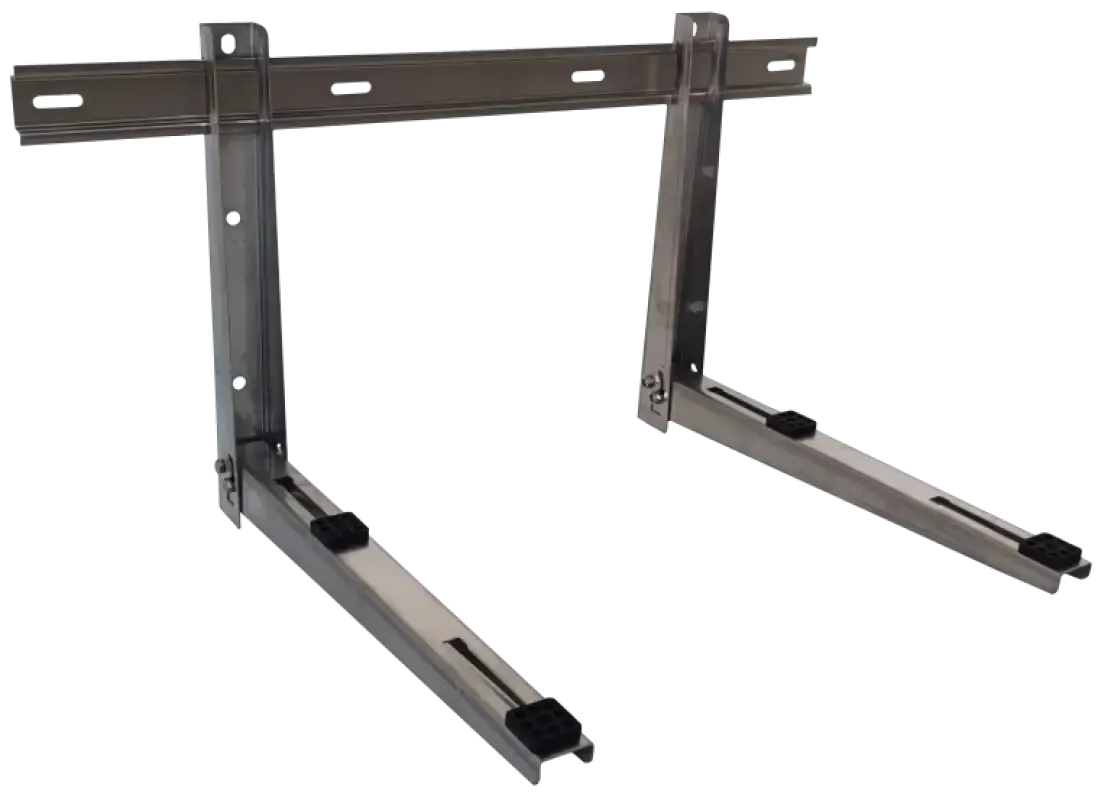

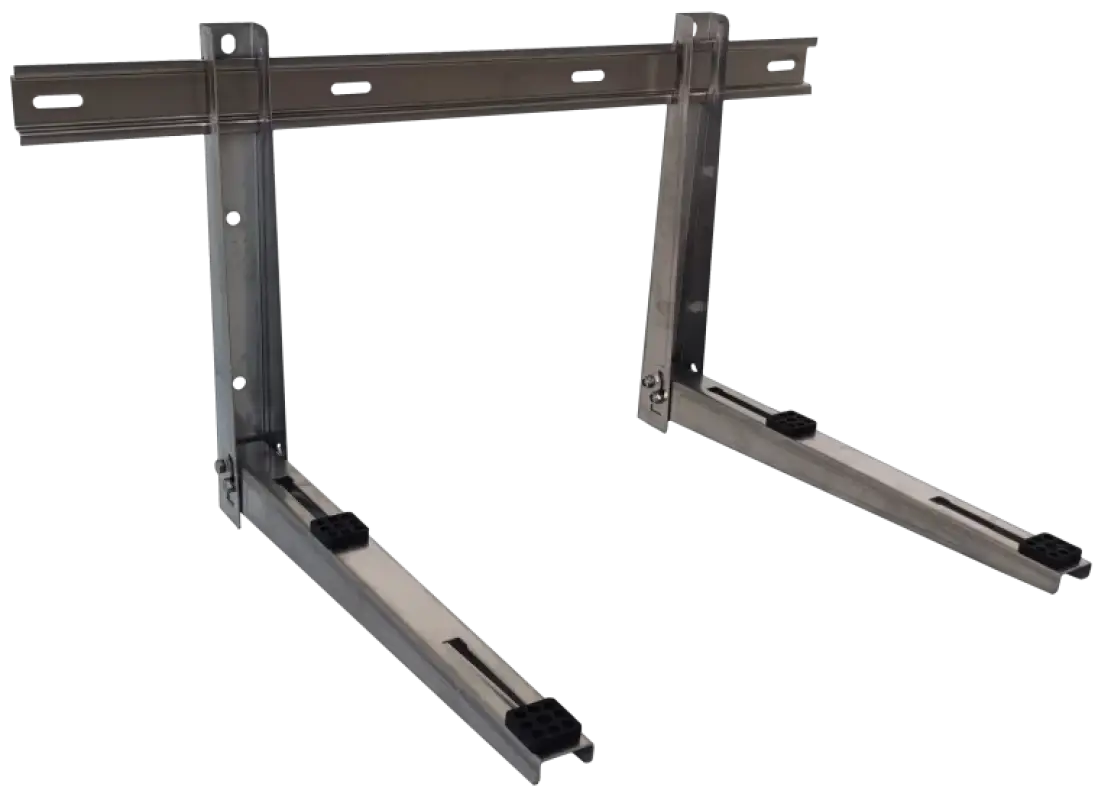

Bracket Type: Foldable Mini Split Wall Bracket Compatibility: Suitable for 9,000– 36,000 BTU mini split and heat pump units, making it an ideal mini split wall mount bracket for a wide range of systems. Material: 304 stainless steel – corrosion-resistant, premium mini split mounting bracket material that’s ideal for coastal or harsh environments. Weight Capacity: Supports up to 550 lbs per set Features: Built-in vibration control pads and shock absorbers for quieter operation Adjustability: Extendable backstops and adjustable arms ensure this mini split mounting bracket provides a secure,…
Technical Specifications
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Line Set Model
| Specification | Line Set Diameter Liquid/Gas Side | Copper Line Length | 4/16 AWG Cable |
|---|---|---|---|
| AB1-16FT | 1/4" - 3/8" | 16 FT | 18 FT |
| AB1-25FT | 1/4" - 3/8" | 25 FT | 29.5 FT |
| AB1-50FT | 1/4" - 3/8" | 50 FT | 55.8 FT |
| AB2-16FT | 1/4" - 1/2" | 16 FT | 18 FT |
| AB2-25FT | 1/4" - 1/2" | 25 FT | 29.5 FT |
| AB2-50FT | 1/4" - 1/2" | 50 FT | 55.8 FT |
| AB3-16FT | 3/8" - 5/8" | 16 FT | 18 FT |
| AB3-25FT | 3/8" - 5/8" | 25 FT | 29.5 FT |
| AB3-50FT | 3/8" - 5/8" | 50 FT | 55.8 FT |
| AB4-25FT | 3/8"-3/4" | 25 FT | 29.5 FT |
| AB4-50FT | 3/8"-3/4" | 50 FT | 55.8 FT |
| AB6-25FT | 3/8" - 7/8" | 25 FT | 29.5 FT |
| AB6-50FT | 3/8" - 7/8" | 50 FT | 55.8 FT |
| AB7-25FT | 1/4" - 5/8" | 25 FT | 29.5 FT |
Frequently asked questions.
Will this fit my system?
This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.
Is this part included with a mini split system, or sold separately?
This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.
Do you offer support choosing the right part?
Yes — contact us with your system model number and what you need, and we will help you pick the correct part.
What warranty does it come with?
Cooper & Hunter backs it with a 7-year compressor and 5-year parts limited warranty (with professional installation and registration).
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
Bracket Type: Foldable Mini Split Wall Bracket
Compatibility: Suitable for 9,000–36,000 BTU mini split and heat pump units, making it an ideal mini split wall mount bracket for a wide range of systems.
Material: 304 stainless steel – corrosion-resistant, premium mini split mounting bracket material that’s ideal for coastal or harsh environments.
Weight Capacity: Supports up to 550 lbs per set
Features: Built-in vibration control pads and shock absorbers for quieter operation
Adjustability: Extendable backstops and adjustable arms ensure this mini split mounting bracket provides a secure, universal fit.
Design: This mini split wall bracket features a foldable structure for compact storage and cost-efficient shipping.
Included: Complete hardware kit makes this mini split wall mount bracket easy to install.
Dimensions: 21.6 × 17.7 × 33.4 inches
