Air filter for Cooper&Hunter Portable Air Conditioners SK-1091
Cooper & HunterSKU: SK-1091
Choose Your Configuration
Fast Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · AIR FILTER
Built for year-round comfort
SK-1091
Product Description

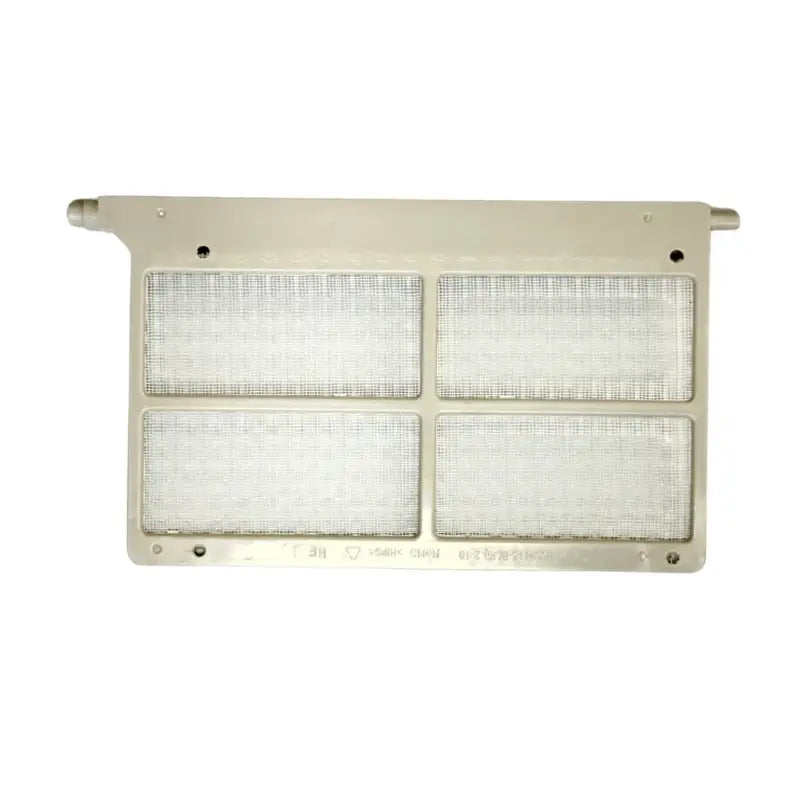

Air filter for Cooper&Hunter Portable Air Conditioners (16x15 inch) (SKU:) SK-1091
Technical Specifications
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor unit model
| Specification | CH-NY06MIA-115VI | CH-NY09MIA-115VI | CH-NY12MIA-115VI | CH-NY09MIA-230VI | CH-NY12MIA-230VI | CH-NY18MIA-230VI | CH-NY24MIA-230VI |
|---|---|---|---|---|---|---|---|
| Power supply, V, Ph, Hz | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz |
| Cooling Capacity, Btu/h | 6,000 | 9,000 | 12,000 | 9,000 | 12,000 | 18,000 | 24,000 |
| MAX. FUSE (Indoor unit), A | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 |
| Indoor air flow (Hi/Mi/Lo), CFM | 282/247/182/129 | 282/247/182/129 | 341/308/205/176 | 309/258/192/135 | 358/317/192/135 | 450/388/258/217 | 705/588/450/352 |
| Indoor noise level (Hi/Mi/Lo), dB(A) | 36/31/22 | 36/31/22 | 41/30/26 | 40/30/24 | 37/30/22 | 43/34/30 | 45/39/35 |
| Unit Dimensions (W*D*H), inch | 28.4x7.3x11.4 | 28.4x7.3x11.4 | 31.5x7.4x11.6 | 28.4x7.3x11.4 | 31.5x7.4x11.6 | 37.9x8.4x12.5 | 42.5x8.9x13.1 |
| Packing Dimensions (W*D*H), inch | 31x10x14 | 31x10x14 | 34x11x14 | 31x10x14 | 34x11x14 | 41x12x16 | 45x16x12 |
| Net/Gross weight, lbs. | 16.98/22.2 | 16.98/22.2 | 19.84/24.2 | 16.98/22.2 | 18.96/22.2 | 23.81/31.5 | 29.98/38.5 |
| Design Pressure, PSIG | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Room Temperature, °F | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 |
Outdoor unit model
| Specification | CH-NY06MIA-115VO | CH-NY09MIA-115VO | CH-NY12MIA-115VO | CH-NY09MIA-230VO | CH-NY12MIA-230VO | CH-NY18MIA-230VO | CH-NY24MIA-230VO |
|---|---|---|---|---|---|---|---|
| Cooling Capacity, Btu/h | 6,000 (2,650-10,300) | 10,000 (2,700-10,500) | 12,000 (4,000-12,500) | 10,000 (2,400-10,900) | 12,000 (2,730-12,500) | 18,800 (6,300-19,400) | 24,000 (6,900-28,100) |
| SEER | 21.5 | 21.5 | 20.8 | 21.7 | 21.4 | 19 | 18 |
| EER | 12.5 | 12.5 | 10.3 | 12.6 | 12.6 | 10.5 | 9 |
| Heating Capacity, Btu/h | 7,000 (2,700-10,500) | 10,000 (2,700-10,500) | 12,000 (4,000-12,500) | 10,000 (2,400-10,900) | 12,000 (2,730-12,500) | 18,800 (6,300-19,400) | 24,000 (6,900-28,100) |
| COP | 2.93 | 2.93 | 3.13 | 3.29 | 3.23 | 2.93 | 3.03 |
| HSPF4 | 9 | 9 | 8.2 | 9.1 | 9.1 | 8.7 | 8.6 |
| HSPF5 | 6.9 | 6.9 | 6.6 | 6.9 | 6.9 | 6.8 | 6.6 |
| MINIMUM CIRCUIT AMPACTY (MCA), A | 20 | 20 | 18.5 | 12 | 15 | 15 | 19 |
| MAX. FUSE, A | 30 | 30 | 25 | 15 | 15 | 20 | 30 |
| Air Flow (Max), CFM | 1,294 | 1,294 | 1,235 | 1,294 | 1,235 | 1,235 | 1,764 |
| Outdoor Noise, [dB(A)] | 54 | 55 | 53 | 54 | 53 | 57 | 60 |
| Dimension (WxDxH), (inch) | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 31.7x12.9x21.8 | 35x13.5x26.5 |
| Packing (WxDxH), (inch) | 34.9x13x24 | 34.9x13x24 | 34.9x13x24 | 34.9x13.27x24 | 34.9x13.27x24 | 36.02x14.57x24.21 | 39.17x15.67x29.13 |
| Net/ Gross weight, (lbs.) | 57/63 | 57/63 | 62/67 | 55/60 | 59/64 | 73/79 | 97/104 |
| Refrigerant precharge, (ft) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional charge for each ft, (oz/ft) | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 |
| Design pressure, (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid side/ Gas side, (inch) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" |
| Max. refrigerent pipe length,(ft) | 82 | 82 | 82 | 82 | 82 | 98 | 164 |
| Max. diffrence in level,(ft) | 32.8 | 32.8 | 32.8 | 32.8 | 32.8 | 66 | 82 |
| Ambient temperature Cooling, (°F) | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 |
| Heating, (°F) | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 |
Frequently asked questions.
Will this fit my system?
This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.
Is this part included with a mini split system, or sold separately?
This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.
Do you offer support choosing the right part?
Yes — contact us with your system model number and what you need, and we will help you pick the correct part.
What warranty does it come with?
Cooper & Hunter backs it with a 7-year compressor and 5-year parts limited warranty (with professional installation and registration).
Manufacturer Technical Support
Reach your brand's tech support team directly
