8,000 BTU 115V OLMO Through-the-Wall Air Conditioner w/ Remote, Smart Kit, Cooling Only
OLMO1-Yr WarrantySKU: OW-A08AC115WF
Product specifications
- Voltage
- 115V
- WiFi
- Included
- Zone
- Single Zone
- Type
- Through-the-Wall
- Freon
R32
Choose Your Configuration
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
OLMO · STANDARD
Built for year-round comfort
OW-A08AC115WF
System Specs
| Cooling Capacity | 8000 (8300 per HS/HP leaflet cooling-only variant; A-series leaflet lists 8000) BTU/h |
|---|---|
| Voltage | 115V |
| Refrigerant | R32 |
| Compressor | Rotary |
|---|---|
| Sound Level (indoor) | 56 / 52.5 / 49.5 dB(A) |
| Warranty | 1-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight |
|---|---|
| 24.21 × 20.28 × 14.53 in | 63.03 / 75.29 lb |
Product Description

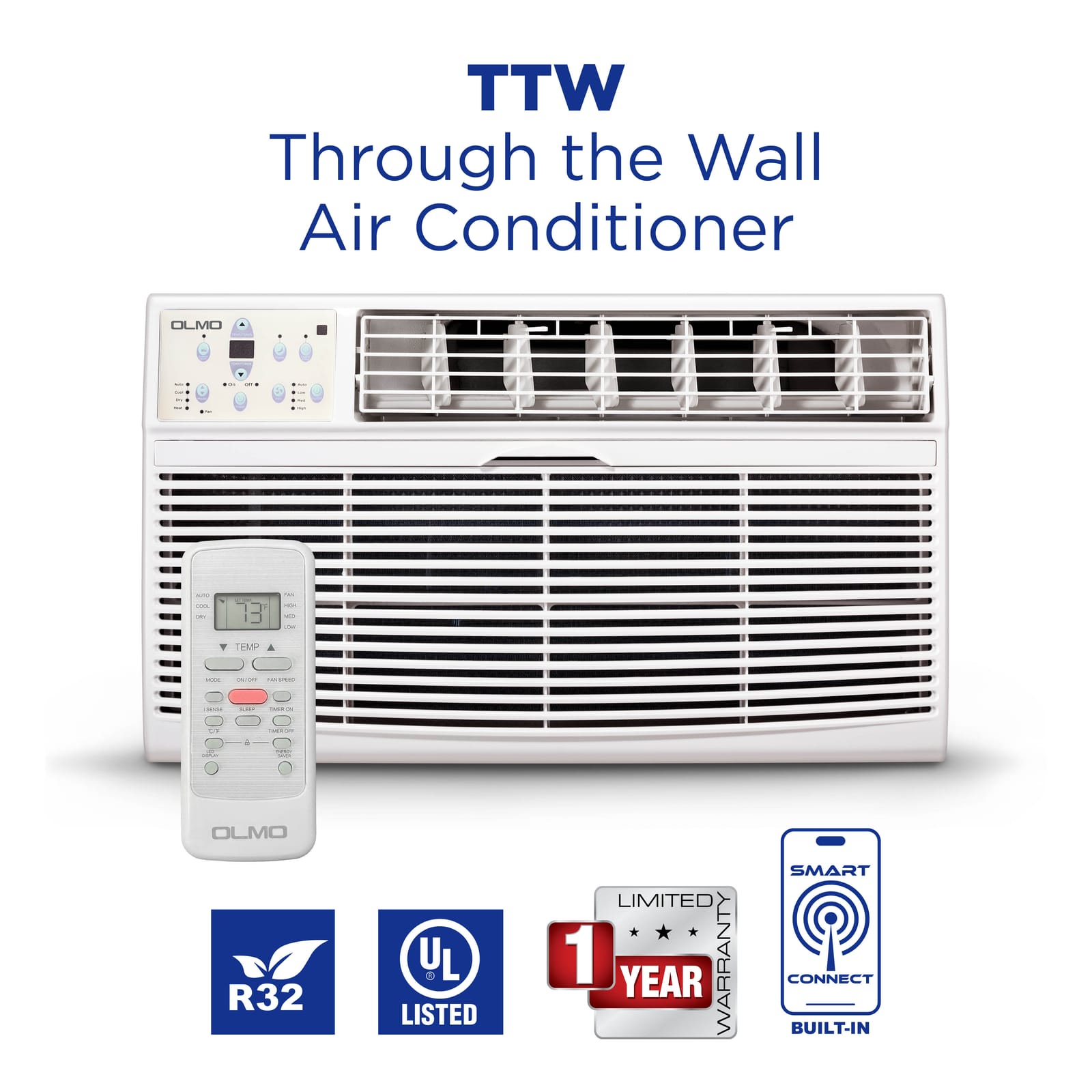

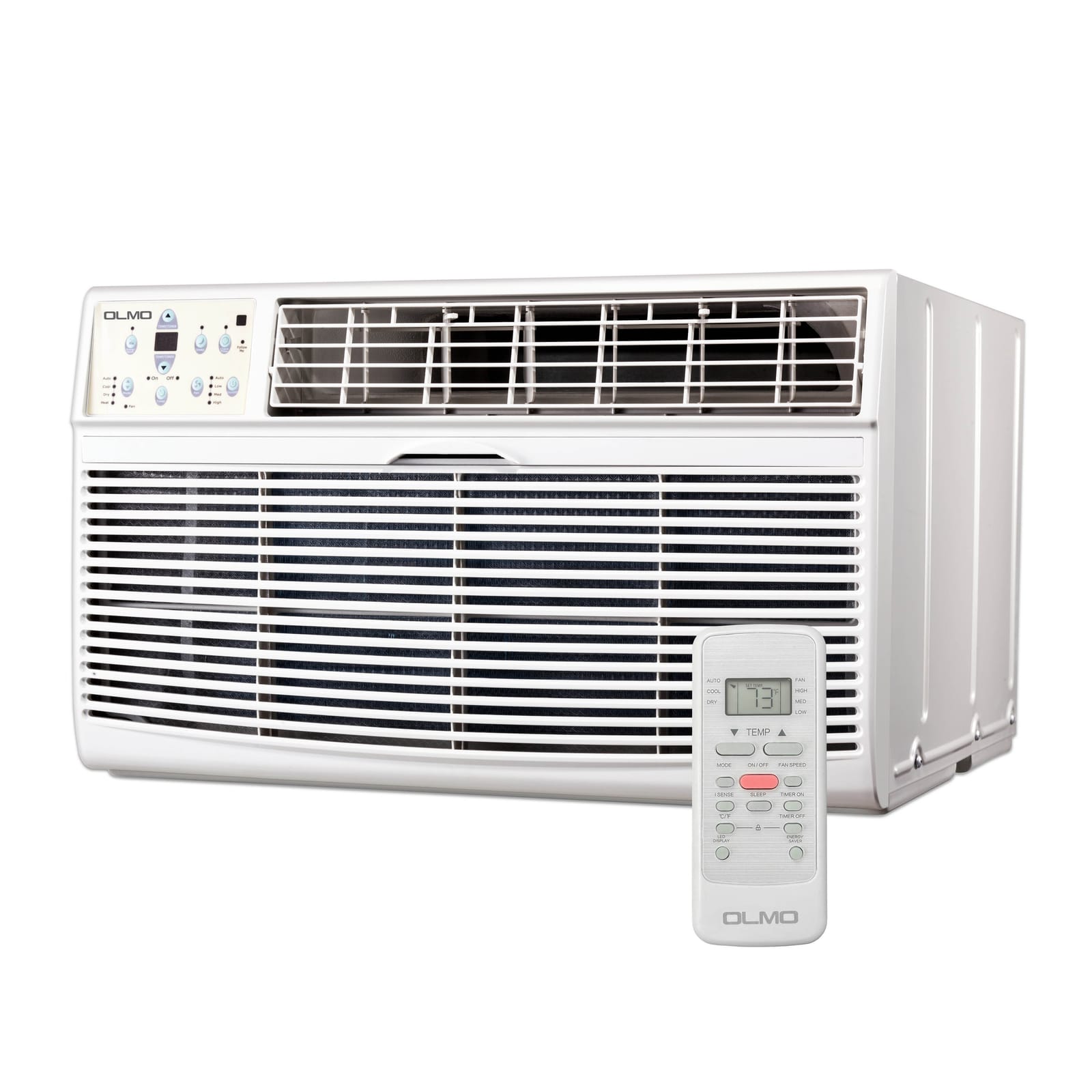

The OLMO 8,000 BTU Through-the-Wall Air Conditioner (115V) is a self-contained room unit that mounts through an exterior wall — no outdoor condenser and no line sets. It delivers cooling only (no heating) for a single room such as an apartment, addition, sunroom, or office. Running on R32 refrigerant with a rotary compressor, it includes a remote and built-in Wi-Fi (Smart Connect). A wall sleeve is required and sold separately.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE

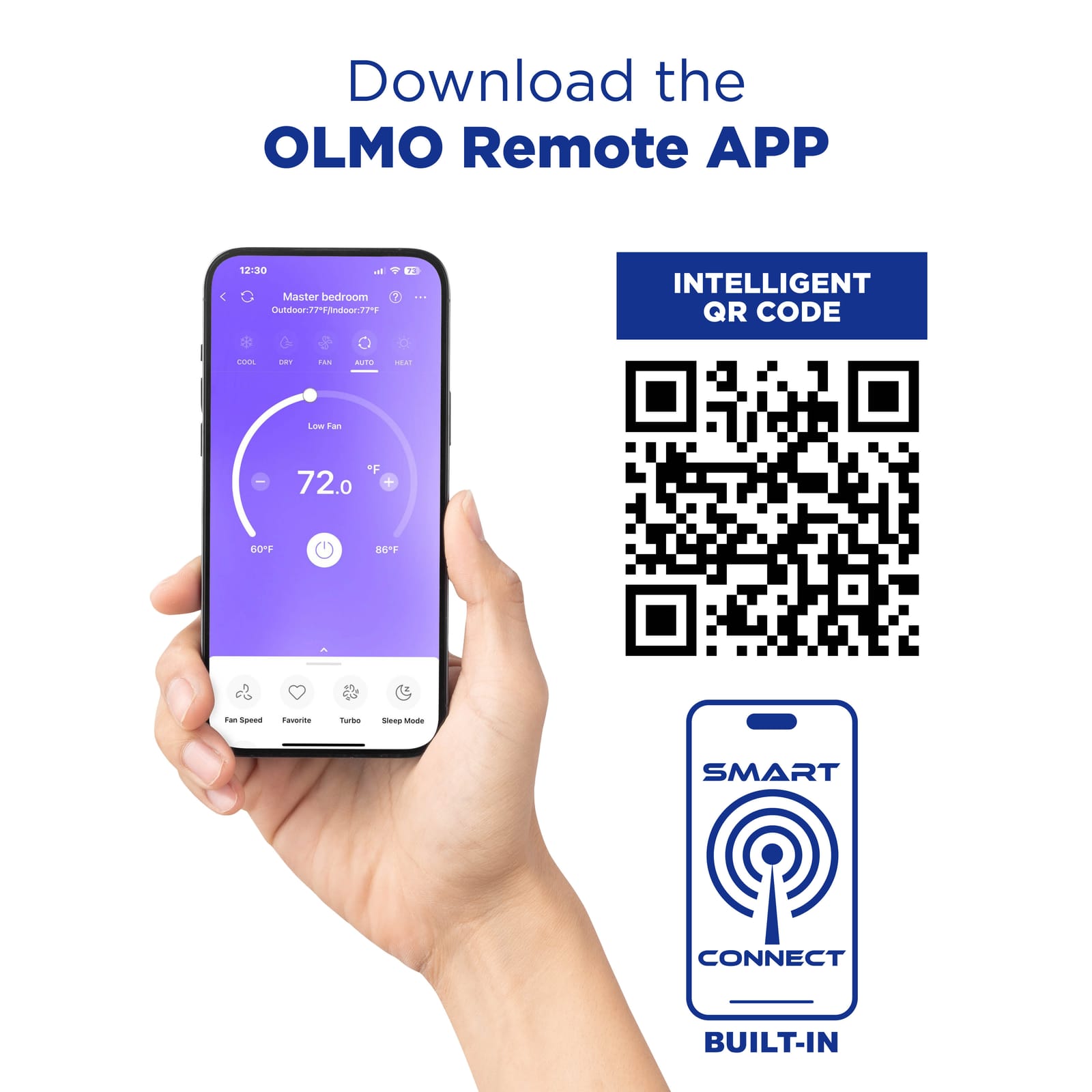

Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 1-year coverage
With product registration after professional installation.
Parts & components: 1-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— OW-A08AC115WF
| Model | OW-A08AC115WF |
|---|---|
| Unit Dimensions (WxDxH) | 24.21x20.28x14.53 in |
| Net/Gross Weight | 63.03/75.29 lb |
| Packing Dimensions (WxDxH) | 27.95x26.57x16.93 in |
| Power Supply | 115V, 1Ph, 60Hz |
| Noise Level | 63.6/59.4/55.9 dB |
| Airflow | 795/670/567 CFM |
| Dehumidification | 40.58 pt/h |
System Specs
| Cooling Capacity | 8000 (8300 per HS/HP leaflet cooling-only variant; A-series leaflet lists 8000) Btu/h |
|---|---|
| Heating | Cooling only |
| CEER / EER | 9.6 / 3.13 (per HS/HP leaflet OW-P08AC row); A-series leaflet lists CEER 9.6 only |

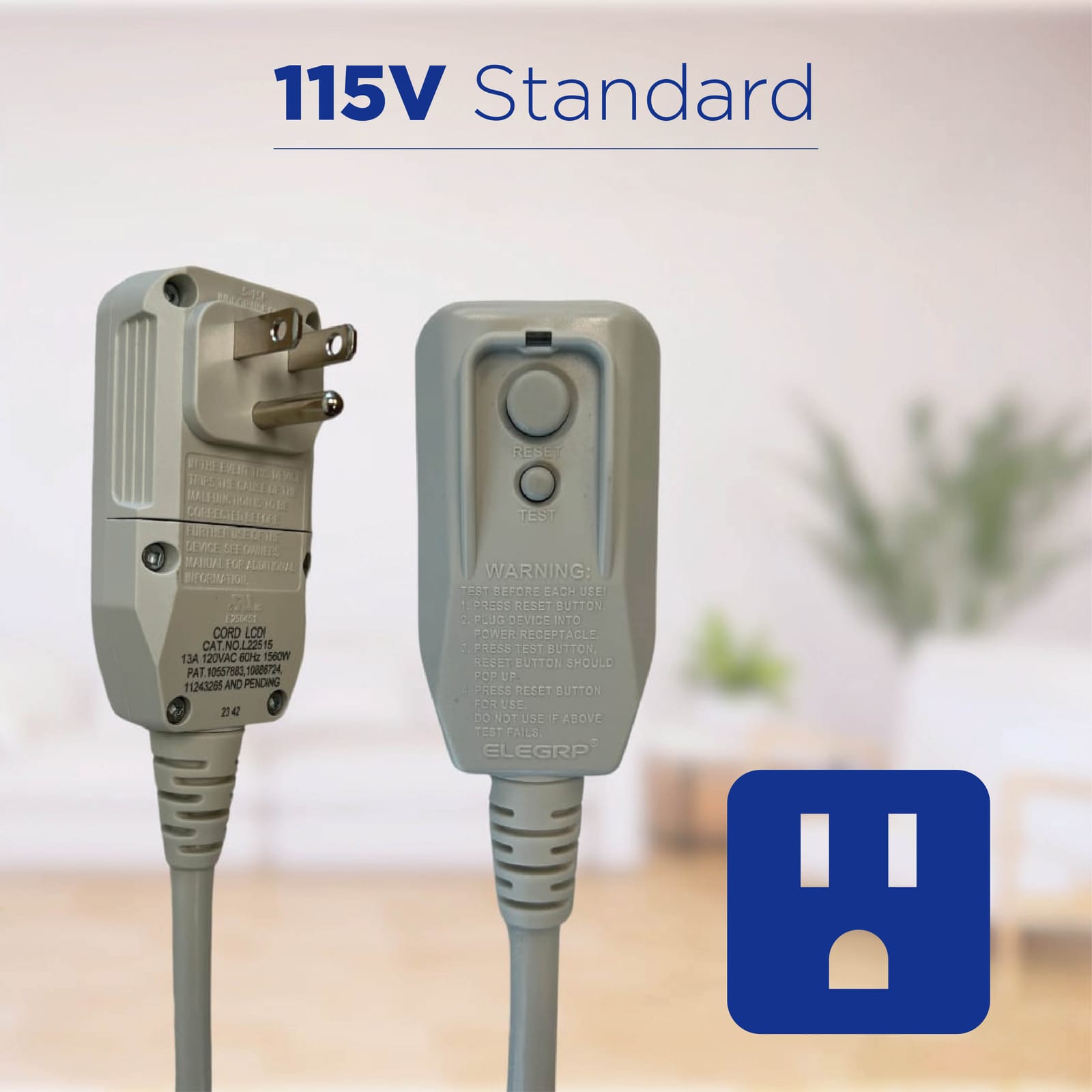

| Plug Type | LCDI (5-15P) |
| Running Current (cool) | 7.08 A |
| Refrigerant / Charge | R32 / 11.28 oz |
| Indoor Noise (Hi/Mid/Lo) | 56 / 52.5 / 49.5 dB(A) |
| Unit Dimensions (W×D×H) | 24.21 x 20.28 x 14.53 in |
| Net / Gross Weight | 63.03 / 75.29 lbs |
| Filter | Compound filter |

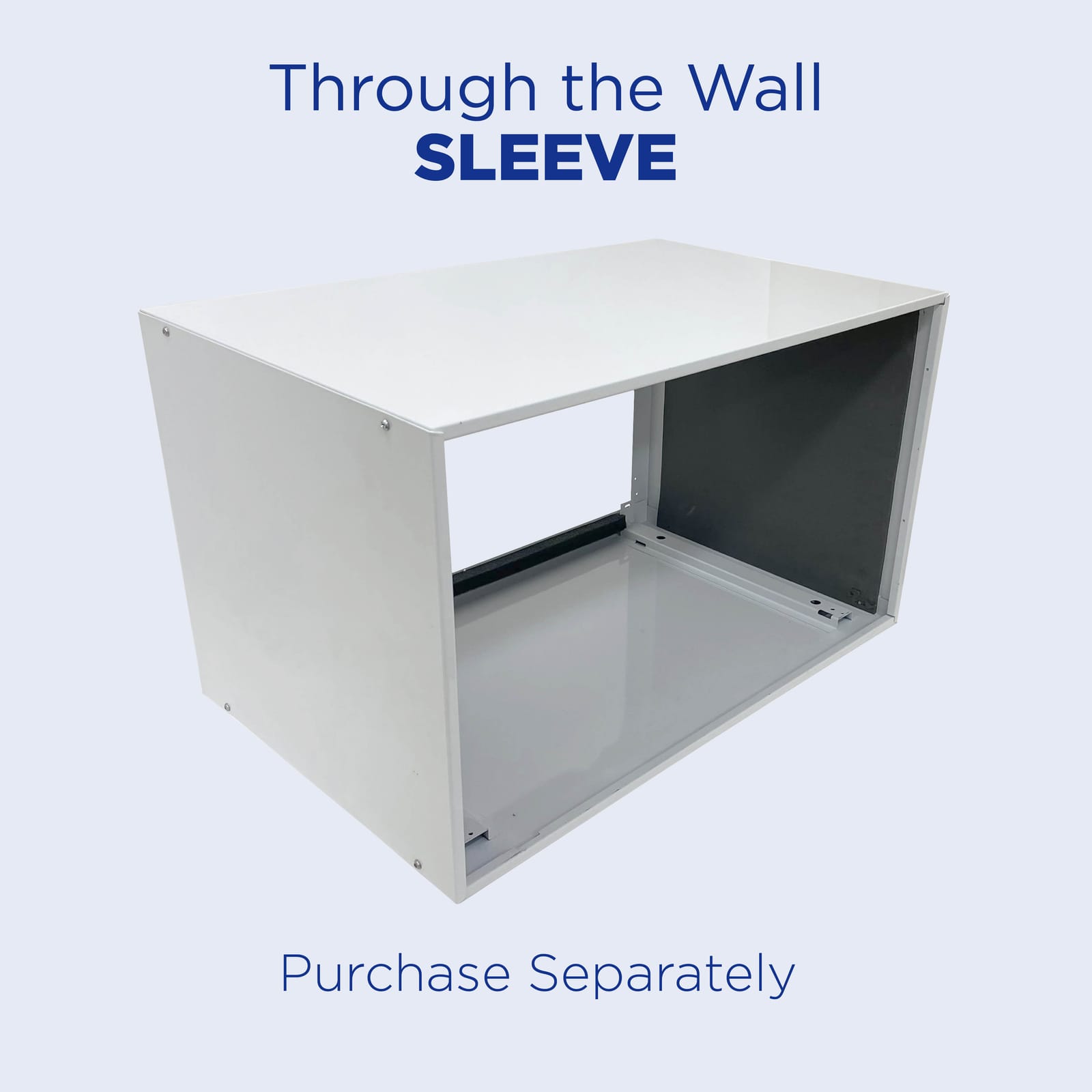

| Wall Sleeve | OW-TTWSLV — sold separately (required for install) |
| Recommended Coverage | up to ~350 sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Model
| Specification | OW-P08AC115WF | OW-P08HS115WF | OW-P12AC115WF | OW-P12AC230WF | OW-P14AC230WF | OW-P12HS230WF | OW-P14HS230WF |
|---|---|---|---|---|---|---|---|
| Power Supply | 115V-1Ph-60 | 115V-1Ph-60 | 115V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Cooling | Capacity | 8300 Btu/h | 8000 Btu/h | 12000 Btu/h | 12000/11700 Btu/h | 14000/13600 Btu/h | 12000/11700 Btu/h |
| EER | 3.11 W/W | 3.13 W/W | 3.08 W/W | 3.08 W/W | 2.78 W/W | 2.98/2.95 W/W | 2.86/2.84 W/W |
| CEER | 10.6 Btu/h/W | 9.6 Btu/h/W | 10.5 Btu/h/W | 10.5 Btu/h/W | 9.5 Btu/h/W | 9.5 Btu/h/W | 9.5 Btu/h/W |
| Input | 760 W | 750 W | 1140 W | 1140/1110 W | 1400/1360 W | 1180/1160 W | 1430/1400 W |
| Current | 7.8 A | 9.4 A | 11.3 A | 5.6/6.3 A | 7.0/7.7 A | 6.5/7.0 A | 7.9/8.5 A |
| Standby Power | 1.25 W | 1.34 W | 1.25 W | 1.435 W | 1.435 W | 1.34 W | - |
| Heating | Rated Capacity | - | 4200 Btu/h | - | - | - | 10600/8600 Btu/h |
| Rated Input (Heater) | - | 1220 W | - | - | - | 3450/2821 W | 3450/2821 W |
| Rated Current | - | 11 A | - | - | - | 15/13.5 A | 15.0/14.0 A |
| Compressor | Type | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY |
| Rated Current (RLA) | 5.10 A | 5.10 A | 7.30 A | 4.18/3.85±3% A | 6.00/5.55±3% A | 4.18/3.85±3% A | 6.00/5.55±3% A |
| Locked Rotor Amp (LRA) | 36 A | 36 A | 49 A | 28.5±10% A | 34.5±10% A | 28.5±10% A | 34.5±10% A |
| Refrigerant Type | R32 | R32 | R32 | R32 | R32 | R32 | R32 |
| Refrigerant Charge (oz) | 10.93 | 11.99 | 17.28 | 16.58 | 17.99 | 17.28 | 19.40 |
| Indoor Air Flow (Hi/Mi/Lo) | 270.0/232.9/202.9 ft3/min | 258.8/227.1/192.4 ft3/min | 276.5/250.6/220.0 ft3/min | 274.7/259.4/237.1 ft3/min | 280.0/264.7/245.3 ft3/min | 273.5/251.8/230.6 ft3/min | 272.4/251.8/232.9 ft3/min |
| Indoor Noise Level (Hi/Mi/Lo) | 55.6/52.4/49.5 dB(A) | 58.7/55.4/52 dB(A) | 59/56.8/55.3 dB(A) | 60.2/59/57.5 dB(A) | 60.5/59.5/58 dB(A) | 61.8/60/58 dB(A) | 62.3/61.2/59.8 dB(A) |
| Outdoor Air Flow (Hi/Med/Lo) | 467.7/394.1/333.5 ft3/min | 424.7/360.6/296.5 ft3/min | 544.1/485.3/424.1 ft3/min | 532.9/497.1/452.9 ft3/min | 554.1/526.5/487.1 ft3/min | 451.2/408.8/366.5 ft3/min | 480.0/439.4/400.0 ft3/min |
| Outdoor Side Noise Level (Hi/Med/Lo) | 63.6/59.4/55.9 dB(A) | 63.5/59.7/55.9 dB(A) | 68.7/65.3/62 dB(A) | 68.3/66.7/63.9 dB(A) | 69.9/68/65.9 dB(A) | 65.4/63.2/61.1 dB(A) | 69.8/67.2/64.8 dB(A) |
| Power Cord Length | 7.02 ft | 5.58 ft | 7.02 ft | 6.50 ft | 6.50 ft | 5.58 ft | 5.58 ft |
| Control Type | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect |
| Operation Temp | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F |
| Outdoor (cooling/heating) | 64-109 °F | 64-109/23-75 °F | 64-109 °F | 64-109 °F | 64-109 °F | 64-109/23-75 °F | 64-109/23-75 °F |
| Dimension (WxDxH) | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in |
| Packing (WxDxH) | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in |
| Net/Gross Weight | 65.48/77.16 lbs | 66.80/77.16 lbs | 74.96/87.52 lbs | 74.52/86.86 lbs | 75.40/87.74 lbs | 74.96/85.76 lbs | 77.38/87.74 lbs |
Frequently asked questions.
What size mini split do I need for my room?
For a room size coverage of up to 350 sq ft, the 8,000 BTU Olmo Through-the-Wall Air Conditioner is an excellent choice. Its efficient design with a SEER rating of 21+ ensures optimal cooling performance for that space.
Can I install a mini split myself?
Yes, you can install the Olmo 8,000 BTU system yourself, especially if you opt for one of the installation kits available (16ft, 25ft, or 50ft). However, ensure you follow the installation guidelines carefully to maintain performance and warranty validity.
Does the mini split come pre-charged with refrigerant?
The Olmo Through-the-Wall Air Conditioner comes pre-charged with R32 refrigerant for line sets up to 25 ft. This feature simplifies the installation process, so you can get your cooling system up and running quickly.
What voltage does the Olmo mini split require?
The Olmo 8,000 BTU unit operates on a standard 115V power supply, making it compatible with most residential electrical systems. Ensure your electrical setup meets this requirement for optimal performance.
What warranty does the Olmo air conditioner offer?
Olmo provides a 5-year parts and compressor warranty on their 8,000 BTU unit, giving you peace of mind regarding your investment. This warranty covers any manufacturing defects and ensures reliable operation.
What is the SEER rating of the Olmo mini split and why is it important?
The Olmo Through-the-Wall Air Conditioner boasts a SEER rating of 21+, indicating high energy efficiency. A higher SEER rating means lower energy costs over time, making it a smart choice for cooling your space.
