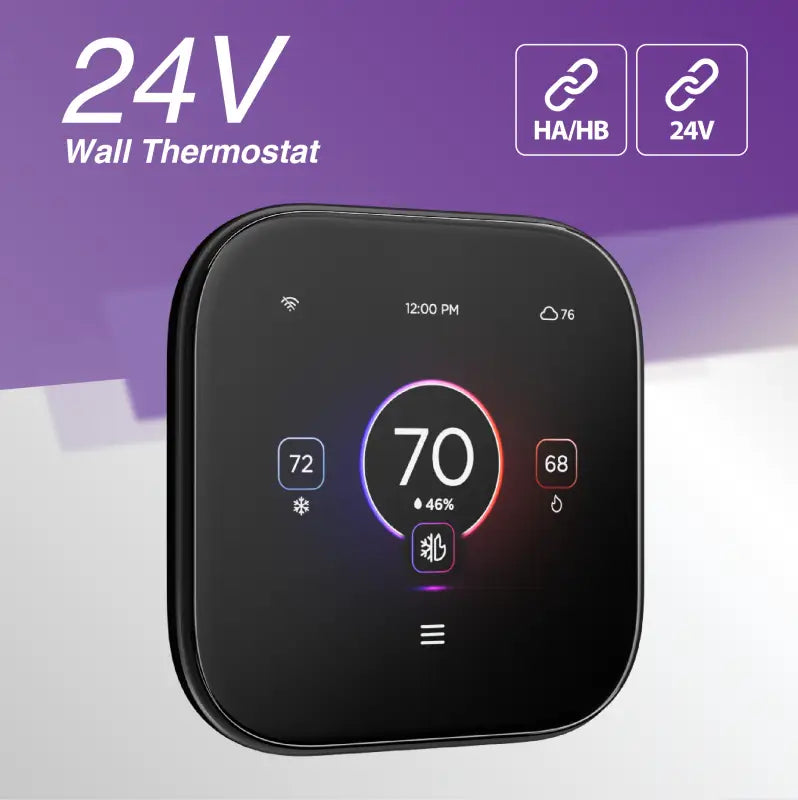

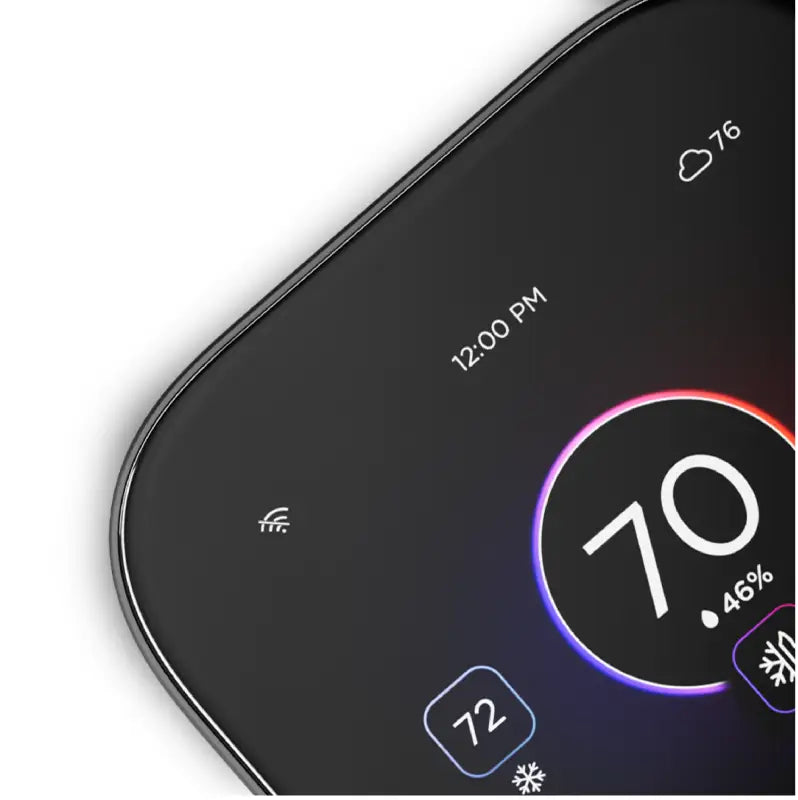

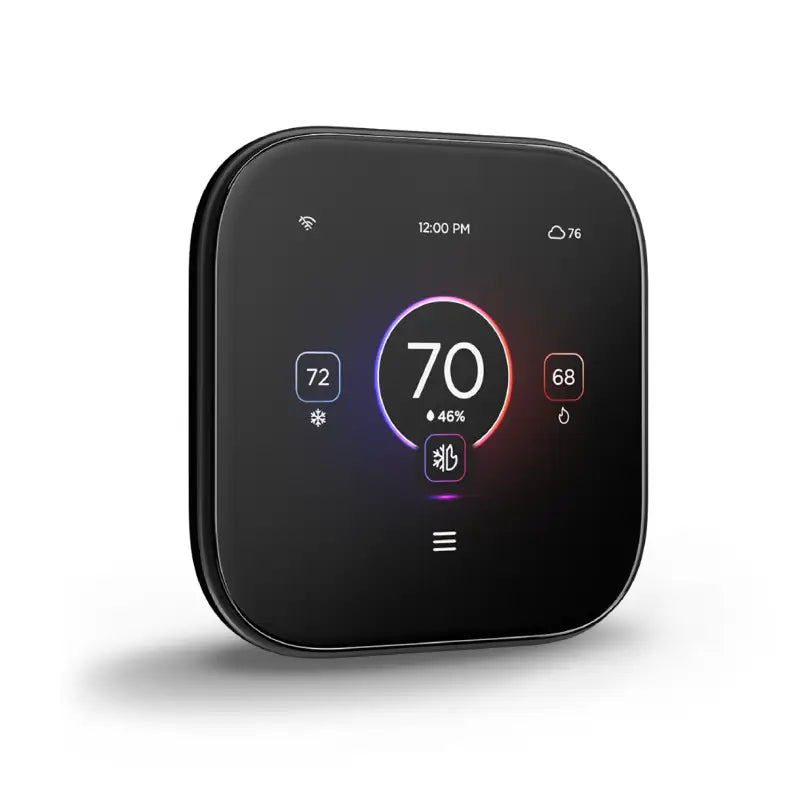

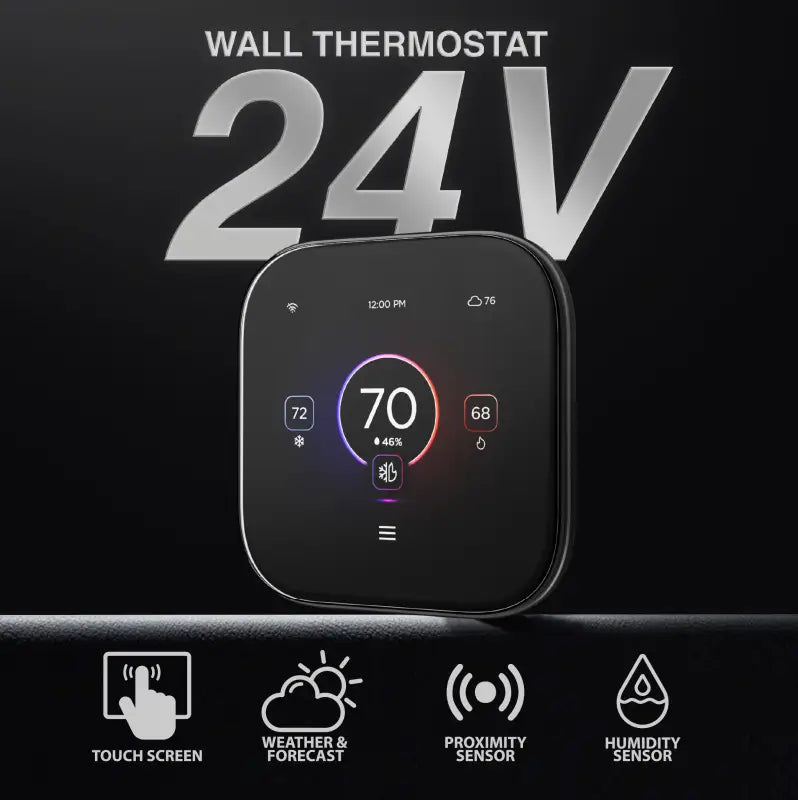

Cooper & Hunter CH-WTH24V Smart HVAC Thermostat with 3.95-Inch Display and Remote App Control – Compatible with HA&HB or 24V Connections
Cooper & HunterSKU: CH-WTH24V
Choose Your Configuration
Fast Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · ACCESSORIES
Built for year-round comfort
CH-WTH24V
Product Description

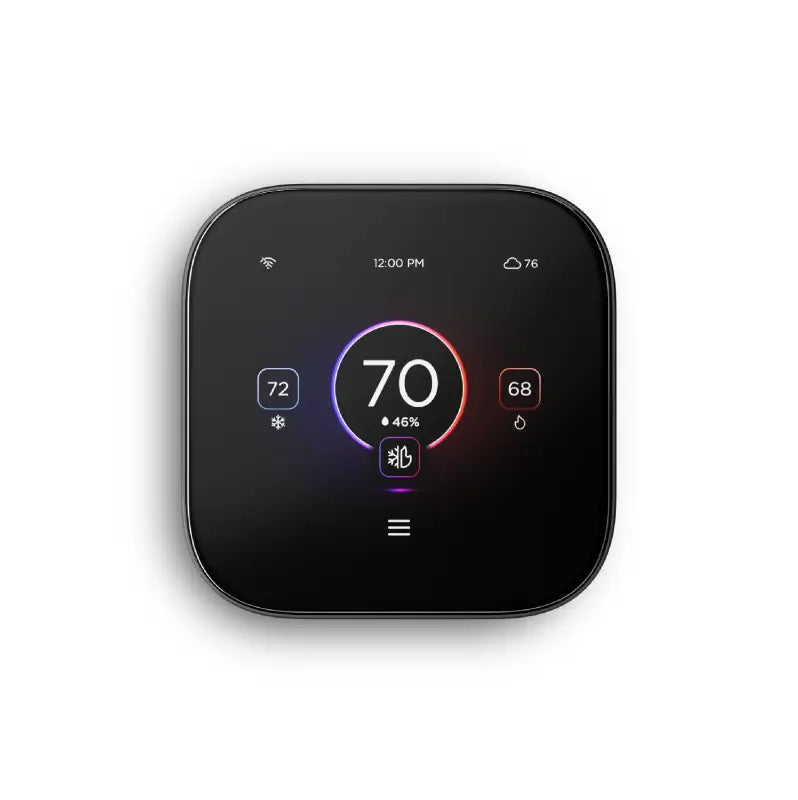

Product Overview The CH-WTH24V is a sleek, modern thermostat designed for seamless control of compatible Cooper & Hunter systems and many standard 24V HVAC systems. It offers advanced scheduling, intuitive controls, and a clear touch display for efficient, user-friendly climate management.
Technical Specifications
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Line Set Model 9mm
| Specification | Line Set Model 13mm | Line Set Diameter (Liquid/Gas Side)* | Pipe Insulation Thickness & Rating | Copper Line Length | 4/16 AWG Cable | Rubber Drain Hose |
|---|---|---|---|---|---|---|
| PJX-N1-C16FTW-MAX | PJX-N1-C16FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 16 FT | 18 FT | 16 FT |
| PJX-N1-C25FTW-MAX | PJX-N1-C25FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 25 FT | 29.5 FT | 16 FT |
| PJX-N1-C50FTW-MAX | PJX-N1-C50FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 50 FT | 55.8 FT | 16 FT |
| PJX-N2-C16FTW-MAX | PJX-N2-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N2-C25FTW-MAX | PJX-N2-C25FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT |
| PJX-N2-C50FTW-MAX | PJX-N2-C50FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
| PJX-N3-C16FTW-MAX | PJX-N3-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N3-C25FTW-MAX | PJX-N3-C25FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT |
| PJX-N3-C50FTW-MAX | PJX-N3-C50FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
| PJX-N4-C16FTW-MAX | PJX-N4-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N4-C25FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT | |
| PJX-N4-C50FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT | |
| PJX-N6-C25FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT | |
| PJX-N6-C50FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
Line Set Model 9mm
| Specification | Line Set Model 13mm | Wall Mount | Duct | Ceiling Cassette | Mini Console | Universal Floor Ceiling | Air Handler | One-Way Cassette |
|---|---|---|---|---|---|---|---|---|
| PJX-N1-C16FTW-MAXPJX-N1-C25FTW-MAXPJX-N1-C50FTW-MAX | PJX-N1-C16FTW-MAX-i05PJX-N1-C25FTW-MAX-i05PJX-N1-C50FTW-MAX-i05 | 6K Btu/h9K Btu/h - 230V | 9K Btu/h | 9K Btu/h | 6K Btu/h9K Btu/h | |||
| PJX-N2-C16FTW-MAXPJX-N2-C25FTW-MAXPJX-N2-C50FTW-MAX | PJX-N2-C16FTW-MAX-i05PJX-N2-C25FTW-MAX-i05PJX-N2-C50FTW-MAX-i05 | 9K Btu/h - 115V12K Btu/h18K Btu/h | 12K Btu/h18K Btu/h | 12K Btu/h18K Btu/h | 12K Btu/h16K Btu/h | 18K Btu/h | 18K Btu/h | 12K Btu/h18K Btu/h |
| PJX-N3-C16FTW-MAXPJX-N3-C25FTW-MAXPJX-N3-C50FTW-MAX | PJX-N3-C16FTW-MAX-i05PJX-N3-C25FTW-MAX-i05PJX-N3-C50FTW-MAX-i05 | 24K Btu/h30K Btu/h36K Btu/h | 24K Btu/h36K Btu/h48K Btu/h | 24K Btu/h36K Btu/h48K Btu/h | 24K Btu/h36K Btu/h48K Btu/h | 24K Btu/h36K Btu/h48K Btu/h | ||
| PJX-N4-C25FTW-MAXPJX-N4-C50FTW-MAX | 48K Btu/h60K Btu/h | 60K Btu/h | ||||||
| PJX-N6-C25FTW-MAXPJX-N6-C50FTW-MAX | 48K Btu/h | 60K Btu/h |
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 21.5HEATS down to 5°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter MIA 6,000 BTU Single Zone Wall Mount, 115V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 18.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 6,000 BTU Single Zone Slim Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 22.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Olivia 6,000 BTU Single Zone One-Way Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.2HEATS down to 5°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter MIA 9,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
-
Product Overview
The CH-WTH24V is a sleek, modern thermostat designed for seamless control of compatible Cooper & Hunter systems and many standard 24V HVAC systems. It offers advanced scheduling, intuitive controls, and a clear touch display for efficient, user-friendly climate management.

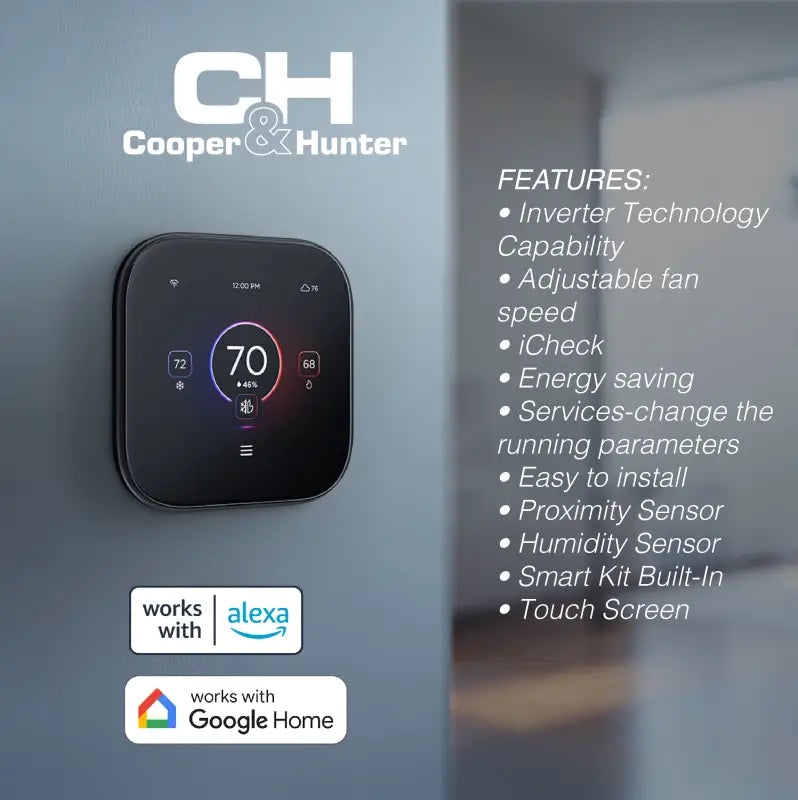

Key Features
-
Compatible with all Cooper & Hunter 454B indoor units (excluding wall-mounted models)
-
Supports C&H 410A Multi-Position Air Handlers
-
Works with various third-party 24V systems
-
Energy-saving operation with UL Listing
-
Clean, modern interface with backlit LCD screen
Display & Controls
-
3.95" full-color LCD touchscreen (480×480 resolution)
-
Displays indoor temperature and humidity (built-in sensor)
-
Weekly schedule timer with up to 4 programmable periods per day
-
Adjustable fan speed & energy-saving modes
-
Error code and status display for easier servicing
-
Delay function: extend operation by 1–2 hours for overtime needs
Functions & Modes
-
Operating Modes: Auto / Cool / Dry / Heat / Fan
-
Fan Speeds: Auto / Low / Medium / High
-
Timer ON/OFF (12-hour & 24-hour format)
-
Auto airflow test, rotation & backup functions
-
Dual/group control support; child lock
-
Auto-restart after power failure
-
Select models support louver swing, Turbo mode, and individual louver control

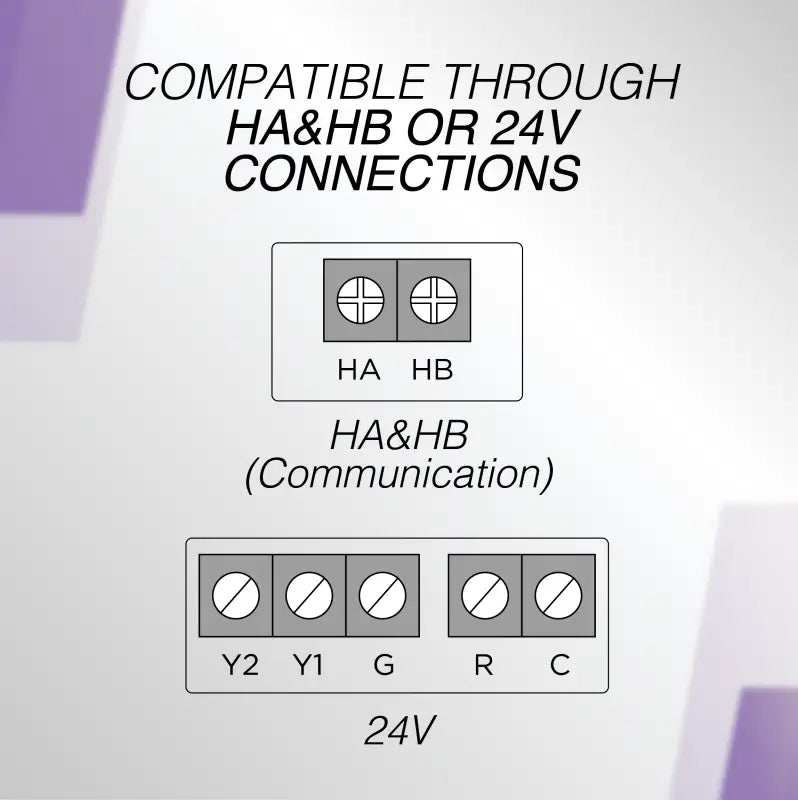

Wiring & Compatibility
Connection Terminals:
Mode Terminals Description HA&HB HA, HB For direct C&H interface 24V Y2, Y1, G, R, C Standard thermostat wiring

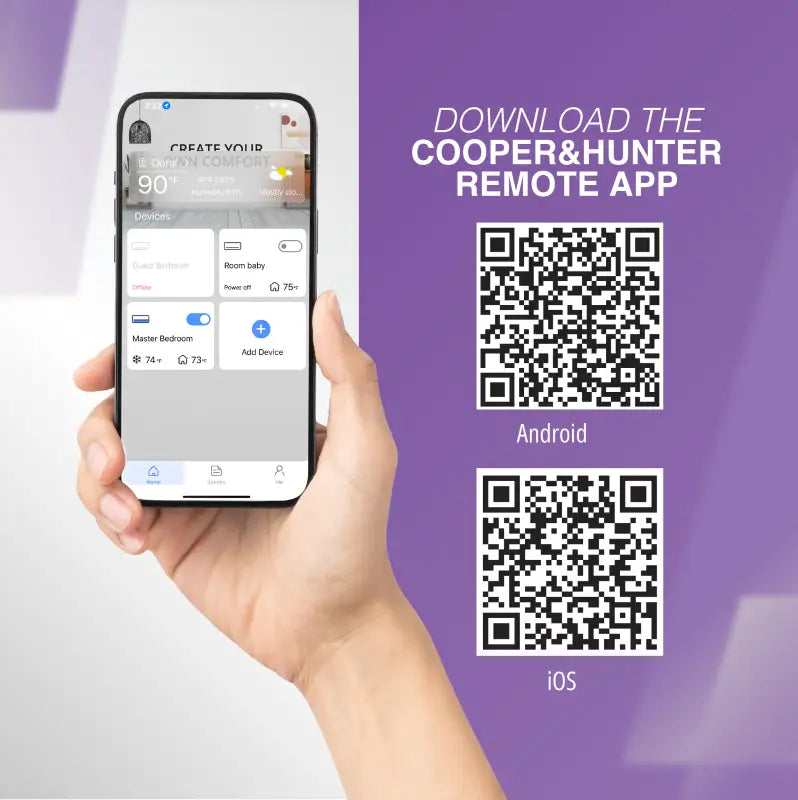

App Connectivity
Control remotely with the Cooper & Hunter Remote App:
-
iOS & Android compatible
-
Scan QR codes on the product sheet or search for:
“Cooper&Hunter Remote App”
Specifications
Feature Details Model CH-WTH24V Display 3.95" LCD touchscreen, 480×480 Power Supply 24V (from indoor unit/control circuit) Temperature Range 62–86 °F Dimensions (H × W) 3.95" × 3.95"
Why Professionals Prefer It
Installers appreciate its clean design and intuitive controls. The readable LCD screen, built-in diagnostics, and scheduling functionality make it ideal for both residential and light commercial settings.

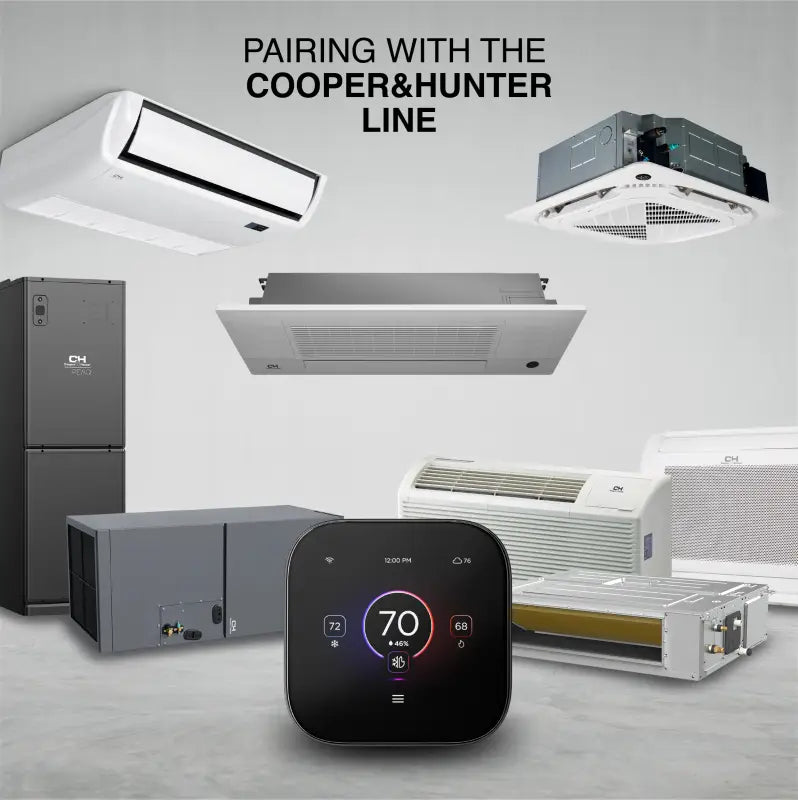

Ideal Applications
Perfect for use with:
-
Cooper & Hunter Ceiling Cassettes
-
Slim Duct systems
-
Universal Floor/Ceiling units
-
Floor Console units
-
Frequently Asked Questions
What’s included in this system?
A complete single-zone system: the indoor unit and its matching outdoor condenser. Choose a line-set kit length at checkout, or supply your own.
Does it heat as well as cool?
Yes — it is an inverter heat pump that both cools and heats. See the specifications for this model’s heating range.
Who should install it?
A licensed HVAC professional — required for the refrigerant, electrical, and startup work, and to keep the manufacturer warranty valid. Many customers buy the equipment here and hire a local installer.
What warranty does it come with?
Cooper & Hunter backs it with a 7-year compressor and 5-year parts limited warranty (with professional installation and registration).
