Bracket Type: Foldable Wall-Mount Bracket
Compatibility: Designed for 9,000 to 36,000 BTU mini split and heat pump systems
Material: Zinc
Weight Capacity: Supports up to 550 lbs
Built-in Features: Integrated vibration control pads and shock absorbers for quieter, more stable operation
Adjustability: Features extendable backstops and adjustable arms to ensure a secure, universal fit
Design: Foldable structure allows for compact storage and efficient shipping
Includes: Complete installation hardware kit for quick and easy setup
Dimensions: 21.6" × 17.7" × 33.4"

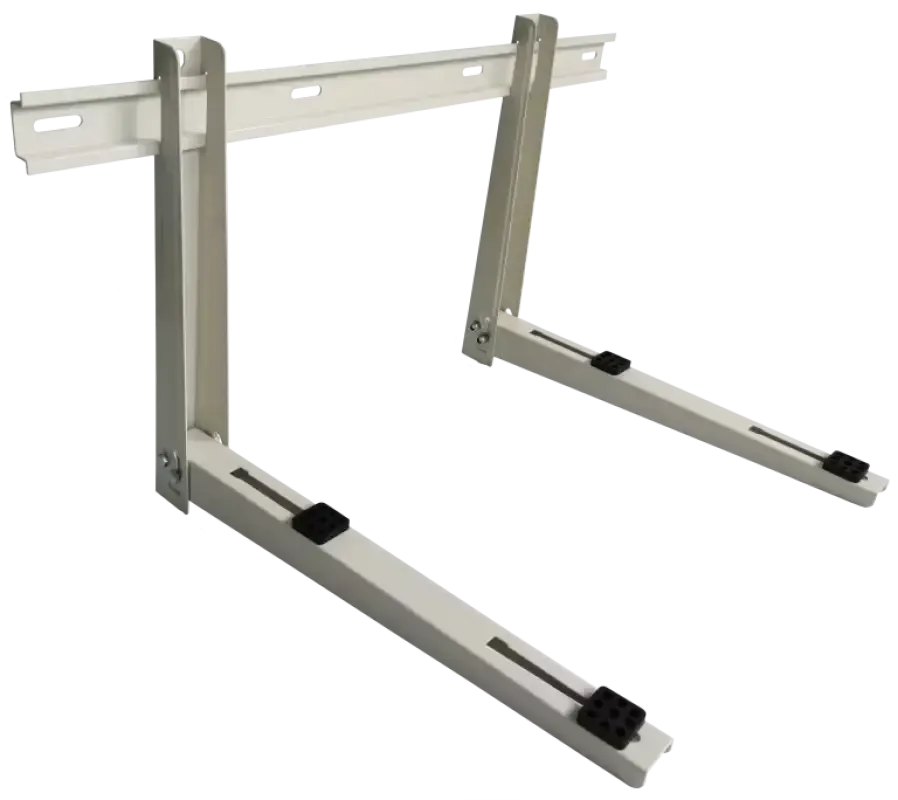

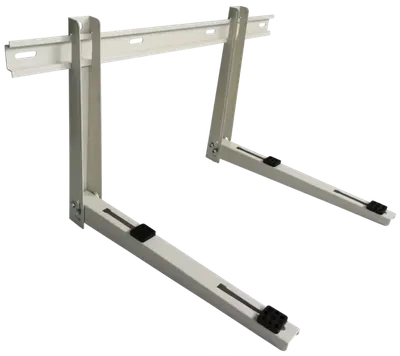

ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)
ArmbridgeSKU: AB-WB
$49.00
As low as $5/mo withaffirm
Choose Your Configuration
Default: Default Title
1
Fast Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
Warranty Included
30-Day Returns
ARMBRIDGE · ACCESSORIES
Built for year-round comfort
AB-WB
Product Description
Bracket Type: Foldable Wall-Mount Bracket Compatibility: Designed for 9,000 to 36,000 BTU mini split and heat pump systems Material: Zinc Weight Capacity: Supports up to 550 lbs Built-in Features: Integrated vibration control pads and shock absorbers for quieter, more stable operation Adjustability: Features extendable backstops and adjustable arms to ensure a secure, universal fit Design: Foldable structure allows for compact storage and efficient shipping Includes: Complete installation hardware kit for quick and easy setup Dimensions: 21.6" × 17.7" × 33.4"
Technical Specifications
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Line Set Model
| Specification | Line Set Diameter Liquid/Gas Side | Copper Line Length | 4/16 AWG Cable |
|---|---|---|---|
| AB1-16FT | 1/4" - 3/8" | 16 FT | 18 FT |
| AB1-25FT | 1/4" - 3/8" | 25 FT | 29.5 FT |
| AB1-50FT | 1/4" - 3/8" | 50 FT | 55.8 FT |
| AB2-16FT | 1/4" - 1/2" | 16 FT | 18 FT |
| AB2-25FT | 1/4" - 1/2" | 25 FT | 29.5 FT |
| AB2-50FT | 1/4" - 1/2" | 50 FT | 55.8 FT |
| AB3-16FT | 3/8" - 5/8" | 16 FT | 18 FT |
| AB3-25FT | 3/8" - 5/8" | 25 FT | 29.5 FT |
| AB3-50FT | 3/8" - 5/8" | 50 FT | 55.8 FT |
| AB4-25FT | 3/8"-3/4" | 25 FT | 29.5 FT |
| AB4-50FT | 3/8"-3/4" | 50 FT | 55.8 FT |
| AB6-25FT | 3/8" - 7/8" | 25 FT | 29.5 FT |
| AB6-50FT | 3/8" - 7/8" | 50 FT | 55.8 FT |
| AB7-25FT | 1/4" - 5/8" | 25 FT | 29.5 FT |
Frequently asked questions.
Will this fit my system?
This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.
Is this part included with a mini split system, or sold separately?
This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.
Do you offer support choosing the right part?
Yes — contact us with your system model number and what you need, and we will help you pick the correct part.
What warranty does it come with?
Cooper & Hunter backs it with a 7-year compressor and 5-year parts limited warranty (with professional installation and registration).
