12,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Heating and Cooling
OLMO1-Yr WarrantySKU: OW-P12HS230WF
Product specifications
- Voltage
- 230V
- WiFi
- Included
- Zone
- Single Zone
- Type
- Through-the-Wall
- Freon
R32
Choose Your Configuration
Size — match your room area
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
OLMO · STANDARD
Built for year-round comfort
OW-P12HS230WF
System Specs
| Cooling Capacity | 12000 (12000/11700 at 208/230V) BTU/h |
|---|---|
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Rotary |
| Climate Range | 64-109 / 23-75 outdoor F |
|---|---|
| Sound Level (indoor) | 61.8 / 60 / 58 dB(A) |
| Warranty | 1-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight |
|---|---|
| 24.21 × 20.28 × 14.53 in | 74.96 / 85.76 lb |
Product Description
The OLMO 12,000 BTU Through-the-Wall Air Conditioner (230V) is a self-contained room unit that mounts through an exterior wall — no outdoor condenser and no line sets. It delivers cooling plus supplemental electric heat-strip heating for a single room such as an apartment, addition, sunroom, or office. Running on R32 refrigerant with a rotary compressor, it includes a remote and built-in Wi-Fi (Smart Connect). A wall sleeve is required and sold separately.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 1-year coverage
With product registration after professional installation.
Parts & components: 1-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— OW-P12HS230WF
| Model | OW-P12HS230WF |
|---|---|
| Unit Dimensions (WxDxH) | 24.21x20.28x14.53 in |
| Net/Gross Weight | 74.96/85.76 lb |
| Packing Dimensions (WxDxH) | 27.95x26.57x16.93 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Noise Level | 65.4/63.2/61.1 dB |
| Airflow | 274/252/231 CFM |
System Specs
| Cooling Capacity | 12000 (12000/11700 at 208/230V) Btu/h |
|---|---|
| Heating | Electric heat strip — 10600 / 8600 (208/230V) Btu/h |
| CEER / EER | 9.5 / 2.98 / 2.95 |

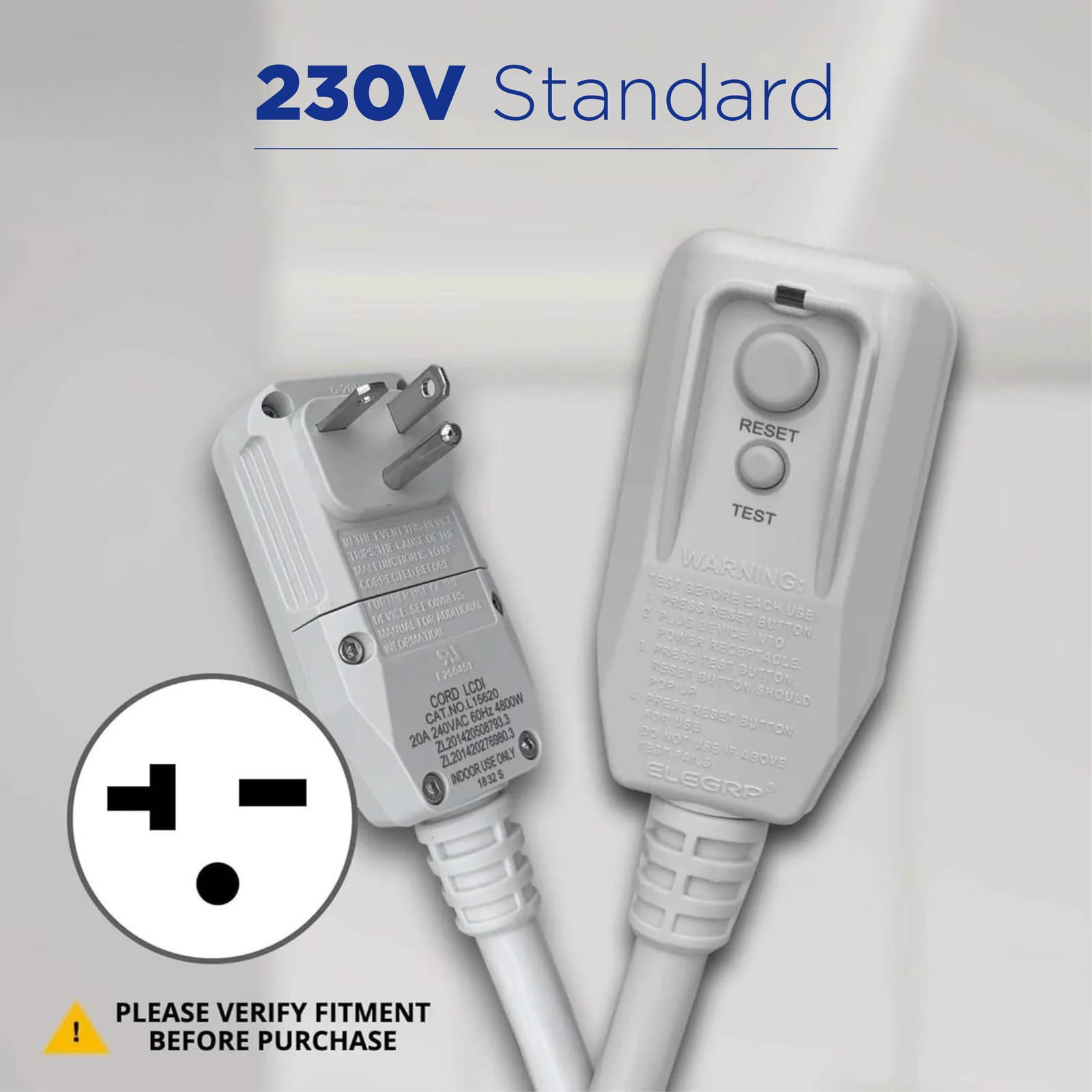

| Plug Type | LCDI 6-20P (per OLMO product page) |
| Running Current (cool) | 6.5 / 7.0 A |
| Refrigerant / Charge | R32 / 17.28 oz |
| Indoor Noise (Hi/Mid/Lo) | 61.8 / 60 / 58 dB(A) |
| Unit Dimensions (W×D×H) | 24.21 x 20.28 x 14.53 in |
| Net / Gross Weight | 74.96 / 85.76 lbs |
| Operating Range (cooling / heating) | 64-109 / 23-75 outdoor F |
| Filter | Compound filter |

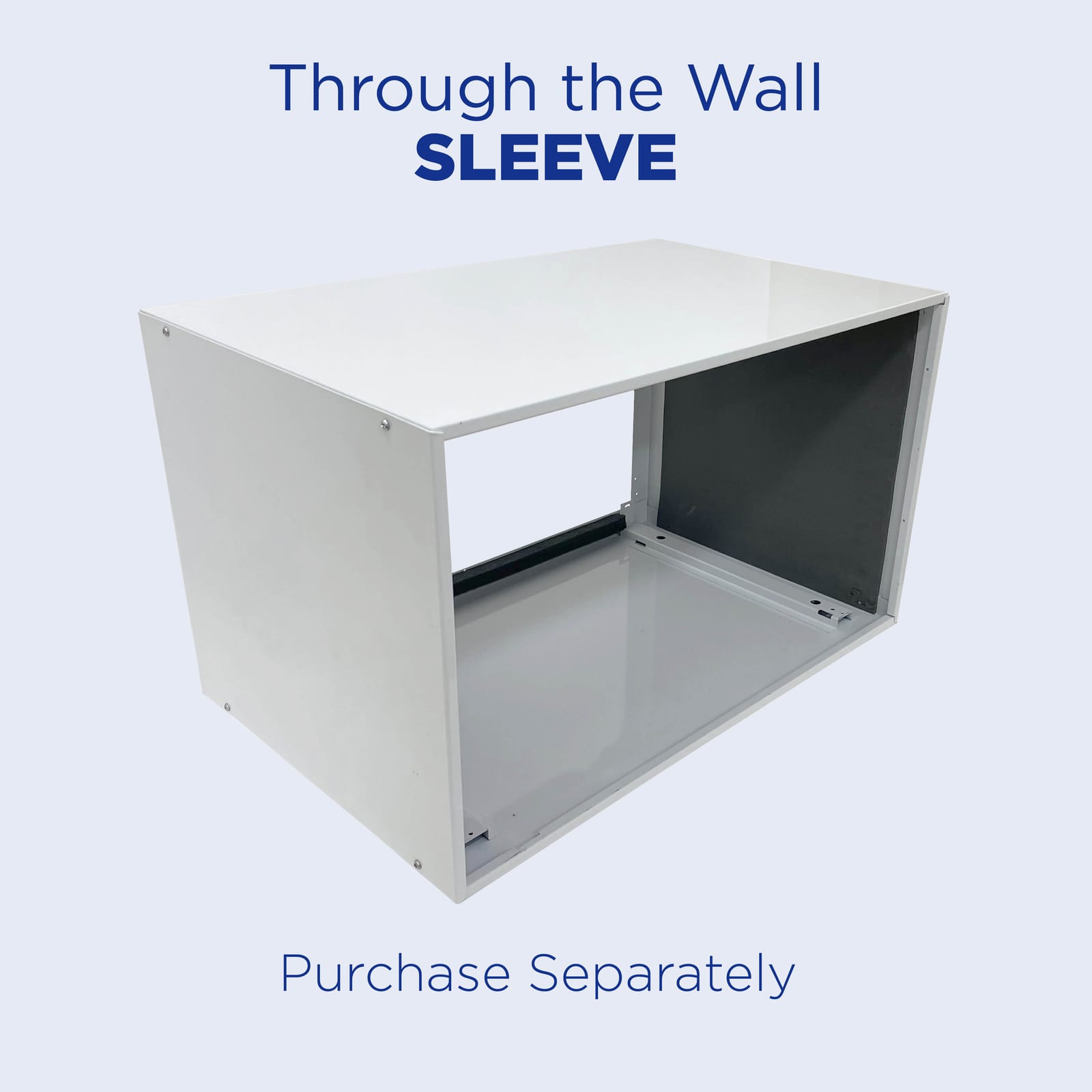

| Wall Sleeve | OW-TTWSLV — sold separately (required for install) |
| Recommended Coverage | up to ~550 sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Model
| Specification | OW-P12HS230WFThis model | OW-P08AC115WF | OW-P08HS115WF | OW-P12AC115WF | OW-P12AC230WF | OW-P14AC230WF | OW-P14HS230WF |
|---|---|---|---|---|---|---|---|
| Power Supply | 208/230V-1Ph-60 | 115V-1Ph-60 | 115V-1Ph-60 | 115V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Cooling | 14000/13600 Btu/h | Capacity | 8300 Btu/h | 8000 Btu/h | 12000 Btu/h | 12000/11700 Btu/h | 12000/11700 Btu/h |
| EER | 2.98/2.95 W/W | 3.11 W/W | 3.13 W/W | 3.08 W/W | 3.08 W/W | 2.78 W/W | 2.86/2.84 W/W |
| CEER | 9.5 Btu/h/W | 10.6 Btu/h/W | 9.6 Btu/h/W | 10.5 Btu/h/W | 10.5 Btu/h/W | 9.5 Btu/h/W | 9.5 Btu/h/W |
| Input | 1180/1160 W | 760 W | 750 W | 1140 W | 1140/1110 W | 1400/1360 W | 1430/1400 W |
| Current | 6.5/7.0 A | 7.8 A | 9.4 A | 11.3 A | 5.6/6.3 A | 7.0/7.7 A | 7.9/8.5 A |
| Standby Power | 1.34 W | 1.25 W | 1.34 W | 1.25 W | 1.435 W | 1.435 W | - |
| Heating | - | Rated Capacity | - | 4200 Btu/h | - | - | 10600/8600 Btu/h |
| Rated Input (Heater) | 3450/2821 W | - | 1220 W | - | - | - | 3450/2821 W |
| Rated Current | 15/13.5 A | - | 11 A | - | - | - | 15.0/14.0 A |
| Compressor | ROTARY | Type | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY |
| Rated Current (RLA) | 4.18/3.85±3% A | 5.10 A | 5.10 A | 7.30 A | 4.18/3.85±3% A | 6.00/5.55±3% A | 6.00/5.55±3% A |
| Locked Rotor Amp (LRA) | 28.5±10% A | 36 A | 36 A | 49 A | 28.5±10% A | 34.5±10% A | 34.5±10% A |
| Refrigerant Type | R32 | R32 | R32 | R32 | R32 | R32 | R32 |
| Refrigerant Charge (oz) | 17.28 | 10.93 | 11.99 | 17.28 | 16.58 | 17.99 | 19.40 |
| Indoor Air Flow (Hi/Mi/Lo) | 273.5/251.8/230.6 ft3/min | 270.0/232.9/202.9 ft3/min | 258.8/227.1/192.4 ft3/min | 276.5/250.6/220.0 ft3/min | 274.7/259.4/237.1 ft3/min | 280.0/264.7/245.3 ft3/min | 272.4/251.8/232.9 ft3/min |
| Indoor Noise Level (Hi/Mi/Lo) | 61.8/60/58 dB(A) | 55.6/52.4/49.5 dB(A) | 58.7/55.4/52 dB(A) | 59/56.8/55.3 dB(A) | 60.2/59/57.5 dB(A) | 60.5/59.5/58 dB(A) | 62.3/61.2/59.8 dB(A) |
| Outdoor Air Flow (Hi/Med/Lo) | 451.2/408.8/366.5 ft3/min | 467.7/394.1/333.5 ft3/min | 424.7/360.6/296.5 ft3/min | 544.1/485.3/424.1 ft3/min | 532.9/497.1/452.9 ft3/min | 554.1/526.5/487.1 ft3/min | 480.0/439.4/400.0 ft3/min |
| Outdoor Side Noise Level (Hi/Med/Lo) | 65.4/63.2/61.1 dB(A) | 63.6/59.4/55.9 dB(A) | 63.5/59.7/55.9 dB(A) | 68.7/65.3/62 dB(A) | 68.3/66.7/63.9 dB(A) | 69.9/68/65.9 dB(A) | 69.8/67.2/64.8 dB(A) |
| Power Cord Length | 5.58 ft | 7.02 ft | 5.58 ft | 7.02 ft | 6.50 ft | 6.50 ft | 5.58 ft |
| Control Type | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect |
| Operation Temp | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F |
| Outdoor (cooling/heating) | 64-109/23-75 °F | 64-109 °F | 64-109/23-75 °F | 64-109 °F | 64-109 °F | 64-109 °F | 64-109/23-75 °F |
| Dimension (WxDxH) | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in |
| Packing (WxDxH) | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in |
| Net/Gross Weight | 74.96/85.76 lbs | 65.48/77.16 lbs | 66.80/77.16 lbs | 74.96/87.52 lbs | 74.52/86.86 lbs | 75.40/87.74 lbs | 77.38/87.74 lbs |
Frequently asked questions.
What size mini split do I need for my room?
For optimal performance, the Olmo 12,000 BTU mini split is suitable for spaces up to 550 sq ft. This makes it ideal for medium-sized rooms such as living areas or bedrooms.
How much does a mini split system like Olmo cost?
The price of the Olmo 12,000 BTU mini split can vary based on installation kits, but it generally offers competitive pricing for its features. Given its 21+ SEER rating, it provides excellent value for energy efficiency.
Can I install the Olmo mini split myself?
While some homeowners choose to install the Olmo mini split system themselves, it requires knowledge of HVAC systems and tools. If you're not experienced, consider hiring a professional to ensure proper setup and compliance with local codes.
Does the Olmo mini split come pre-charged with refrigerant?
Yes, the Olmo 12,000 BTU mini split comes pre-charged with R32 refrigerant for up to 25 ft of line set. This allows for a more straightforward installation process, as you won't need to add refrigerant during setup.
What voltage does the Olmo mini split require?
The Olmo 12,000 BTU unit operates on a 230V power supply. Ensure your electrical system can accommodate this voltage for optimal performance.
What warranty does the Olmo mini split offer?
The Olmo 12,000 BTU mini split provides a 5-year parts and compressor warranty, giving you peace of mind regarding its longevity and reliability.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32HEATS down to 23°FCOOLS up to 109°F
1-Yr Warranty
Cooper & HunterCooper & Hunter 9,000 BTU PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and RemoteFree Shipping
- R32Heats & Cools
1-Yr Warranty
OLMO12,000 BTU PTAC OLMO Air Conditioner, Heat Strip, Heating And Cooling w/Electric Cord and RemoteFree Shipping
- R32HEATS down to 23°FCOOLS up to 109°F
1-Yr Warranty
Cooper & HunterCooper & Hunter 12,000 BTU PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and RemoteFree Shipping
- R32Heats & Cools
1-Yr Warranty
OLMO15,000 BTU PTAC OLMO Air Conditioner, Heat Strip, Heating And Cooling w/Electric Cord and RemoteFree Shipping
The OLMO 12,000 BTU Through-the-Wall Air Conditioner (230V) is a self-contained room unit that mounts through an exterior wall — no outdoor condenser and no line sets. It delivers cooling plus supplemental electric heat-strip heating for a single room such as an apartment, addition, sunroom, or office. Running on R32 refrigerant with a rotary compressor, it includes a remote and built-in Wi-Fi (Smart Connect). A wall sleeve is required and sold separately.
Key Features
- 12,000 Btu/h cooling; electric heat-strip heating up to 10,600 Btu/h
- Through-the-wall design — self-contained, no outdoor unit, no refrigerant lines to run
- 9.5 CEER efficiency; R32 refrigerant
- R32 refrigerant, rotary compressor, self-evaporative condensate system
- Remote control + built-in Wi-Fi (Smart Connect); Auto Restart, Sleep Mode, multiple fan speeds, timer, self-evaporative system, LED display, fresh air input
- Power: 208-230V-1Ph-60Hz, plug LCDI 6-20P (per OLMO product page)
